Lifted it up, released the grease bleed, (track tension) ran a 2x4 under the track to push the idler back, and popped the right track off, all in maybe 5 minutes.
RH bed slide was even worse than the other, but that made it easier to remove.


Last edited:

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ
Then the min ex gods frowned on me again.
The RH drive sprocket is missing three teeth, and a few more are chipped/worn short.
Crap.
No wonder the right side was always worse for steel track problems.
Figured I would weld it up, and re-machine/re-grind the bad teeth.
Spent more than an hour trying to break loose the metric Allen head cap screws. that hold the sprocket to the drive motor.
Extra long Allen key with cheater bar, hand impact, air impact, and electric impact, no dice.
Did not even budge any of them. 🤬
Plus, they are all full of paint & dirt, have to drive the allen key in with a hammer.
Next I will try my 3/4" drive stuff, but I have a feeling I will just break the 8mm to 3/8 drive adapter.

Bad/missing teeth marked with tape:


Last edited:

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ
I can do the weld repair in place, but it would be a hell of a lot easier to do it on a workbench.
And the allen bolts are in blind holes, no way to get PB Blaster or such to the threads.
And I don't think they have ever been off since it was assembled.
🤬


Last edited:

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ
On the plus side, all six track rollers are in good shape.


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ
OK, the 3/4" drive breaker worked; 3/4 reduced to 1/2, reduced to 3/8, reduced to 8mm.
The cap screws are loose, but other duties pulled me off the job again before further progress.

On the upside, I now have a plan.

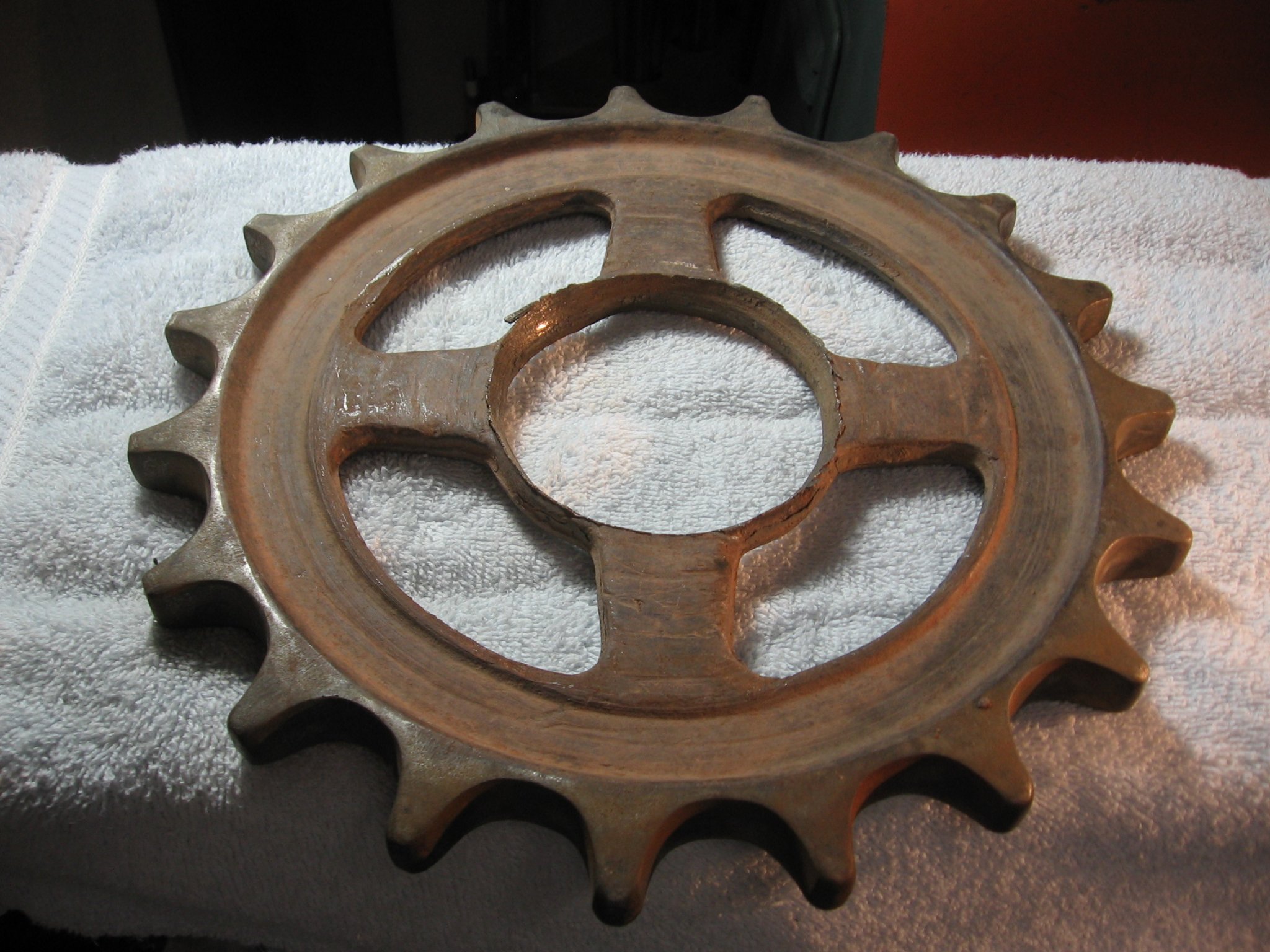

Rather than weld/reshape the broken sprocket, I am planning to make an adapter to re-purpose a bad front idler sprocket to use as a drive sprocket.
It came with the spare parts I got with the mini.

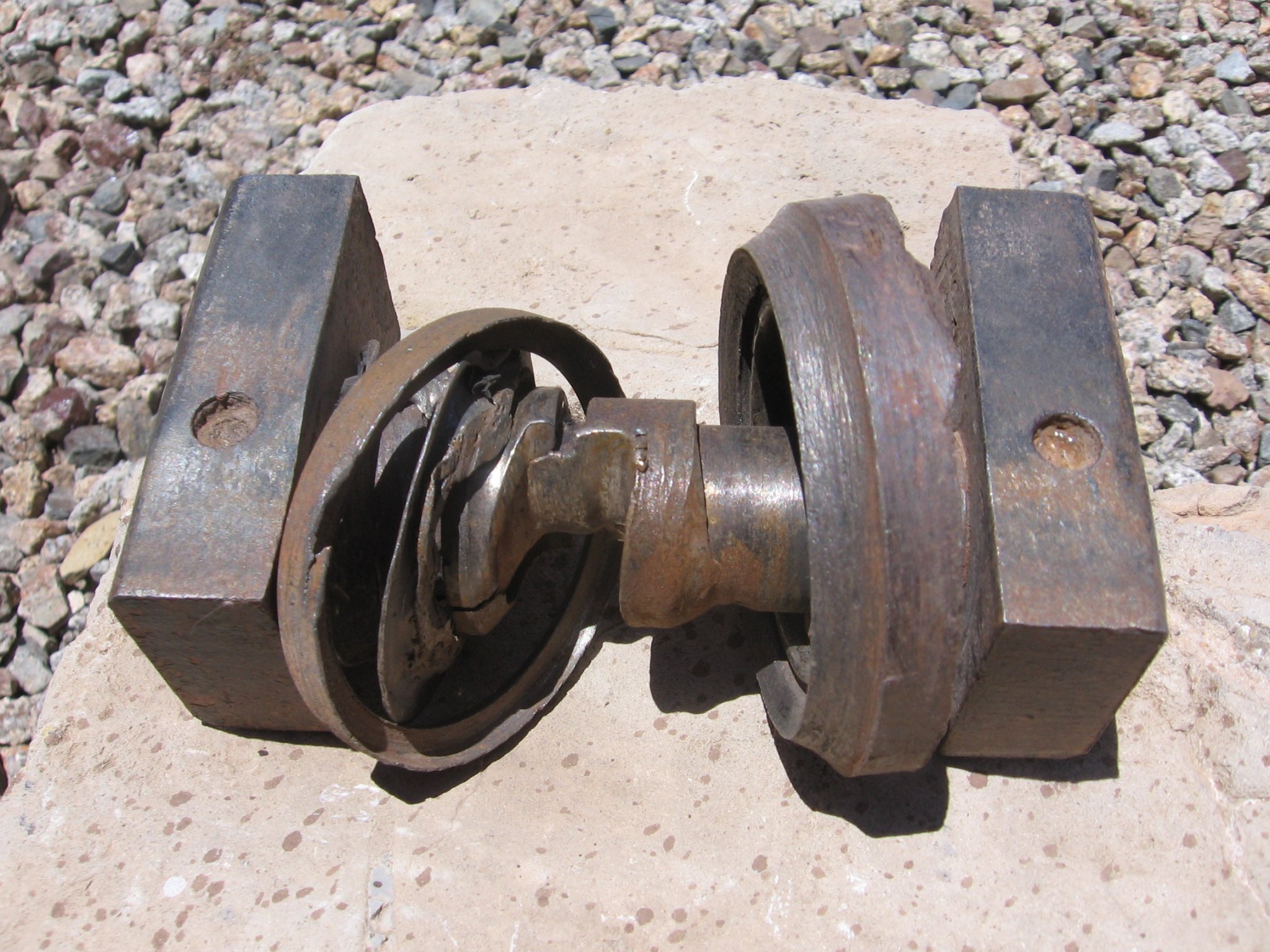

The bearings failed, and they kept using it until the center was destroyed.
The teeth show almost no wear; in fact, it is in better shape than the other (3).
I will have to machine out the spokes, and then make an adapter plate to duplicate the hole pattern & center hole, but fortunately I know a guy who can do that. :)

IMG_0002 copy.JPG

  • Like
Reactions: 1 user

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
1,159
809
113
Eastham, Ma
OK, the 3/4" drive breaker worked; 3/4 reduced to 1/2, reduced to 3/8, reduced to 8mm.
The cap screws are loose, but other duties pulled me off the job again before further progress.

On the upside, I now have a plan.
Rather than weld/reshape the broken sprocket, I am planning to make an adapter to re-purpose a bad front idler sprocket to use as a drive sprocket.
It came with the spare parts I got with the mini.
The bearings failed, and they kept using it until the center was destroyed.
The teeth show almost no wear; in fact, it is in better shape than the other (3).
I will have to machine out the spokes, and then make an adapter plate to duplicate the hole pattern & center hole, but fortunately I know a guy who can do that. :)

View attachment 79630 View attachment 79631
That "guy you know who can do that", is a very talented individual!;)

  • Like
Reactions: 1 users

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ
Thanks!

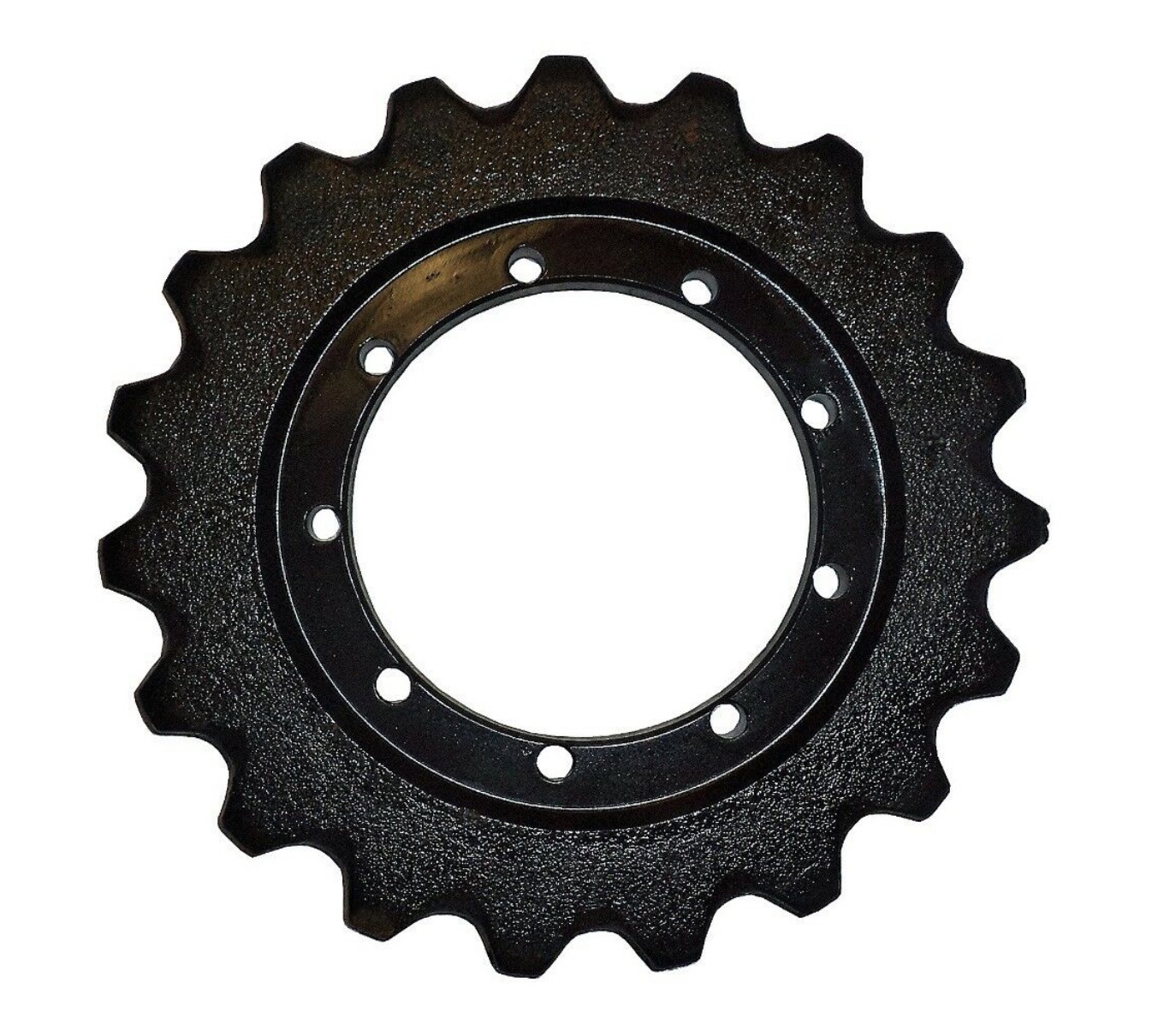

But a new plan has emerged. Today I found that the drive sprockets are still available in England!

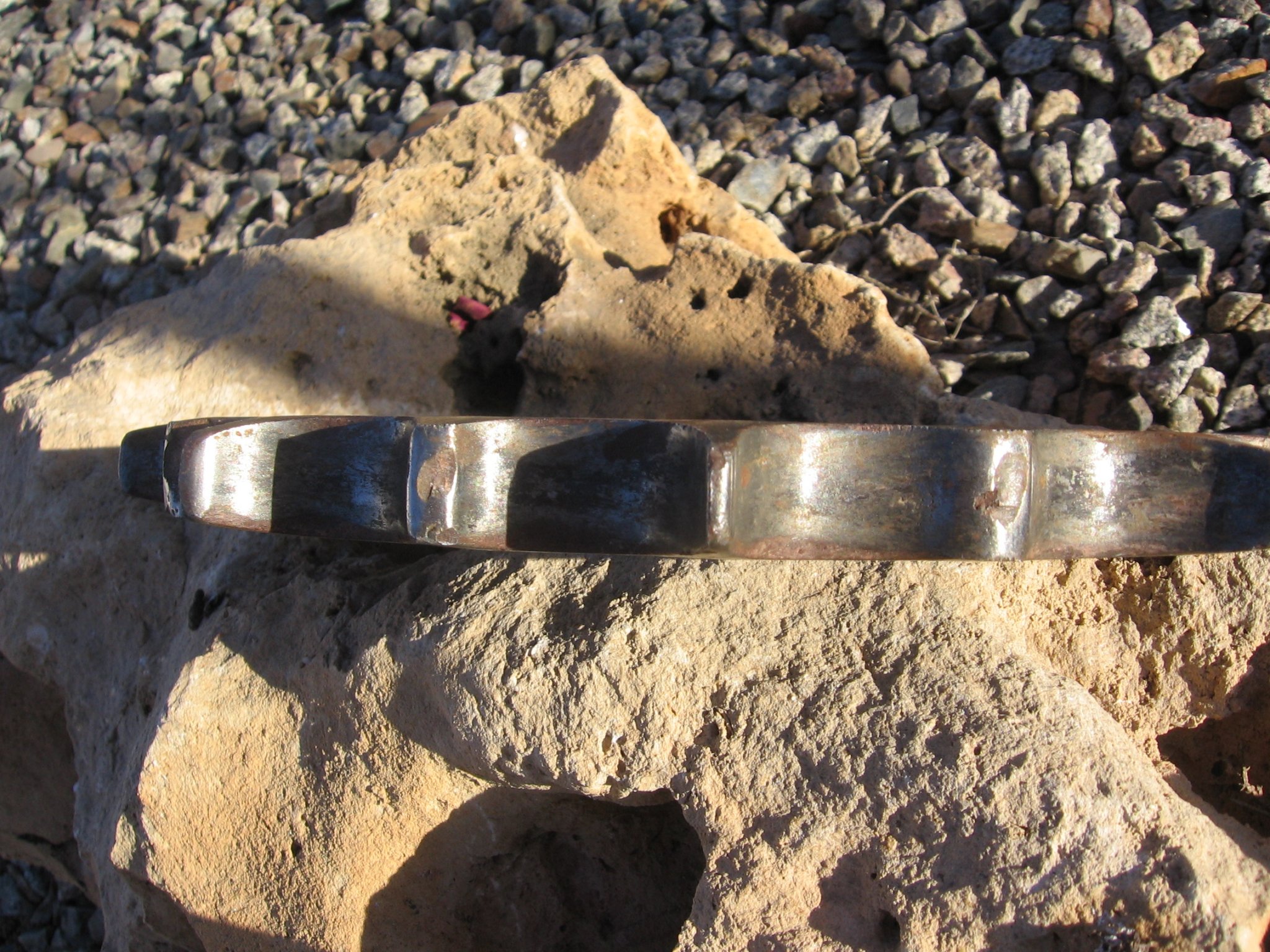

Started to order one, but after seeing the difference in the tooth profile when new, and what mine look like with all that wear, I ordered two. (those steel tracks were a serious mistake)

The tracks will last longer, and I will have more usable adjustment with the new sprockets.
They were not cheap, but they will save me a ton of work, which translates to time, which I don't have much of these days.
By the time they get here, (May 31 to Jun 14) I should have both old sprockets off, hubs cleaned up, new bolts, & ready for installation of the new ones and the new tracks.
My pocket book will be lighter, but so will my work load. (y)


Last edited:
  • Like
Reactions: 1 user

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
1,159
809
113
Eastham, Ma
Thanks!

But a new plan has emerged. Today I found that the drive sprockets are still available in England!
Started to order one, but after seeing the difference in the tooth profile when new, and what mine look like with all that wear, I ordered two. (the steel tracks were a serious mistake)

The tracks will last longer, and I will have more usable adjustment with the new sprockets.
They were not cheap, but they will save me a ton of work, which translates to time, which I don't have much of these days.
By the time they get here, (May 31 to Jun 14) I should have both old sprockets off, hubs cleaned up, new bolts, & ready for installation of the new ones and the new tracks.
My pocket book will be lighter, but so will my work load. (y)

View attachment 79673
A GREAT find!
Ordering two is obviously the wise choice!
The result will be very satisfying!

Last edited:

North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
22,992
1,103
113
Sandpoint, ID
The tracks will get a lot less wear from those drive sprockets!
Your going to have a heck of a nice unit when you get all done fixing it up!


fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
1,159
809
113
Eastham, Ma
A GREAT find!
Ordering two is obviously the wise choice!
The result will be very satisfying!
A piece of chain tying those two old steel tracks together would make a fantastic mooring!


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ
Yesterday (Wednesday) I found a notice on the front door from the UPS guy that he tried to deliver a package and we weren't home.
We were told to expect a package of documents from the lawyer, so we figured that must be what it was.

Today (Thursday) they dellvered the package.

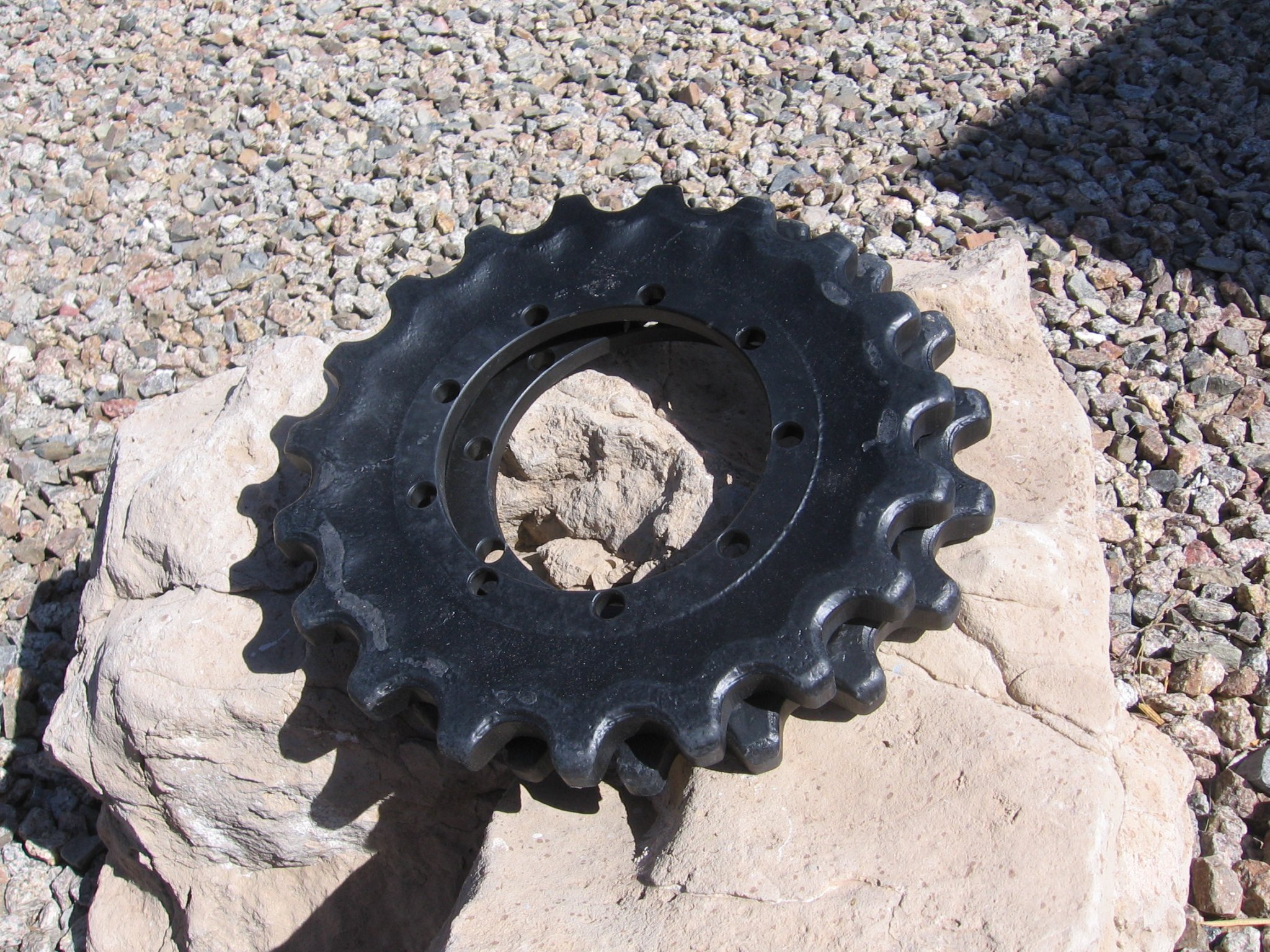

It was the drive sprockets (from England) that I ordered on Sunday evening. 😲
4 day delivery from England? When it was supposed to be May 31 to Jun 14?
I don't get it, but I'm not complaining. :giggle: 🥳

Now I have to find time to install them.

IMG_0006 2.JPG

  • Like
Reactions: 1 users

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
1,159
809
113
Eastham, Ma
Yesterday (Wednesday) I found a notice on the front door from the UPS guy that he tried to deliver a package and we weren't home.
We were told to expect a package of documents from the lawyer, so we figured that must be what it was.

Today (Thursday) they dellvered the package.
It was the drive sprockets (from England) that I ordered on Sunday evening. 😲
4 day delivery from England? When it was supposed to be May 31 to Jun 14?
I don't get it, but I'm not complaining. :giggle: 🥳

Now I have to find time to install them.

View attachment 79904
EXCELLENT !!!!


BAP

Well-known member
Lifetime Member

Equipment
2012 Kubota 2920, 60MMM, FEL, BH65 48" Bush Hog, 60"Backblade, B2782B Snowblower
Dec 31, 2012
2,085
260
83
New Hampshire
Wow! You can’t even ship something across country in that amount of time.


torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, RC54-71B, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,148
394
83
Muskoka, Ont.
It takes Canada Post that long to fetch it from the mail box.


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
6,173
1,000
113
Peoria, AZ

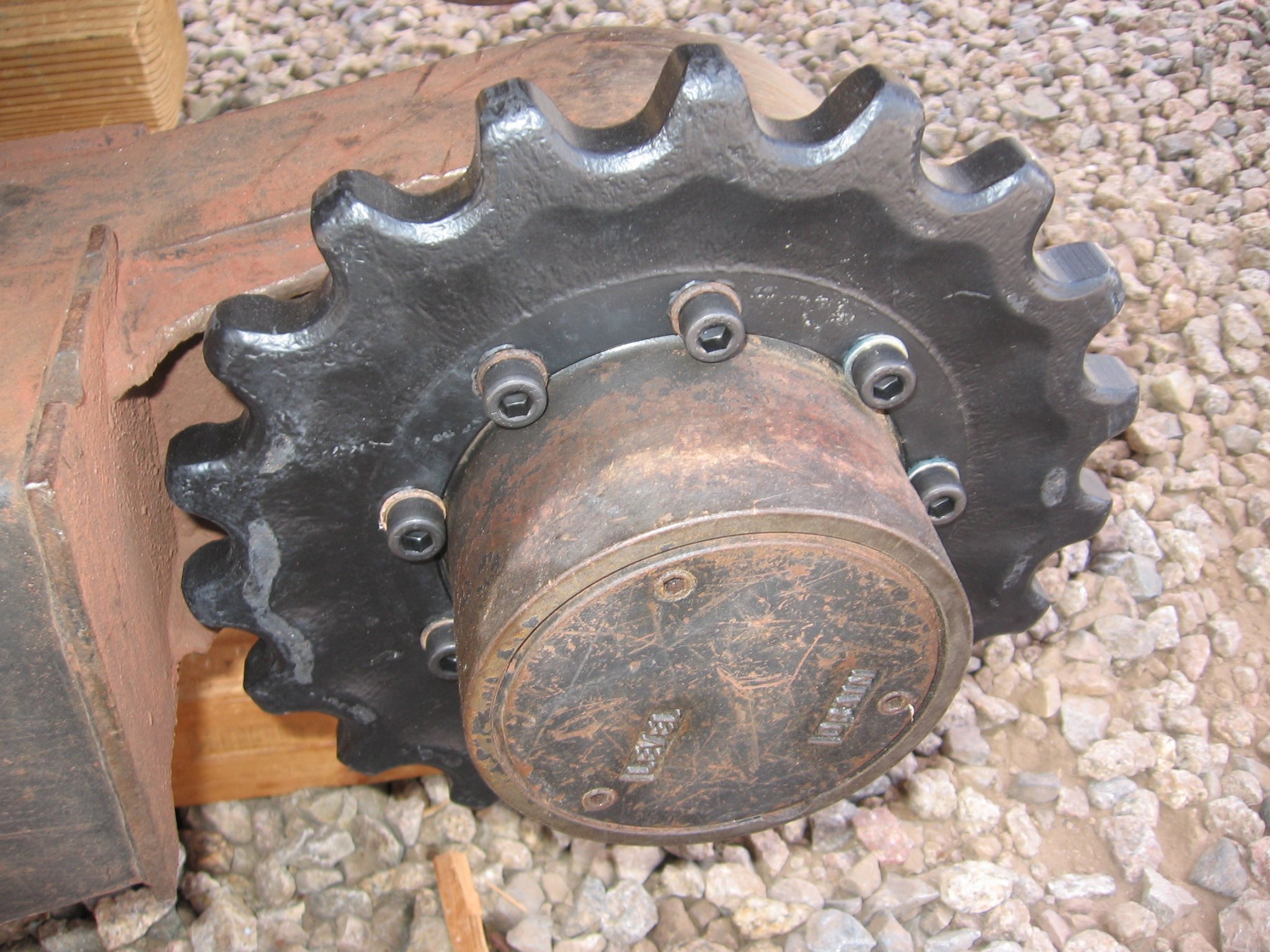

Acorn nuts replaced.

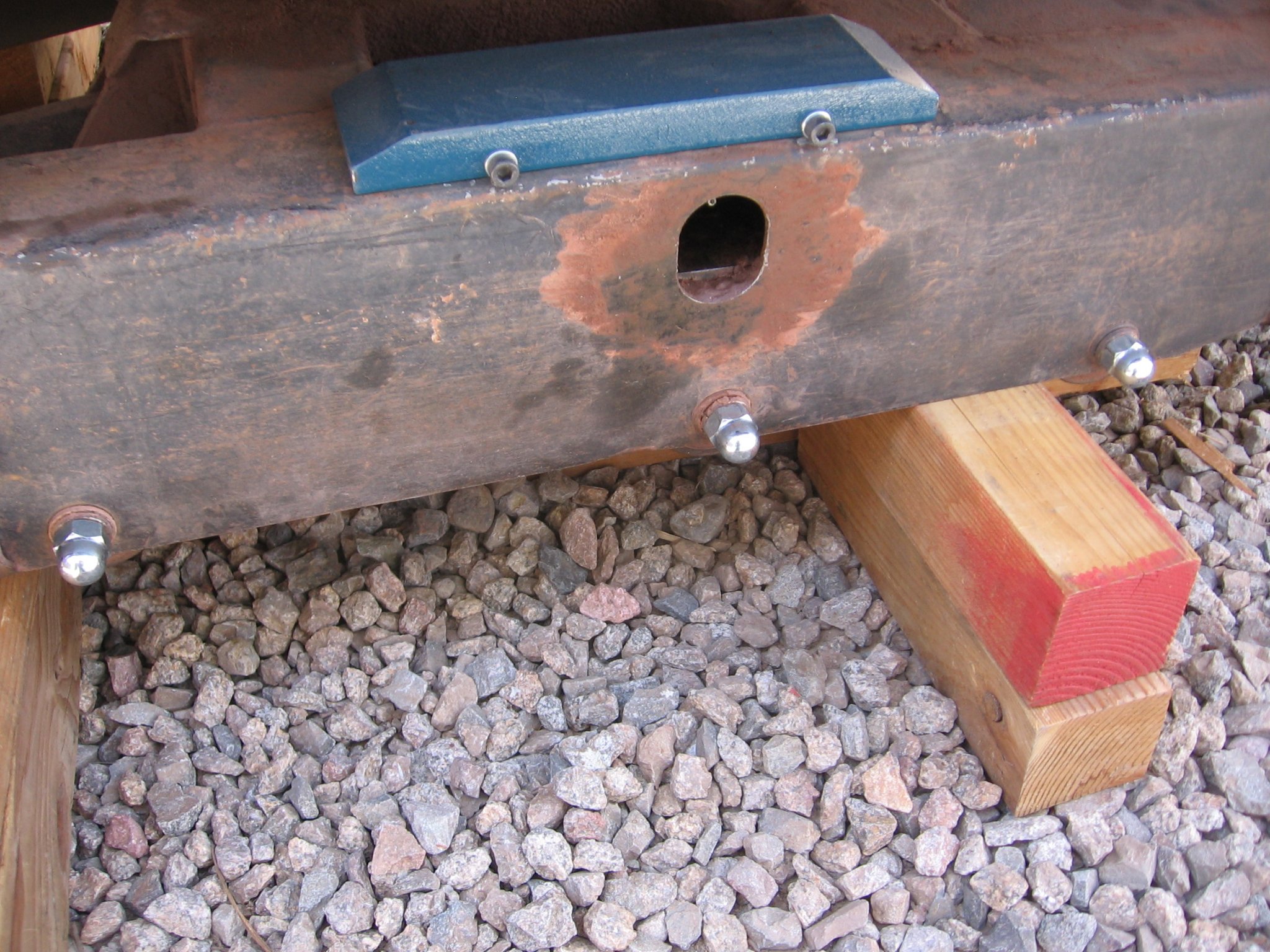

These protect the threaded ends of the track roller axles. 3 outside, 3 inside, on each side.
One was missing, one had been replaced with a standard nut, & the rest were just dented/crushed.
Not necessary for functionality, but they look a whole lot better.
(it was fun finding m16 x 2.0 acorn nuts, $1.00 ea)

  • Like
Reactions: 1 user

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
1,159
809
113
Eastham, Ma
Acorn nuts replaced.
These protect the threaded ends of the track roller axles. 3 outside, 3 inside, on each side.
One was missing, one had been replaced with a standard nut, & the rest were just dented/crushed.
Not necessary for functionality, but they look a whole lot better.
(it was fun finding m16 x 2.0 acorn nuts, $1.00 ea)
View attachment 80292
Very nice!
Your machine will soon look like new!


torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, RC54-71B, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,148
394
83
Muskoka, Ont.
One advantage of living in Canada -- metric hardware is much easier to find.
