Know there’s a lot of guys more savvy than me at this stuff.

I had a 50 amp feed put in for my generator.

The box on the outside of the house came with a 15 foot cord, which has proven to be too short for my situation.

I got a 50 foot cord, and realized it doesn’t have the center pin on the receptacle like the 15 foot cord has.

I didn’t wire the box, but I think the center pin is just for alignment, and is not a conductor?

The pins in the box are two hots and the neutral; the ground is around the outside perimeter of the plug and receptacle?

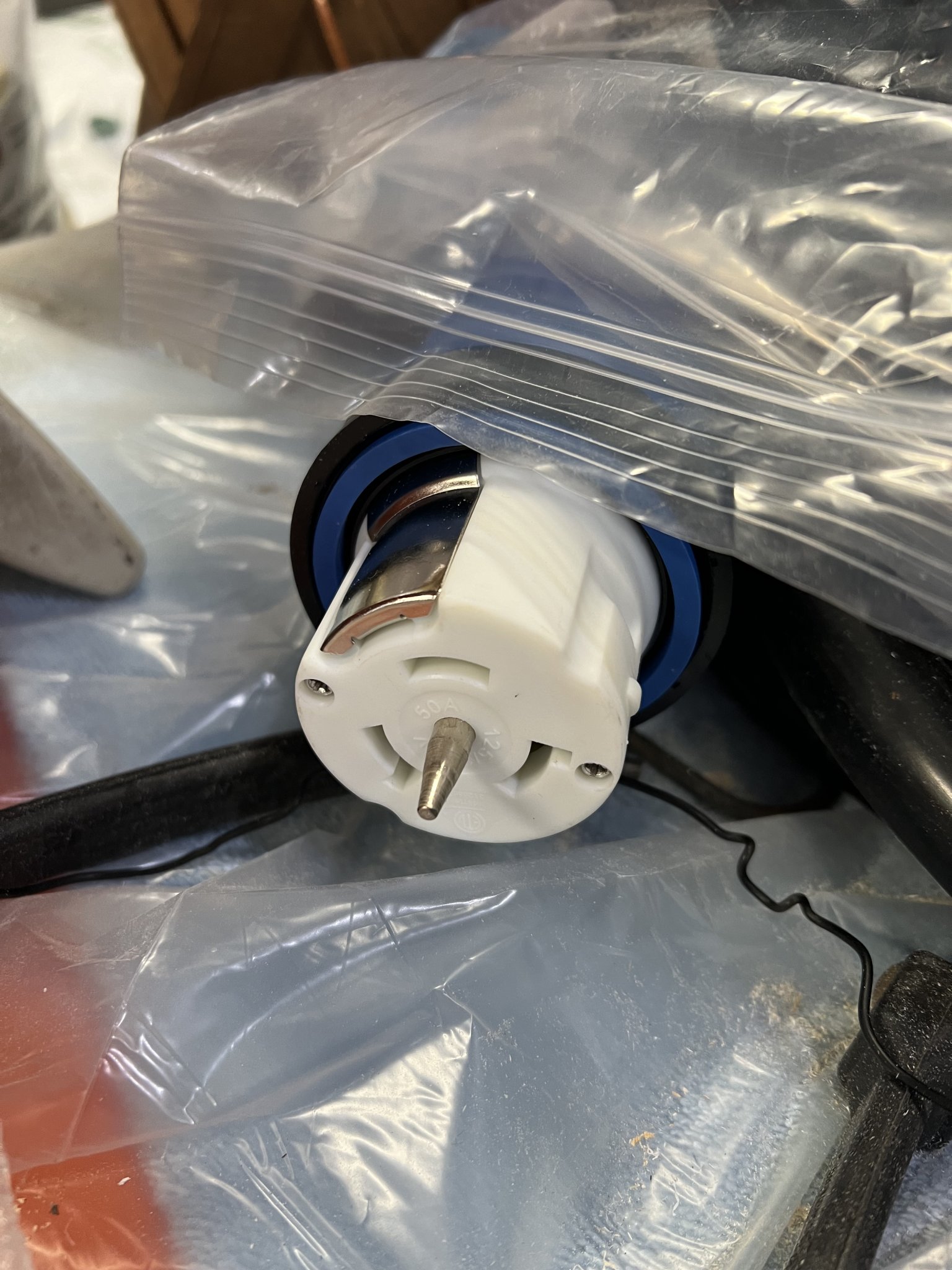

15 foot cord.

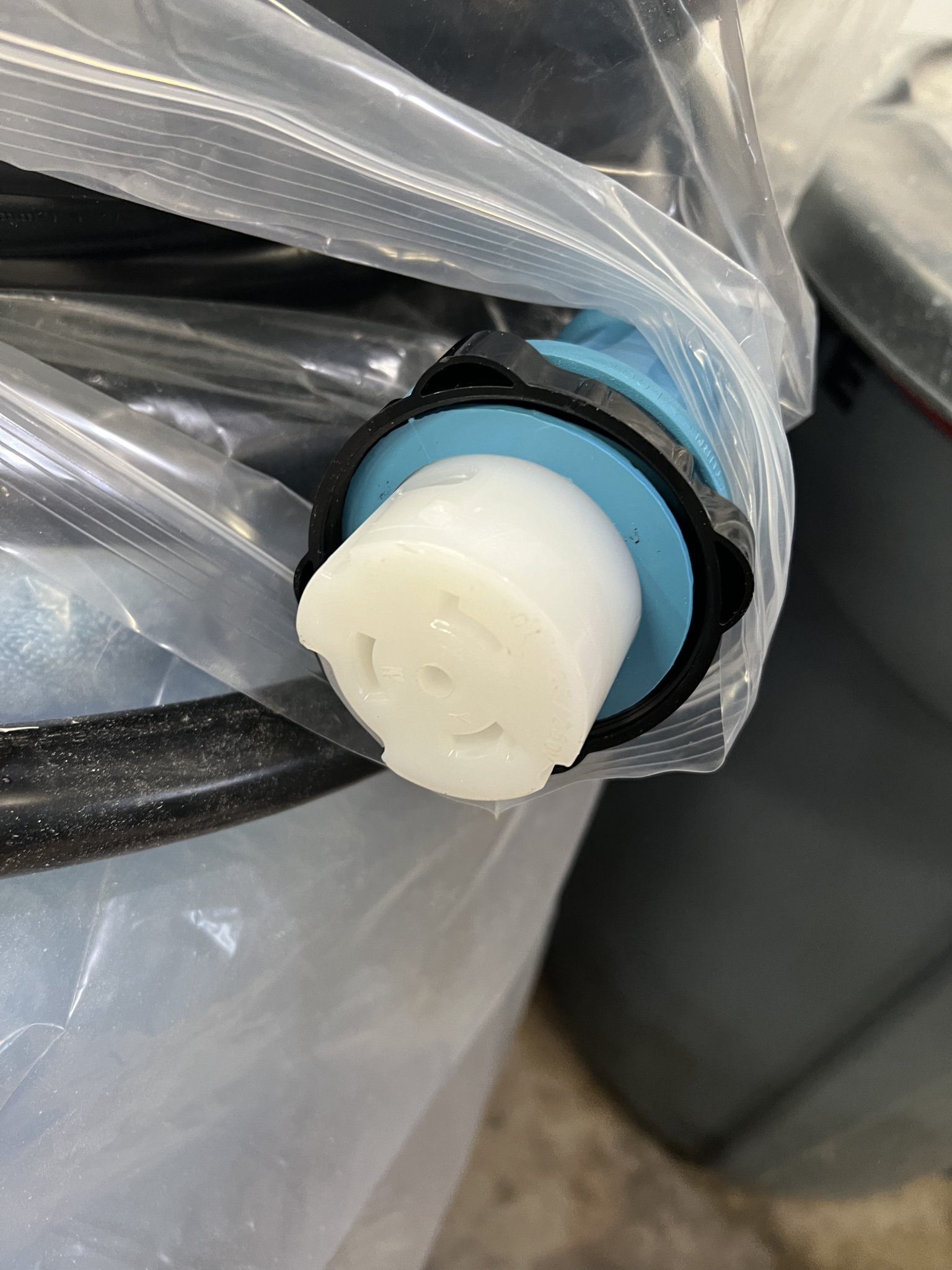

50 foot cord.





bearbait

Well-known member
Lifetime Member

Equipment
L3560, 64" snowblower, 72" back blade
Dec 9, 2011
4,058
834
113
New Glasgow Canada
Know there’s a lot of guys more savvy than me at this stuff.

I had a 50 amp feed put in for my generator.

The box on the outside of the house came with a 15 foot cord, which has proven to be too short for my situation.

I got a 50 foot cord, and realized it doesn’t have the center pin on the receptacle like the 15 foot cord has.

I didn’t wire the box, but I think the center pin is just for alignment, and is not a conductor?

The pins in the box are two hots and the neutral; the ground is around the outside perimeter of the plug and receptacle?

15 foot cord.

View attachment 124754

50 foot cord.

View attachment 124755

View attachment 124756
Yes RCW I believe you're right but I can't say I've ever seen one like that, almost looks like that centre post would pull out if you tried.


RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,185
5,307
113
Chenango County, NY
Thanks bear - I do see a small metal contact in the box’s pin, but the obvious ground to me is the conductor on the outside of the receptacle.

There is no metal conductor on the cord side plug.


Last edited:

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,185
5,307
113
Chenango County, NY

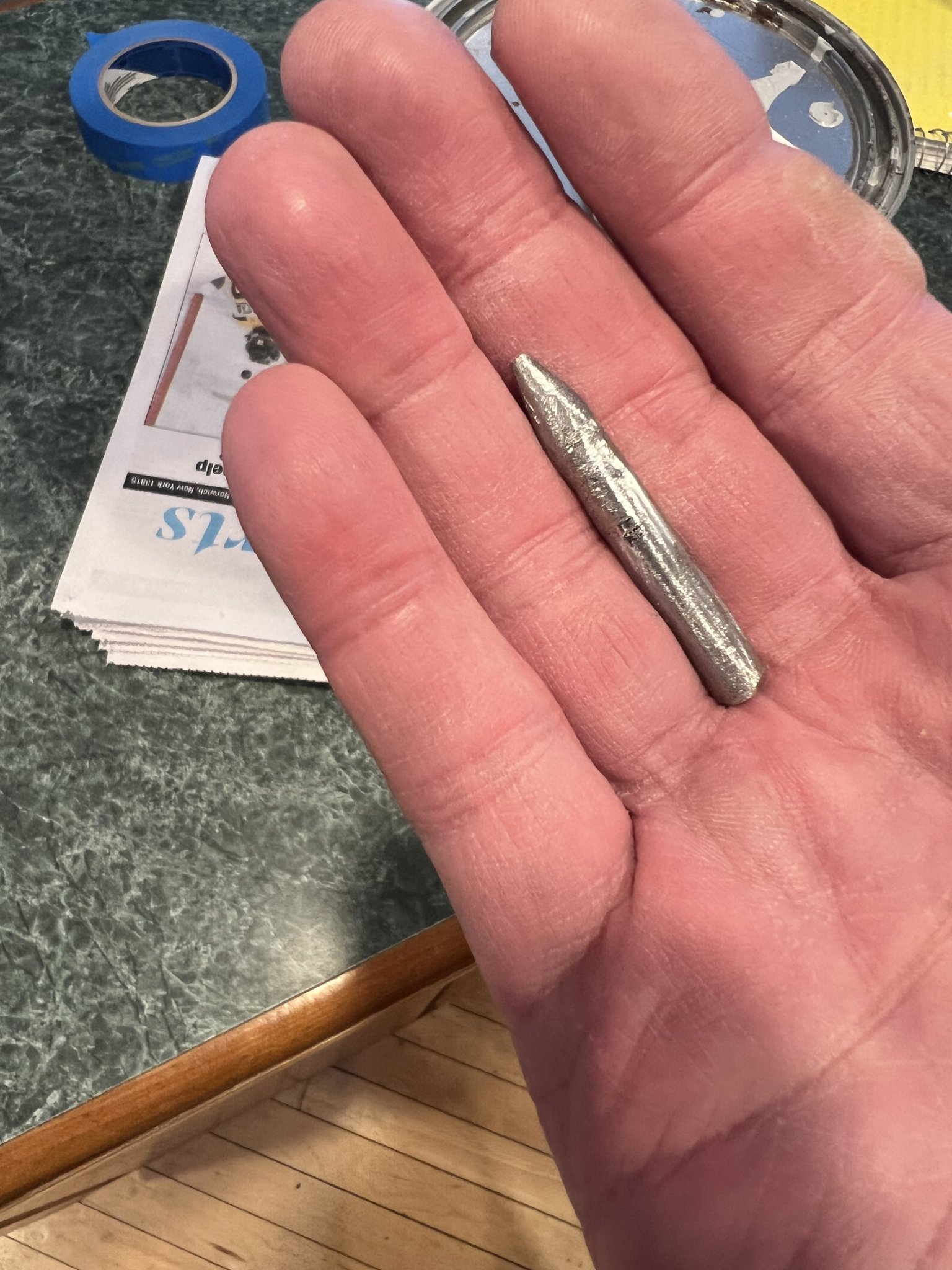

Just for giggles, I started to make a center pin. Still needs work, but close to fitting.



North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
30,296
6,451
113
Sandpoint, ID
The center pin is just a guide pin, no electrical or ground connection involved.
DO NOT add a pin, it's not needed, and it's not safe to add in.

  • Like
Reactions: 2 users

CAPT Seabee

Member
Lifetime Member

Equipment
Grand L5460
Dec 28, 2022
73
68
18
Bonners Ferry ID
Look closer. The center pin isn't the issue. Check out

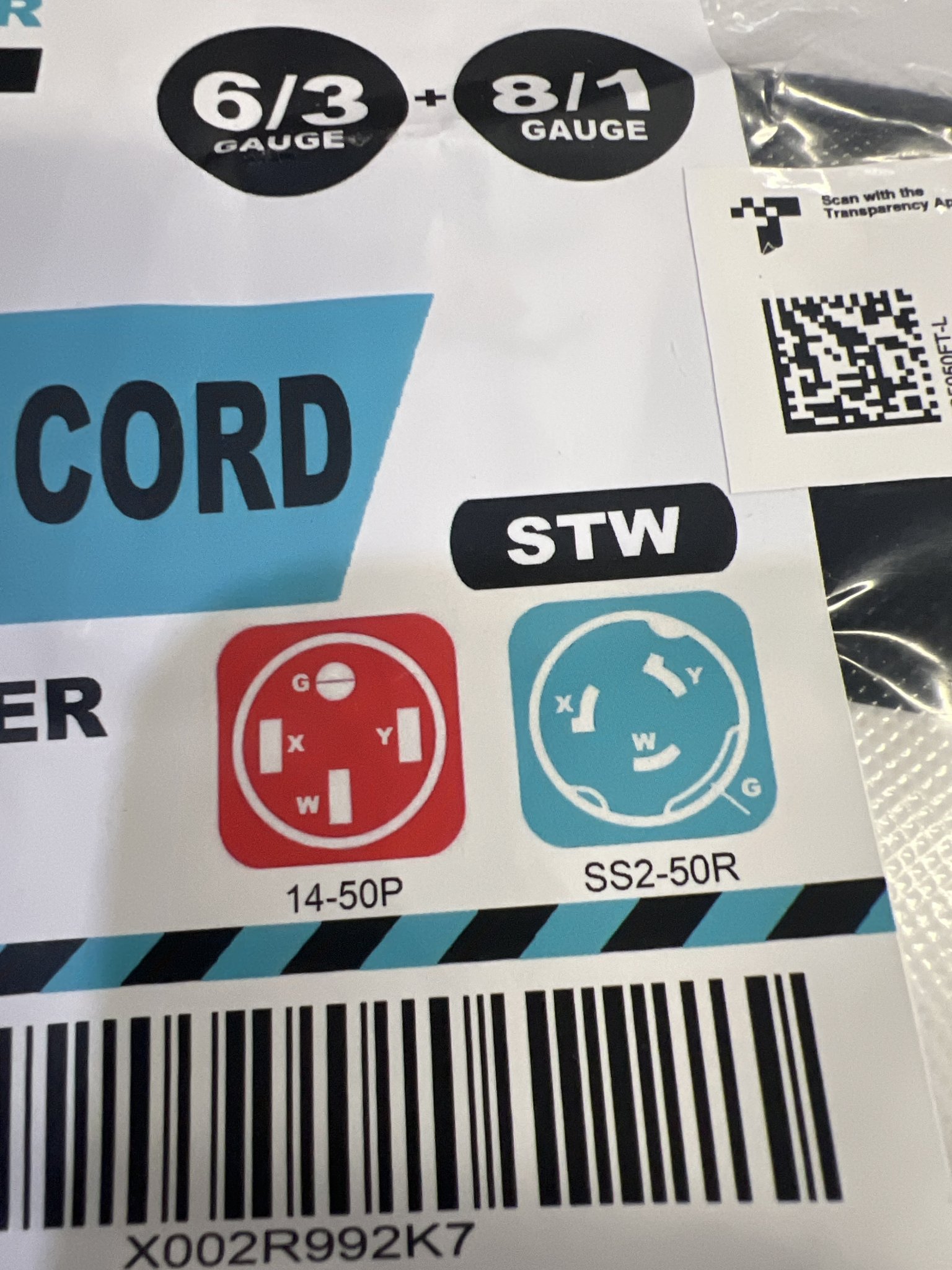

It's a 4 wire with the ground on the side edge of the plug. Your picture shows this on the package label. If the ground connector isn't there, it needs to be returned as a defect.


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
30,296
6,451
113
Sandpoint, ID
Your not in California, you don't need it! ;)


  • Like
Reactions: 1 user

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,185
5,307
113
Chenango County, NY
Your not in California, you don't need it! ;)

Thanks Wolfman -

I saw that CS designation, but could not find it’s derivation.

For folks in the future, the common references are CS6375 and CS6364. Per the video, the CS reference is California Standard.

For us “normal” folks, the configuration is SS2-50, which is compatible with both CS versions from what I can determine.

While shopping for a generator and appurtenances, I did notice some were “50 state compliant” where others did not.

What NIW pointed out is that California compliance…..👍

Last edited:
  • Like
Reactions: 2 users

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,185
5,307
113
Chenango County, NY
Look closer. The center pin isn't the issue. Check out


It's a 4 wire with the ground on the side edge of the plug. Your picture shows this on the package label. If the ground connector isn't there, it needs to be returned as a defect.
The ground is there. My picture didn’t capture it as it was on the other side of the receptacle.


RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,185
5,307
113
Chenango County, NY
^^^^^^

Somewhere on it probably says: "Known to cause cancer in the State of California".

Hell.....everything else does. ;)
One of our identical twin daughters lives within 300 yards of the Monterey Bay beach.

The Mrs. visits often. I’m only good for occasional visits.

Way too many people for me, and I don’t travel well in general.

It’s remarkably expensive to live there. I can’t imagine the lifestyle.

  • Like
Reactions: 1 user

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,185
5,307
113
Chenango County, NY
Yes RCW I believe you're right but I can't say I've ever seen one like that, almost looks like that centre post would pull out if you tried.
@bearbait was right from the get-go. The pin could be pulled from the other plug.

Many thanks my friend.

Many thanks to Wolfman for clarifying it.

Just couldn’t take it to California….😉

Last edited:

DustyRusty

Well-known member

Equipment
2020 BX23S, BX2822 Snowblower, Curtis Deluxe Cab,
Nov 8, 2015
6,242
4,824
113
North East CT
This is the latest NEMA (National Electrical Manufacturers Association) picture of the various plug and receptacle types. Knowing the proper code identification will help you to get the correct item every time.
