BX24 winter cab build

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana
For a while, I’ve been wanting to build a winter cab for my BX24. It seems that the only time we get enough snow to use the tractor, the temps are in the teens or single digits F and the wind is blowing.

I’m using 2”x2”x1/8” angle iron for the brackets, wood for the frame, and 0.22” plexiglass for the windows. I already have a canopy with an aluminum extrusion frame, so the roof is done. The rear panel will be quick detach in case I need to use the backhoe with the cab on.

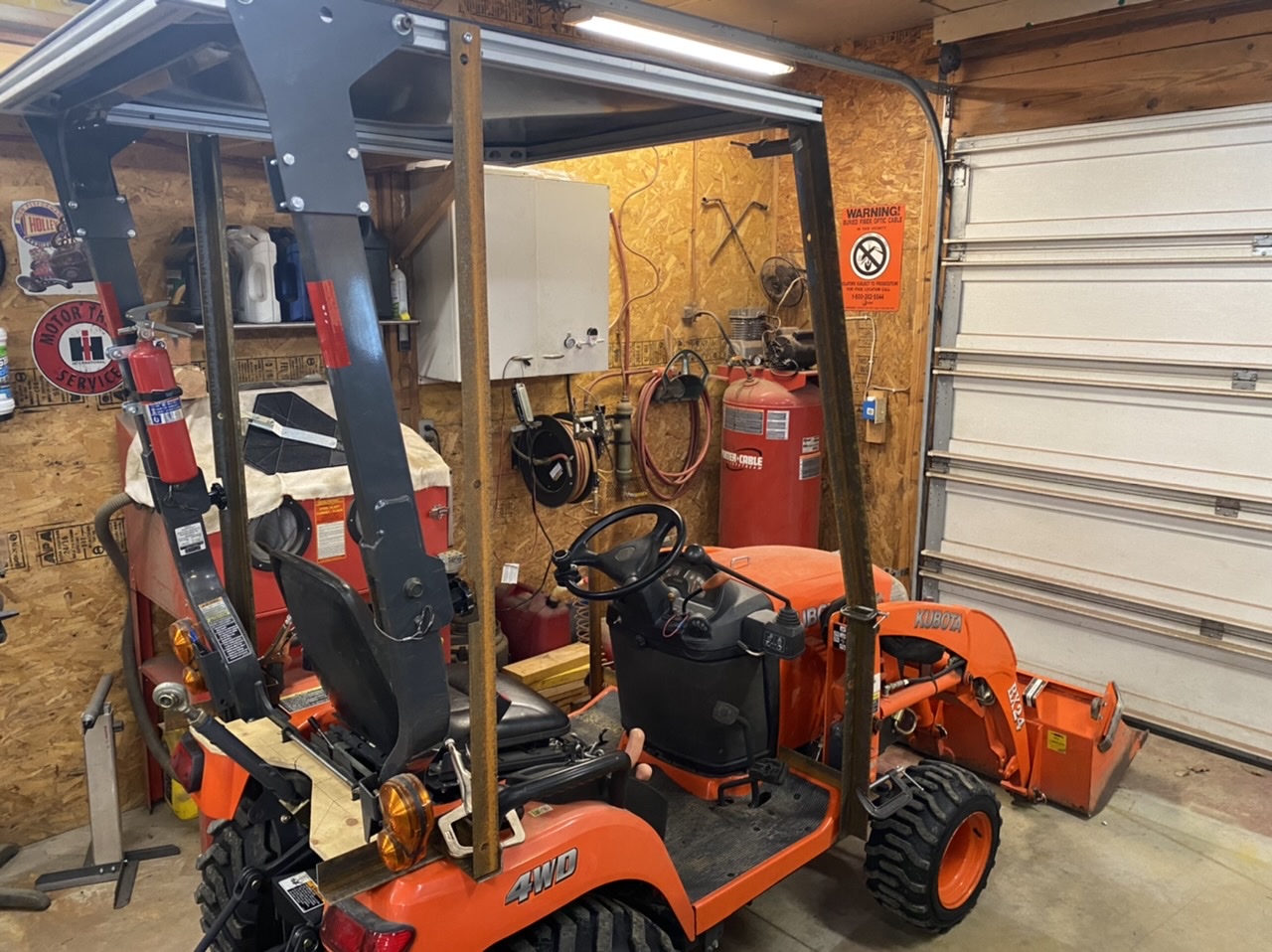

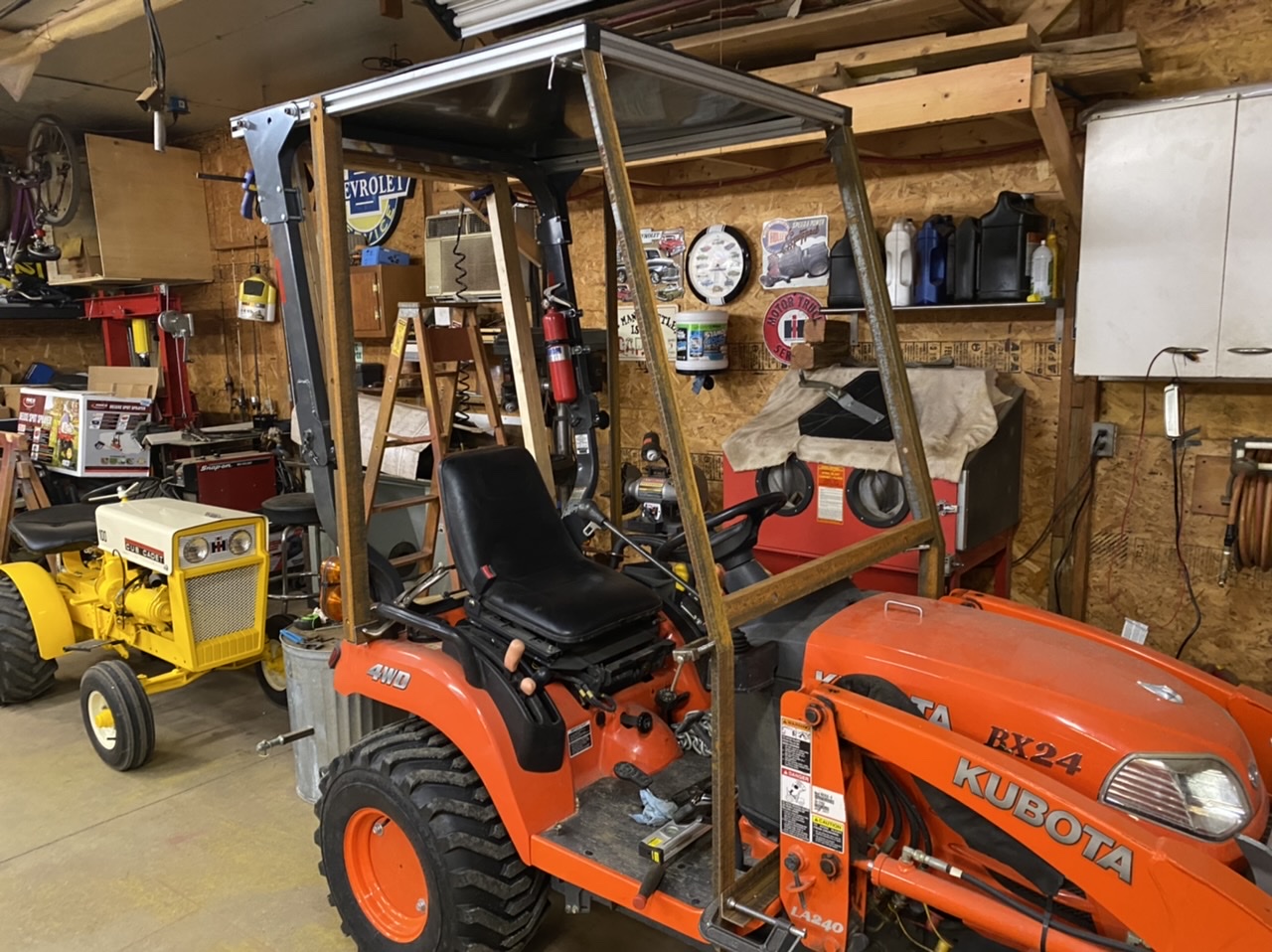

Today, I got a few brackets made and the vertical pieces cut where the door hinges will attach.

  • Like
Reactions: 4 users

85Hokie

Well-known member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
9,162
1,198
113
Bedford - VA
Keep them pictures coming - everyone loves a good build! ;)

  • Like
Reactions: 1 user

DustyRusty

Well-known member

Equipment
BX23S
Nov 8, 2015
2,251
1,448
113
North East
Will it be ready for the first snowstorm? Sure hope that you have this well planned because if I were doing it, it would be ready for the July 4th parade, in 2024.

  • Haha
Reactions: 2 users

OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
For sure.. keep us posted!


GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
5,249
1,812
113
Greensville,Ontario,Canada
NICE:
That's One of those 'summer projects' I never got around to do...sigh..
Now I'm thinking a 'custom fitted' clear shower curtain and some strong magnets might pass as a temporary 'winter cab', dbl sigh...
At least the days are now getting longer !!!

  • Like
Reactions: 1 users

Ping

Active member

Equipment
BX2370-1
Dec 25, 2018
258
101
43
Troy, Ohio
A heated cab sure makes snow removal enjoyable. Awaiting further progress.
regards

  • Like
Reactions: 1 user

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
4,016
1,668
113
North of Pittsburgh PA
Looks good and look forward to seeing your progress...

BUT someone has to offer a suggestion.

Are the fenders strong enough to support the weight? Looks like you should have drilled a hole and bolted the angle support to the ROPS!

Forgive me...just a imbecilic attempt a humor...LOL

Keep up the good work!


OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
Looks good and look forward to seeing your progress...

BUT someone has to offer a suggestion.

Are the fenders strong enough to support the weight? Looks like you should have drilled a hole and bolted the angle support to the ROPS!

Forgive me...just a imbecilic attempt a humor...LOL

Keep up the good work!
Or without drilling holes in ROPS, perhaps a square U bolt from inside with holes drilled in angle iron.

  • Like
Reactions: 1 users

Ping

Active member

Equipment
BX2370-1
Dec 25, 2018
258
101
43
Troy, Ohio
The OPs rear angle appears to be attached similar to my cab. Angle iron rests on top of the ROPS nuts which result in about 1/32” clearance to the fender. Though I used tapered lug nuts at the front to gain a few more threads of engagement.


OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy

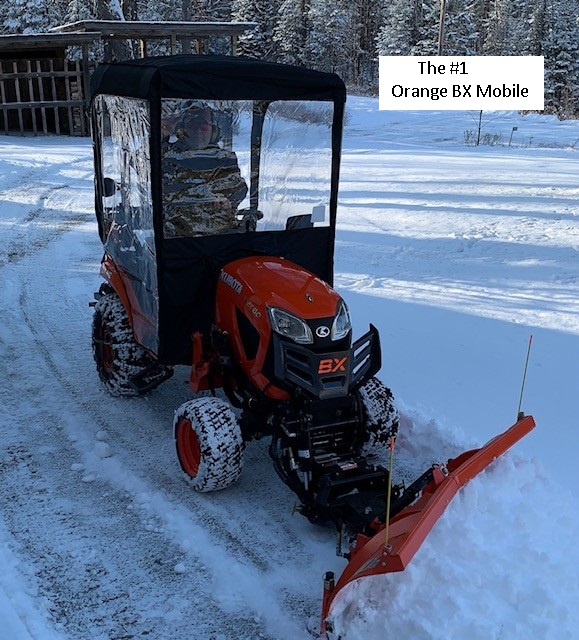

View attachment 71965

Recently added to my BX 2680. Lovin it so far
Looks like it might be tuff to see clearly, especially when snow flies and rain coming down. Did they make it so that the top of the front can be zipped or Velcro'd down enough to get a good visual without taking it completely out?

  • Like
Reactions: 1 user

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana
The OPs rear angle appears to be attached similar to my cab. Angle iron rests on top of the ROPS nuts which result in about 1/32” clearance to the fender. Though I used tapered lug nuts at the front to gain a few more threads of engagement.
Exactly!
I replaced the original nuts with shorter ones to give me enough threads to attach the brackets. The bracket pieces will be welded together. I left the pieces a little long and I’ll trim them to length later.


orange crusher

Well-known member

Equipment
BX 2680
Sep 30, 2017
357
467
63
ontario canada
Looks nice to me.

I do have a question though. Can you angle the plow to compensate for off camber angles? Float works for me on my back blade tilt cylinders. Just wondering if a front plow blade has the same functionality.
No, it functions like a normal 4 way snow plow. Up/down Left/right As well, I am running the hard rubber edge on it.


BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana
Decided to frame the front panel with 2”x2”x1/8” angle iron so it’s strong enough to handle being trailered just in case. The angle is turned so that the front of the doors will tuck inside the angle to prevent air from trying to peal open the doors if I trailer it.

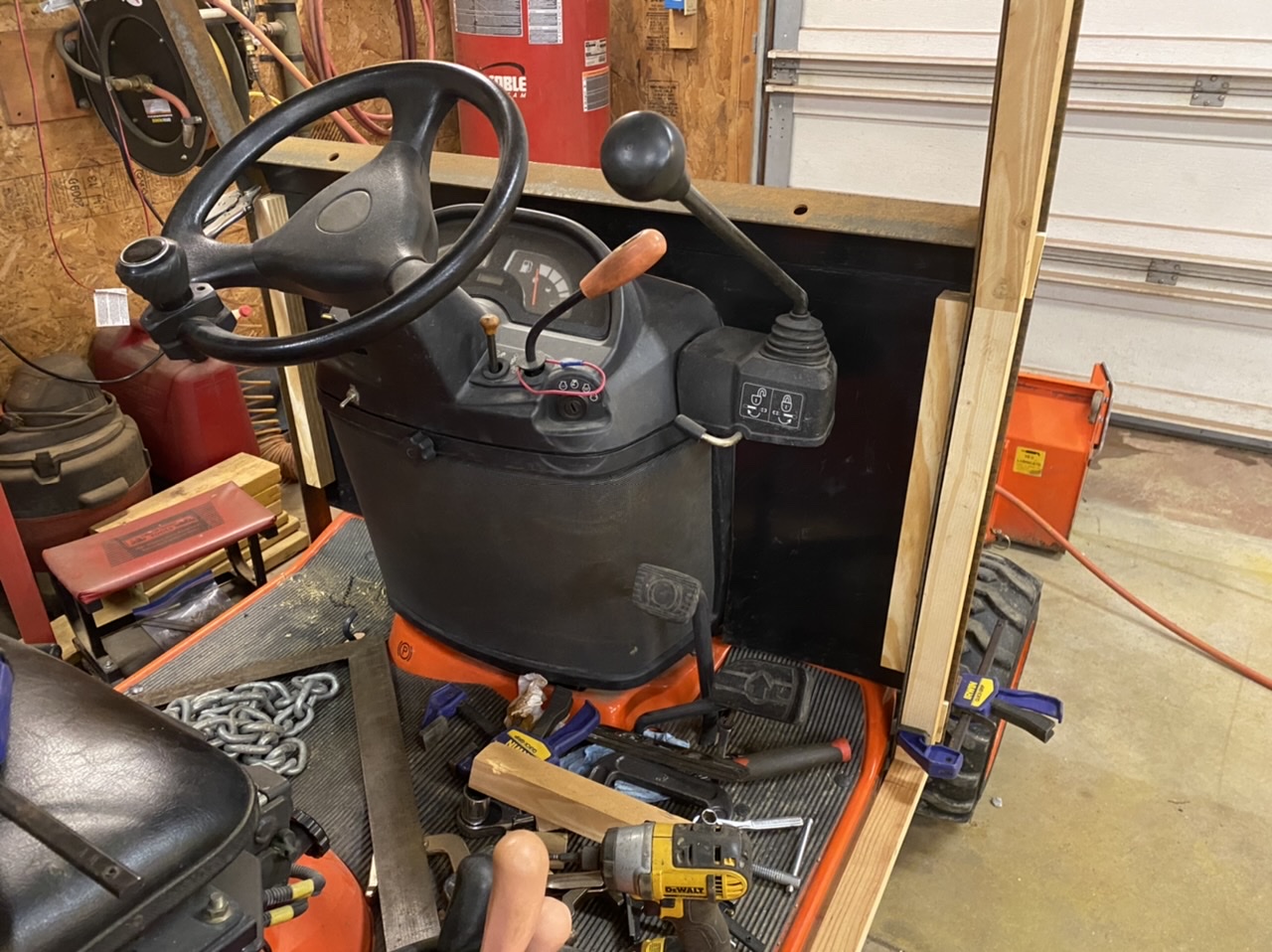

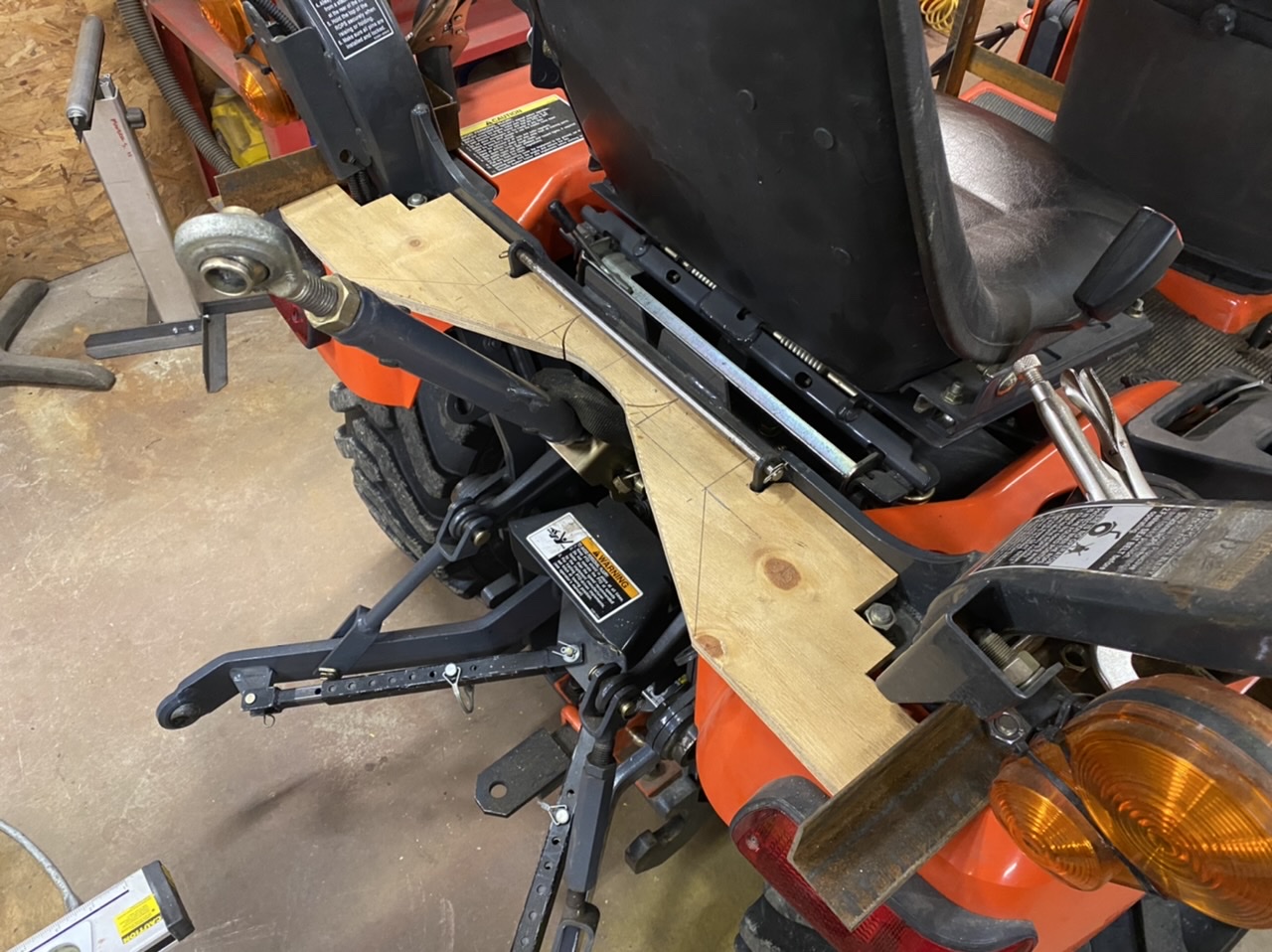

Cut a piece of 5/8” plywood for a filler panel at the rear.


  • Like
Reactions: 2 users

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana

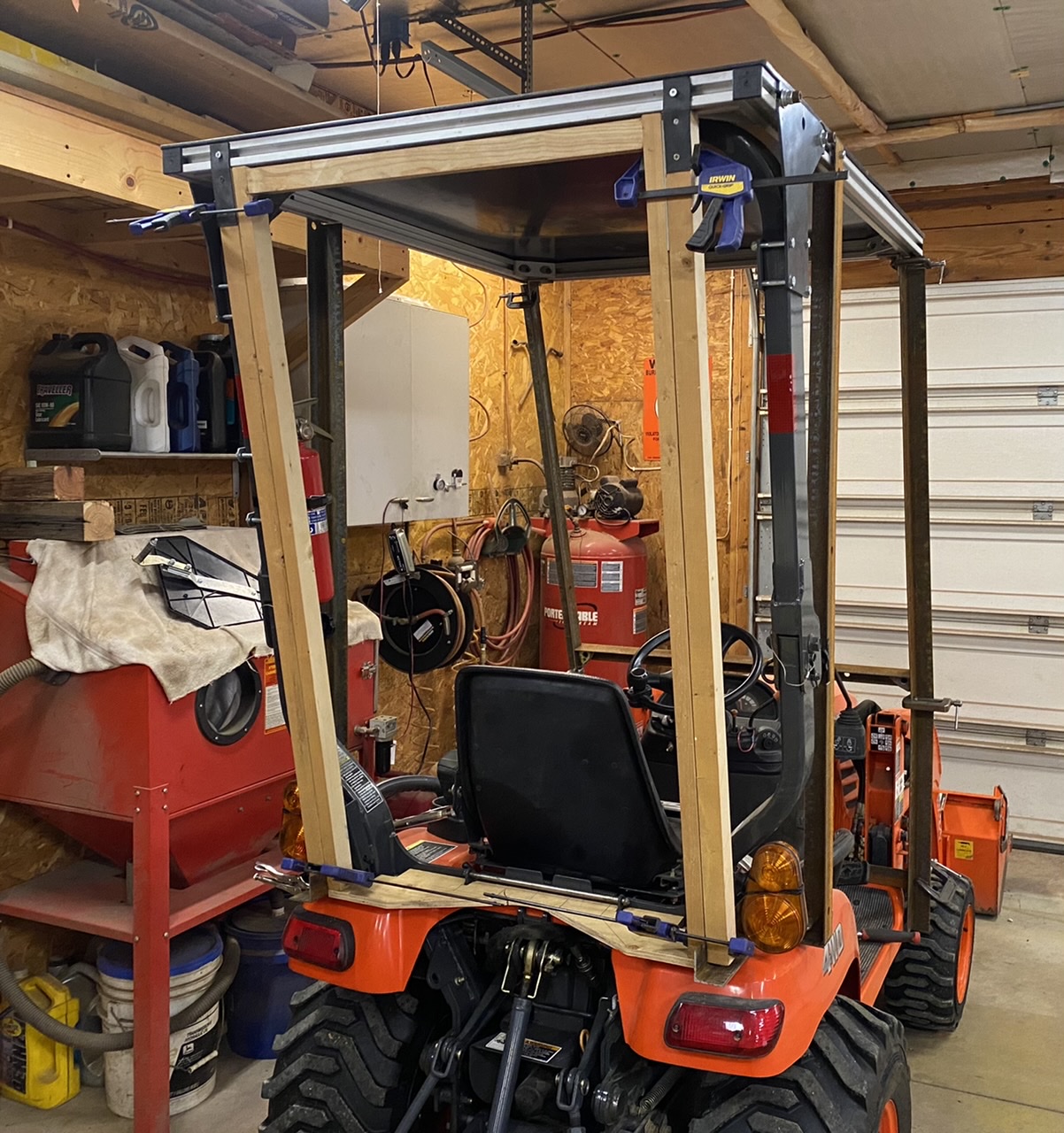

Finished cutting pieces for the windshield frame and started on the rear window. The window will be attached to the inner frame which will be quick attach in case I need to use the backhoe with the cab on.

  • Like
Reactions: 3 users

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana

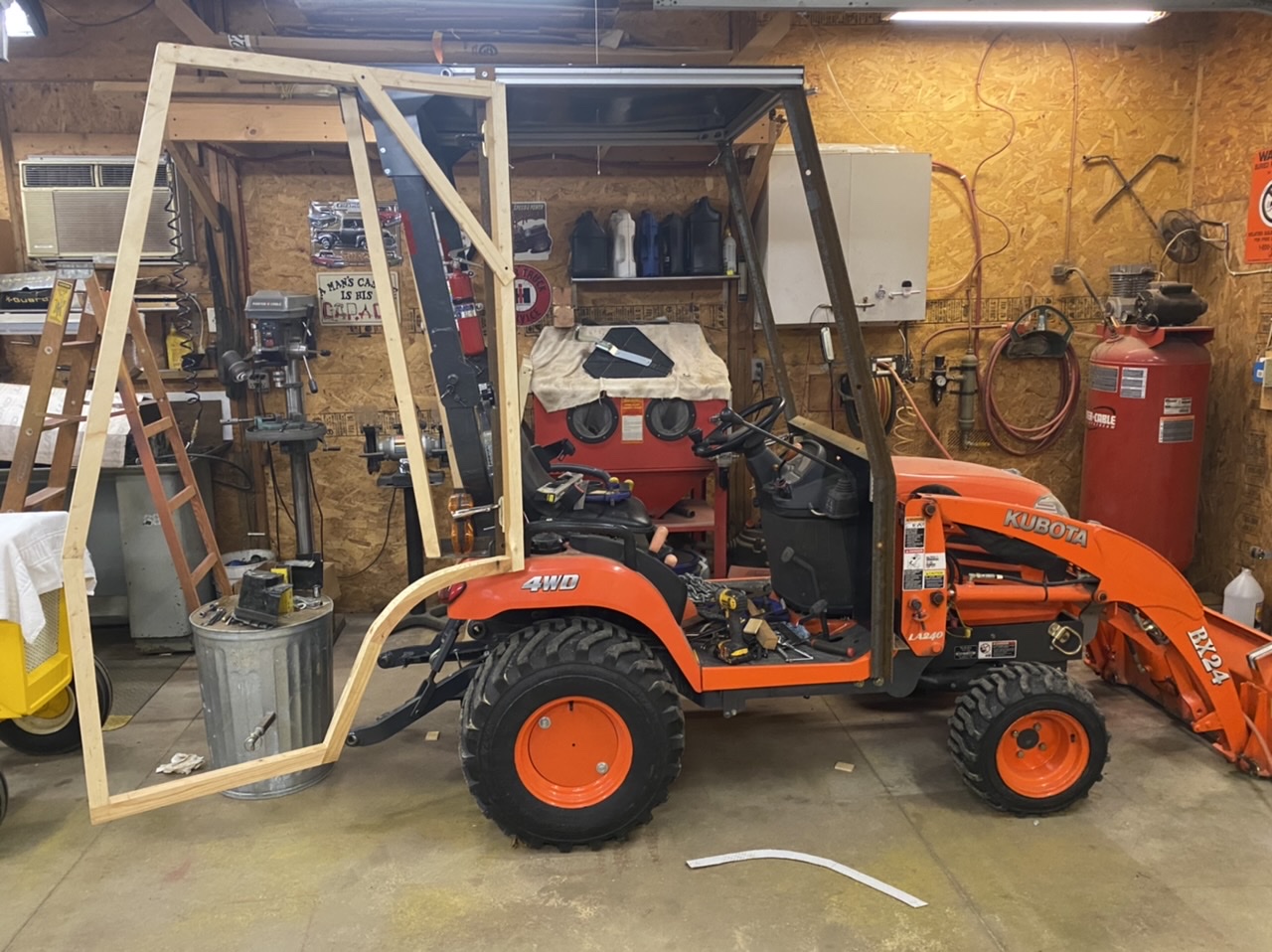

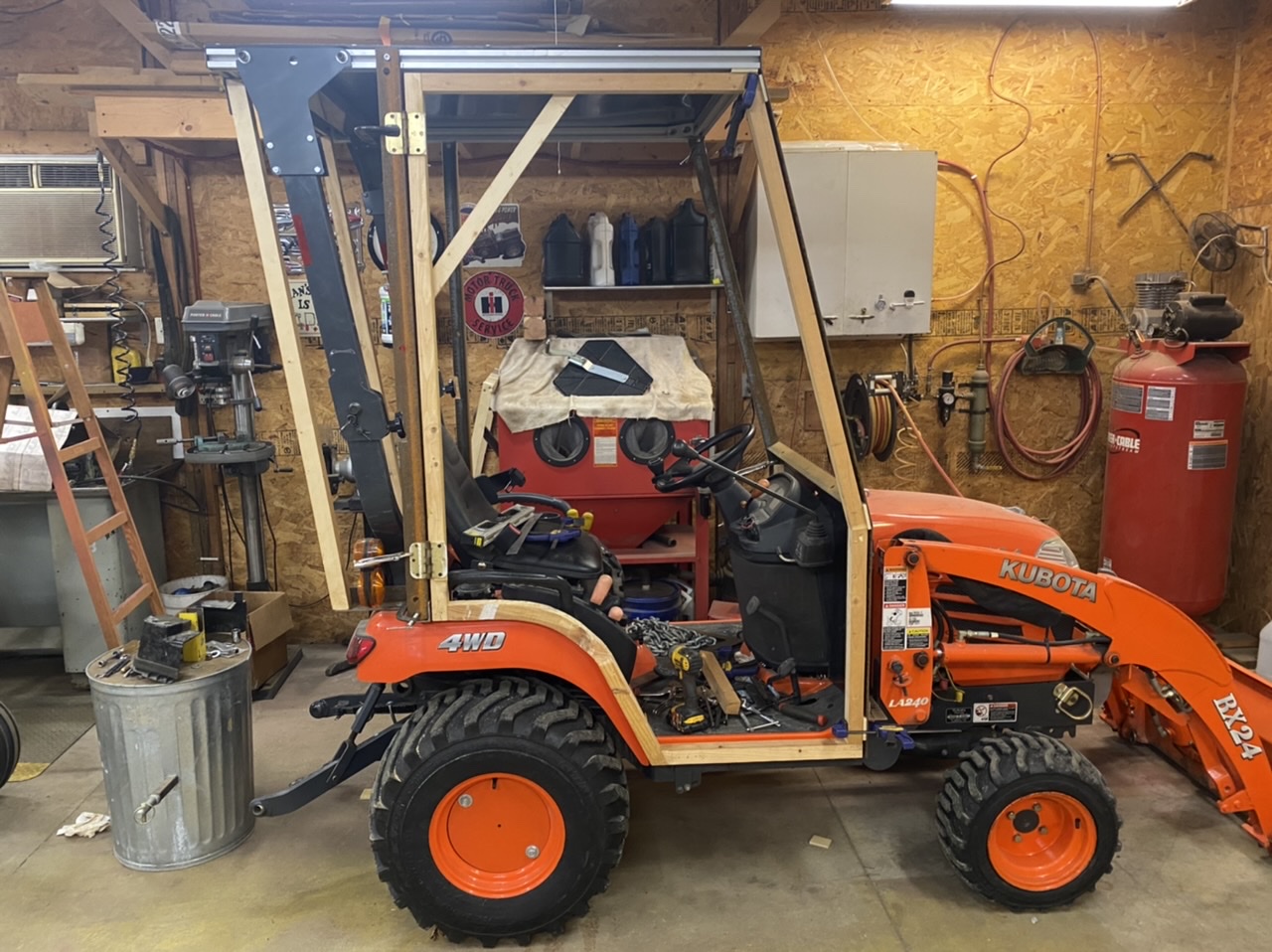

Made a 1-1/2” square lumber frame for one of the doors. There will be another horizontal piece across the frame, below the windshield. The doors will be covered with 1/4” sanded plywood.

The filler panel below the windshield is 1/4” HDPE plastic that’s leftover from my canopy top. I may add windows to it.

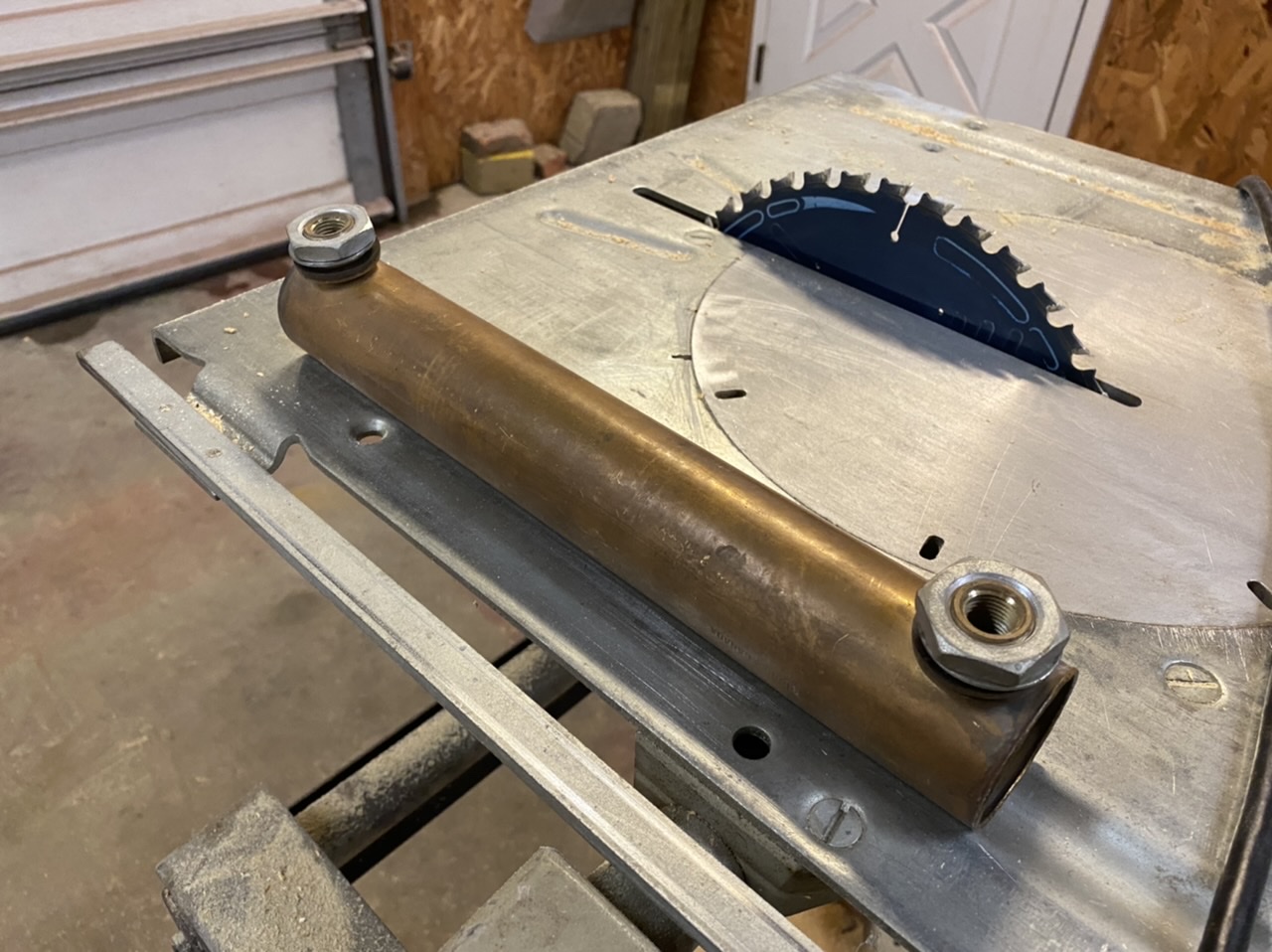

I may try to build my own heater. For a few years, I’ve had a brass transmission cooler that came from a radiator tank. The plan is to build a box with a fan on the bottom blowing through the cooler with ductwork at the top to direct air at the windshield and the floor. I’ll add some aluminum mesh inside the heater box to help with heat dissipation.
1EA4C0B2-CA96-42FA-B093-F329A6D1688D.jpeg EA6658CD-2254-4917-9AF2-47CC773837F9.jpeg 1F968D33-7EA9-45FE-BA60-9333785397D2.jpeg 1C416F72-E972-4352-B4E6-04D21C30CDBA.jpeg 3ADCF62F-390F-42E7-9ED8-E382D3400A75.jpeg CC3B90BA-1A6E-4DDF-99BB-DD015DC0C398.jpeg

Last edited:
  • Like
Reactions: 3 users

OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
Very nice! Being a carpenter myself.. I can appreciate some good wood working.

  • Like
Reactions: 1 users

dlsmith

Well-known member
Lifetime Member

Equipment
BX2230, LA211
Nov 15, 2018
992
445
63
Goshen, IN
Keep in mind that the engine fan pulls air in through the cover over the battery area, so when heating the cab you will have to make a provision for it to pull in outside air without pulling it into the cab you want to heat.


DustyRusty

Well-known member

Equipment
BX23S
Nov 8, 2015
2,251
1,448
113
North East
There is a removable plate under the battery compartment. You can remove that, and using some rubber roofing block the air from being pulled from the cab. I had removed my inside screen that you take off to service the battery, and slipped the rubber under the center support, and tucked it into the ends. Took a little time trimming the rubber to fit, but it worked out great for me.

  • Like
Reactions: 1 user
