BX24 winter cab build

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana
I’ve already pulled out the panels below the battery and I’ll block off the screen.

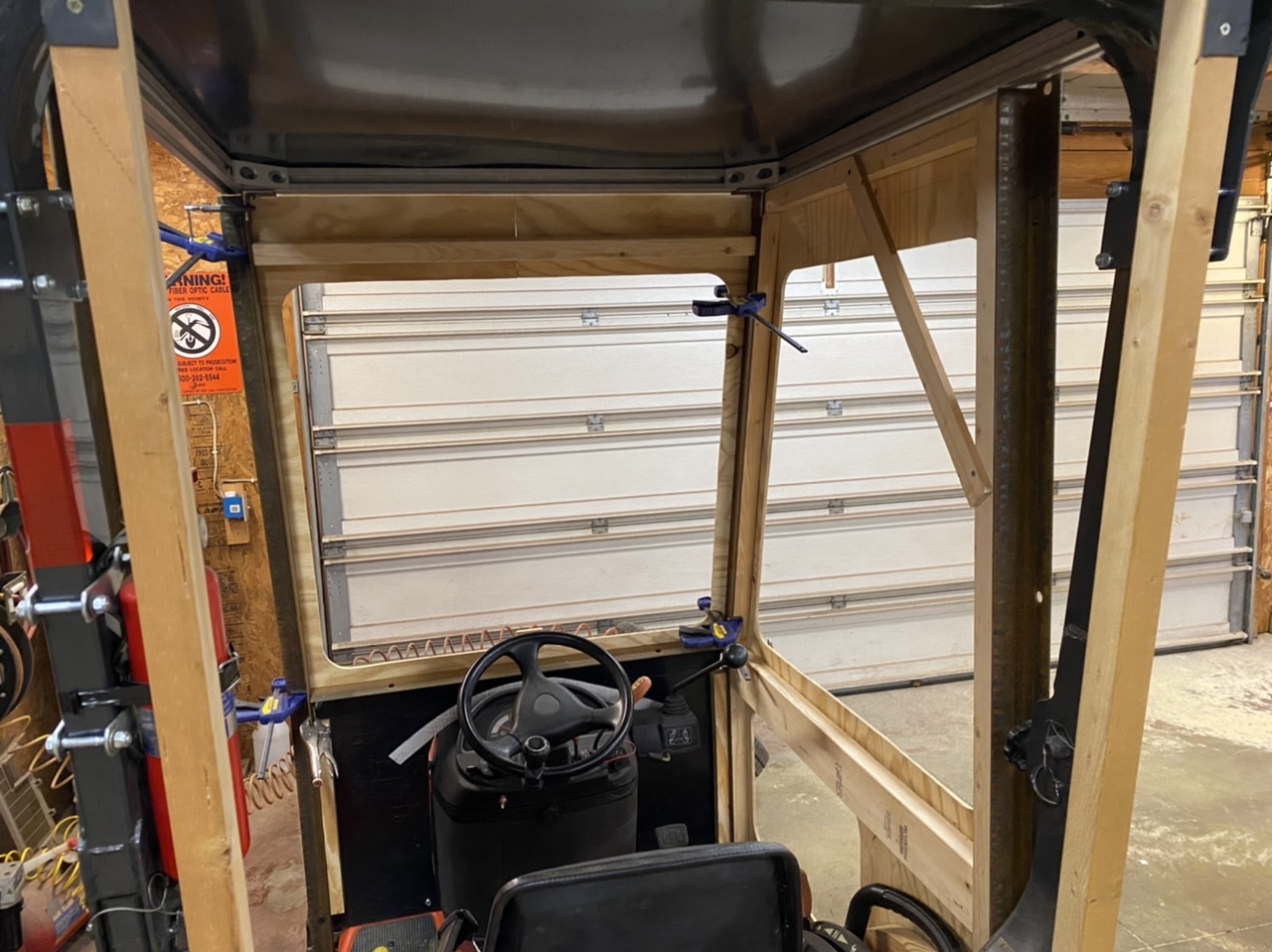

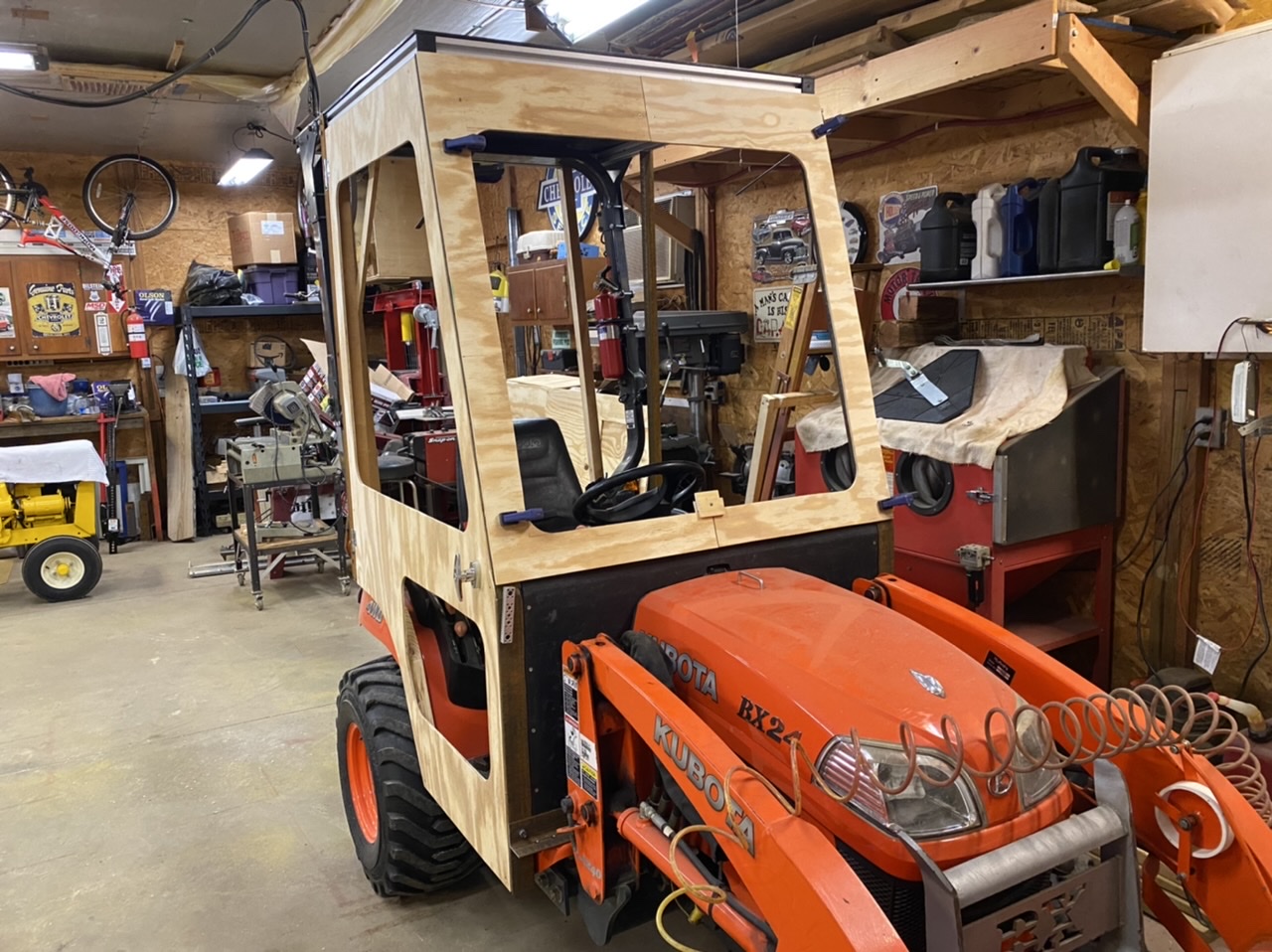

One door is nearly done and the pieces for the windshield frame are cut. Front, rear, and lower door glass will be .220” acrylic and upper door glass will be .118” acrylic. Door handles are garage door T handles.

I haven’t decided yet what to do between the back panel and door mount angle iron. Probably go inside the ROPS like most cabs.
EA400689-DD1D-4C53-9770-92C07558D1E7.jpeg 4A457ABF-D307-4AC3-B876-5DE458B9B95C.jpeg 6F1C74EB-E25B-4425-9B8A-BB27394DD553.jpeg

  • Like
Reactions: 3 users

bird dogger

Well-known member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
1,313
1,017
113
North Dakota
From looking at one pic in your first post.....I believe I may have a pattern for a cover that would fit your screen and is held in place with magnets. I'm guessing that screen is steel (ferrous) and not plastic or aluminum? We did the exact same thing for the neighbors homemade cab and it's worked out very well.

I actually made another plate for underneath the battery that has a screened opening in it to allow outside air in. He replaces it with the original plate when his cab comes off for the summer months.

You're going to really enjoy your time and efforts once finished! Nice work!!


OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
Looks good can't wait to see it painted up!


BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana
Looks good can't wait to see it painted up!
Thanks. I’m looking forward to getting it done and playing in the snow. Hopefully, we get enough snow to use it this year. Only got one snow last year that was worth getting the tractor out.

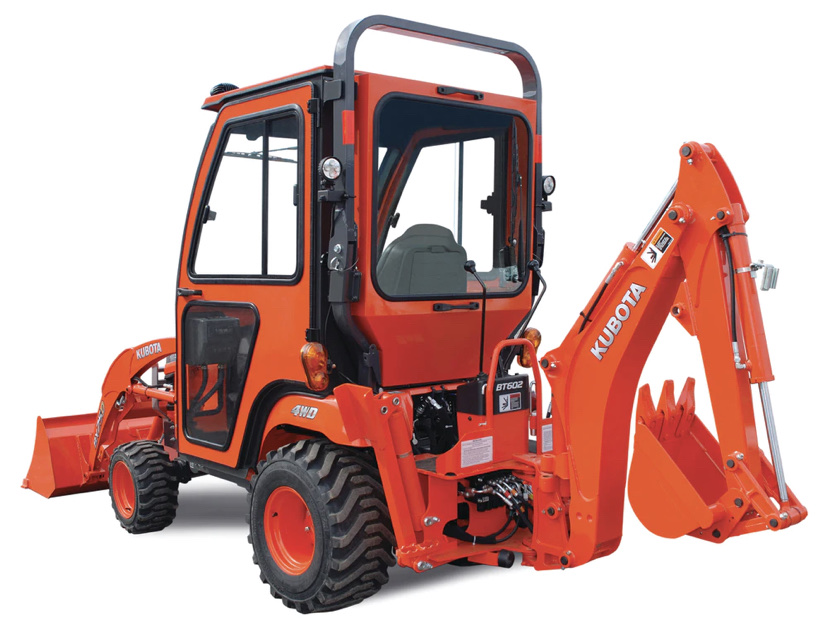

Going to rethink my design for the back panel to fit around the ROPS and allow the panel to be quickly removed for backhoe use. Something similar to this.


OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
Thanks. I’m looking forward to getting it done and playing in the snow. Hopefully, we get enough snow to use it this year. Only got one snow last year that was worth getting the tractor out.

Going to rethink my design for the back panel to fit around the ROPS and allow the panel to be quickly removed for backhoe use. Something similar to this.
View attachment 72764
That will look good.. looks like you had a good plan so I'm sure the rear panel will come out just as nice.

Here on the far west side of Indy we got a pretty good amount but just the one. I'm hoping we don't get any this year!


BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana

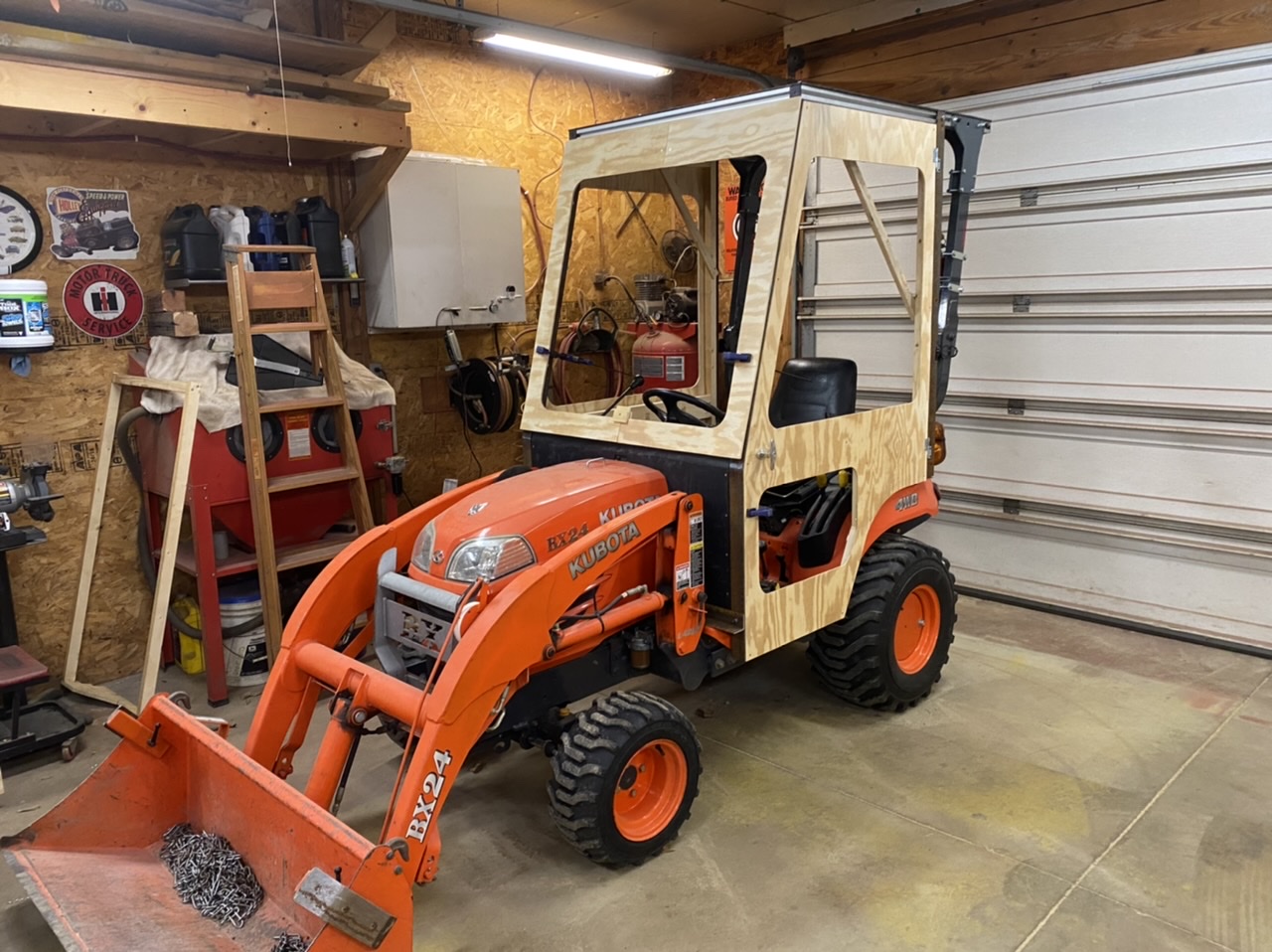

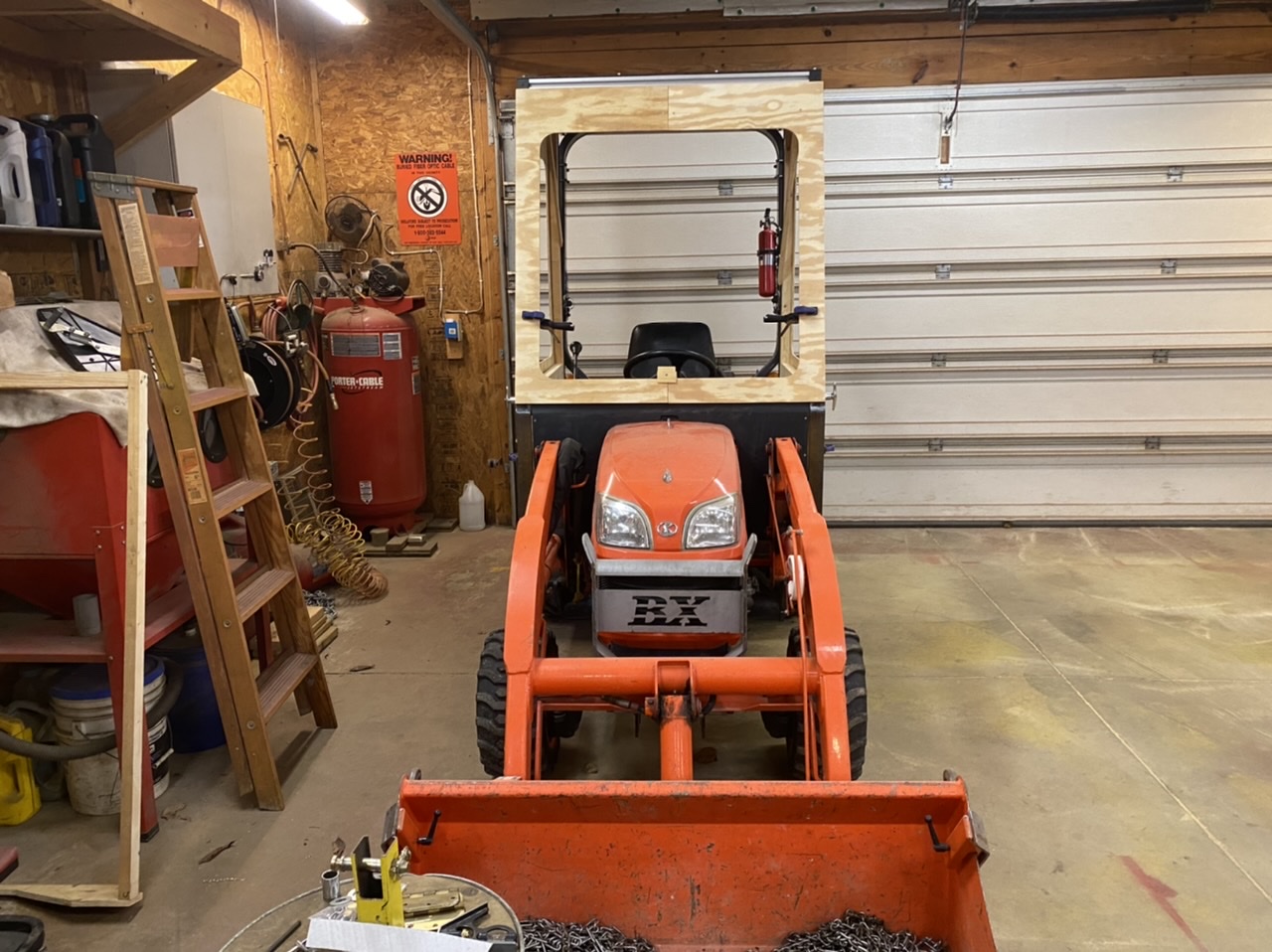

Front panel frame is welded and the other door is framed and skinned with 1/4” plywood.

4A1E63F3-98B8-4490-9B93-4079FAA0F659.jpeg 6E1AF5B8-47BE-4FA9-BE2B-B3D70541DBAC.jpeg 645CA176-31BD-468E-A82D-0F64B16AD70D.jpeg

  • Like
Reactions: 1 users

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
4,016
1,668
113
North of Pittsburgh PA
Front panel frame is welded and the other door is framed and skinned with 1/4” plywood.

View attachment 73085 View attachment 73086 View attachment 73087
Looking good! But I can't help but think you better hurry up, or it will be a CAB for winter in 2023.

Not being critical, as your progress certainly exceeds what I have been accomplishing recently at my end.

Great work...look forward to seeing the finished project before the snow quits flying...LOL.

My prediction is that you will be done and using the cab before we see the first day in February...


OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
We have not got our first snow here yet, seems to be slowing down each year.

BXHoosier.. are you planning on some type of inner latches on the upper doors once you are seated in the cab? Just wondering and first thought as most would have.. when and if opening a door in Windy conditions are you planning on any type of cross bracing inside? I'm just curious and never had a cab on a tractor but similar on side X side. I guess as long as you open door with wind direction it would be safe.

Don't get me wrong you're doing an awesome job, just curious!

  • Like
Reactions: 1 user

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana
Thanks guys

The way winters have been around here lately, I may not need the cab until 2023,2024, or 2025.

Hopefully, I won’t need to add any latches to the upper part of the doors. Recessing the doors into the angle iron should keep wind from trying to peal open the doors. I plan to add a couple more pieces of framing in the doors and a I have some L and T braces to add at some of the door frame joints.

  • Like
Reactions: 1 users

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana

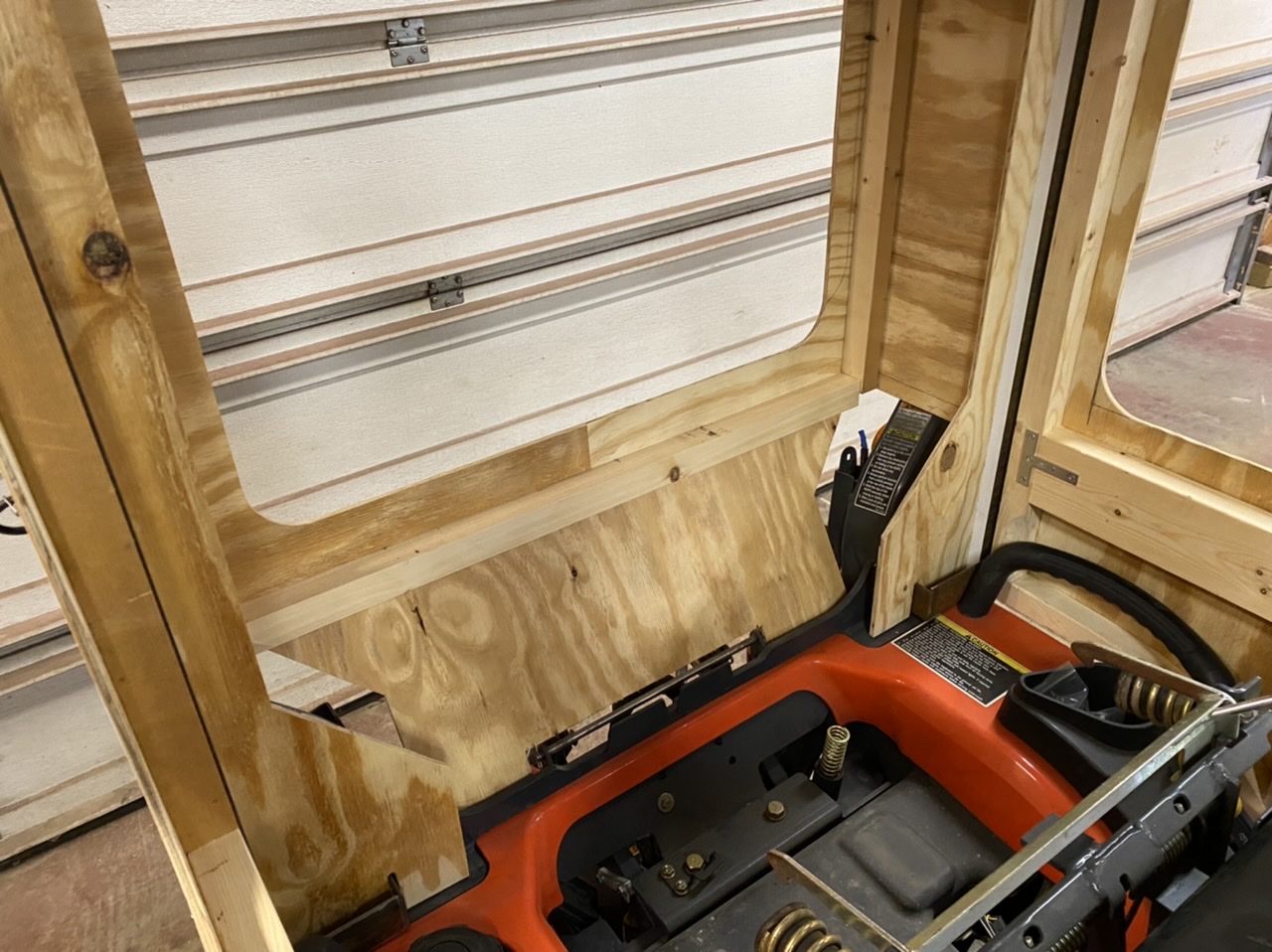

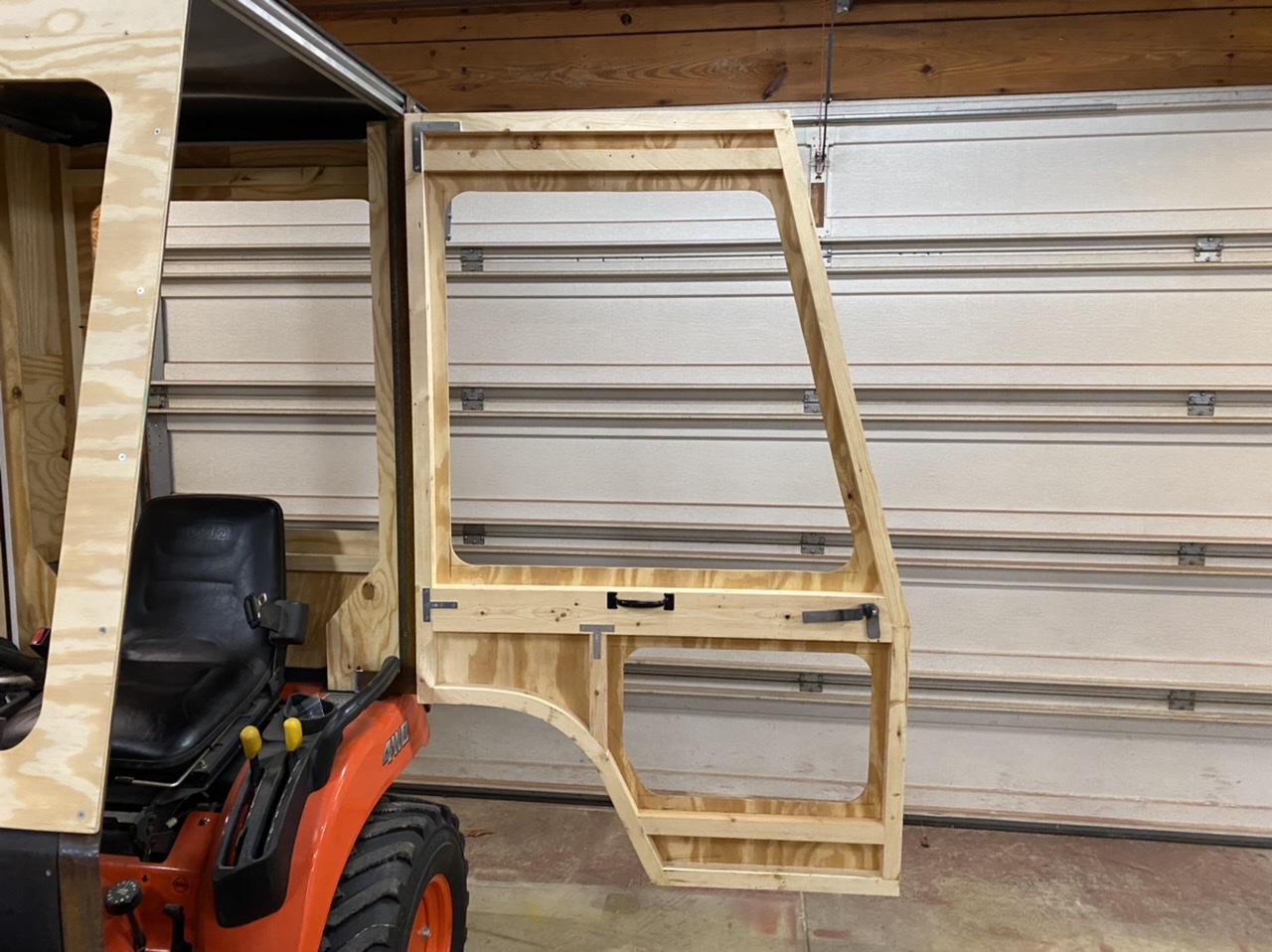

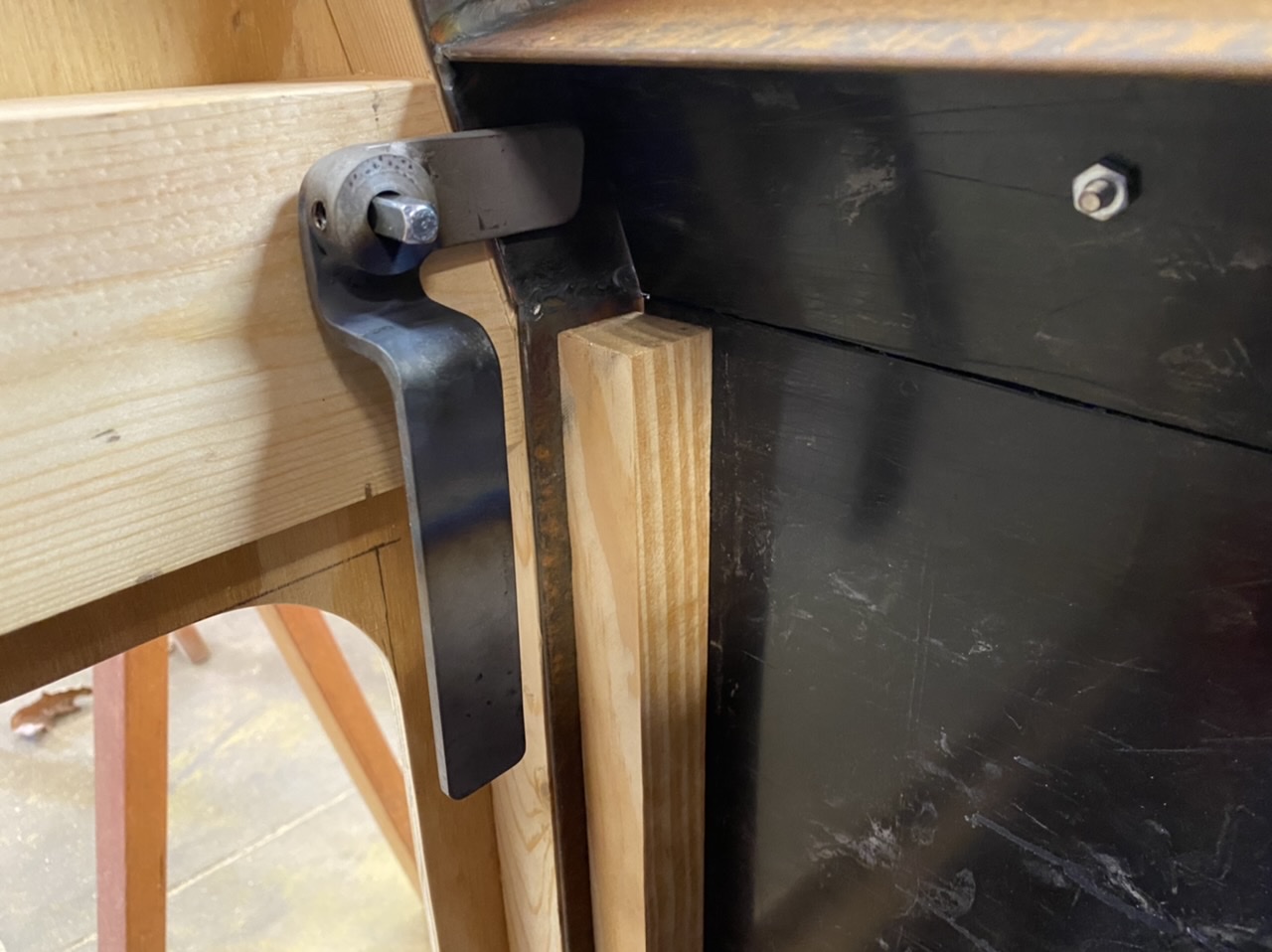

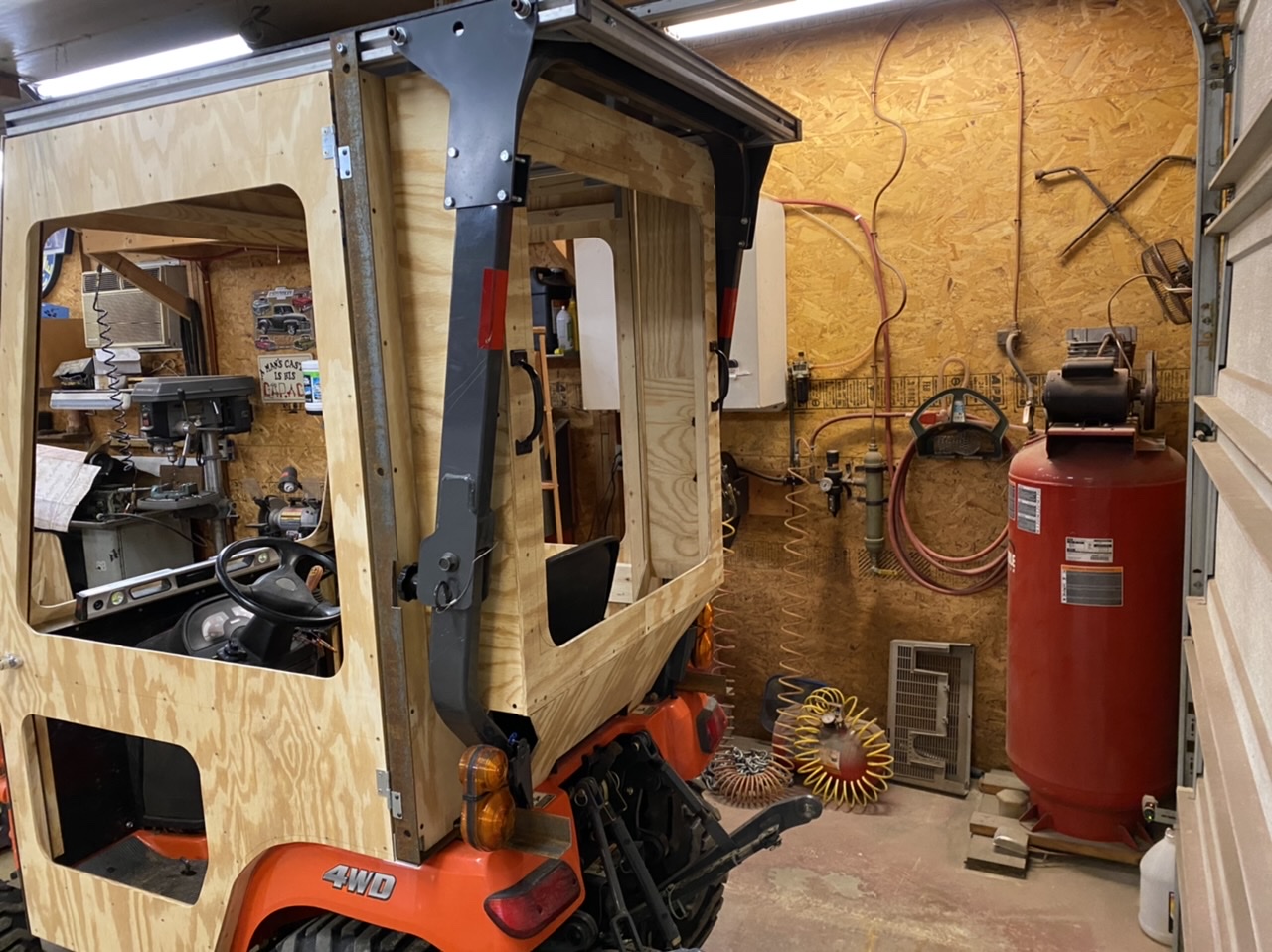

Made some simple inner door handles with 3/16” steel with welded on collars with set screws.

Finished framing the doors and glued on the plywood.

The rear removable panel is mostly done. Just needs the bottom corners filled in. Still not sure what I’ll use to attach the panel.

9E8F4C0B-90C2-409C-9A40-D56AED50874A.jpeg 9F459069-A979-47FD-9D73-A38C06C96E9E.jpeg C6F00026-BD12-4749-8B8A-E89BE209F1CC.jpeg 5F7D3342-0B64-488F-A151-525744B94747.jpeg

  • Like
Reactions: 2 users

OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
Made some simple inner door handles with 3/16” steel with welded on collars with set screws.

Finished framing the doors and glued on the plywood.

The rear removable panel is mostly done. Just needs the bottom corners filled in. Still not sure what I’ll use to attach the panel.

View attachment 73841 View attachment 73842 View attachment 73843 View attachment 73844
You've done a hell of a job so far.. the attachment of the rear panel will come just as clear as the rest did.
Those handles come out nice! Also you may be right about snowfall here.. I hope! Lol


dlsmith

Well-known member
Lifetime Member

Equipment
BX2230, LA211
Nov 15, 2018
992
445
63
Goshen, IN
That's a really great job you're doing in it.
Should keep you nice and toasty warm.

  • Like
Reactions: 1 user

bird dogger

Well-known member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
1,313
1,017
113
North Dakota
Your cab is looking really sharp!! Nice progress!

  • Like
Reactions: 1 user

orange crusher

Well-known member

Equipment
BX 2680
Sep 30, 2017
357
467
63
ontario canada
With the radiator fan intake pulling cold air from inside the cab (between the steering wheel and floorboard) do you get any warmth from that setup?

I have the screen inside the cab blocked off and I have a 13,500 BTU engine coolant heater with a 3 speed fan. Just about as warm as sitting in my living room. I have about $1000 invested in the cab and the heater and I couldn't be happier. Come spring, about a half hours work returns the tractor to " open station" for summer use. Best of both worlds as far as I'm concerned.

  • Like
Reactions: 1 users

orange crusher

Well-known member

Equipment
BX 2680
Sep 30, 2017
357
467
63
ontario canada
Looks like it might be tuff to see clearly, especially when snow flies and rain coming down. Did they make it so that the top of the front can be zipped or Velcro'd down enough to get a good visual without taking it completely out?

Vision 360 around is no problem. Cab heater blows hot air on the front section so it stays clean even in blowing snow with the front mounted blower

  • Like
Reactions: 1 users

BXHoosier

Well-known member

Equipment
BX24
Jan 21, 2018
357
267
63
Indiana

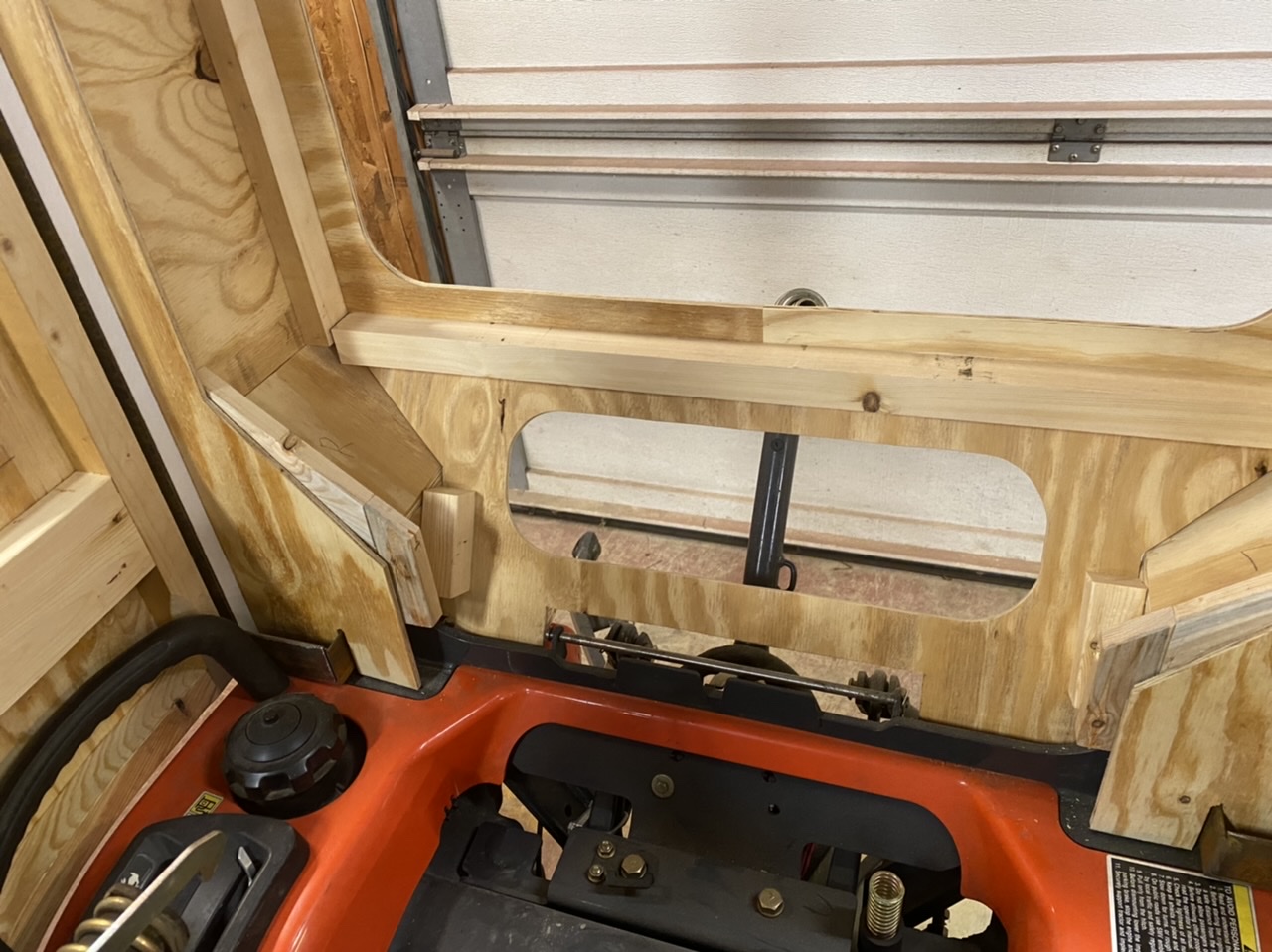

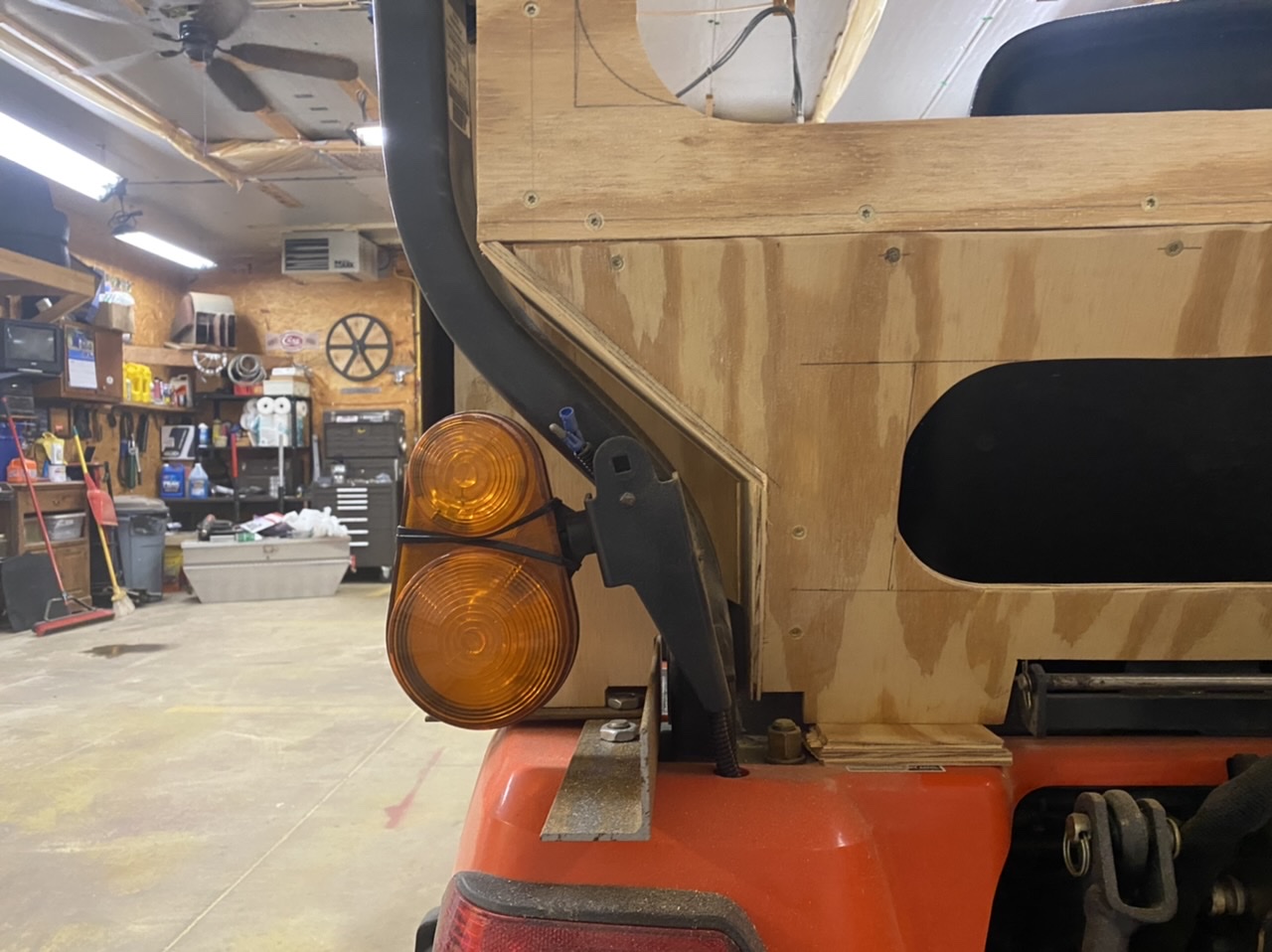

Rear panel has been a lot of work but it’s almost done. Added 45* corners at the top to clear the ROPS and a window in the lower section to be able to see the hitch. Going to use tool box lid style hasps to hold the panel in place. Going to redo some of the blocking in the corners. Some of them were thrown together quickly to hold the plywood pieces together.

3066A90B-88A3-4D37-828B-02BC48B60AFD.jpg 34046BBA-37ED-4F5A-AE60-18F785D9A16A.jpeg D705DFF3-6B85-4FDD-9626-0CB63BA241F7.jpeg 2200B140-2714-4B50-AE03-DE1AF2E25499.jpeg BA5E2668-9DA3-4F34-885F-C18FDB654F7C.jpeg

  • Like
Reactions: 1 users

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
4,016
1,668
113
North of Pittsburgh PA
Thanks guys

The way winters have been around here lately, I may not need the cab until 2023,2024, or 2025.
Remember the expression "famous last words!"

Keep the updates coming. Refreshing seeing people doing more than I seem to be doing these days.

Great job by the way.
