Post Hole Digger......On a Backhoe

civlized

Member
May 8, 2023
69
65
18
Central Alabama
Hey guys,
Here is one I wanted to share. This was one of those ideas that seemed like it might work and save me some money. I needed a post hole digger for a project. I was considering the 3 point, but just didn't want to pay that much. It's not like most of us use this attachment very much, but boy are they handy when you need them. I stumbled across a free 1 man gas unit. No way I would operate one of these by hand, but attached to a tractor, sure. So, I was on a mission. I came up with the idea that if it was on my backhoe, I could maybe get 2 holes without repositioning the tractor. Ok, the quick attach receiver I made is probably the best way to attach the digger. Because of the arc motion while moving up and down, the digger needs to be able to float forward and backward. I will probably want the throttle to be controllable from the seat. All of this needs to be removable quickly and easily, because I am old and lazy. Here is what I came up with.

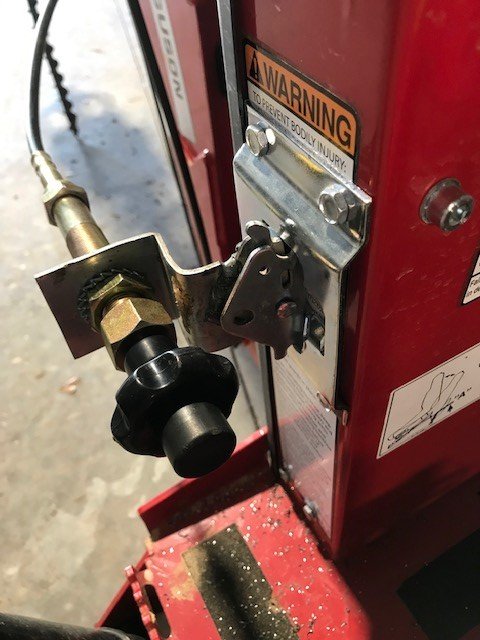

The throttle cable is attached to the backhoe control cabinet via X track and an E track clip.

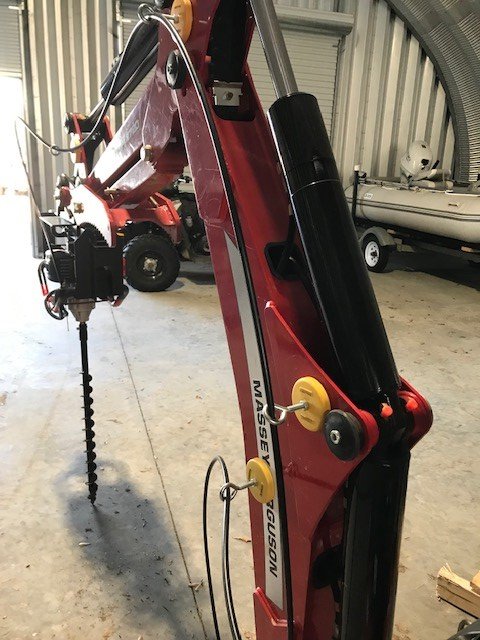

The cable is routed down the backhoe structure using magnets.

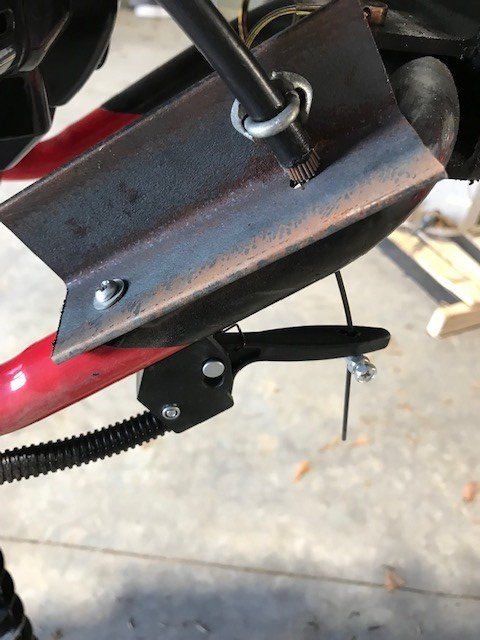

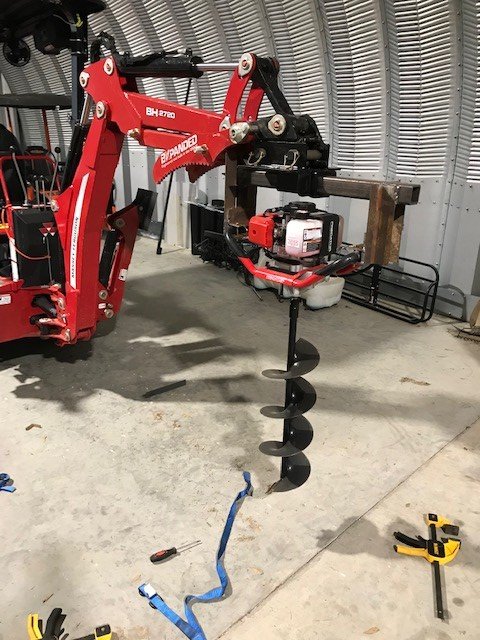

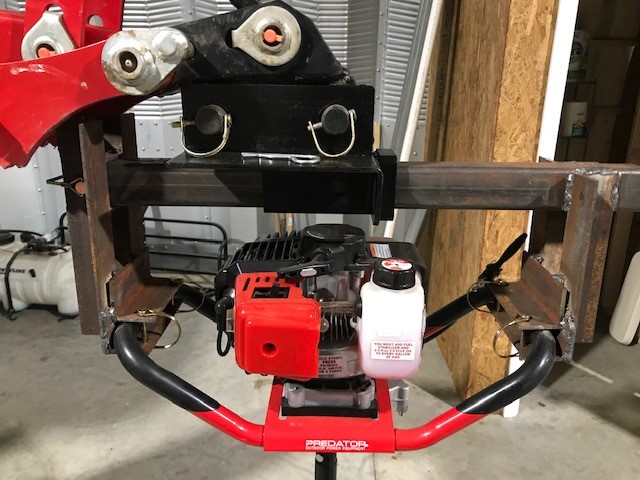

There is a bracket assembly that clips the original handles of the digger via pins. The only modification I had to make to the digger was the throttle trigger. I moved the trigger a little and drilled a hole in the trigger so that the new cable could be attached to it. The cable is for a heavy equipment brake lock or similar control. It's a solid cable, so push pull for throttle control, no need for a spring return to idle down and the handle locks in position so controlling speed is easy. It has worked out great! I haven't even painted the thing, just used when needed. There is a hole in the 2inch bar so the unit can be pinned in position and not slide back and forth. Since I have a receiver that slides on my forks, I can use it on the front of the tractor as well.
And oh yeah, if there is a need to drill in a bank or wall, we can do that too!

Last edited:
  • Like
Reactions: 7 users

D2Cat

Well-known member
Lifetime Member

Equipment
L305DT, B7100HST, TG1860, TG1860D, L4240
Mar 27, 2014
12,794
4,160
113
40 miles south of Kansas City
That's ingenious! I'd imagine the throttle linkage and finding the needed components was the most challenging. Thanks for sharing.


Daferris

Well-known member

Equipment
LX2610
Nov 23, 2021
458
378
63
Mid-Michigan
That a slick idea. I imagine it would not be hard to adapt that ingenious idea to perhaps forks on the front of the tractor to work for those folks without a backhoe. Now to find a cheap/free power head....


civlized

Member
May 8, 2023
69
65
18
Central Alabama
That's ingenious! I'd imagine the throttle linkage and finding the needed components was the most challenging. Thanks for sharing.
Well, they weren't that hard to find. The throttle cable came from Amazon. The only challenge to it was finding one long enough. Just had to scroll through a couple of pages. Everything else was either scrap metal or parts from Tractor Supply.

Thanks! Hope it helps someone.


civlized

Member
May 8, 2023
69
65
18
Central Alabama
That a slick idea. I imagine it would not be hard to adapt that ingenious idea to perhaps forks on the front of the tractor to work for those folks without a backhoe. Now to find a cheap/free power head....
Thanks, and absolutely you can use it on the front. I have a receiver on the front, also, that attaches to my forks. The magnets can attach to the FEL arms and put the throttle right at your seat.


fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
6,098
3,886
113
Eastham, Ma
Hey guys,
Here is one I wanted to share. This was one of those ideas that seemed like it might work and save me some money. I needed a post hole digger for a project. I was considering the 3 point, but just didn't want to pay that much. It's not like most of us use this attachment very much, but boy are they handy when you need them. I stumbled across a free 1 man gas unit. No way I would operate one of these by hand, but attached to a tractor, sure. So, I was on a mission. I came up with the idea that if it was on my backhoe, I could maybe get 2 holes without repositioning the tractor. Ok, the quick attach receiver I made is probably the best way to attach the digger. Because of the arc motion while moving up and down, the digger needs to be able to float forward and backward. I will probably want the throttle to be controllable from the seat. All of this needs to be removable quickly and easily, because I am old and lazy. Here is what I came up with. View attachment 102711 View attachment 102712 View attachment 102713 View attachment 102714 View attachment 102715

The throttle cable is attached to the backhoe control cabinet via X track and an E track clip.
The cable is routed down the backhoe structure using magnets.
There is a bracket assembly that clips the original handles of the digger via pins. The only modification I had to make to the digger was the throttle trigger. I moved the trigger a little and drilled a hole in the trigger so that the new cable could be attached to it. The cable is for a heavy equipment brake lock or similar control. It's a solid cable, so push pull for throttle control, no need for a spring return to idle down and the handle locks in position so controlling speed is easy. It has worked out great! I haven't even painted the thing, just used when needed. There is a hole in the 2inch bar so the unit can be pinned in position and not slide back and forth. Since I have a receiver that slides on my forks, I can use it on the front of the tractor as well.

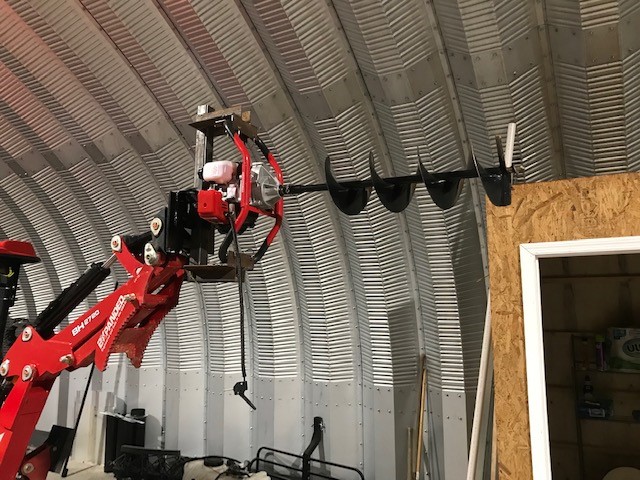

And oh yeah, if there is a need to drill in a bank or wall, we can do that too!
View attachment 102716
VERY IMPRESSIVE !


torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,581
831
113
Muskoka, Ont.
Neat idea.

My only concern would be that the backhoe is not designed to withstand twisting forces at the bucket. But hopefully, since that PHD is designed to be manually held, such forces will not be excessive.


civlized

Member
May 8, 2023
69
65
18
Central Alabama
Neat idea.

My only concern would be that the backhoe is not designed to withstand twisting forces at the bucket. But hopefully, since that PHD is designed to be manually held, such forces will not be excessive.
Thanks.
I'm sure the twisting forces from this digger are nowhere near the forces exerted by my root ripper or trenching bucket when trying to get a stump out that is way too big for this tractor to handle! I tend to snatch back and forth sideways with the hoe when doing this. I can guarantee that the handles of the digger will bend/break well before any damage to the hoe. If anything goes "snap", break out the grinder and welder!

  • Like
Reactions: 1 users

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,581
831
113
Muskoka, Ont.
I tend to snatch back and forth sideways with the hoe when doing this.
Yeah, but in that case, the centre of rotation is primarily the other end -- against the boom rotation cylinder(s) and around the pin.

I can guarantee that the handles of the digger will bend/break well before any damage to the hoe. If anything goes "snap", break out the grinder and welder!
I'm sure the handles are much lighter material than the bucket mechanism -- but also spaced further apart and operating primarily in compression/tension.

I'm not saying you are not right, or that this won't work. But I would still approach with caution and be ready to release that throttle instantly if anything starts to go south.

Good luck! I really like the concept. If it works out, I may start keeping an eye out for a good deal on a small manual PHD myself. ;-)


civlized

Member
May 8, 2023
69
65
18
Central Alabama
Yeah, but in that case, the centre of rotation is primarily the other end -- against the boom rotation cylinder(s) and around the pin.



I'm sure the handles are much lighter material than the bucket mechanism -- but also spaced further apart and operating primarily in compression/tension.

I'm not saying you are not right, or that this won't work. But I would still approach with caution and be ready to release that throttle instantly if anything starts to go south.

Good luck! I really like the concept. If it works out, I may start keeping an eye out for a good deal on a small manual PHD myself. ;-)
I don't disagree with your points, and I appreciate the word of caution. I've been using this for around 6 months, when the need comes up. Maybe dug around 50 holes with it of various sizes. If it goes too far south, I've got insurance and good shoes that I can run fast in! ;)

  • Haha
Reactions: 1 user

civlized

Member
May 8, 2023
69
65
18
Central Alabama

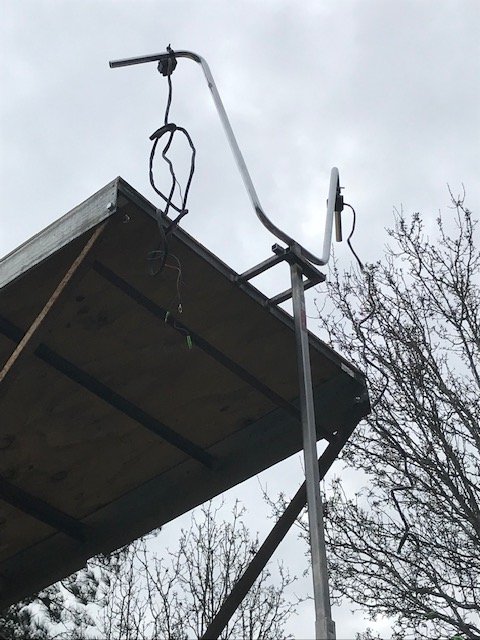

Just for everyone's knowledge about me, I'm rather unconventional when it comes to safety compared to costs! As an example, here is my homemade scissor lift using scrap metal and an old Harbor Freight trailer. But hey, I did add safety rails and a somewhat sketchy emergency brake for "uh oh" descent. It's driveable too!





Yes, the above picture shows modified car jackstands. That's the emergency brake!

Got to love the handlebars!

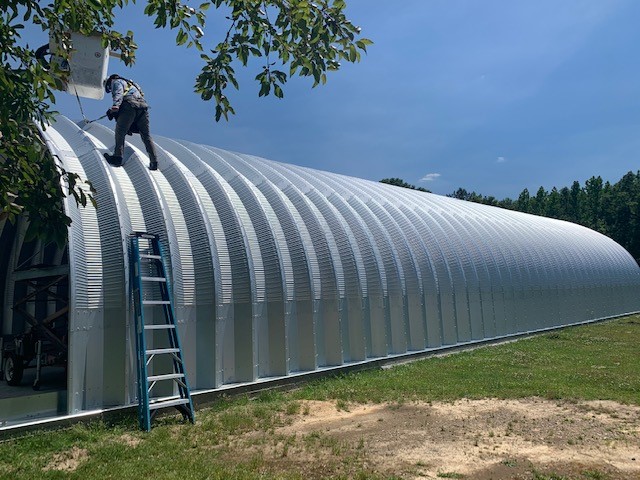

I needed to erect this building with just me and my dad. He's way too old to be on a ladder, so I made him ride this sketchy thing. It worked great and we put up a 40x90 building in 9 working days.
