Kubota front weights dimensions: Need help pls!

[Africa]

Hi,

Can anyone help me with dimensions of real kubota front weights. A drawing or photo with measurements will help a lot. I have a Kubota 2410 and a mate will laser cut some weights for me. I use a Locust 125 slasher on it and need some front ballast.

Thank you,
from Africa



[dusty-t]

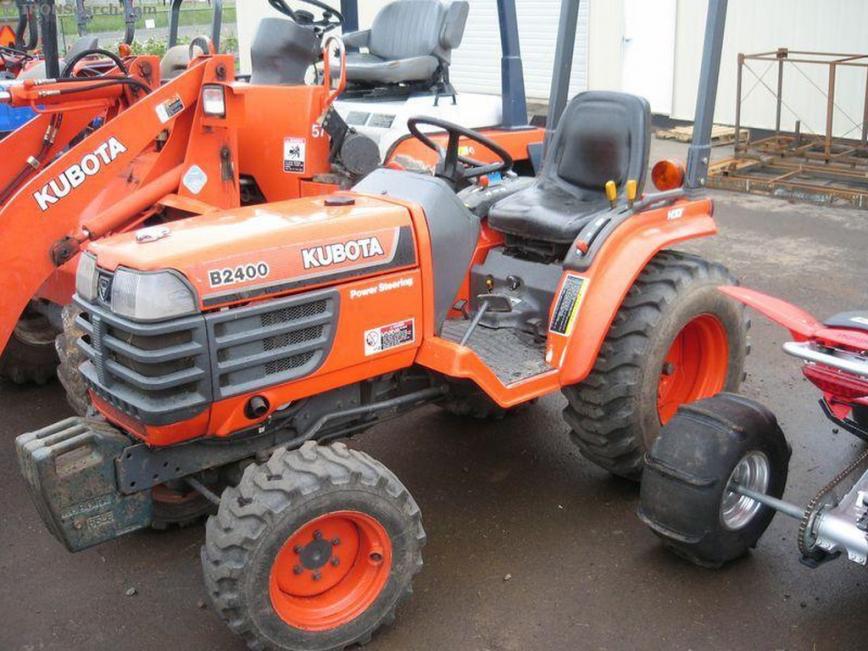

Hi Africa. Best I can do for the moment is a pic. Dusty



[Africa]

Thanks for the reply, I'm going to cut rectangle 20mm steel: 300X150 about 7kg each and bolt about 7 onto the front, should be sufficient. Will post a pc when its done!



[irish]

Hi Africa,
I have a homemade concrete weight on a B7200 (17hp)
It is 19 inches wide, 12 inches high and 6 inches deep.
It simply has 2 flat bars bolted through the the conctete (when wet) and bent over the front bracket of the tractor. It can be lifted off when not needed. I guess it weighs about 50 kgs. I'll put up a photo if you need it.
Good luck with whatever you come up with.
Irish



[irish]

Hi Africa,
Just read your post again. Apologies, you were looking for dimensions of Kubota weights.
Ignore previous post about the concrete plz.
Irish



[handyman]

Africa dusty shows you what kind of people we have on this site dusty roamed around and found you a picture should have known dusty would come thru.handy



[B7100]

Thanks for the reply, I'm going to cut rectangle 20mm steel: 300X150 about 7kg each and bolt about 7 onto the front, should be sufficient. Will post a pc when its done!

Have you considered increasing the size to give more weight?
I have 3 weights off a Massy Ferguson 135 on my B7100 each one is 25.5kgs but could do with more to stop the front lifting.The weights off quite a few tractors will fit on a Kubota front weight frame! ..if you look at the pictures I posted in "What Topper"you will see the weights on my tractor.
http://www.orangetractortalks.com/forums/showthread.php?t=1240&page=2
Dave



[traildust]

Hi Africa,
I have a homemade concrete weight on a B7200 (17hp)
It is 19 inches wide, 12 inches high and 6 inches deep.
It simply has 2 flat bars bolted through the the conctete (when wet) and bent over the front bracket of the tractor. It can be lifted off when not needed. I guess it weighs about 50 kgs. I'll put up a photo if you need it.
Good luck with whatever you come up with.
Irish

Irish, I'd like to see pic's of that. Please post the pic's.

Scott



[ptwyz]

Hi Africa. Best I can do for the moment is a pic. Dusty

Dusty, Do you know if those are Kubota case weights?



[dusty-t]

ptwyz. I don't know for sure but when you blow up the pic you can almost make out Kubota on the side. Dusty



[Africa]

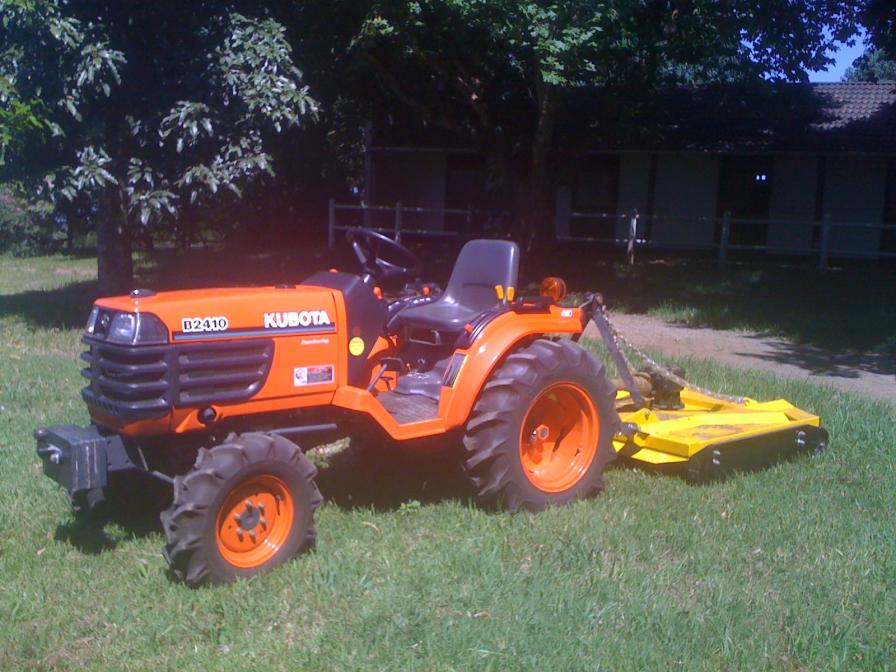

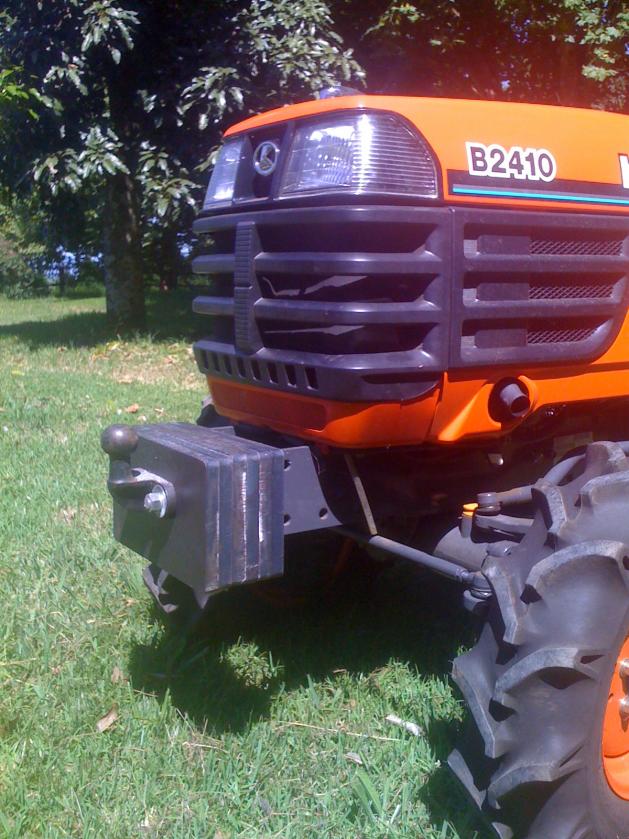

Here she is:



[traildust]

Here she is:

That tractor is a beauty! The weights are very nice looking and you even have a tow hitch. Absolutely gorgeous


Scott



[dusty-t]

Nice and neat, good job. Nice tractor too. Dusty



[ptwyz]

Here she is:

She's a bute !!!



[ptwyz]

ptwyz. I don't know for sure but when you blow up the pic you can almost make out Kubota on the side. Dusty

Ah ha! So, you used the old "zoom in" trick...

Thanks dusty !!!



[dusty-t]

Ptwyz.Ya I am getting old can't see as good as I used to. Program is called Virtual magnifying glass. Great little program. Dusty



[irish]

Irish, I'd like to see pic's of that. Please post the pic's.

Scott

Hi Traildust,

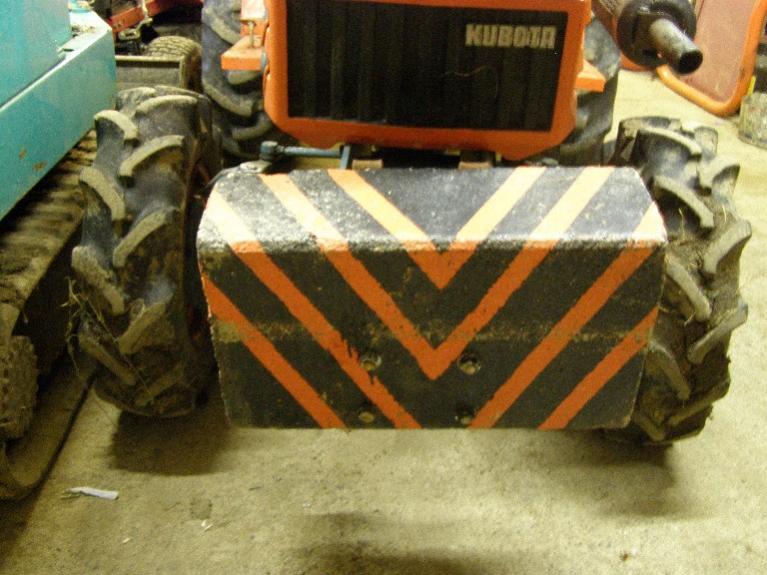

Here are 2 pictures of the weight
Irish



[irish]

Irish, I'd like to see pic's of that. Please post the pic's.

Scott

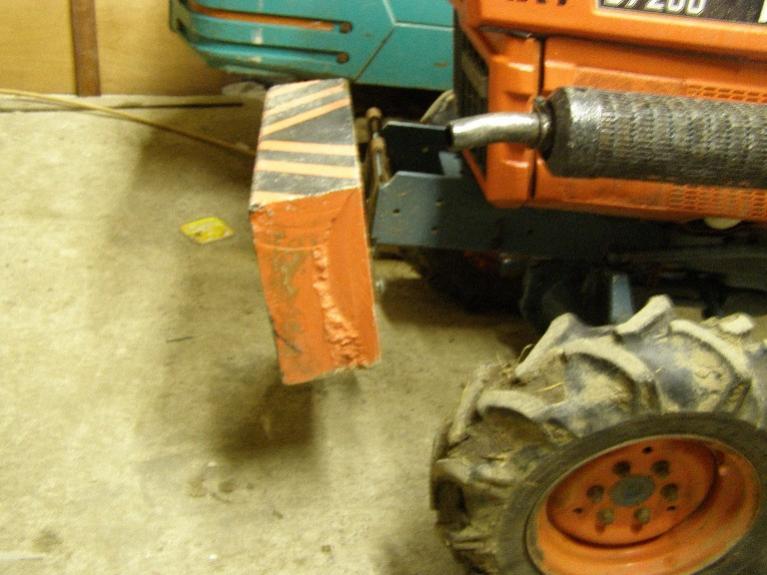

OOPS. This is the other one.



[traildust]

OOPS. This is the other one.

Irish,
Thank you for taking the time and posting the pictures of your front end weight. I like it and from the looks of the mud in your tires it's for surely doing it's job holding the front end down. Do you pretty much never take it off as it looks heavy enough to send one to the hospital if tinkered with.

What is the crawler next to the Kubota


Thank you,
Scott



[irish]

Hi Scot,

It is kept on usually, except when I have to move the tractor on a trailer.
I take it off to reduce the length.

It is manageable by one person but just about. It sould probably have been made in 2 pieces for that reason.

The tracks are on a Yanmar mini digger, - my other toy!
Regards,
irish
