Electrical - Wiring Diagrams

[85Hokie]

"Diagrams may vary depending on the Exact model, serial number, region and options equipped"

Hopefully those looking for an electrical-wiring diagrams for a given tractor can find them here.

Those that are willing to share, please make the POST TITLE that starts with the tractor specific name:

The reason for the specific post title - IF a person wants a diagram on B7100's - then hopefully this will be included in the search.

I.E.

B7100 Newer version (B5100,B6100)

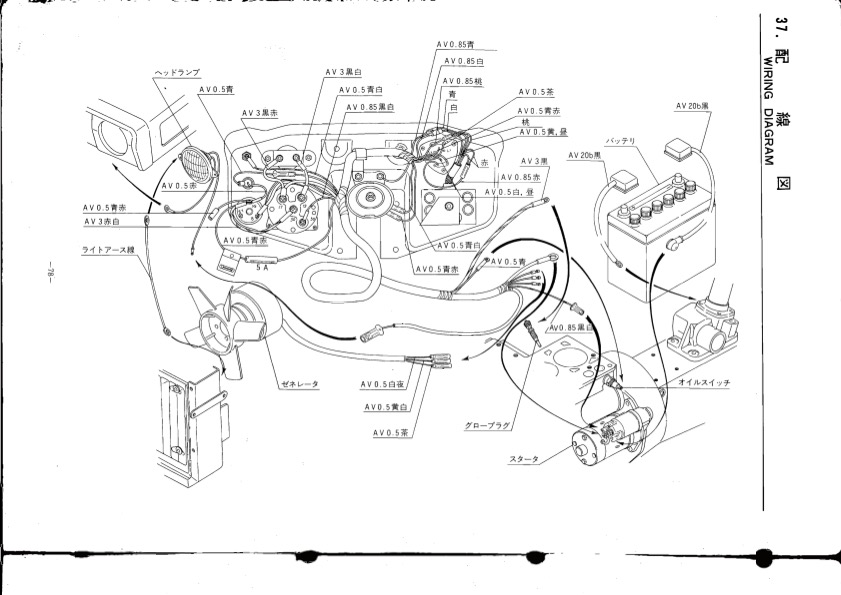

And then clearest picture possible



[GeoHorn]

L2650



[GeoHorn]

M4700DT

The WSM has the Main schematic via several fold-out pages which cannot be pictured or displayed in a post due to size. Sub-systems are similar. I can provide a copy of the WSM to a PM request.



[85Hokie]

L3301,L3901,L4702



[Dead Ash]

I have scanned both of these documents L35 Wiring Diagram and L35 Electrical Circuit to my desktop. How do I include them in this reply so they can be on this page?

Thank you
Dead Ash



[North Idaho Wolfman]

I have scanned both of these documents L35 Wiring Diagram and L35 Electrical Circuit to my desktop. How do I include them in this reply so they can be on this page?

Thank you
Dead Ash

Attach the pictures or PDF's to a post.



[Dead Ash]



[Henro]

I have scanned both of these documents L35 Wiring Diagram and L35 Electrical Circuit to my desktop. How do I include them in this reply so they can be on this page?

Thank you
Dead Ash

Very kind of you to post the diagrams. Can't help but wish your screen name was LIVE ash...
