B7100 hydraulic problems on FEL

Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas
I put a FEL on my b7100 but can’t seem to get my hoses properly plumbed. It will raise and lower but has no down pressure and it will dump the bucket but will not tilt back. I put a new summit p40g-2a1 valve control on it but I may not have it hooked up correctly. Any help is appreciated. Thanks


Attachments

TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD
I put a FEL on my b7100 but can’t seem to get my hoses properly plumbed. It will raise and lower but has no down pressure and it will dump the bucket but will not tilt back. I put a new summit p40g-2a1 valve control on it but I may not have it hooked up correctly. Any help is appreciated. Thanks
First off that valve does not have any provision for power beyond. That is not your current problem but you should correct that.

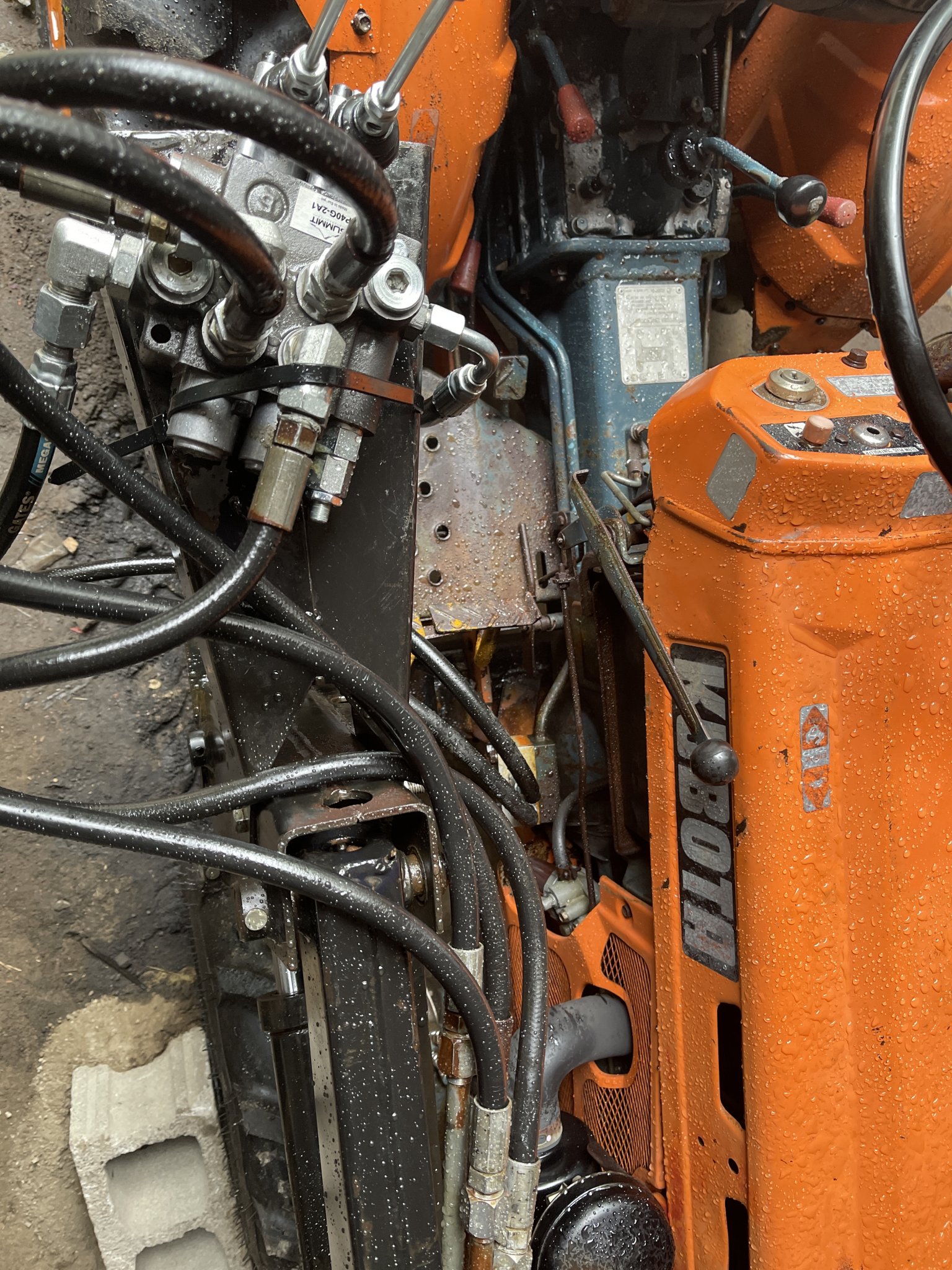

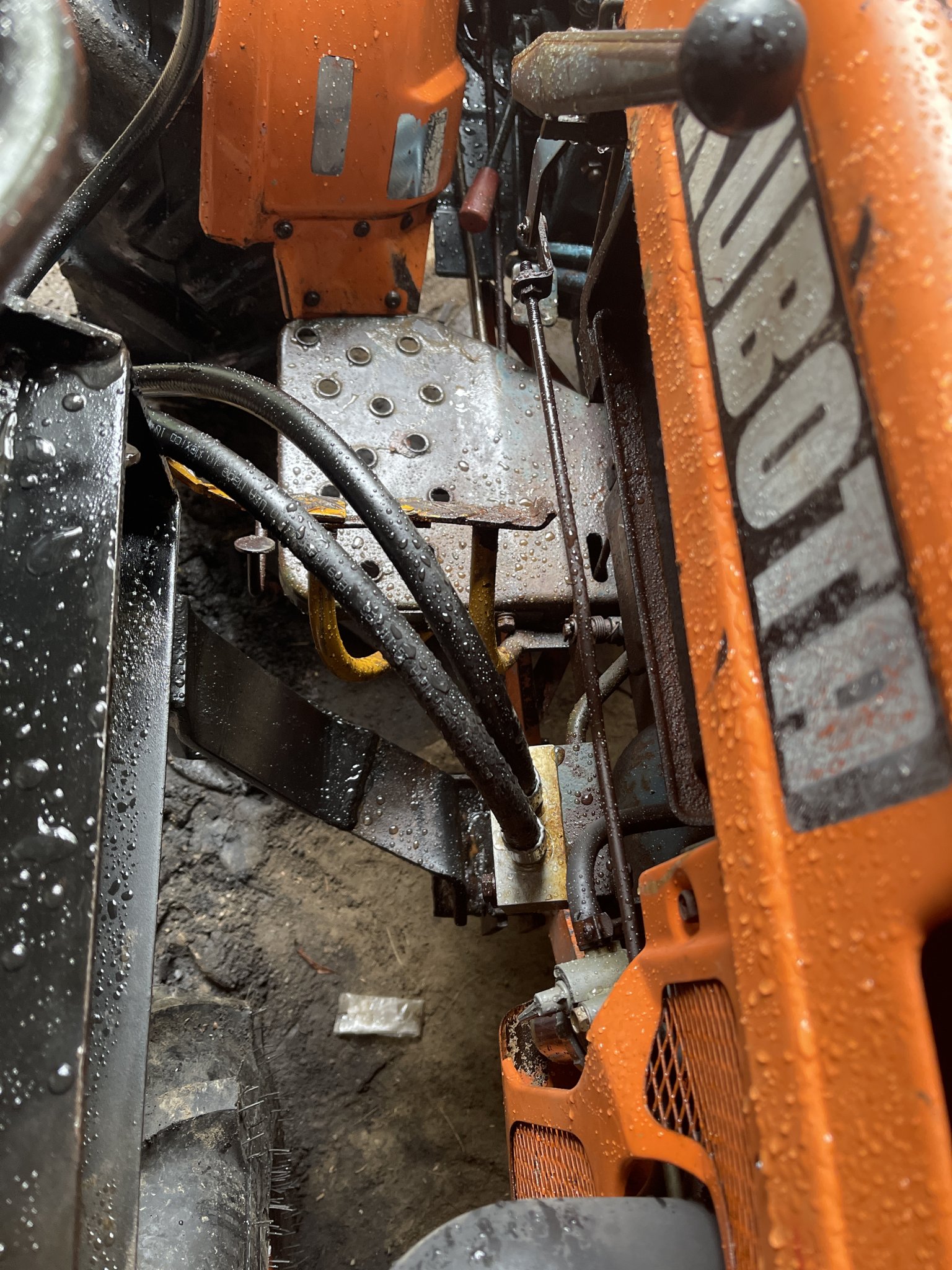

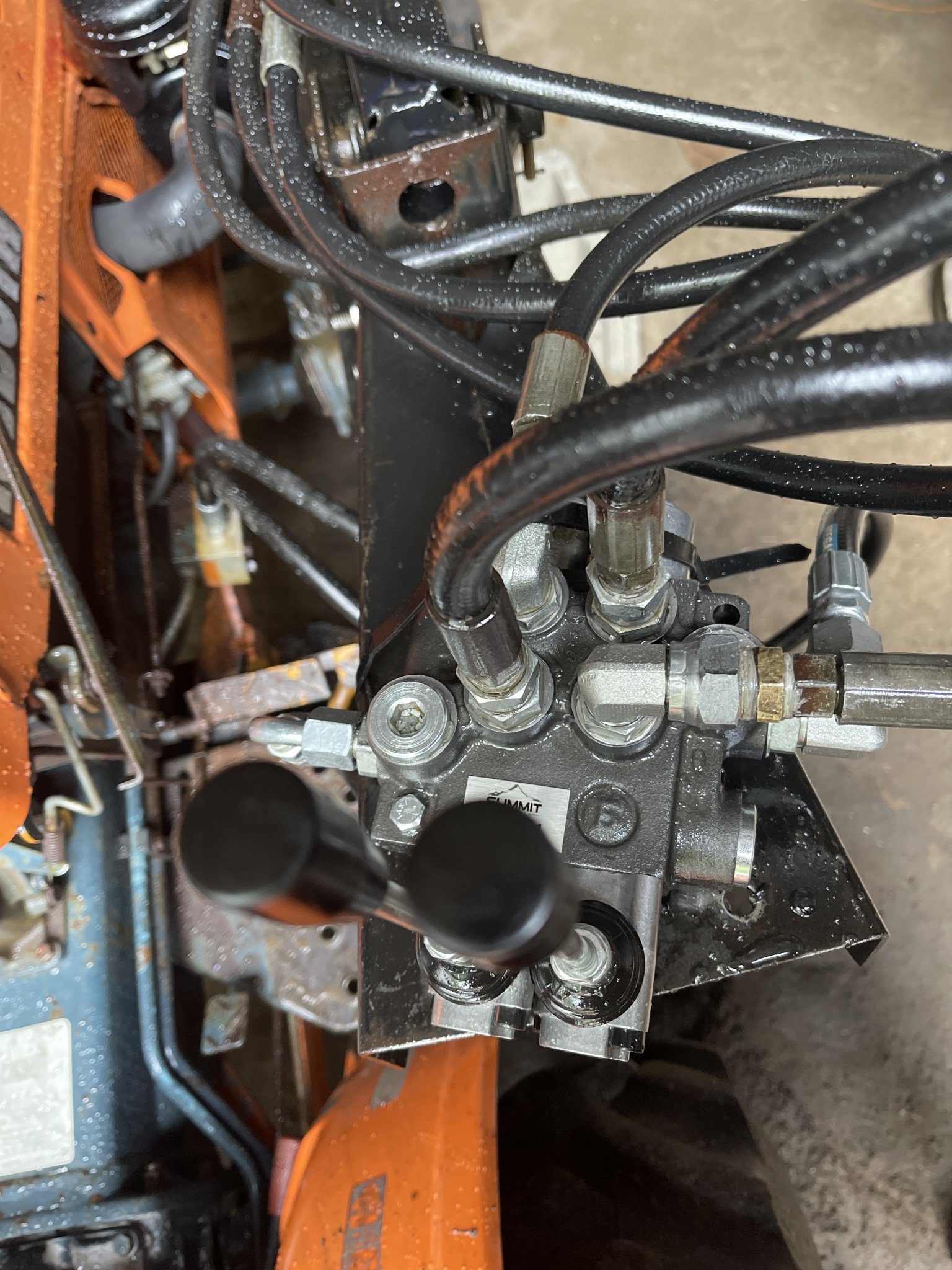

Can't tell much with pictures that only show one end of the connections.

Lets start with IN and OUT. The front port on the hydraulic outlet block should be going to the port on the left side of the valve. The hose on the right side of the valve should be going to the rearmost port on the hydraulic block. Is that what you have?

Dan


Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas
Yes the hose is connected to the left from the front port of block but the other hose is connected to the front hole on the controller from the second port on the block


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD
Yes the hose is connected to the left from the front port of block but the other hose is connected to the front hole on the controller from the second port on the block

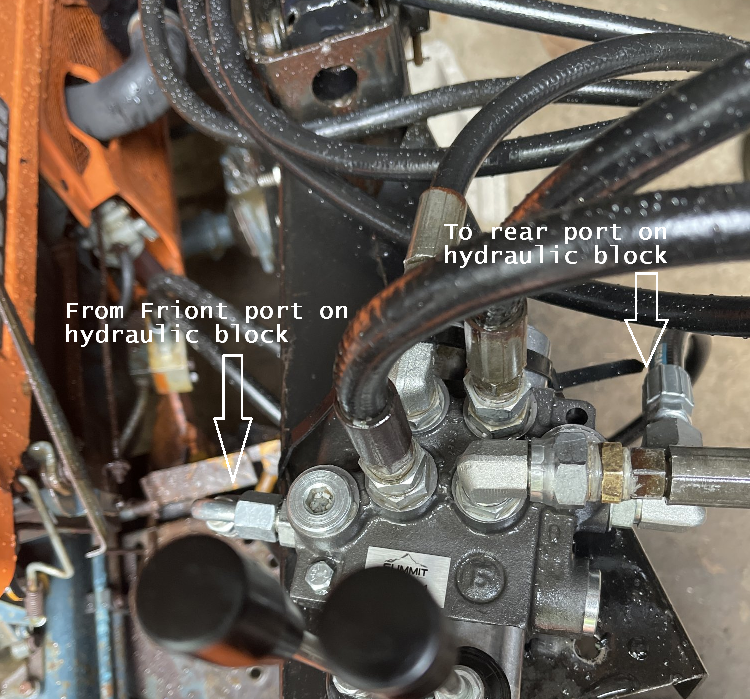

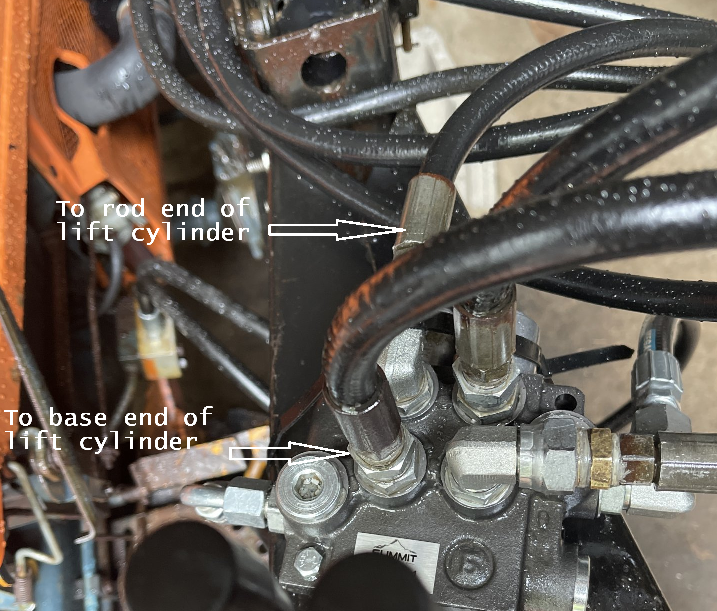

Let me try this a different way. Is this picture correct?

Dan


  • Like
Reactions: 1 user

Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas

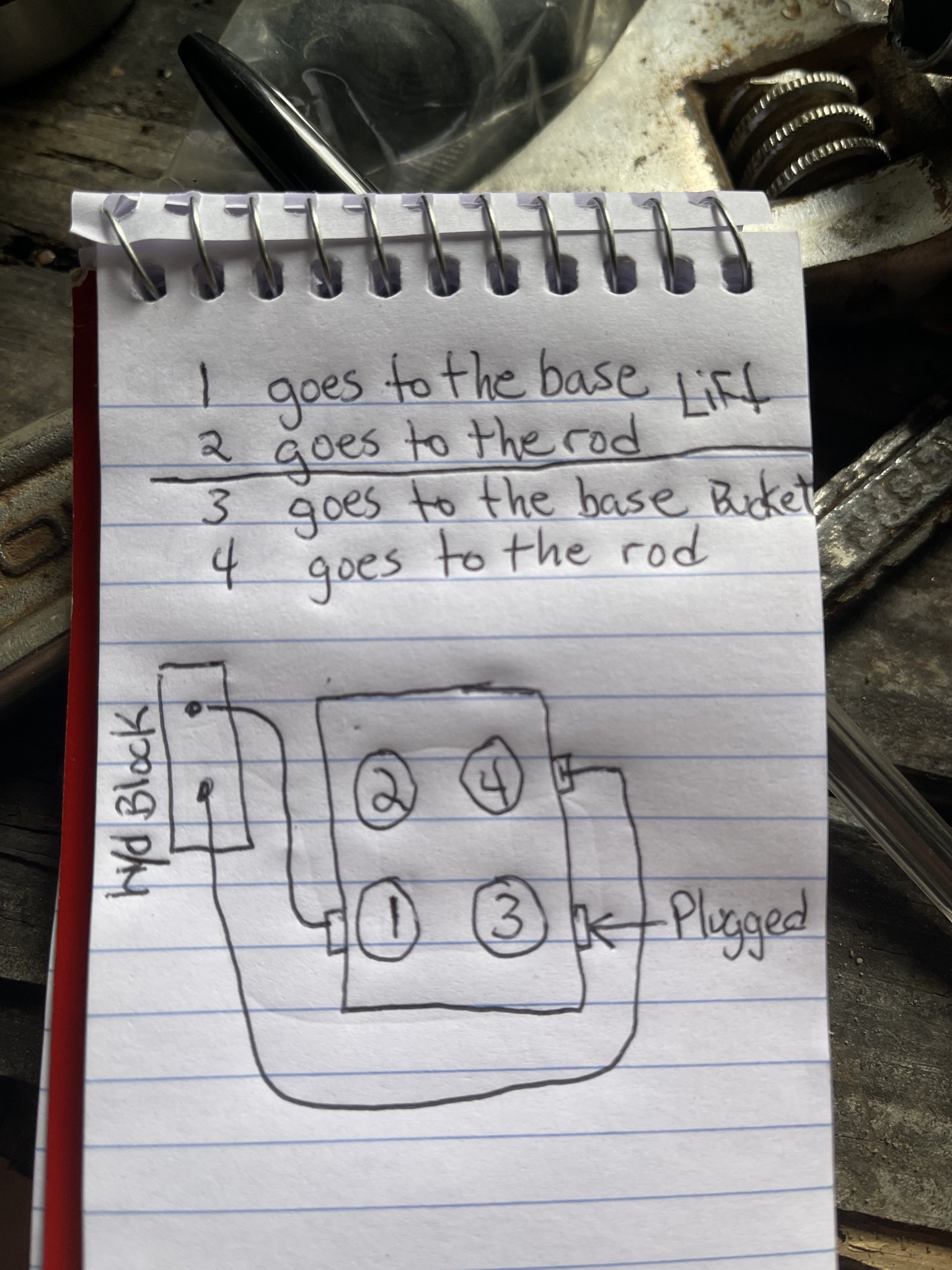

I have it connected as your photo now and on the bucket spool I have the base hose connected to the bottom port next to the handle and the rod hose connected to the front port futhrrest from the handle but now it will tilt the bucket but not raise the bucket.


Attachments

TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD
I have it connected as your photo now and on the bucket spool I have the base hose connected to the bottom port next to the handle and the rod hose connected to the front port futhrrest from the handle but now it will tilt the bucket but not raise the bucket.
Please - one thing at a time. Does the loader raise and lower properly and do you now have down pressure?

Dan


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD
hjjj

no it doesn’t raise or lower I only have curl and tilt but it acts like it wants to raise
Then you don't have it plumbed as I described. Lets go over this one more time. When you move the left lever what part of the loader moves?

Dan


Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas
Then you don't have it plumbed as I described. Lets go over this one more time. When you move the left lever what part of the loader moves?

Dan
When I move the left lever it doesn’t move up or down but it acts like it wants to and the tilt lever will move back and forth


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD

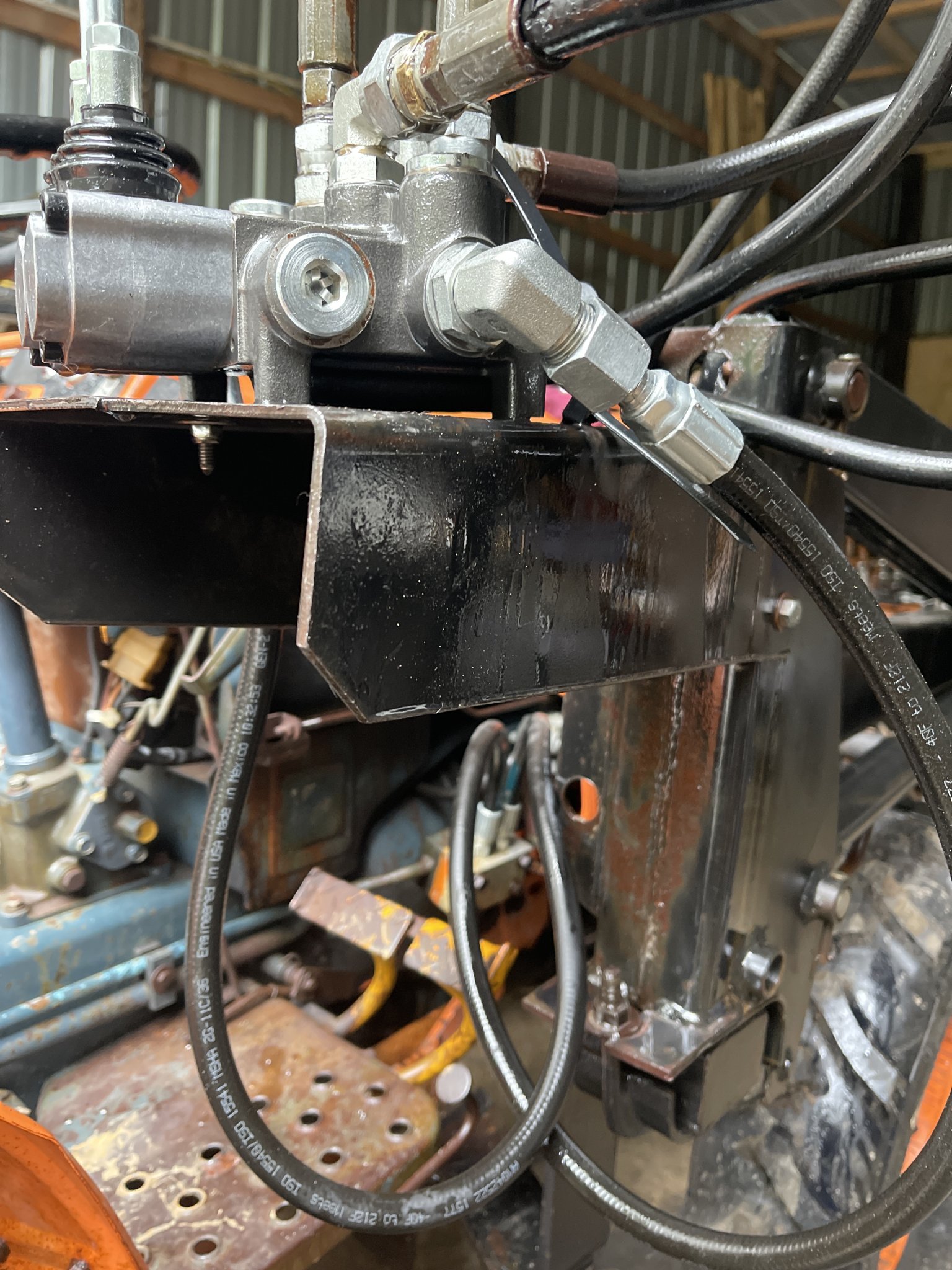

This is how it’s hooked up now

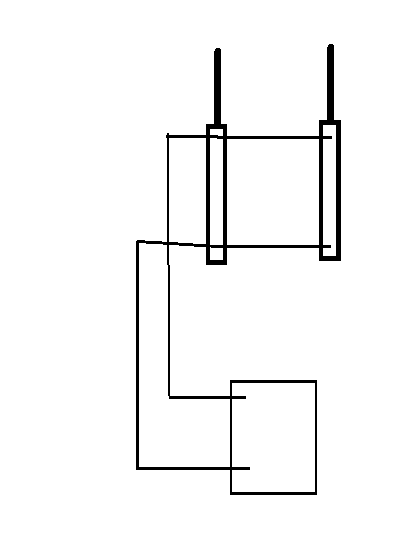

This is how the lift cylinders should be plumbed. If you hook it up like this the loader WILL raise and lower when you operate the left lever. Pull back and the loader will raise. Push forward and the loader will lower.

Dan


  • Like
Reactions: 1 user

Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas
This is how the lift cylinders should be plumbed. If you hook it up like this the loader WILL raise and lower when you operate the left lever. Pull back and the loader will raise. Push forward and the loader will lower.

Dan

View attachment 84582
Ok got it plumbed like that but still won’t raise until I barely pull back on 3 ph lever and then the as I’m pulling the bucket raise lever it goes up. This is weird


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD
Ok got it plumbed like that but still won’t raise until I barely pull back on 3 ph lever and then the as I’m pulling the bucket raise lever it goes up. This is weird
That tells me you do not have the connections to the outlet block plumbed as we discussed or the block is not correct. Where did you get the block?

Dan


Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas
That tells me you do not have the connections to the outlet block plumbed as we discussed or the block is not correct. Where did you get the block?

Dan
The block was already on the tractor it had a 4 way hydraulic blade on it until I put this front end loader on.


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
2,587
1,161
113
Myersville, MD
The block was already on the tractor it had a 4 way hydraulic blade on it until I put this front end loader on.
Please triple check your connections to the hydraulic block. Front port goes to left side of valve and rear port goes to right side of valve.

Dan


Arkubota

Member

Equipment
B7100
Jul 30, 2022
51
4
8
Arkansas
Please triple check your connections to the hydraulic block. Front port goes to left side of valve and rear port goes to right side of valve.

Dan
I have front port on left side of control back port on the right side of control. It has 2 ports on the right side of the control and it is connected to the front one.


Attachments
