What did you do to or on your Kubota today?

Mossy dell

Active member

Equipment
B2601 (2021) JD970 (1998) B2100 (1991) B6100E (1988)
Jul 20, 2020
257
105
43
sw VA
Lynnmor, what an awesome installation! It appears the lights are highly adjustable, as to whether all or some shine forward or reverse. Wonderful. And I LOVE that the lights are under the top of the ROPS. That's vital to me for clearance. I do have two small LED lights lower on the outside of my B2601's ROPS that were dealer installed but I want more light.

Could you say what products you used?


lynnmor

Well-known member

Equipment
B2601-1
May 3, 2021
553
365
63
Red Lion
Lynnmor, what an awesome installation! It appears the lights are highly adjustable, as to whether all or some shine forward or reverse. Wonderful. And I LOVE that the lights are under the top of the ROPS. That's vital to me for clearance. I do have two small LED lights lower on the outside of my B2601's ROPS that were dealer installed but I want more light.

Could you say what products you used?

Actually there is little adjustment, the angle built into the ROPS and the lights came out nearly perfect when mounted like this. The rear lights are angled down more, just like you would want them.

Below are the products I used, some of it can be bought in small quantities. The electrical box will need some machining, and the stainless steel bars will need to be cut, drilled and tapped as required. The lights are mounted with magnets, the electrical box with one low head 1/4" screw, and the ROPS is sprayed with non-skid paint in the mounting area. I used bullet connectors on the lights to save space in the sleeving with no need to go larger. If I did it again, I would simply solder and heat shrink, if a lamp needs replaced in the future it might be just as easy to redo the soldering. I plugged into the cigarette lighter socket and made a tee to connect the socket and lamps, wiring can be returned to factory in a minute. The lamps draw under 8 amps and the lighter circuit is fused at 10 amps, if there is ever a problem I will connect the rear lamps the the work light circuit that is nearby.


3 sets, need 10 magnets total:
https://www.amazon.com/dp/B08HCLX1S6?psc=1&ref=ppx_pop_dt_b_product_details

Light set:
https://www.amazon.com/dp/B06XW8WK6Q?psc=1&ref=ppx_pop_dt_b_product_details

Headlight upgrade:
https://www.ebay.com/itm/164843410035

Grommets (need 4):
https://www.mcmaster.com/9307K38/

Grommets, (need 2):
https://www.mcmaster.com/9600K28/

Electrical box (would buy a bit larger, it is tight):
https://www.mcmaster.com/7301K112/

Switches (2):
https://www.mcmaster.com/7343K711/

Switch cover (2):
https://www.mcmaster.com/70205K4/

Cable Ties:
https://www.mcmaster.com/7130K55/

Quick Disconnect, female, only need 1:
https://www.mcmaster.com/7060K29/

Quick Disconnect, male, only need 1:
https://www.mcmaster.com/7060K88/

Assorted .157” bullet connectors and terminals as required. Light kit has some .250” flat connectors. I use No-Ox on all connections. Heat shrink tubing and some electrical tape as required.

Sleeving, need about 10 feet:
https://www.mcmaster.com/7840K72-7840K12/

Stainless steel to make mounting bars, need 2:
https://www.mcmaster.com/9084K2-9084K209/

Stainless steel washers, need a total of 20:
https://www.mcmaster.com/90107A029/

Non-Skid clear spray paint, I used Rust-Oleum, can't find any in stock, here is an example:
https://www.walmart.com/ip/Krylon-K03400000-11-oz-Non-Skid-Coating-Spray-Clear/19535863

  • Like
Reactions: 2 users

jyoutz

Well-known member

Equipment
MX6000 HST open station, FEL, 6’ cutter, forks, 8’ rear blade, 7’ cultivator
Jan 14, 2019
1,018
499
83
Edgewood, New Mexico
Today I installed a 2 plug USB port on my tractor. Now I can stream music from my phone through headphones and not worry about the phone battery going dead.

  • Like
Reactions: 1 users

DCM303

New member
Lifetime Member

Equipment
L4060HST LE
Dec 15, 2020
7
11
3
Missouri
I ran two 4 gauge wires from the battery to the back of my L4060LE, most in split loom to power a winch. The wires feed into two (positive & negative) distribution blocks. I installed a 60 amp breaker in the positive cable close to the battery. From the distribution blocks I ran 12 gauge wire to a fuse block that powers two Artillian lights, a USB charger and 12 volts power socket (cigarette lighter for us older guys). I then mounted a cheap back up camera (monitor powered by the pocket socket, camera powered by fuse block) so I can see behind me, no cab, just old and stiff. Sorry no pic's, was at my farm 180 mile away and didn't take any... but I will. Also, all the wiring was placed in split loom as much as possible.


Below is what I used. I got the idea from various youtube sites but the channel -DIY My Way- gave me the most. https://www.youtube.com/c/DIYMyWay

My wife said I'm pimping out my tractor.... she's not entirely wrong, But I have/will use them all.

T Tocas 300A Bus Bars Heavy Duty Module Design Power Distribution Block Busbar Box with 4X M8(5/16") Terminal Studs(Red)

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount / 60A

6 Way Blade Fuse Box with Ground Negative Bus bar for Automotive [ATC/ATO Blade Fuses] [100 Amp] [LED] [Protection Cover] [12V - 30V DC] Auto Marine Ground Fuse Block

YONHAN Quick Charge 3.0 Dual USB Charger Socket, Waterproof Power Outlet Fast Charge with LED Voltmeter & Wire Fuse DIY Kit for 12V/24V Car Boat Marine ATV Bus Truck and More

BANDC Waterproof Marine Motorcycle Car Cigarette Lighter Socket Power Outlet 12 Volt


  • Like
Reactions: 1 user

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC - LP, EA, Kubota, Del Morino & RI implements, GL7000
Feb 9, 2021
1,633
1,499
113
NW Montana
I installed a 60 amp breaker in the positive cable close to the battery.
I have to ask, how did you settle on a 60A circuit breaker?


ItBmine

Well-known member

Equipment
B2620, RTV-X1100C
Jan 21, 2014
1,215
234
63
Canada

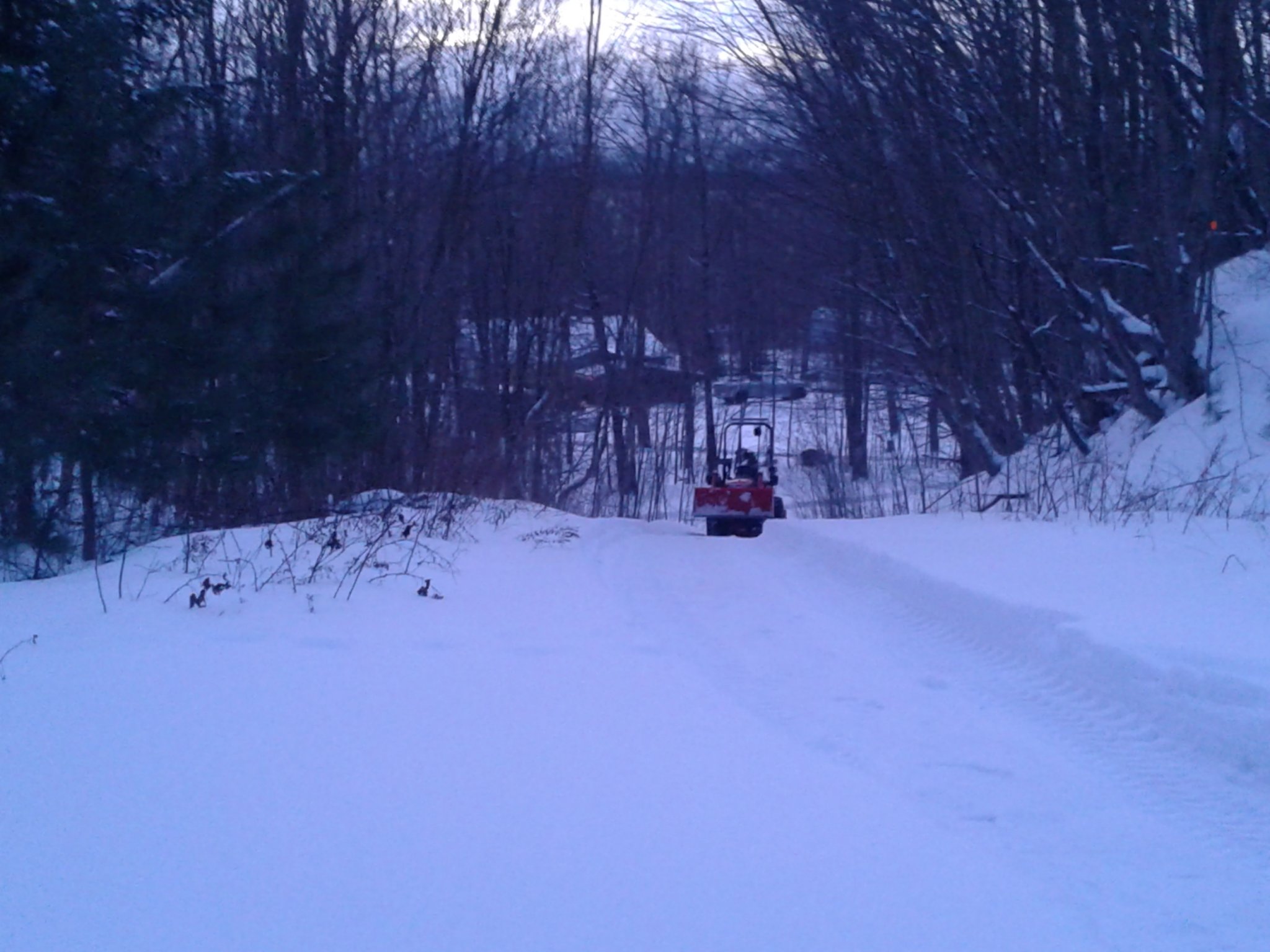

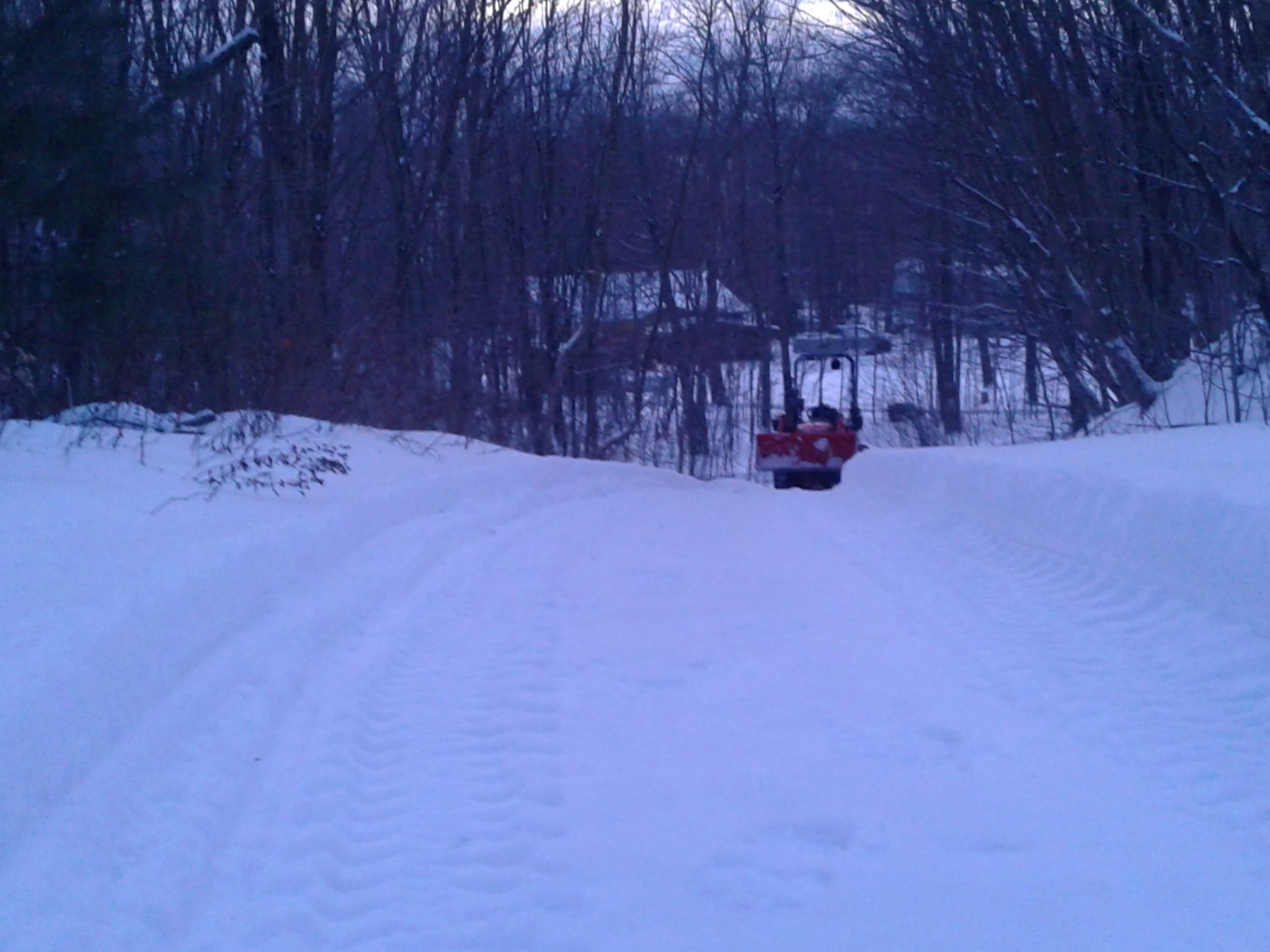

More plowing. Really loving this RTV.
Then used the tractor to clear some of my bush road so the dog and I have a walking trail.

I hear all the negativity about R4 tires, but I made the first pass snow blowing UP these hills. But as you can see, it didn't cut right down because we keep getting freezing rain between snows, so here it is on second pass coming back down.


Attachments

  • Like
Reactions: 2 users

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC - LP, EA, Kubota, Del Morino & RI implements, GL7000
Feb 9, 2021
1,633
1,499
113
NW Montana
Maybe because 4 gauge copper cable is rated to carry 70 amps max at 60C?
That makes sense. Sounds like a really good installation that @DCM303 put together. Would be good to see some photos.

  • Like
Reactions: 1 user

Mossy dell

Active member

Equipment
B2601 (2021) JD970 (1998) B2100 (1991) B6100E (1988)
Jul 20, 2020
257
105
43
sw VA
I just put on my front blade for the first time this winter. We are under a winter storm warning for tonight. 4-5" snow forecast and winds gusting to 35 mph. Likely power outages.

60 degrees and cloudy now. Last night we got 1 3/4" rain—the most in one event since 2020. It was only the second measurable precipitation we've had since October. And the only other was 1/4". To give myself hope, recorded it as 3/8". Well, it had been misty the day before. October was two light rains of 1/4" and 3/4". We had drought all summer, too. Weeks without rain.

Now snow? I've got her fueled, jettisoned the bucket, and hooked up the blade. I'm ready, I hope. Have not used the blade, got it with the tractor last February. Last summer I added the rubber edge, hoping to spare my old asphalt. Also have a couple gravel spurs and my daughter's long uphill gravel driveway next door.

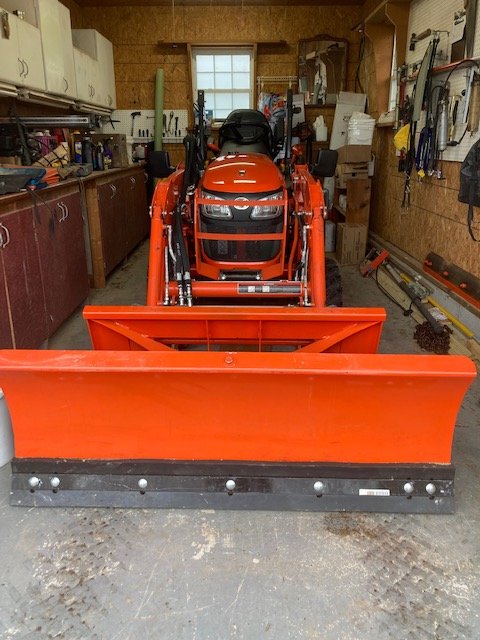

Front Blade1, 1-2-22.jpg


Front Blade on 2, 1-2-22.jpg


Front View, 1-2-22.jpg

  • Like
Reactions: 1 users

HVACRoger

Active member

Equipment
2021 L2501 Loader, Backhoe, LandPride Grapple, Tiller, Forks, Quick Connect
Dec 20, 2021
174
95
28
Wilson, NC
I went to connect to my new tiller with my new quick connect but found that I did not have a full shaft. Guess the delivery guy might have lost it on the way here. I remember him stating all the shafts have to be cut to the setup of each tractor. In his defense he asked if I wanted him to show me the connection process and I moved him on to the backhoe. Good out of this is I can have a shaft cut to work the tiller attached to the quick hitch, I hope!!


nbryan

Well-known member

Equipment
B2650 BH77 LA534 54" ssqa Forks B2782B BB1560 Woods M5-4 MaxxHaul 50039
Jan 3, 2019
804
421
63
Hadashville, Manitoba, Canada
Last night we got 1 3/4" rain—the most in one event since 2020.
A dry year in Virginia, too? Same here in SE Manitoba Canada, never seen anything like the drought here in my life, and where we live now the 85 year-old farmers say the same. Our normally 50 ft wide river could flow through a 2" pipe at one point late summer.
Had a bit of precip lately but we're WAY below the normal soil moisture and water table levels.

  • Like
Reactions: 1 user

Mossy dell

Active member

Equipment
B2601 (2021) JD970 (1998) B2100 (1991) B6100E (1988)
Jul 20, 2020
257
105
43
sw VA
Yeah, it's been so dry. Weirdly dry and then scary dry. I planted a lot of trees, shrubs, and perennials this year, starting in March. Which is when I became concerned. Then no rain in April! And the pattern of little to none continues.


DustyRusty

Well-known member

Equipment
BX23S
Nov 8, 2015
1,795
997
113
North East

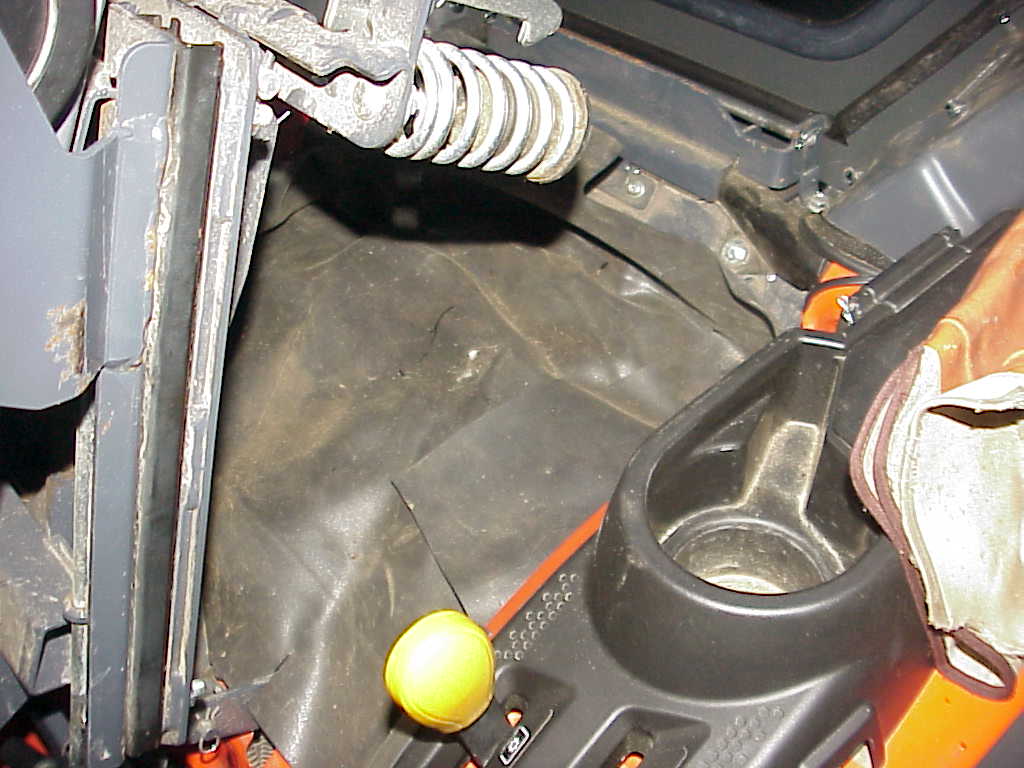

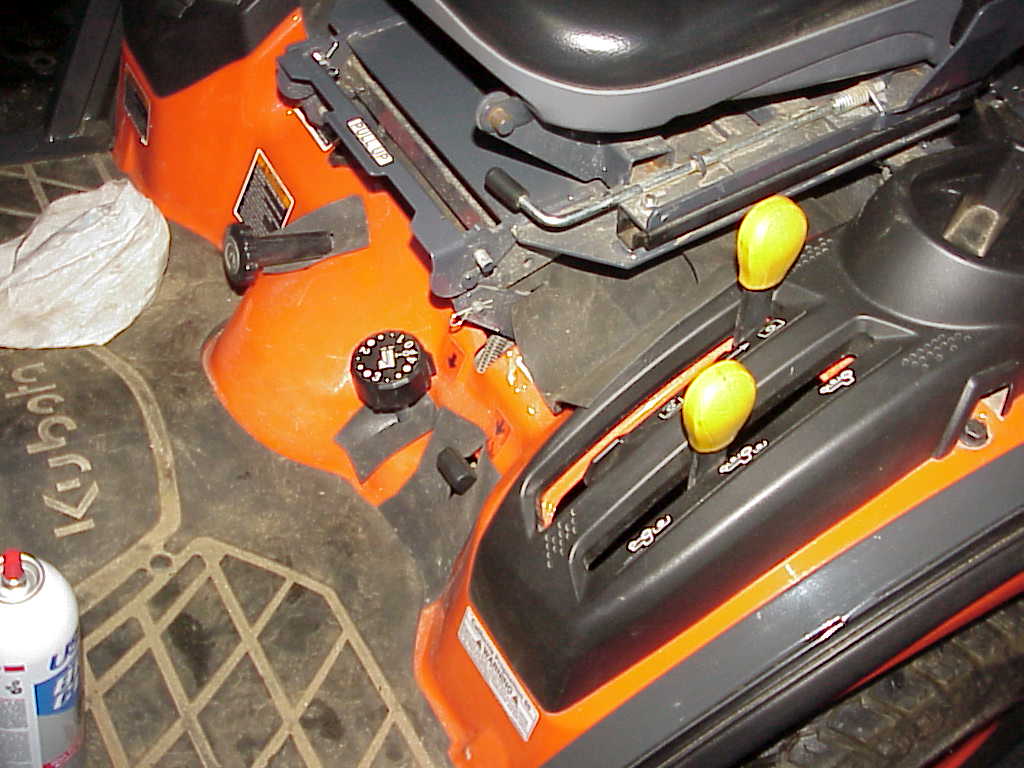

I grabbed a hunk of rubber roofing and sealed it up under the seat of the tractor to keep the heat in and the cold out. It isn't very neat, but it will do what I wanted. Next summer I will trim it to a better fit. I looked into the cost of the kit that is made by Curtis to seal up all the holes in the tractor when the cab is being installed, but it would have added 3 additional hours of labor and the cost of the kit. I decided that I could live with some cold air leakage. Knowing what parts are in the kit, I am certain that I can do it for a lot less money.

  • Like
Reactions: 1 user

Mossy dell

Active member

Equipment
B2601 (2021) JD970 (1998) B2100 (1991) B6100E (1988)
Jul 20, 2020
257
105
43
sw VA
I finally used the front snow blade I bought with my tractor last February. Clearing snow off our asphalt worked great. I may've made a mess of our gravel. It's been real warm until this storm, and the gravel wasn't frozen. It was pretty mushy and I trenched it with the skid shoes and pushed it with the blade's lip. Am hoping it's not as bad as it looks in the snow piles—gravel has a way of looking like a huge pile in snow and alarming you.

Front Blade1, 1-2-22.jpg
