What did you do to or on your Kubota today?

D2Cat

Well-known member
Lifetime Member

Equipment
L305DT, B7100HST, TG1860, TG1860D, L4240
Mar 27, 2014
10,651
1,825
113
40 miles south of Kansas City
Tomorrow's agenda:

Bottle 5 gallons of home brew Leffe Abbey Blonde Ale, and maybe brew a 5 gallon batch of English Porter and get it on to ferment. Ooops. Wrong forum.

Modify my el cheapo HF Haulmaster QH so that it doesn't hang up so bad on the LP BB1248. Too many bulky square corners that bind up on everything. Not much point in having a QH if I have to keep climbing up and down on the tractor and prying things around so it will actually engage the attachments. The top hook on the QH has to have a completely different angle when I switch from the chipper to the BB, so I have to spin the top link to fix that issue, too. I see a hydraulic top link and remotes in my future. I think I can fix the bulk of the usability issues with my angle grinder by just rounding some of the corners on the hooks and maybe tapering them just a bit. Something else caught my attention too, that being the guides for the lower hook latches. They should fit inside the pin pockets easily, but I noticed that they're tapered outward making them too wide and likely to stick on one side or the other. So, I might have to grind the weld on the pivot of the latch so I can rearrange them to be parallel, and I'll also taper the edges so they don't hang up too. Too many square pegs going into round holes.

My retirement hobbies are a lot more fun than my job ever was. Gonna be real hard to go back to work next month.
What, you going back to work so you can collect some of that unemployment being handed out?. 😁


bmblank

Active member

Equipment
2020 L3901HST, LA525 Loader, 66" Q/A Bucket, PFL2042 Forks, Meteor SB68PT Blower
Mar 4, 2015
485
152
43
Cadillac, MI
Last night I used my 3901 with the forks as a lawn mower lift so I could take off the blade and sharpen it, change the oil and give it a good(ish) cleaning. I know, lifting stuff overhead and all that... It's a 21" push mower, I wasn't worried. I just figured this way I could have it high enough I didn't need to crouch...

  • Like
Reactions: 2 users

Old_Paint

Well-known member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
1,071
753
113
AL
What, you going back to work so you can collect some of that unemployment being handed out?. 😁
If you mean the 'hand-outs' I've been getting for the past 45 years, yeah, I figured I can collect a little more of it before I quit completely. Been on disability since last June because I had both rotator cuffs done. Can't collect unemployment while on Disability. Didn't have a choice on the right dhoulder, complete rupture. Left one got really bad inflamed because of favoring the right, and had a small tear too. Right one in June, left one end of October, when I could take the sling off and drive with the right one. Right one's good now, but left is still givin' me fits. Not sure how, but think I re-injured it. That's all I need. See the doc again first week in June, and think I'll ask him to set up another MRI. Need to know. It's a 10 month healing process, and yeah, I probably got impatient with the left and did a little too much.

The management, business, and work environment is changed to the point I don't even recognize the job I used to love and excel at. It's a lot more of a younger man's game with less technical skill sets required, which is exactly the opposite of what old timers like me need or are suited for. I'll try to go back to it now that the local asshat manager is gone, and try to get all the bad marks off my report card that he forged, but if I'm not suitable as an employee, then I'll certainly do my best to help a lot of other companies take as much away from them as possible. They've been warned. They can have my loyalty, or they can make me their worst enemy. Up to them.


B737

Well-known member
Lifetime Member

Equipment
LX3310
Jun 9, 2019
1,803
1,818
113
New Jersey
Quarterly brush pick up this week, doing some woods clean up at home




  • Like
Reactions: 3 users

Old_Paint

Well-known member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
1,071
753
113
AL
Got the Haulmaster QH modified. SO MUCH BETTER.

Before....

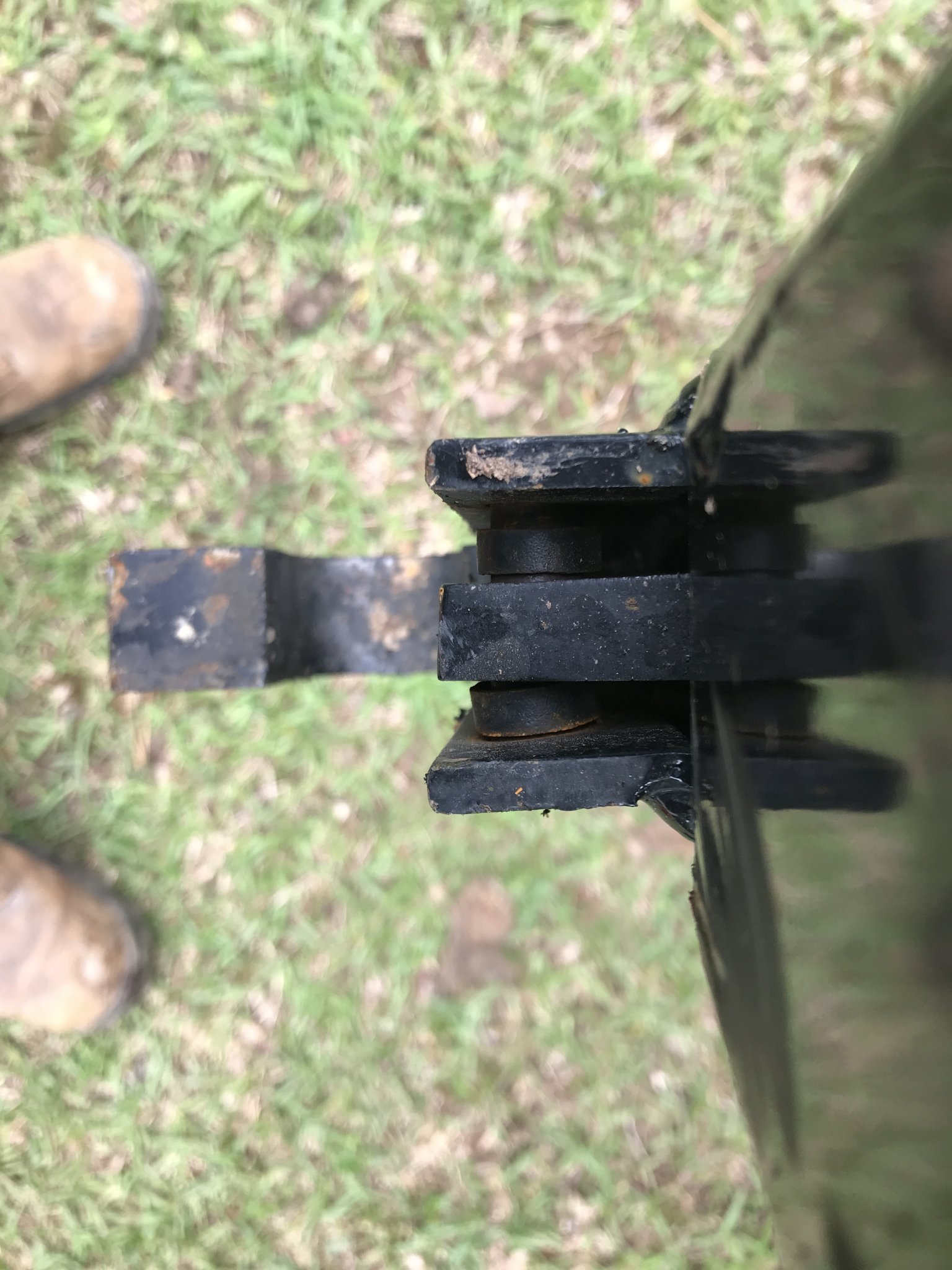

IMG_2666.JPG Left hook. Notice that the flanges for the latch pivot are spread out.
IMG_2667.JPG Hook is very 'boxy' Flat on top and sharp corners hang on the pin boxes on the BB.

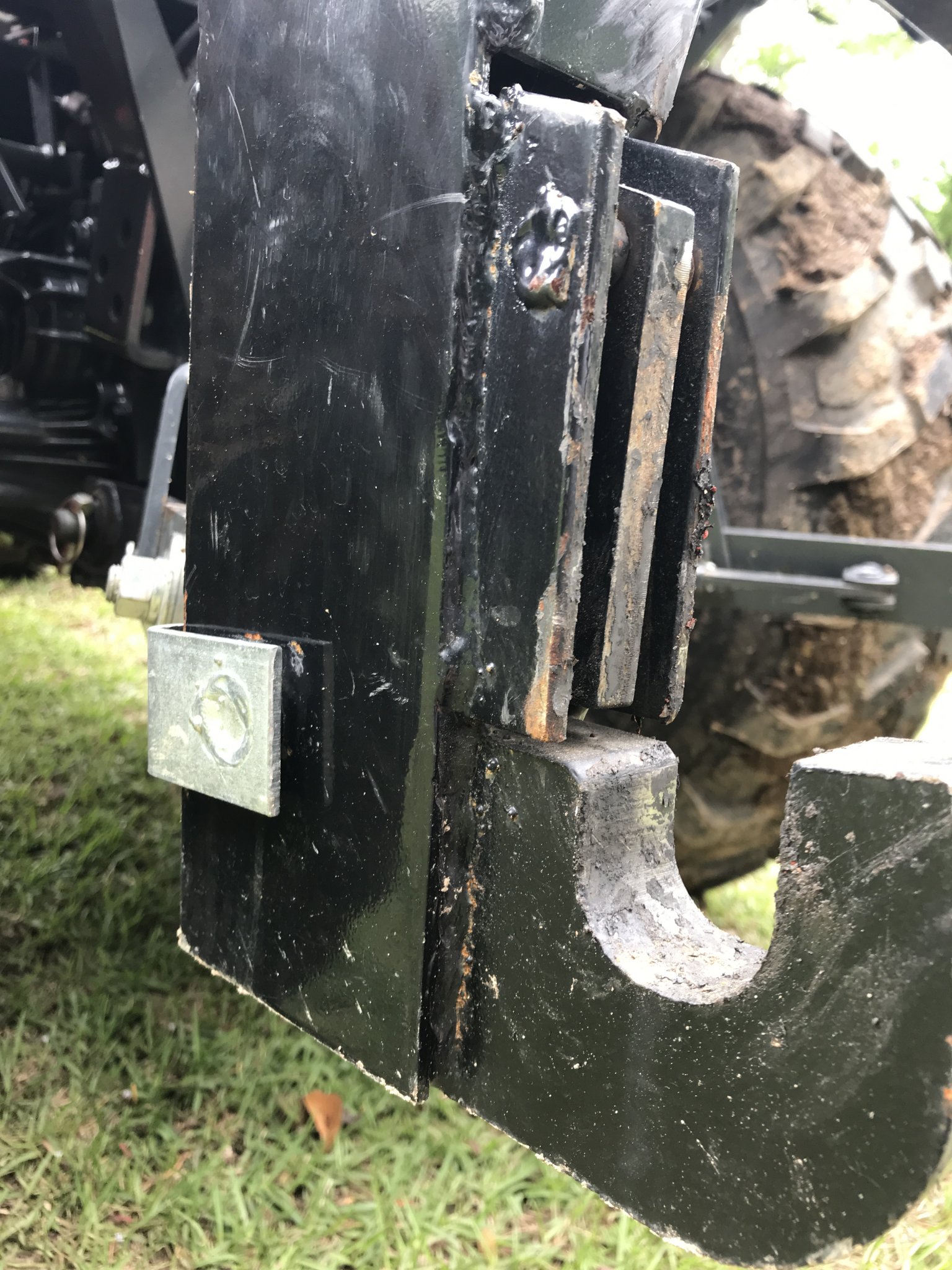

IMG_2668.JPG Right hook, same problems.

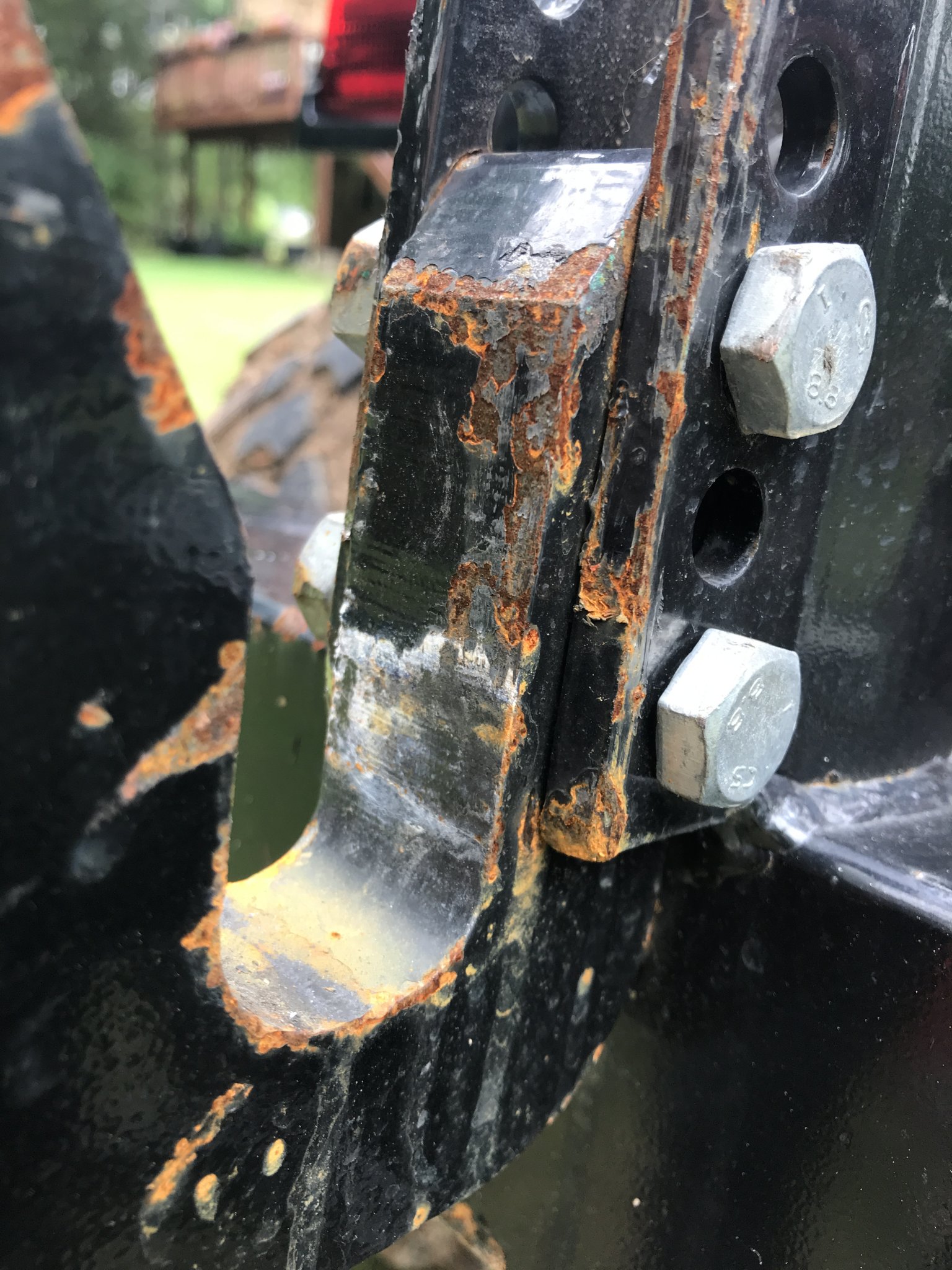

IMG_2669.JPG Top hook, same problems, but top of BB hits the bolts holding the top hook in the QH.
IMG_2670.JPG Top hook from RH side
IMG_2671.JPG Top hook from above.
IMG_2672.JPG Note the scratches and wear marks on the top of the BB connection.

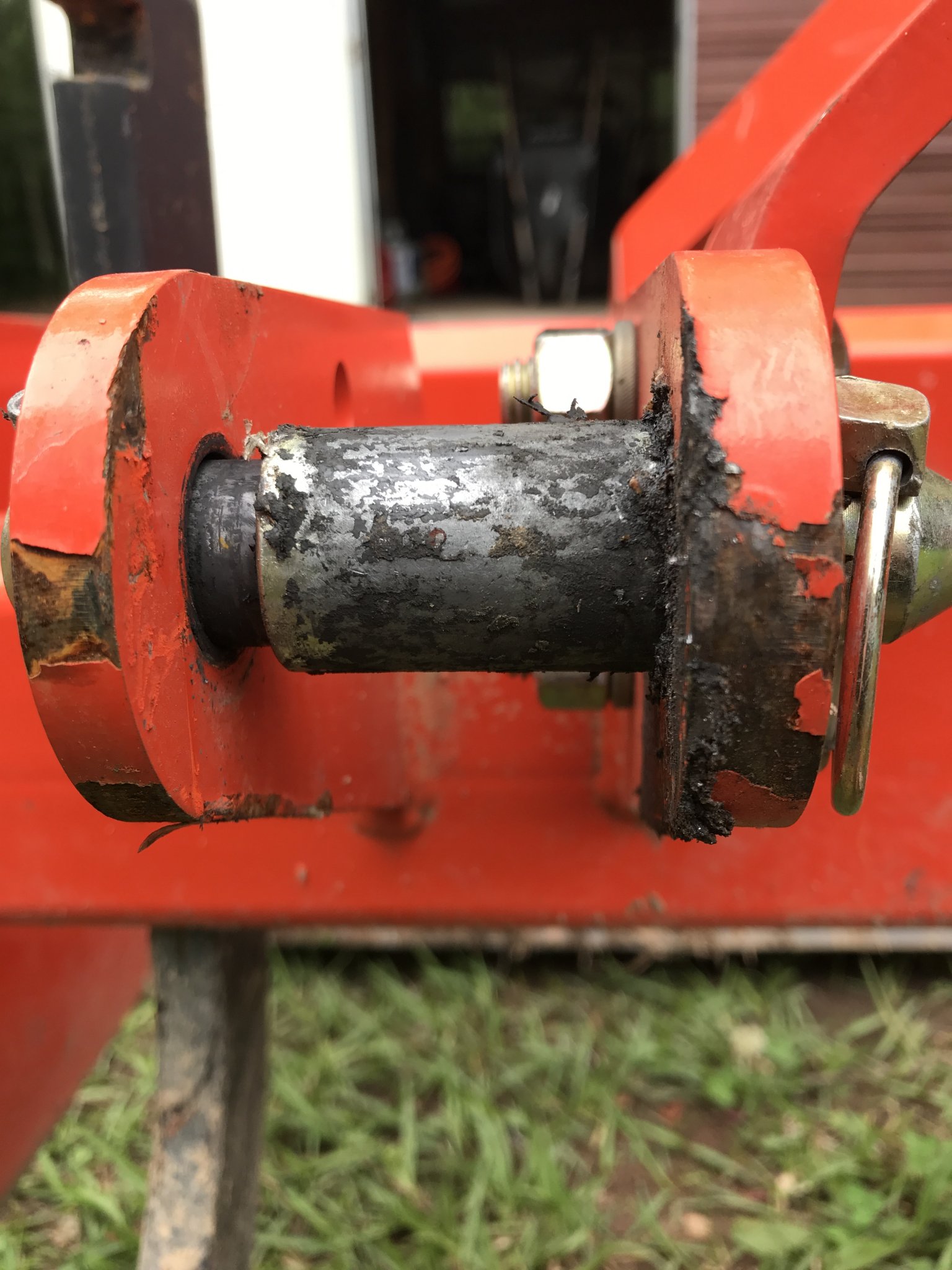

IMG_2673.JPG RH BB pin pocket. You can see where the QH latch flange was hitting on the inside edge of the pocket

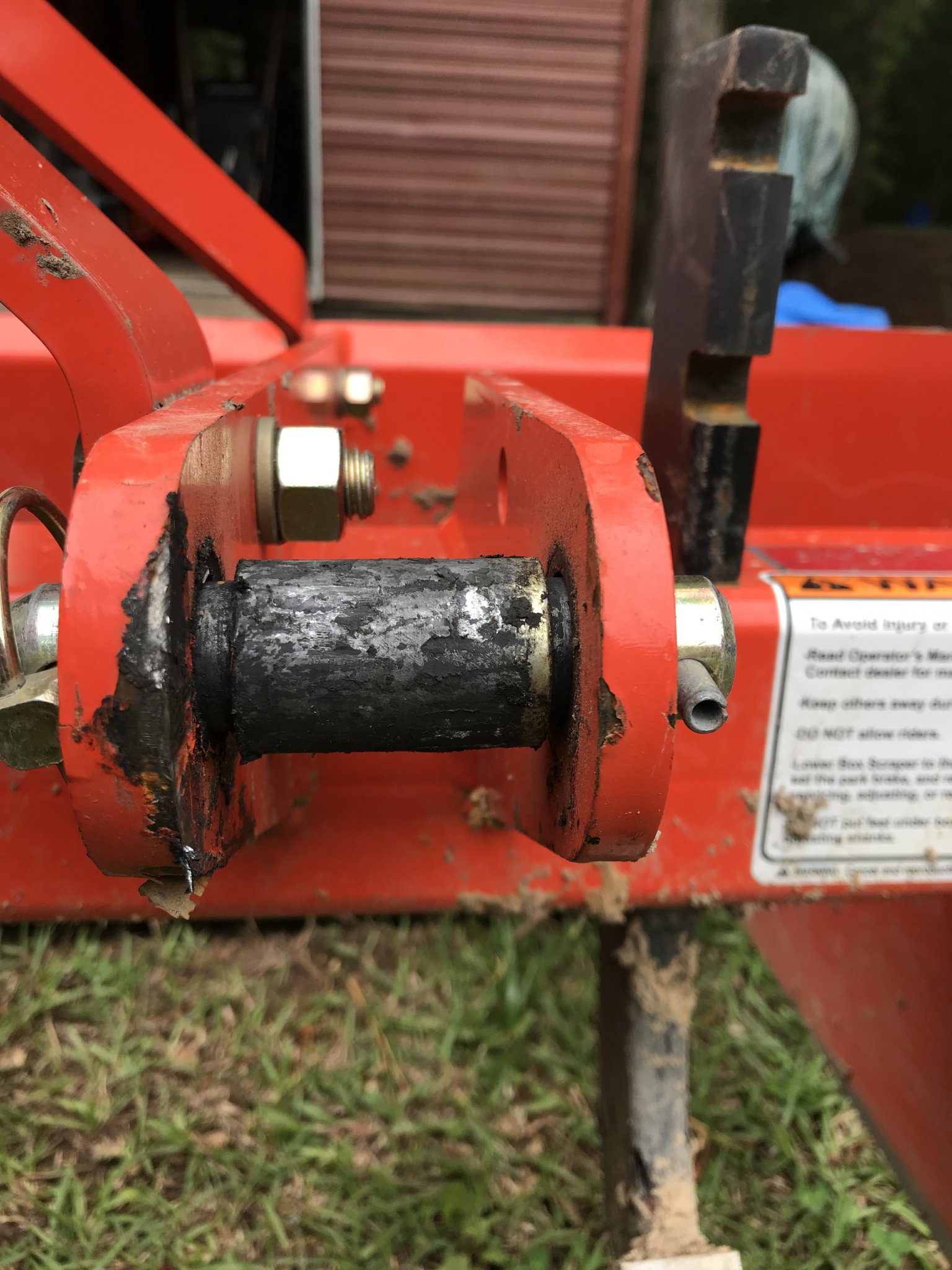

IMG_2674.JPG LH BB pin pocket. Same problem


Old_Paint

Well-known member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
1,071
753
113
AL
After mods:

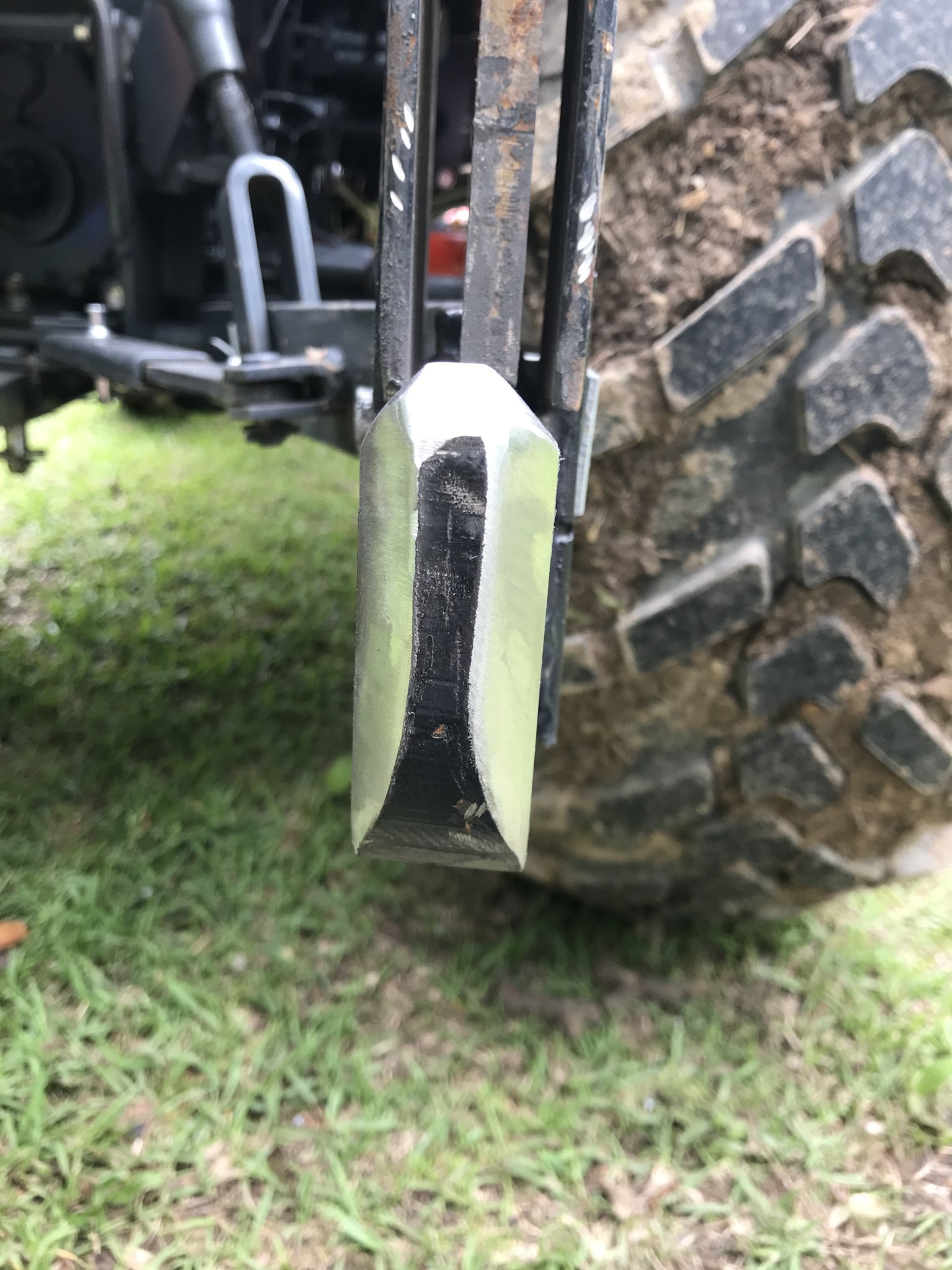

IMG_2676.JPG RH hook after hogging off some metal.
IMG_2678.JPG Showing the difference in original (LH hook) and mod (RH Hook)

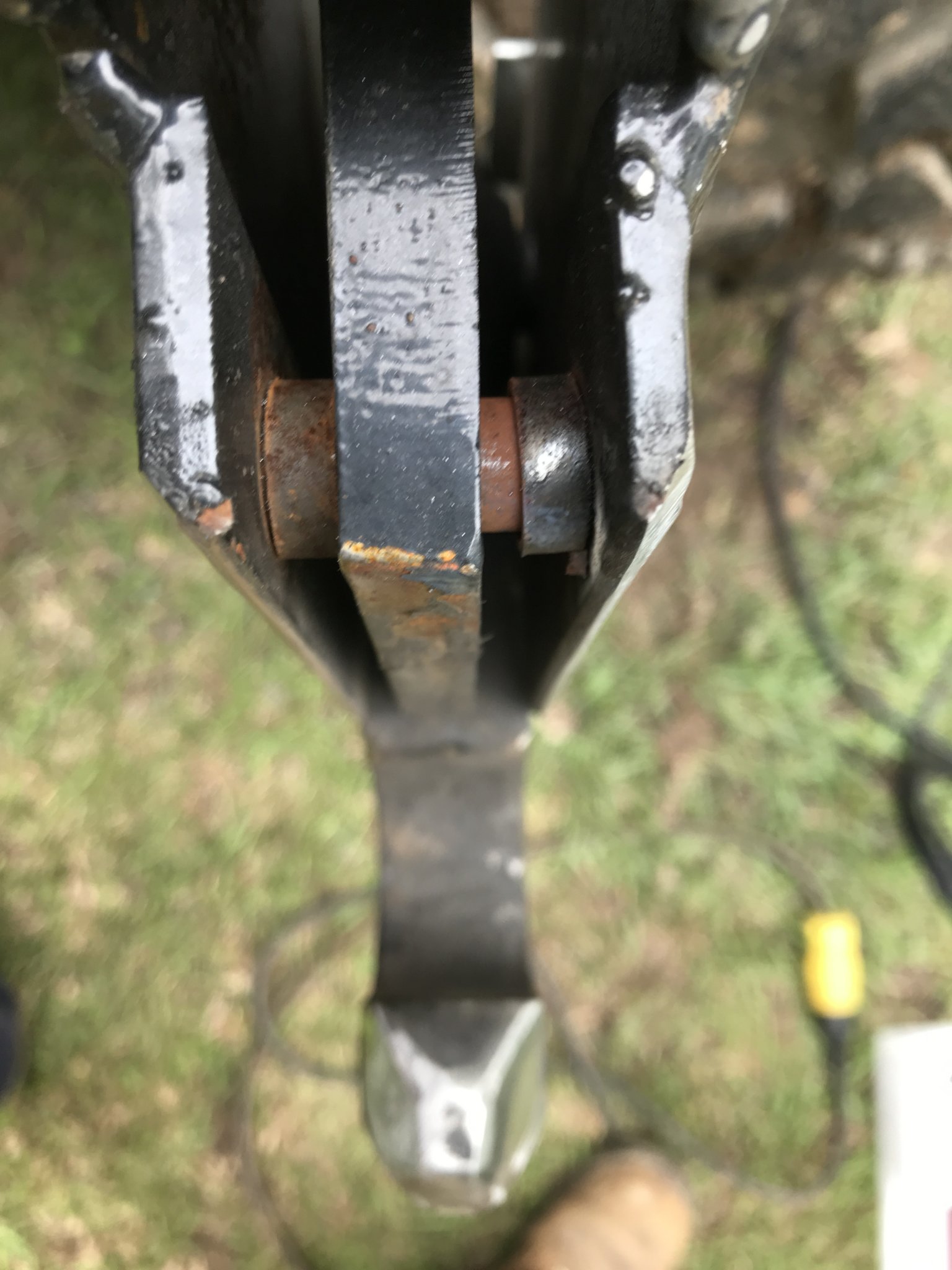

IMG_2683.JPG Flanges for latch pivot corrected on LH hook.

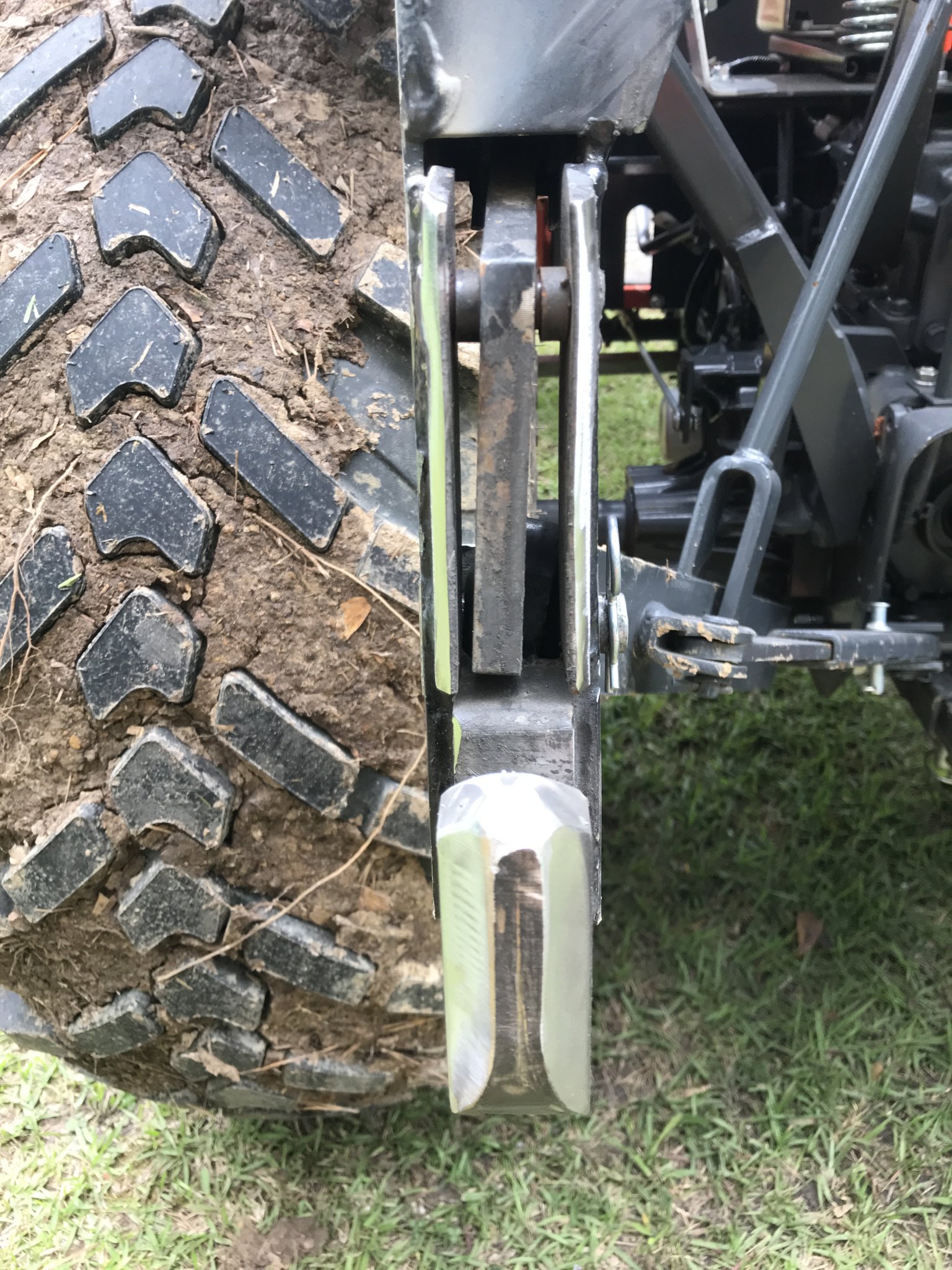

IMG_2686.JPG BB point of view of LH hook.
IMG_2682.JPG Top hook shaved down a bit.
IMG_2689.JPG Latch pivot pins re-welded, touch up paint applied.

This made an unbelievable difference in this QH. I can actually hook up the BB without getting off and wrestling with it now. It's a Class 1 hitch with Class 2 hooks, there's no real explanation for the overkill in the hooks. Apparently, though, after watching several Youtube videos on QH hardware, this is fairly common. Speeco seems to be the only brand made that does not require bushings. But they cost nearly 3X what the HaulMaster does at HF. I don't mind the bushings, because they sort of protect the pins. This thing is VERY rugged with box beam construction. Probably a lot heavier than it needs to be for Class 1 attachments. The mods made it work a LOT better, and I'm pretty sure I didn't weaken anything. I didn't point it out, but I also tapered and rounded the latch pivot flanges so they will go into the lift arm pockets on the BB a lot better rather than push it off the cribbing I usually set it on. I still have to tilt it back with the top link, but with no load on it, not a problem to do that from the seat with the lift all the way up. When connecting, I go ahead and engage the latches since they're spring loaded, then let them snap into place when I lift the attachment. When uncoupling, I release the latches with the lift up, and just let it all the way down. Again, sometimes the top link needs to be tweaked to get it to fully release and let the lift go all the way down. I can see why folks like hydraulic top links so much now. Back in the day, I had no idea how much I was struggling with an old Ford 8N.

Next project: Making an adapter for my 3PH drawbar with 2" receiver hitch to pull a small hiller/middle buster for trenching. I have the plow that goes on a Troybilt Horse tiller (my mom's old tiller), and want to make something that I can use behind the tractor for trenching.


Attachments

forky

Active member

Equipment
L2501 HST 4X4 8N
Feb 23, 2021
181
172
43
Wisconsin
Finally hooked up the new tiller and spent a hour tilling the gardens.
I'm really impressed with the power of my new tractor. I was able to run my tiller without any front assist...thought for sure that would be a must.
No bog down and no not enough HP, a thought that might be a issue....totally impressed and pleased with the ability to run 2 wheel drive with no problems. Just a note for folks that think they to run front assist all the time.....save your front seals from unneeded wear....in my opinion.


foobert

Active member

Equipment
BX2380
Mar 25, 2021
112
110
43
Washington
Just a note for folks that think they to run front assist all the time.....save your front seals from unneeded wear....in my opinion.
Can you clarify more precisely which seals are spared by sticking to only 2WD?

All of the front shafts are spinning when the tractor moves — so, I’m quite confused by your proclamation.

  • Like
  • Haha
Reactions: 1 users

Old_Paint

Well-known member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
1,071
753
113
AL
Wow, you did some serious grinding!! :oops:
Used a cut-off wheel to cut the big chunks off, then a flapper to get rid of the burrs and rough edges. Most of the work on the top hook was with a regular grinding disk. The difference is outstanding. Still another tweak or two needed, but it's MUCH better than it was. I can see some things about it that may become problems after it gets older and rust on the internal components becomes an issue. I'll reserve those mods for when I have a shed to work in.


fruitcakesa

Active member

Equipment
M 6040
Oct 26, 2010
779
181
43
Cavendish Vermont

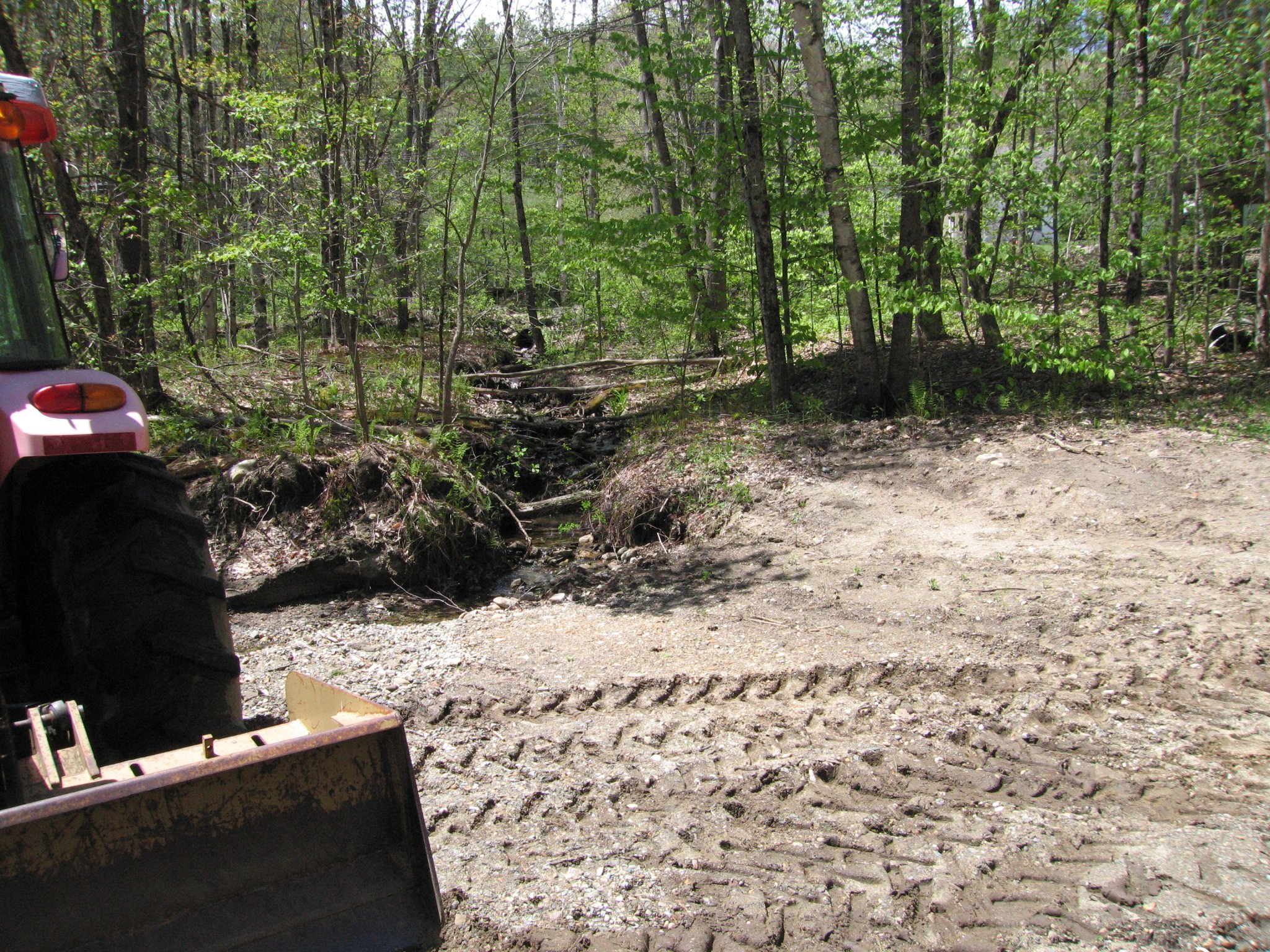

Finally dry enough to take the M out to the log pile and restack the pile of pine sawlogs.
Then I graded the area to remove all the ruts and divots from when I was working there when it was wet:D


ken erickson

Well-known member

Equipment
B7100 hst, 2650 front mount snowblower, L2501 hst qa loader
Nov 21, 2010
443
485
63
Waupaca Wisconsin

Spent the day yesterday pulling pine wilt affected scot pines and consolidating tree/brush piles.
While all my implements are useful and have their place I am overjoyed with what I can accomplish with a grapple.
Personal from CWIP (Central Wisconsin Invasive Partners)was on site spot spraying Spotted Knapweed one of worst invasive plants in this area when it comes to establishing native prairie. Spotted Knapweed will out compete natives and then you end up with a monoculture rather than a diverse habitat.

https://www.cwipartnership.org/

Last edited:

je1279

Well-known member
Lifetime Member

Equipment
LX2610 w/ 60" MMM, LP 72" FB, Wicked Tooth Bar & 55" Grapple and Woods 60" BB
Dec 6, 2020
628
348
63
Upstate NY

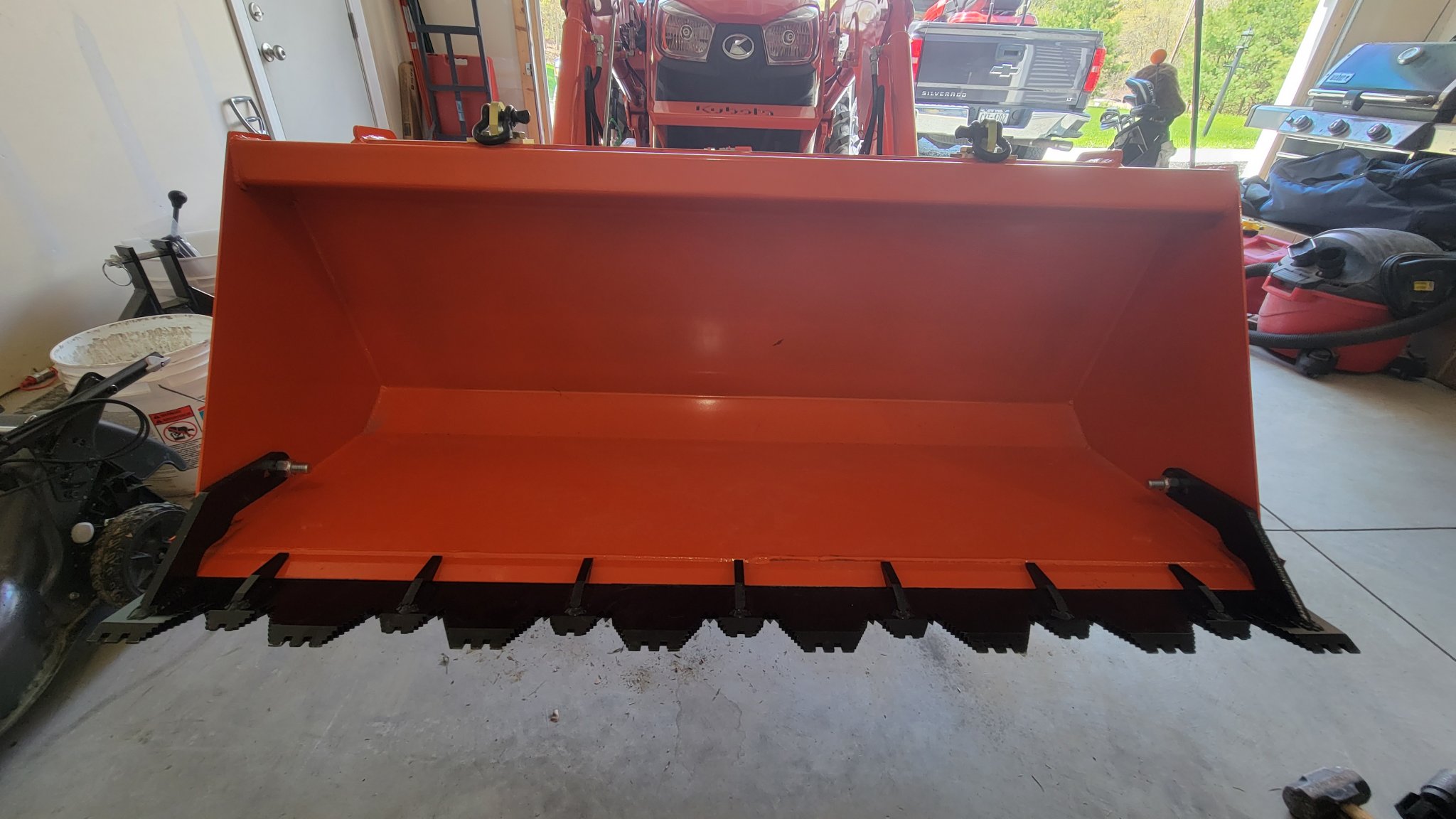

Due to some unexpected medical issues, I haven't been able to use the tractor recently. However, I was able to install the EA Wicked Tooth Bar today. Can't wait to clear some brush with it!


Last edited:
  • Like
Reactions: 3 users

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
6,604
1,856
113
Chenango County, NY
Brought the old ‘Moline out of hibernation.

The Kubota served as the tender tractor ....


  • Like
Reactions: 1 user

woodsy

Active member

Equipment
95 Kubota L3300DT W/FEL, 60" AgroTrend 3pt snow blower89 Arctic Cat 440 Panther
Apr 20, 2021
105
40
28
Maine
Dressed up 200' driveway with 11 yds gravel. Have a yd left for some touching up.
1st big job with my new to me rig. Like it.

  • Like
Reactions: 2 users

B737

Well-known member
Lifetime Member

Equipment
LX3310
Jun 9, 2019
1,803
1,818
113
New Jersey
Helped fix a friend's 300' driveway disaster.


all prepped with box blade mmmmmmmm


spread 45 tons of stone with the rake, it still could have used more!
