tiny mod: seat switch defeat

Showmedata

Active member

Equipment
LX3310
May 18, 2022
170
138
43
Boulder CO
I had a problem in that from the driver's seat I can't see the pallet fork tips and my aim isn't very good, so moving around pallets (on uneven ground, which is all I have) was really frustrating.

I installed this little momentary switch to defeat the "operator's butt is in the seat" circuit. I messed around for a while with the idea of using matching connectors to make it removable by just unplugging it, but eventually decided that was trying too hard for elegance and just spliced the wires into the seat side of the OEM connector.

Now I can stand up off the seat, press the button with my finger, and move the tractor fore and aft while I'm manipulating the loader to get the forks aimed just right.

Here's the button I used in case anyone's interested. Handy that it has an adhesive dot already on it, only downside is it comes with 24ga wire (a bit fine for handling, not a current-capacity concern):



  • Like
Reactions: 9 users

tsp159

Member

Equipment
B7100D
Feb 8, 2023
94
48
18
Fort Bend Texas
Clever! Not a bad way of keeping the safety of a "Operator Presence Detection" sensor in place while accommodating some of the quirky ergonomic issues that certain attachments cause.


Showmedata

Active member

Equipment
LX3310
May 18, 2022
170
138
43
Boulder CO
Clever! Not a bad way of keeping the safety of a "Operator Presence Detection" sensor in place while accommodating some of the quirky ergonomic issues that certain attachments cause.
thanks. That was the idea - solve my sporadic need without completely disabling the protection.


fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
6,542
4,142
113
Eastham, Ma
I had a problem in that from the driver's seat I can't see the pallet fork tips and my aim isn't very good, so moving around pallets (on uneven ground, which is all I have) was really frustrating.

I installed this little momentary switch to defeat the "operator's butt is in the seat" circuit. I messed around for a while with the idea of using matching connectors to make it removable by just unplugging it, but eventually decided that was trying too hard for elegance and just spliced the wires into the seat side of the OEM connector.

Now I can stand up off the seat, press the button with my finger, and move the tractor fore and aft while I'm manipulating the loader to get the forks aimed just right.

Here's the button I used in case anyone's interested. Handy that it has an adhesive dot already on it, only downside is it comes with 24ga wire (a bit fine for handling, not a current-capacity concern):

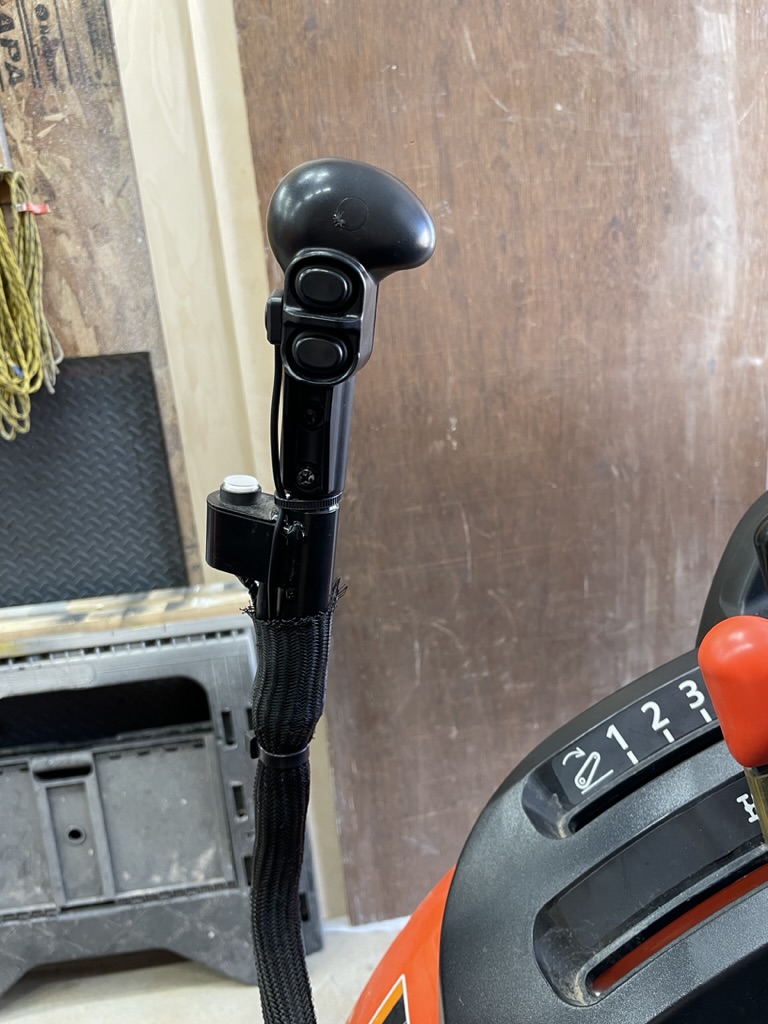

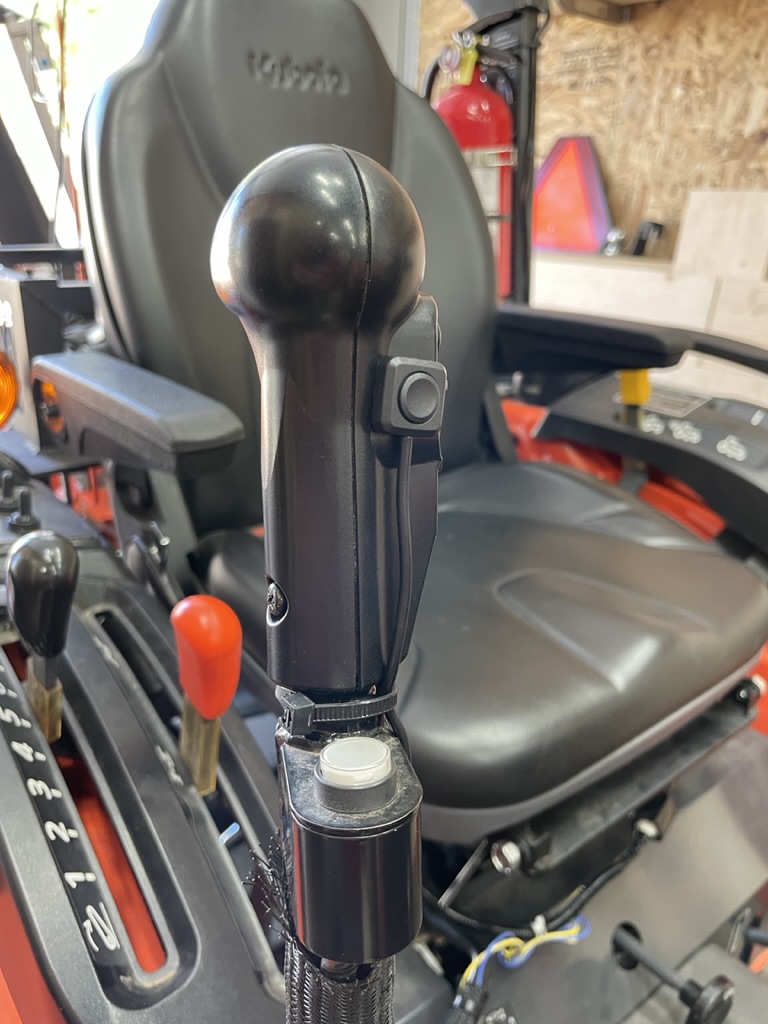

View attachment 100533
View attachment 100534
Excellent idea, and implementation!


NCL4701

Well-known member

Equipment
L4701, T2290, WC68, grapple, BB1572 box scrape, Howes 500, 16kW IMD gen, WG24
Apr 27, 2020
2,528
3,601
113
Central Piedmont, NC
That is very nice!

I use a binder clip and a piece of busted paint stirring stick.


Chanceywd

Well-known member
Lifetime Member

Equipment
Kubota L2501DT BH77 VIRNIG URG60-CT 1950 8N
Mar 26, 2021
562
401
63
central ny
I had a problem in that from the driver's seat I can't see the pallet fork tips and my aim isn't very good, so moving around pallets (on uneven ground, which is all I have) was really frustrating.

I installed this little momentary switch to defeat the "operator's butt is in the seat" circuit. I messed around for a while with the idea of using matching connectors to make it removable by just unplugging it, but eventually decided that was trying too hard for elegance and just spliced the wires into the seat side of the OEM connector.

Now I can stand up off the seat, press the button with my finger, and move the tractor fore and aft while I'm manipulating the loader to get the forks aimed just right.

Here's the button I used in case anyone's interested. Handy that it has an adhesive dot already on it, only downside is it comes with 24ga wire (a bit fine for handling, not a current-capacity concern):

View attachment 100533
View attachment 100534
I have the same issue with forks I can't see. I am doing my firewood now and palletize it so the forks get used more.

I was thinking about a momentary switch to latch a relay to do the same thing when i was using forks. It would be powered thru the ignition and return to normal when the ignition switch was cycled off. A second normally closed switch could be used to cancel with out stopping the engine. It is a circuit used to start/ stop most motor controls. I bought some relays but hadn't sourced my switches yet.

May just have to do yours instead! Thanks for posting.

Bill


GeoHorn

Well-known member
Lifetime Member

Equipment
M4700DT, LA1002FEL, Ferguson5-8B Compactor-Roller, 10KDumpTrailer, RTV-X900
May 18, 2018
5,686
3,012
113
Texas
A front-mounted camera would allow you to sit safely in the seat and avoid dangerous gymnastics while operating a tractor.

  • Like
Reactions: 1 users

Chanceywd

Well-known member
Lifetime Member

Equipment
Kubota L2501DT BH77 VIRNIG URG60-CT 1950 8N
Mar 26, 2021
562
401
63
central ny
Agreed, but that's just a tad more involved. And, I think, fragile. Not to say that I won't some day do it...
I put a camera on mine when I got the grapple last year. I find that with the open cab on a sunny day and my wearing auto darkening glasses it is hard to see the forks on the display. Standing up to catch a look is where I am and holding the seat with my hand is not making it. I don't want to lock down the switch so that is why I want a switch circuit that resets to the original safety like your idea or mine. Maybe a timing relay would do what I want and reset after 10- 15 seconds? I am still talking about having to activated it each time before I stand, not bypass and forget.
Bill


Crash277

Well-known member

Equipment
BX23S
Jan 17, 2021
846
622
93
Canada
i need to do that for snow blowing. im always on level ground but because im spun half around in the seat i trip the switch constantly on bumps.


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,791
1,900
113
Michigan
Outstanding idea sir, and it looks good too!


DustyRusty

Well-known member

Equipment
2020 BX23S, BX2822 Snowblower, Curtis Deluxe Cab,
Nov 8, 2015
5,137
3,821
113
North East CT
My old BX22 had none of these seat switches, and I used that tractor for about 18 years and 800 hours and never fell out of the seat, or off of the tractor.

  • Like
Reactions: 1 users

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
6,542
4,142
113
Eastham, Ma
My old BX22 had none of these seat switches, and I used that tractor for about 18 years and 800 hours and never fell out of the seat, or off of the tractor.
I have owned/used my Ford 8N for exactly 50 years..... no "safety devices", ever!
I am still here!
Never owned a bicycle helmet either!

  • Like
  • Wow
  • Haha
Reactions: 3 users

Chanceywd

Well-known member
Lifetime Member

Equipment
Kubota L2501DT BH77 VIRNIG URG60-CT 1950 8N
Mar 26, 2021
562
401
63
central ny
I have owned/used my Ford 8N for exactly 50 years..... no "safety devices", ever!
I am still here!
Never owned a bicycle helmet either!
Mine 8N does have that neutral safety switch I use every time I start it standing next to it in the garage for the last 25 years!

Such a handy tractor size is why I bought the L2501.

Bill


fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
6,542
4,142
113
Eastham, Ma
Mine 8N does have that neutral safety switch I use every time I start it standing next to it in the garage for the last 25 years!

Such a handy tractor size is why I bought the L2501.

Bill
My late '51 8N is in nearly perfect condition, and is on my lawn for sale.
No bites!
If no sale,......back in the barn it will go for the Winter.

My 1989 Ford (Shibaura) 1920 FEL is a WHOLE lot more machine than my '51 8N!


The Evil Twin

Well-known member

Equipment
L2501, LA526,
Jul 19, 2022
2,383
2,293
113
Virginia
My old BX22 had none of these seat switches, and I used that tractor for about 18 years and 800 hours and never fell out of the seat, or off of the tractor.
I've fallen of a seat before. The motorcycle seat 🤣

  • Like
  • Haha
Reactions: 2 users

Heehaw

Member

Equipment
MX5400hst Kubota Z726X
Oct 4, 2022
77
51
18
Michigan
I upgraded from a Ford 860 to the MX5400. I have to say while on the 860 it is nice to be able to alternate between standing and sitting while brush hogging.
Dangerous yes, stupid probably, but sure gives the back a break. I don’t know if it’s all me being a dumb*** or just growing up in an era when there weren’t all the safety switches and stuff to protect you.
