Three point arm removal

[Rat4020]

I've got a l3710 with the cast lift arm broke and need to replace it. The middle arm is the broken one. From what I see the left arm is the one that needs to be removed but I a not quite sure about how to



[North Idaho Wolfman]

I'm a little confused???

What part are you talking about?
There is no "middle arm" in a three point.

The only thing close that I can thing of is the arm that connects the rock shaft to the piston, is that what your talking about?

Pictures help a lot in these cases.



[Bulldog]

Sounds like it's the link between the upper arm and the actual lift arm that hooks to the implement.

Agree with Wolfman, need pics.



[Rat4020]

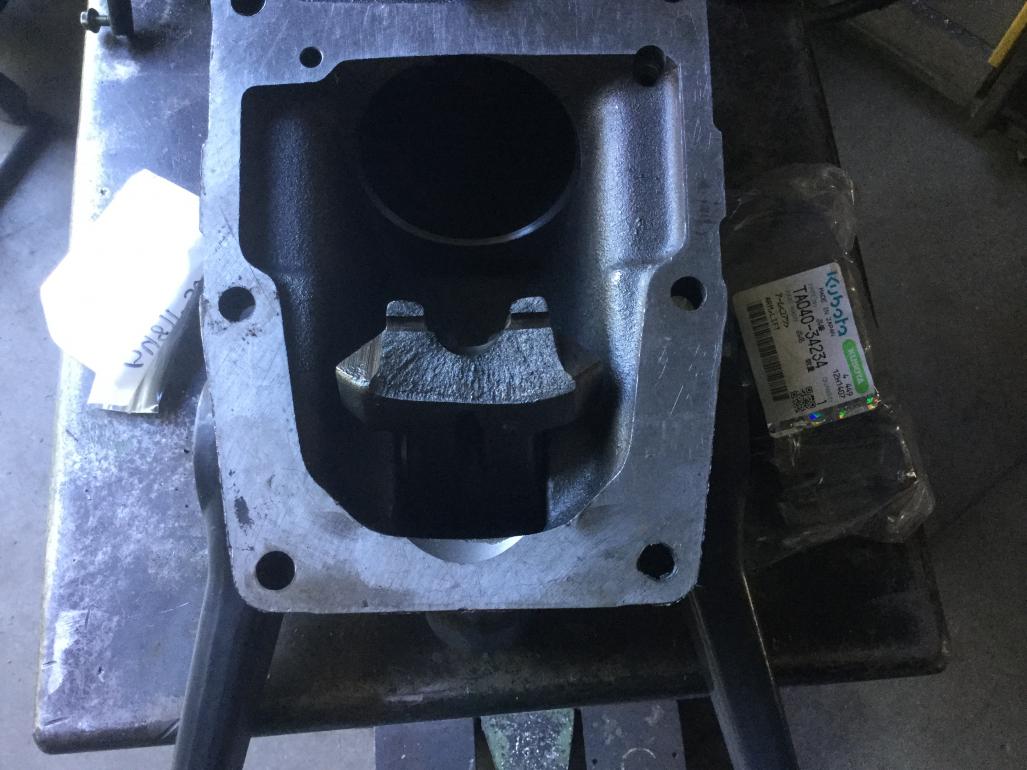

Here's what I'm talkin about



[rbargeron]

Right, the parts drawing shows the shaft sliding out to the right with the left arm removed. Looks like there are a couple versions of part 080, depending on the machine's serial no.

What were the conditions when it broke?

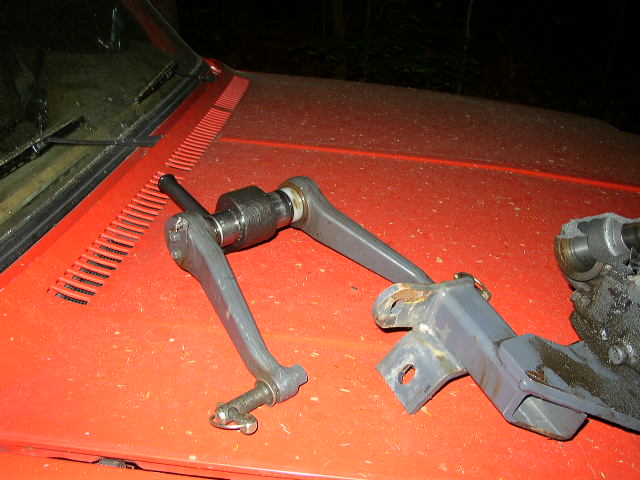

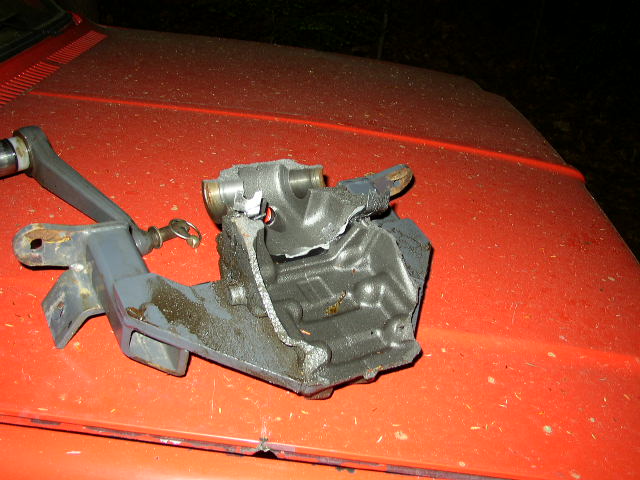

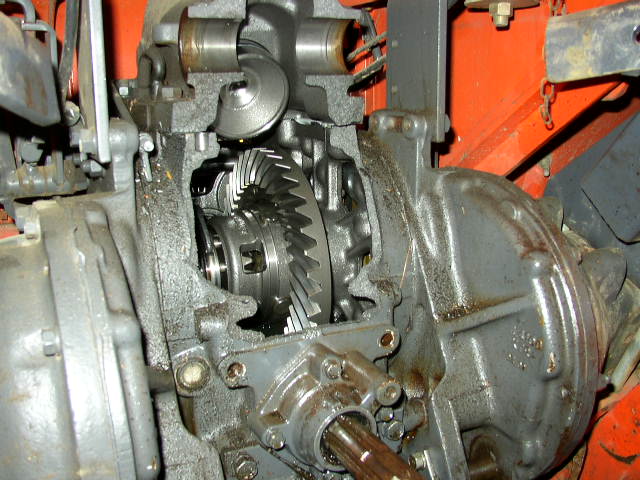

In 2004 a local L4610 with a logging winch suffered a major housing failure (see pics). There were two logs drawn up tight and a load in the bucket. Going over a rise, the front wheels dropped down and BANG!. It may not seem so, but you were lucky compared to that! Take care, Dick B



[North Idaho Wolfman]

Remove the bolts on the left lift arm to remove it, remove the snap ring on the right lift arm to remove it.
Use a piece of wood or brass to drive it left to right.

And WOW, I've seen very few of those broken over the years!



[lugbolt]

Remove the bolts on the left lift arm to remove it, remove the snap ring on the right lift arm to remove it.
Use a piece of wood or brass to drive it left to right.

And WOW, I've seen very few of those broken over the years!

I've seen it 4 times on the same tractor! Same owner too. MX5100. This tells me that someone's doing something with their tractor that they shouldn't be doing.
