Lil Foot, I wonder if the guy might have had the press tip over and he bolted it to the wall to keep that from happening again.


bird dogger

Well-known member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
834
398
63
North Dakota

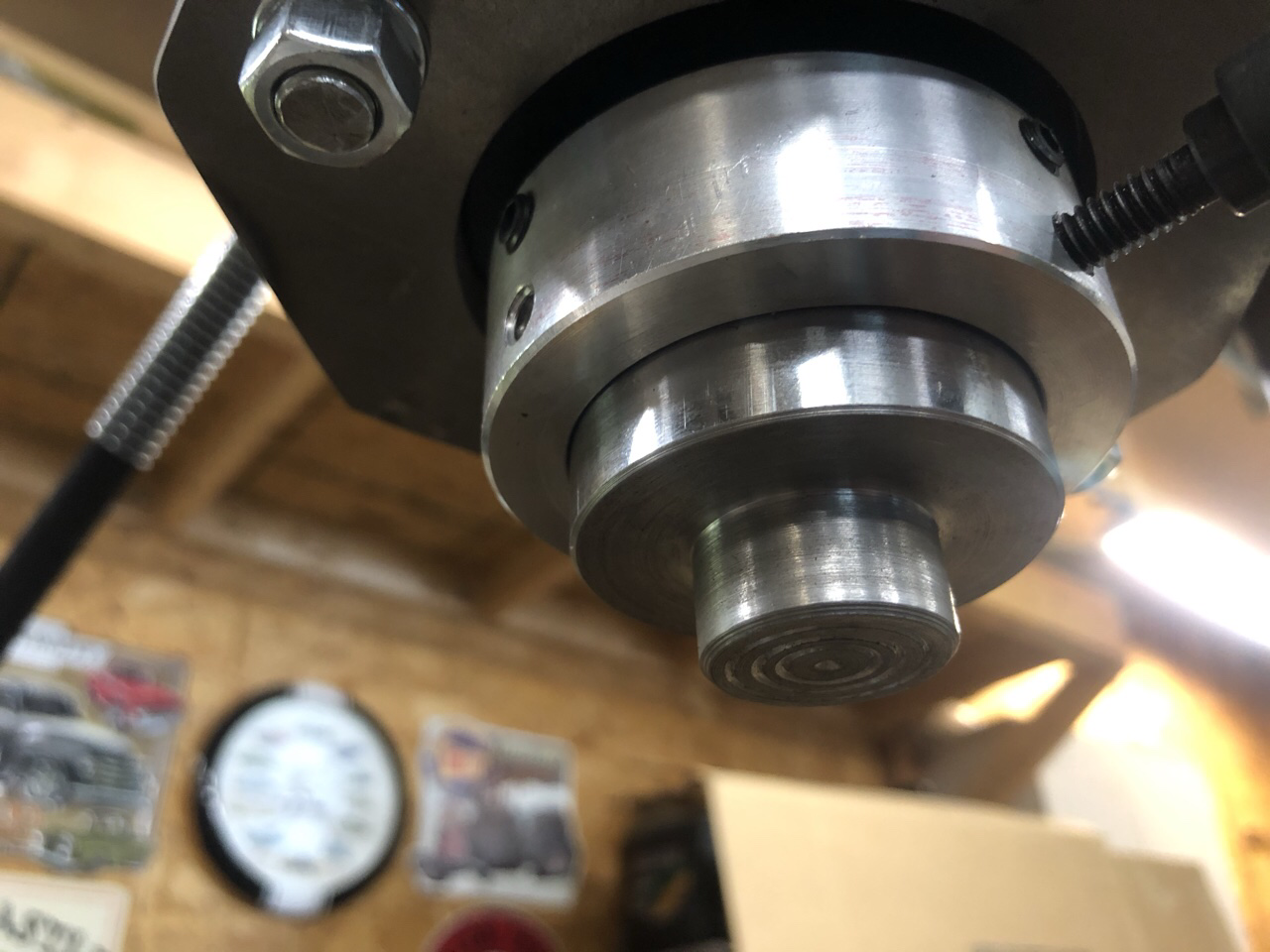

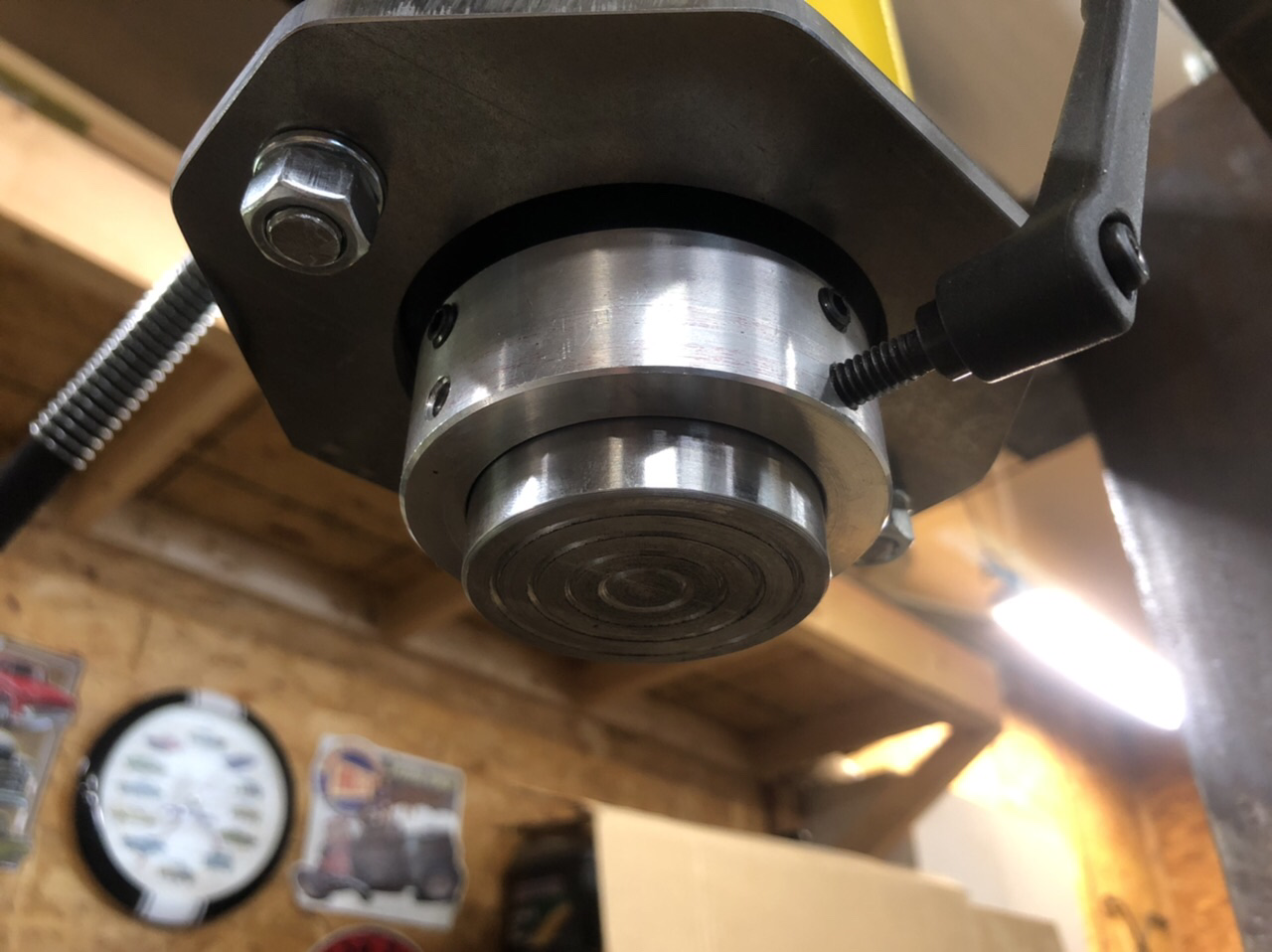

Started making some tooling. I bought a hollow ram cylinder thinking I would be able to make the tooling simply slip into the center bore with maybe an o-ring to provide a snug fit to retain the tools. Once I received the cylinder, I realized that the center bore is a sleeve that runs the length of the cylinder and it is stationary. The ram fits around the sleeve. That meant my tooling would need to be clamped around the outer diameter of the ram. I turned up a sleeve that slips over the ram and it’s held on with a couple set screws. The tooling slips into the sleeve against the end of the ram. So far, I’ve made a flat tool that’s 2” dia on one end and 1” dia on the other. I added some grooves to them for grip. My next pieces will have different smaller diameters around 2” long. A tool with a 120 deg V along with a pair of V blocks will be handy for straightening shafts. View attachment 59714 View attachment 59715
Very NICE! I had been looking at the spec drawings for that cylinder and couldn't quite figure out that hollow center and how the ram worked. Was just going to ask you about how you were going to make your tooling and attachments when "Voila", .........you're next post answered my question. At the very worst did you maybe lose about 1/2 inch of stroke by the added sleeve around the outside of the moveable ram?

I've had some heavy channels already scrounged for a future press and your hydraulic ram looks like a great prospect for the build. Thanks for posting your great build!

When you mention "straightening", do you plan to mount a pressure gauge for help in keeping track of incremental pressure increases applied or repetitive bending, etc.? A gauge can be very helpful for many different press procedures.

Watching your press being built makes me think I need to move my press build higher up the priority list!!

Regards,
David


Magicman

Well-known member
Lifetime Member

Equipment
M4900 Utility Special 4WD e/w FEL & 1530 John Deere "Traveling Man"
Oct 8, 2019
2,325
1,097
113
77
Brookhaven, MS
knotholesawmill.com
Watching this press build has me scratching in places that I don't even itch......yet. ;)

  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear
May 19, 2011
5,537
483
83
Peoria, AZ
Lil Foot, I wonder if the guy might have had the press tip over and he bolted it to the wall to keep that from happening again.
I had this same thought, butI then wondered why he mounted it two feet off the floor; why not just anchor it to the wall where it stood? Odd.


BXHoosier

Active member

Equipment
BX24
Jan 21, 2018
280
91
28
Indiana
Very NICE! I had been looking at the spec drawings for that cylinder and couldn't quite figure out that hollow center and how the ram worked. Was just going to ask you about how you were going to make your tooling and attachments when "Voila", .........you're next post answered my question. At the very worst did you maybe lose about 1/2 inch of stroke by the added sleeve around the outside of the moveable ram?

I've had some heavy channels already scrounged for a future press and your hydraulic ram looks like a great prospect for the build. Thanks for posting your great build!

When you mention "straightening", do you plan to mount a pressure gauge for help in keeping track of incremental pressure increases applied or repetitive bending, etc.? A gauge can be very helpful for many different press procedures.

Watching your press being built makes me think I need to move my press build higher up the priority list!!

Regards,
David
Thanks David

I didn’t lose any stroke because the ram protrudes from the body about 0.40” and the sleeve slips over the ram 0.38”.

I may add a gauge to know how much force the press is applying. A dial indicator and a mag base are what I use whenever I straighten something in a press. Zero the indicator under the part below the ram, lower the press to a distance, return the press, check springback, repeat that process lowering a little more each time until the part is straight.


bird dogger

Well-known member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
834
398
63
North Dakota
Thanks David

I didn’t lose any stroke because the ram protrudes from the body about 0.40” and the sleeve slips over the ram 0.38”.

I may add a gauge to know how much force the press is applying. A dial indicator and a mag base are what I use whenever I straighten something in a press. Zero the indicator under the part below the ram, lower the press to a distance, return the press, check springback, repeat that process lowering a little more each time until the part is straight.
That ram is looking more impressive the more we look at it. There's some youtube videos of the ram using its "through hole" to pull stuck bushings/pins out of equipment. That use could also come in handy at times! Since your mounting isn't permanent, it would be easy to remove it and use it for that or in other ways. Yup, gonna have to create some more floor space in my shop this coming winter.

Thanks, BXH


chim

Well-known member

Equipment
L4240HSTC with FEL, Ford 1210
Jan 19, 2013
1,096
179
63
Near Lancaster, PA, USA
I was at a "man cave" estate sale, and saw an apparently factory made (not homebuilt) hydraulic press mounted to the wall. (concrete block wall) It was a 20 ton, top was about 7ft from the ground, bottom was maybe 2ft from the ground, and about 15" from the wall. It was about the same size, strength, & design of other similar capacity presses, but did not reach the floor. No one there could explain why, as the old boy who owned the shop had passed. Speculation was it saved floor space. (not much) Didn't think to get a pic until much later, after the sale.
Strange.
Could it have been mounted like that to make it a nice working height? If the top was 7' off the floor and the bottom was 2' off the floor, the press would stand 5' high to the top if sitting on the floor. The guy would have needed to be bent over most of the time to use it.


mcmxi

Active member

Equipment
MX6000 with lots of LP, EA & RI attachments - GL7000 generator
Feb 9, 2021
284
200
43
Montana
Thanks!

The bed adjusts from 8”-52” below the top channel in 4” increments.
The press is coming along nicely but I have to ask, what the heck would you wrestle into the press that would require so much clearance? Are you planning on pressing liners out of engine blocks? Not trying to be funny, just genuinely interested.


BXHoosier

Active member

Equipment
BX24
Jan 21, 2018
280
91
28
Indiana
The press is coming along nicely but I have to ask, what the heck would you wrestle into the press that would require so much clearance? Are you planning on pressing liners out of engine blocks? Not trying to be funny, just genuinely interested.
Better to have it too big than too small. I built it as tall as the free steel would allow. With the ram installed, there’s now 41.25” between the ram and bed.

  • Like
Reactions: 1 user

dlsmith

Active member
Lifetime Member

Equipment
BX2230, LA211
Nov 15, 2018
748
215
43
Goshen, IN
The press is coming along nicely but I have to ask, what the heck would you wrestle into the press that would require so much clearance? Are you planning on pressing liners out of engine blocks? Not trying to be funny, just genuinely interested.
If you have ever had to press a bearing off a Ford type rear axle, you would want a lot of room to work with. My press will give me almost 48" between ram and bed, and I once had a through-shaft out of a truck differential that had the output yoke rusted to the spline, and I just barely had enough room to get it pressed off.
Bigger than you could ever need is better than not big enough just once.

BXHoosier, great build project. (y)

  • Like
Reactions: 1 users

BXHoosier

Active member

Equipment
BX24
Jan 21, 2018
280
91
28
Indiana
BXHoosier, great build project. (y)
Thanks!
Working on more tooling. Made a few cylinder inserts with different size dowel pins. Just need to add set screws to hold in the pins. Sizes are 5/16”,3/8,1/2”,5/8” & 3/4”.

  • Like
Reactions: 3 users

BXHoosier

Active member

Equipment
BX24
Jan 21, 2018
280
91
28
Indiana

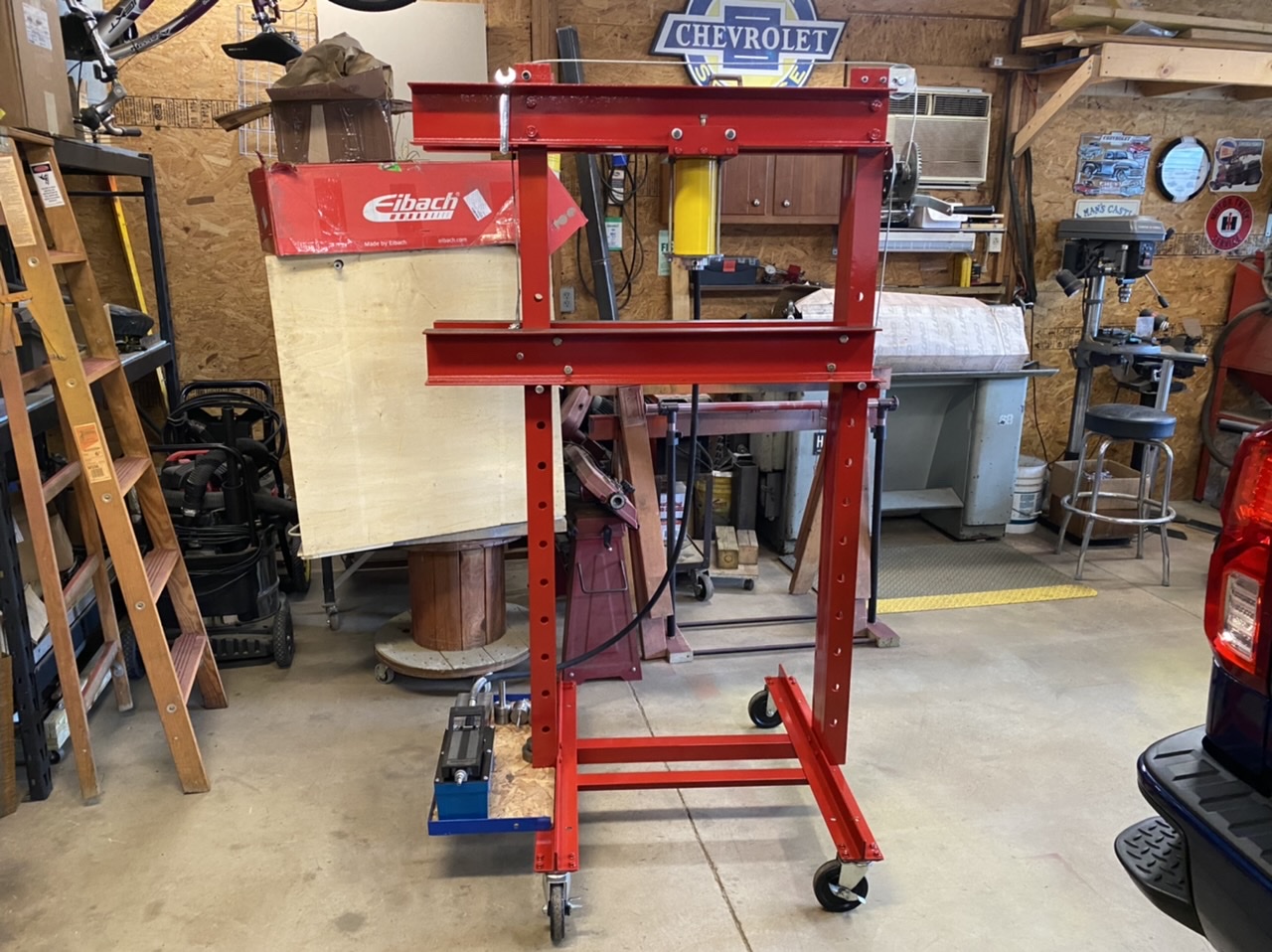

Sprayed paint today. Thought about painting it Kubota orange, but I had some leftover IH red and hardener.

  • Like
Reactions: 2 users

mcmxi

Active member

Equipment
MX6000 with lots of LP, EA & RI attachments - GL7000 generator
Feb 9, 2021
284
200
43
Montana
If you have ever had to press a bearing off a Ford type rear axle, you would want a lot of room to work with. My press will give me almost 48" between ram and bed, and I once had a through-shaft out of a truck differential that had the output yoke rusted to the spline, and I just barely had enough room to get it pressed off.
Bigger than you could ever need is better than not big enough just once.

BXHoosier, great build project. (y)
Interesting. I installed 4.56 r&ps in my TJ many years ago but with Dana 35 and Dana 30 it was an easy job. I have the Sterling 10.5" rear end in my F250 7.3L and might want to swap the 3.73 to 4.10 at some point and would build a stand/adapter for the Dake 10 ton if needed.

@BXHoosier, that's looking awesome and so much better than some Chinese Harbor Freight special even if it is in China's favorite color! I would have gone with Kubota orange but it still looks great. :giggle:


BXHoosier

Active member

Equipment
BX24
Jan 21, 2018
280
91
28
Indiana
@BXHoosier, that's looking awesome and so much better than some Chinese Harbor Freight special even if it is in China's favorite color! I would have gone with Kubota orange but it still looks great. :giggle:
Thanks!

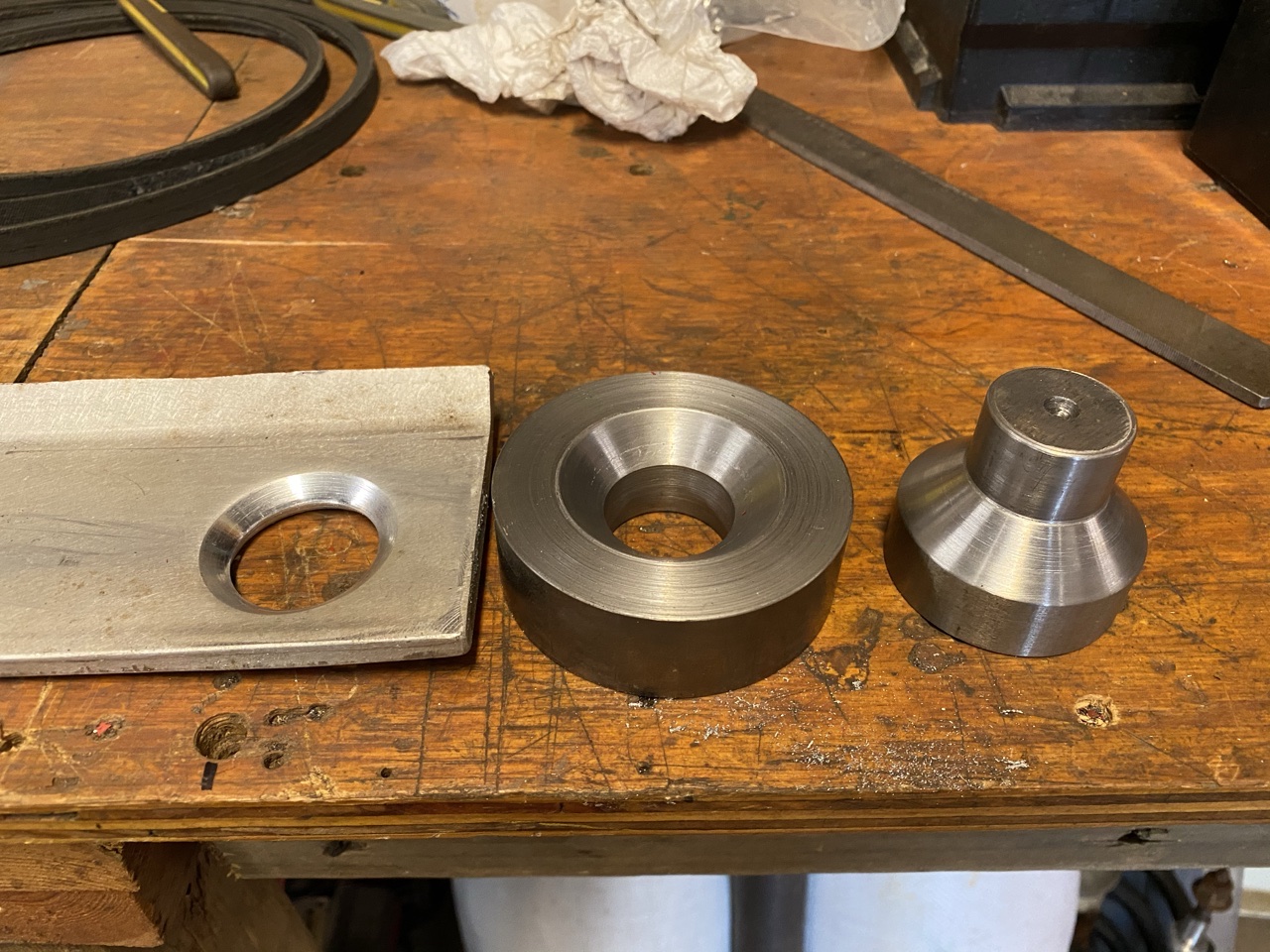

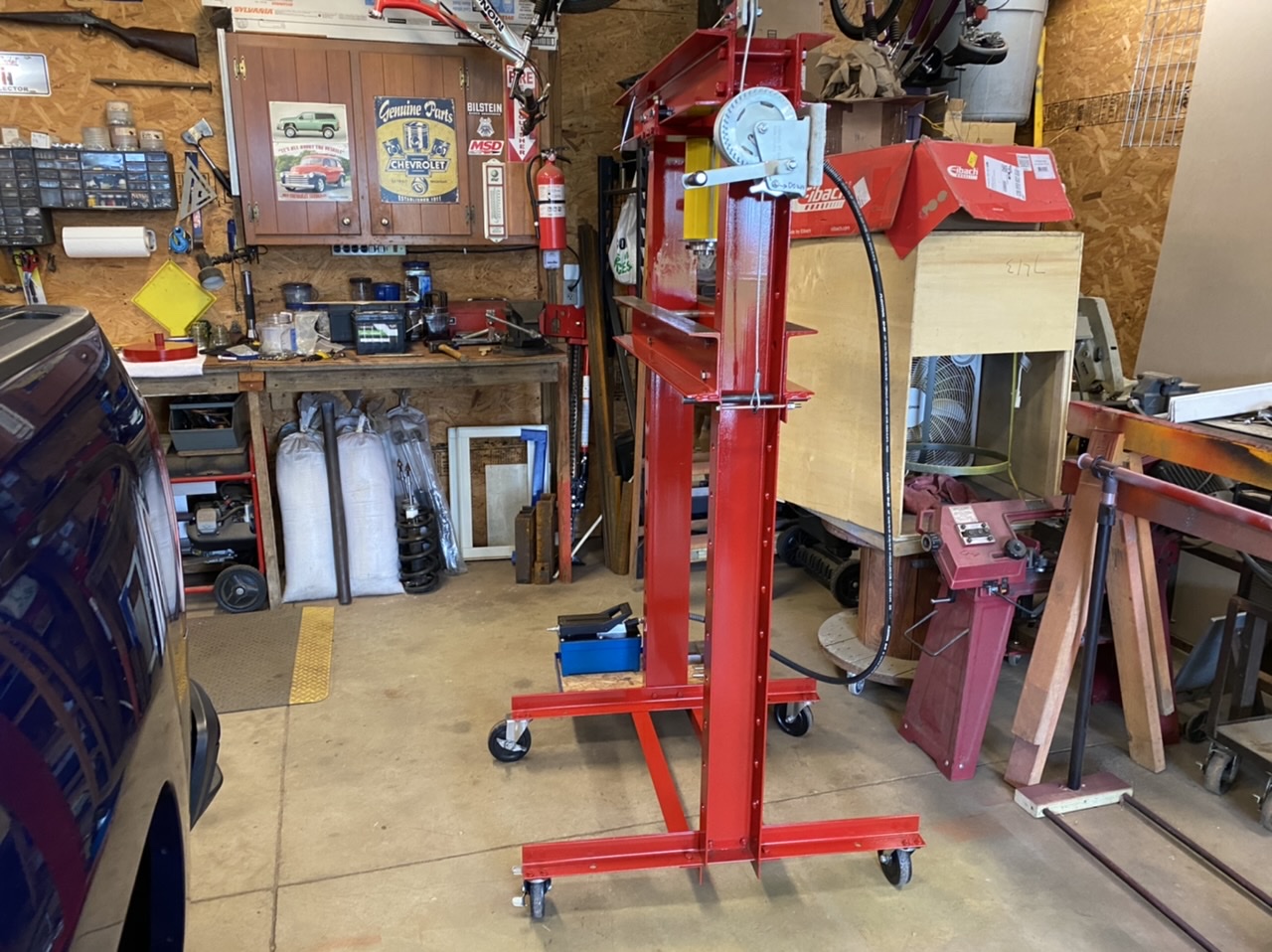

The press is back together and operational. Had to do a little work on the winch to get the bed to raise evenly. As the cable overlapped on the winch, one side would raise faster than the other. Tried out a set of dimple dies on a piece of 1/4” aluminum. The press, and my nerves, survived. Realized pretty quickly that I should have put some pressure on the press before I tightened the bolts between the top and side channels. A couple of loud pops got my attention. 😳

  • Like
Reactions: 1 user

dlsmith

Active member
Lifetime Member

Equipment
BX2230, LA211
Nov 15, 2018
748
215
43
Goshen, IN
Looks really good. Always nice to finish up a project like that. The casters will make it easy to move it where ever you want to use it, or store it out of the way.
Any reason you bolted it instead of welding?
