OK....I hesitate to post this....but since I'll never actually meet any of you...what the hell.

My cottage is 4 hours north of my house, and they tend to get a lot more snow up there than I do here.

I have a plow for my truck, but the problem is when I get on the freeway at speeds above 65 mph with the plow on, the truck overheats rather quickly.

I have tried it all.....lowering the blade, angling the blade, replacing the fan clutch.....new coolant....

Last year I even made an "air scoop"......EPIC FAIL....

You name it...... I've tried it.....

The only thing I haven't tried is a "wing" or "air deflector"

Mind you....I've had all year to build this, but in my infinite wisdom/laziness, I waited until the day before I was leaving to do it.......


Paging Dr. Hackenslash.......Paging Dr. Hackenslash......


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan
I had a friend that worked in the GM air tunnel look at it and he suggested a "wing" mounted directly to the top of the plow. They do sell them but they are like $500 bucks so I decide to see what I can make.

Keep in mind this is a rush job and "looks" are NOT important, this is purely a function test.

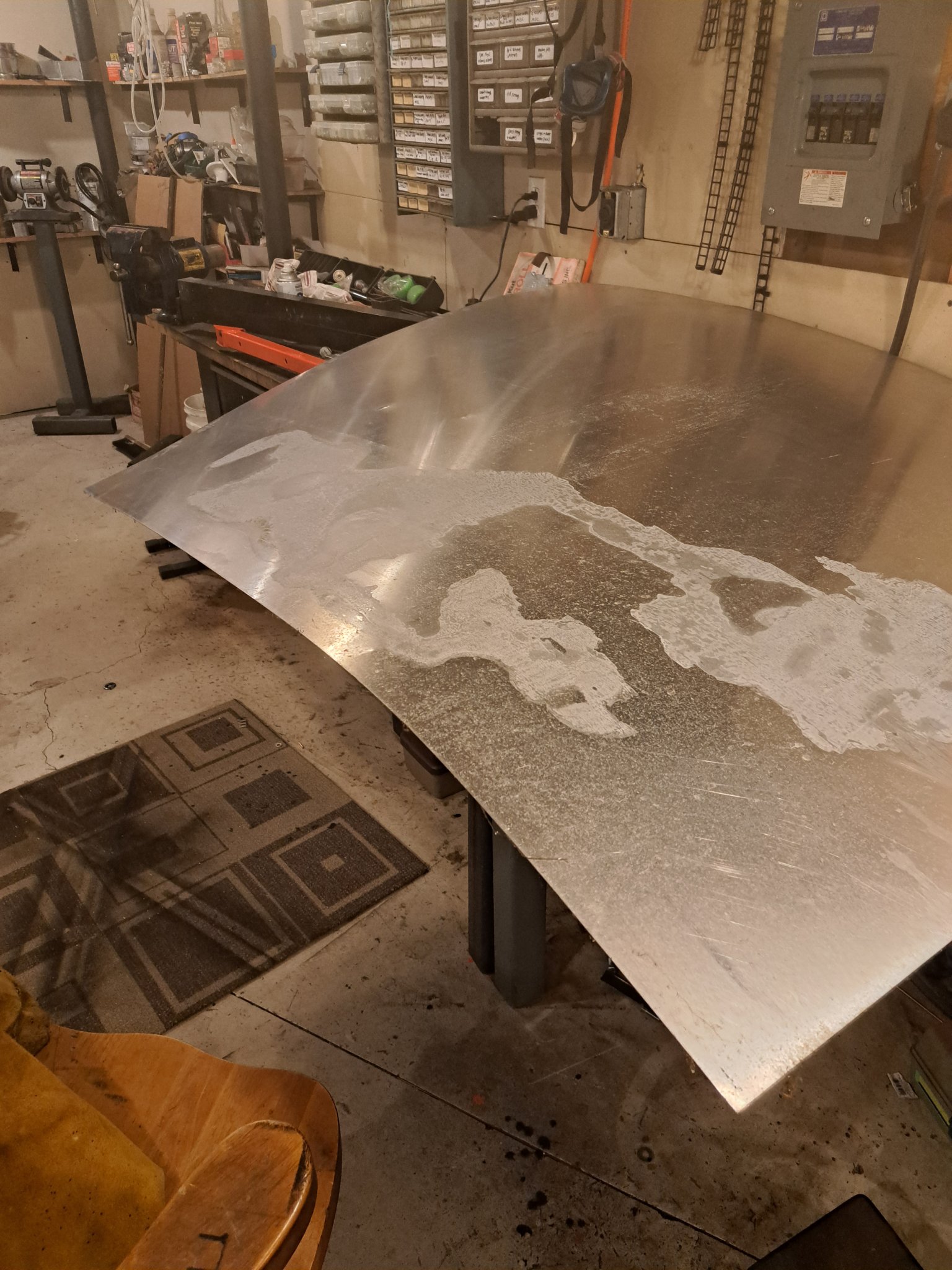

Looking through the scrap pile I find a sheet of sheet mystery aluminum and some 3/16 mystery aluminum plate.

I take some rough measurements and 'freehand' a template for the plasma cutter.

Then try to smooth them out a bit.


Attachments

D2Cat

Well-known member
Lifetime Member

Equipment
L305DT, B7100HST, TG1860, TG1860D, L4240
Mar 27, 2014
12,755
4,142
113
40 miles south of Kansas City
You got them wacked out, but wouldn't a saws-all get it done quicker and cleaner? Your misc. pile of iron is better equipped than mine !!!

I hope you design works 'cause you won't really know until you're down the road a ways. Might have to just slow down if you really need to get there no matter what.

  • Like
Reactions: 1 user

ve9aa

Well-known member

Equipment
TG1860, BX2380 -backblade, bx2830 snowblower, fel, weight box,pallet forks,etc
Apr 11, 2021
1,203
972
113
NB, Canada
So, if I am understanding, this "wing" on top of your plow blade will direct air down to the radiator of your truck?

If this won't/doesn't work, have you considered an external oil cooler or 2nd heater core mounted in the engine bay (somewhere it can get good air flow).

My classic car (Austin Mini) has had some engine mods on it's huge engine (998cc) and it always runs hot on the highway, no matter what, so I installed a 2nd heater core up near the grille and problem went away. (I didn't even have to have an oil cooler, but many folks do that as well)


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan
You got them wacked out, but wouldn't a saws-all get it done quicker and cleaner? Your misc. pile of iron is better equipped than mine !!!

I hope you design works 'cause you won't really know until you're down the road a ways. Might have to just slow down if you really need to get there no matter what.
1. I'm still learning the plasma cutter, so I'm still at the trial and error phase.
2. My Sawz-all is up north. LOL
3. I live near a freeway so testing will be quick and if it don't work...your right, It'll be a 5.5 hour drive at 55


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan
So, if I am understanding, this "wing" on top of your plow blade will direct air down to the radiator of your truck?

If this won't/doesn't work, have you considered an external oil cooler or 2nd heater core mounted in the engine bay (somewhere it can get good air flow).

My classic car (Austin Mini) has had some engine mods on it's huge engine (998cc) and it always runs hot on the highway, no matter what, so I installed a 2nd heater core up near the grille and problem went away. (I didn't even have to have an oil cooler, but many folks do that as well)
Yep, I am trying to deflect the air into the radiator. The last "scoop" I made didn't do a darn thing, but my buddy said that I probably have to catch the air before it gets to the plow...I dunno, we will see.

I have considered external coolers, but I'm trying to avoid it.

  • Like
Reactions: 1 user

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,443
409
83
NE Wisconsin
Interesting challenge! Hope you get it figured out. I wonder if a ‘pusher’ fan blade would work?


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan

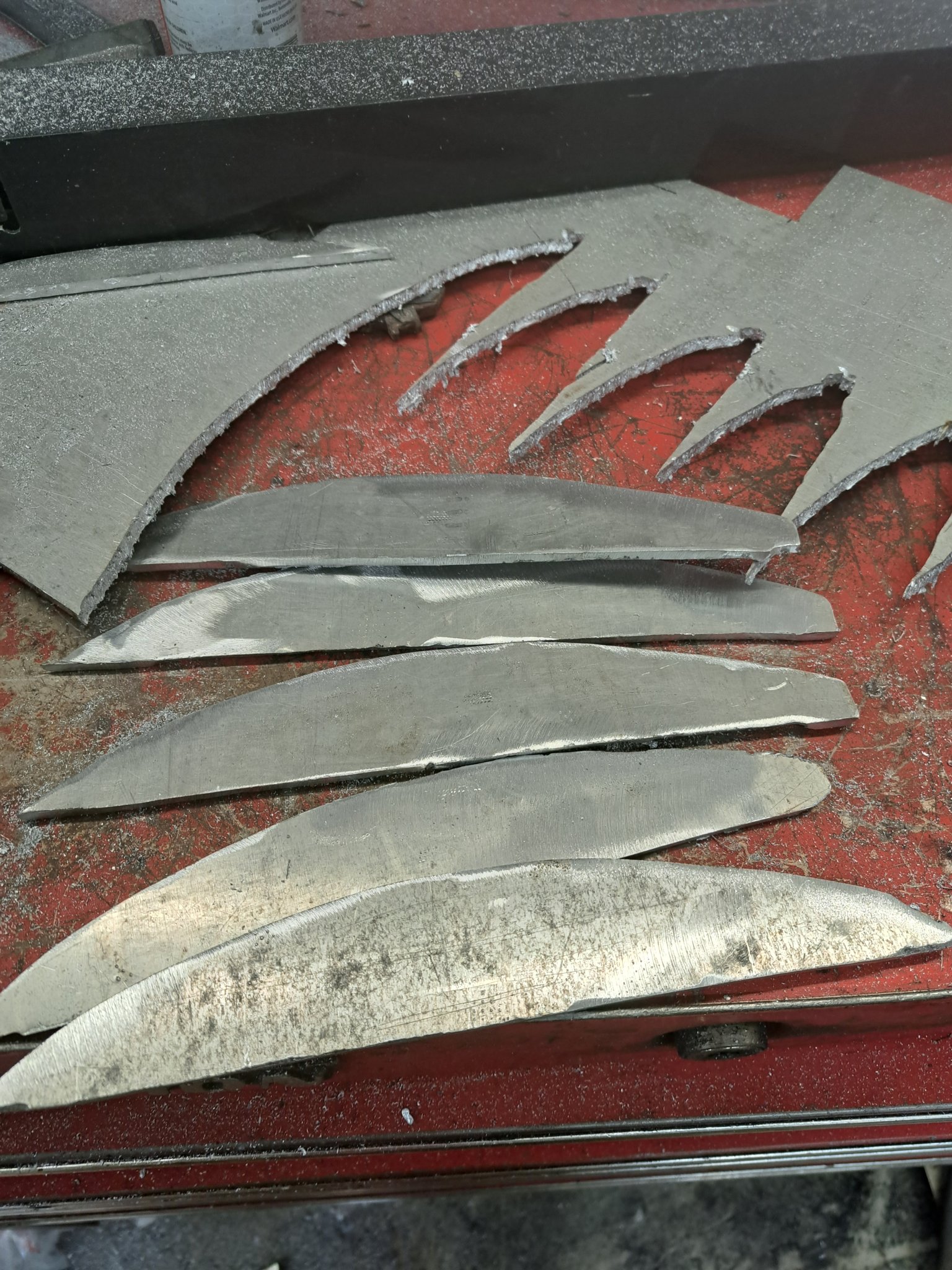

Now that I have the ribs cut, I need to try to bend this big gas piece of mystery metal into some sort of a "wing" design. Not having access to a large brake made it tough.

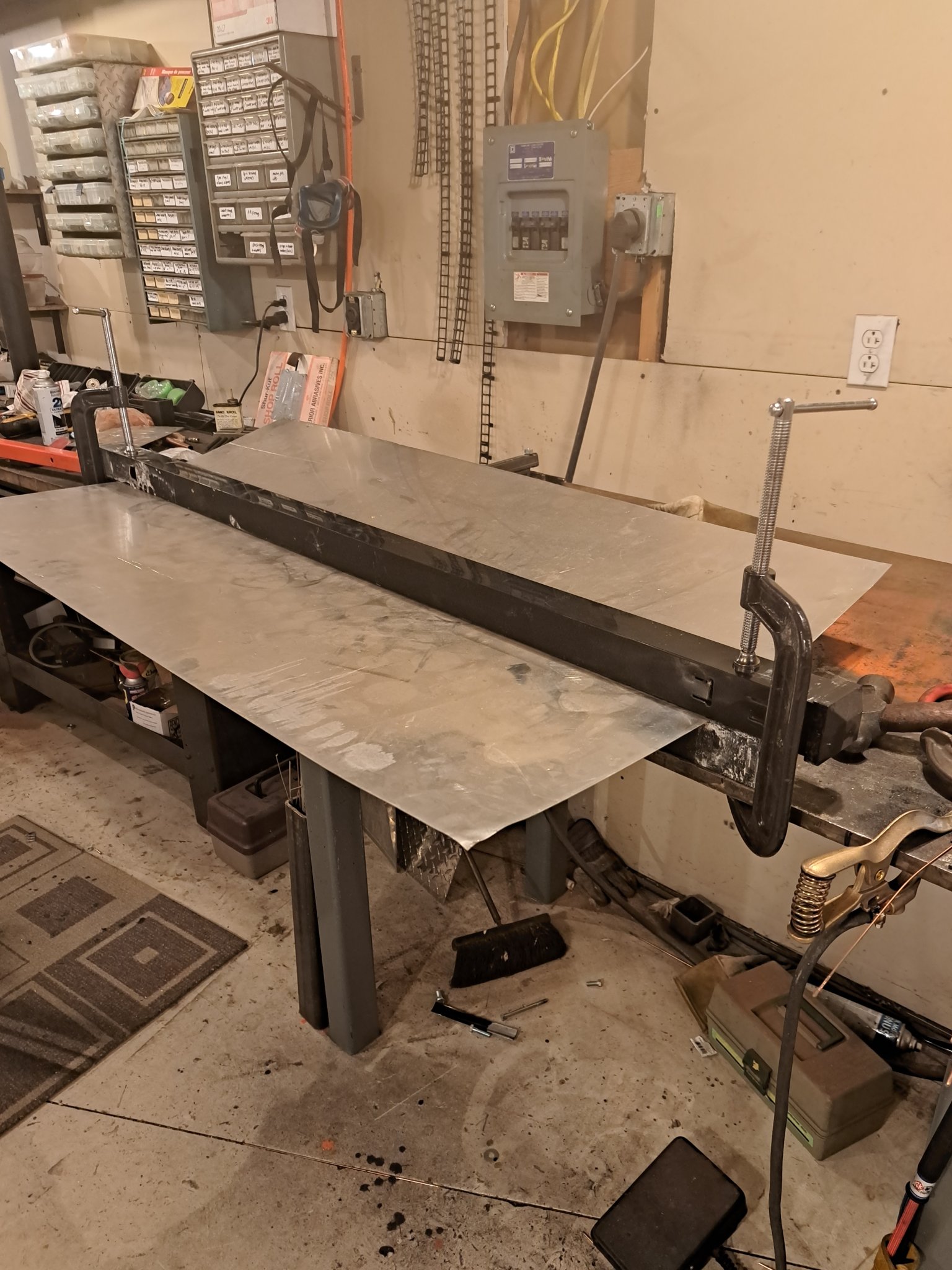

I found a old square fence post that I could clamp to the welding table, and using a mallet and some brute force was able to get a 90'ish degree angle.


Attachments

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan
Because aluminum is not magnetic, my 90 degree jig was worthless. So the clamps were about the best I could come up with.

Not the best, but good enough for this project.

But as you can see in the third picture warping was a big problem. I knew going into this that I was going to have to pour a ton of heat into those ribs and that welding the sheet metal to them was going to be problematic at best.

25 years ago I would have done this the right way, by making the ribs from sheet metal with lightening holes for added strength and riveted the entire thing together.

The problem is I sold all my rivet guns and bucking bars when I stopped working on aircraft.

Advice to young guys getting started......Two thing you should never sell...Guns and Tools


Attachments

Last edited:
  • Like
Reactions: 1 user

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan

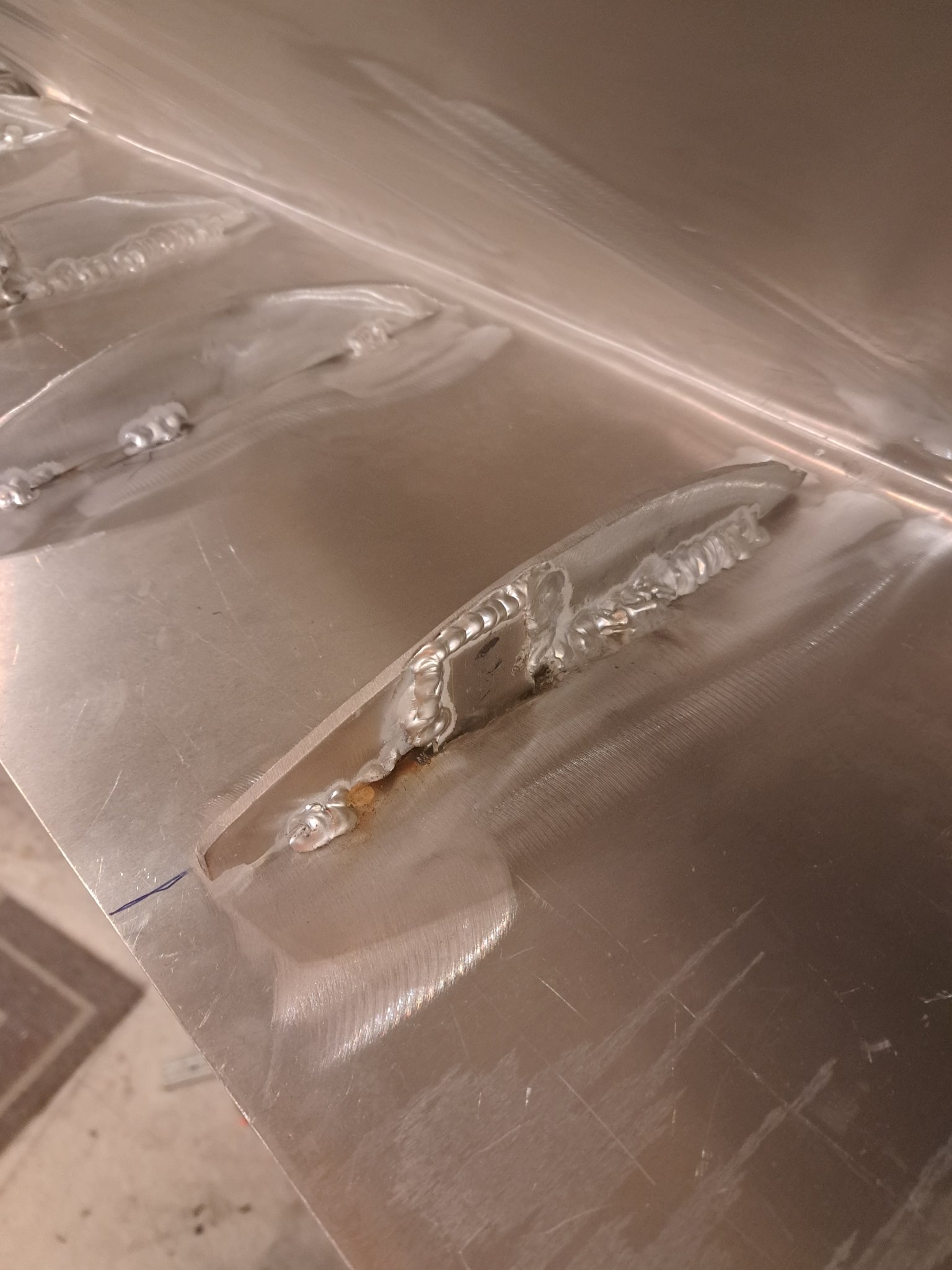

The warping was becoming so bad , that I had to just 'stitch weld' them and call it good enough.

Then I cut some slits along the rib and welded some "legs" that I will use to attach to brackets that I will fab up.

Looking back at those welds is making me nauseous...LOL

The last pic is a good look at the warping that occurred.


Attachments

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan

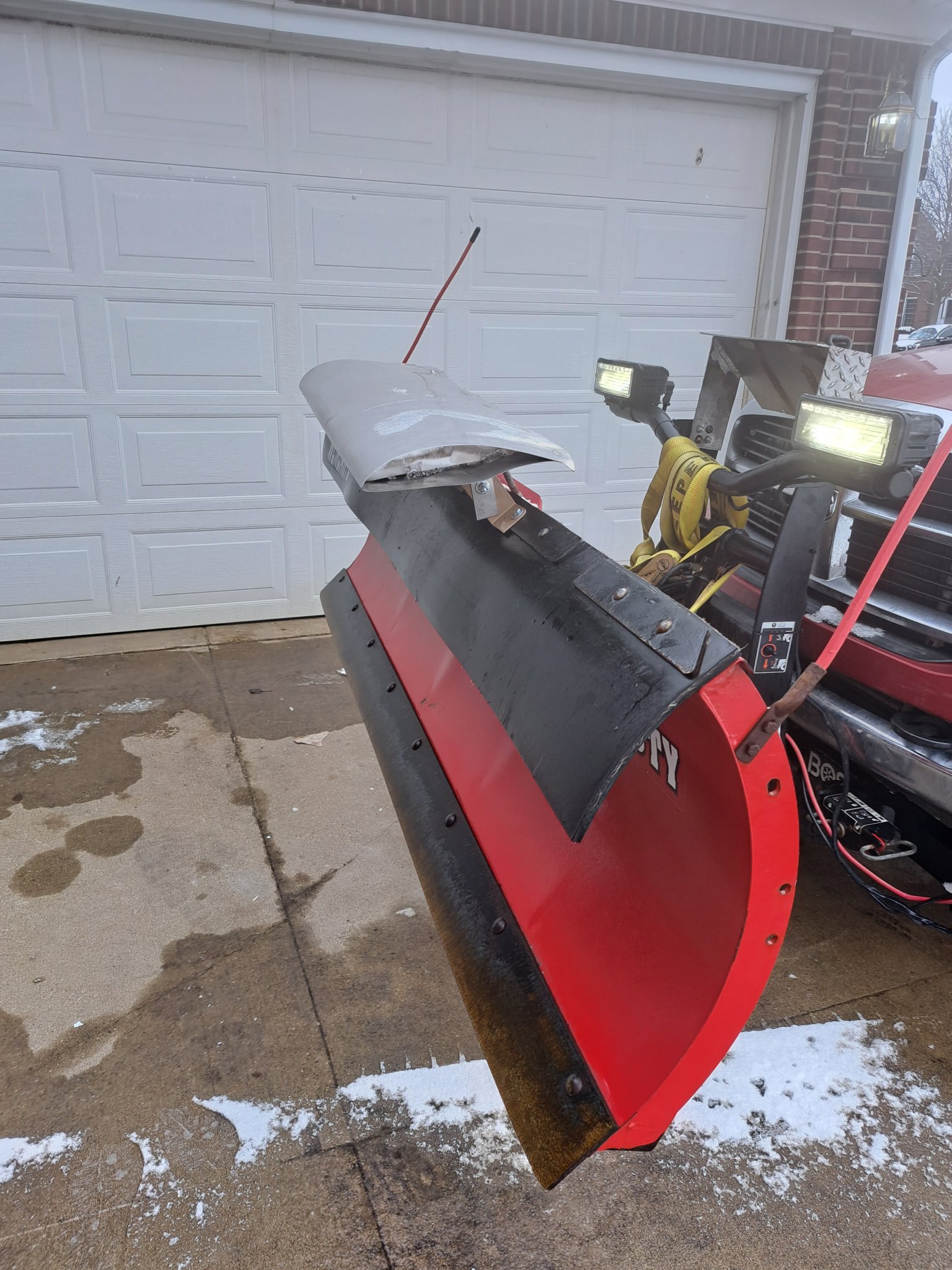

Well, here she is in all her glory.

Rummaging around the scrap pile I found some angle's from a bed frame that my wife had pitched in the trash, to use for the attachment angles.

Me: "Hey why are you throwing that perfectly good bed frame away?"

Wife: "Damn it Paul, why do you keep every single scrap POS, just throw it away!!!!"

Me: "Oh, I'll use it for something one day"

Wife: mutters something about the house looking like "Sanford and Son" while walking way


Attachments

Last edited:
  • Haha
Reactions: 1 user

D2Cat

Well-known member
Lifetime Member

Equipment
L305DT, B7100HST, TG1860, TG1860D, L4240
Mar 27, 2014
12,755
4,142
113
40 miles south of Kansas City
What ever you end up with make sure it's anchored good enough to stay in place. Going 65 MPH and trying to catch wind, you sure don't want it in your wind shield or someone else's!

i had a similar problem (just not going as far) i bought some additive to put in the cooling system that helped greatly. Can't remember what it was, got it at NAPA.

  • Like
Reactions: 1 user

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
1,570
1,662
113
Michigan

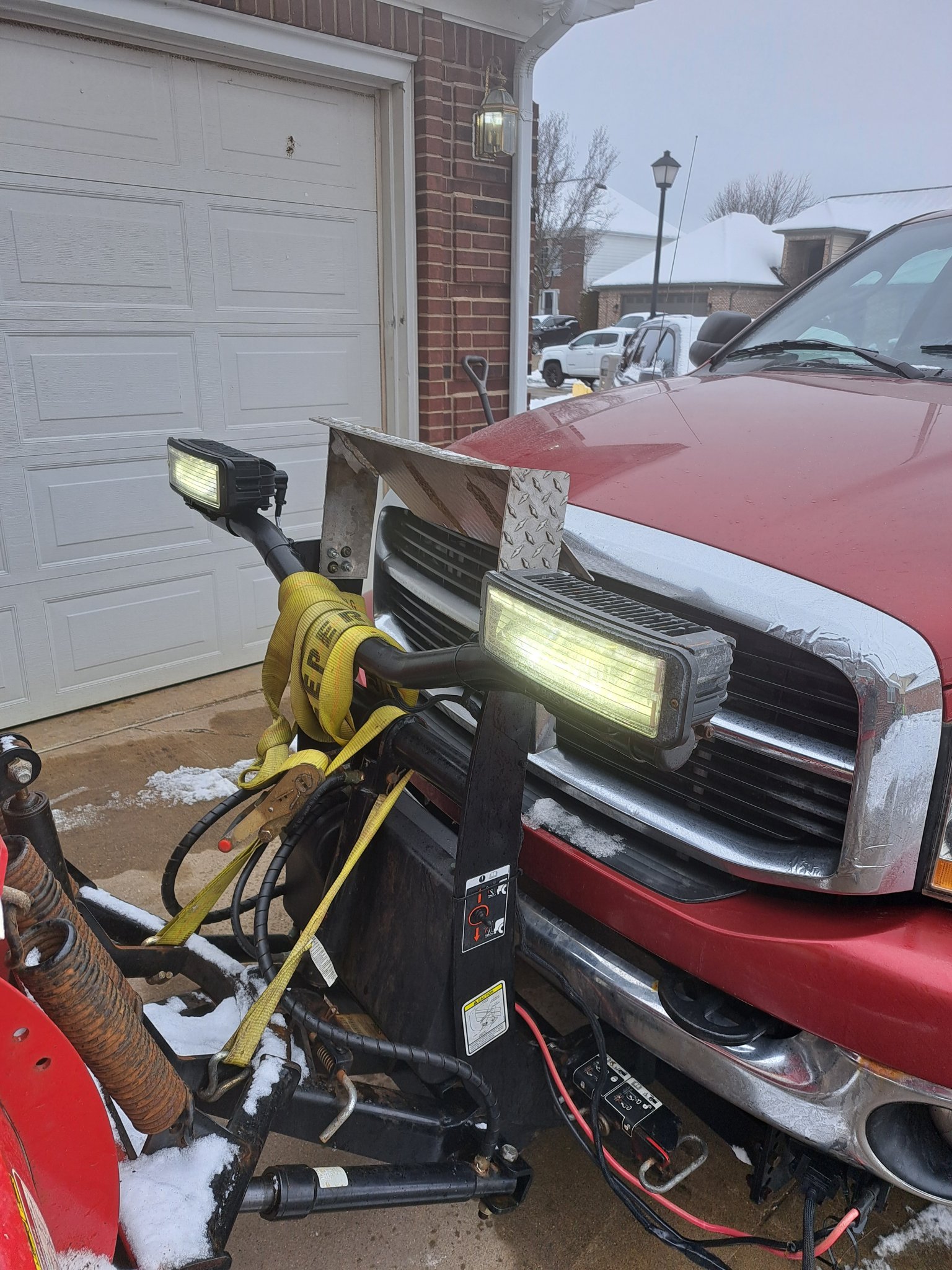

Well boys, after some angle adjustments and some freeway testing I am proud to report that she works pretty darn good.
