Got my wheel spacers, not what I expected. L2501

Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada

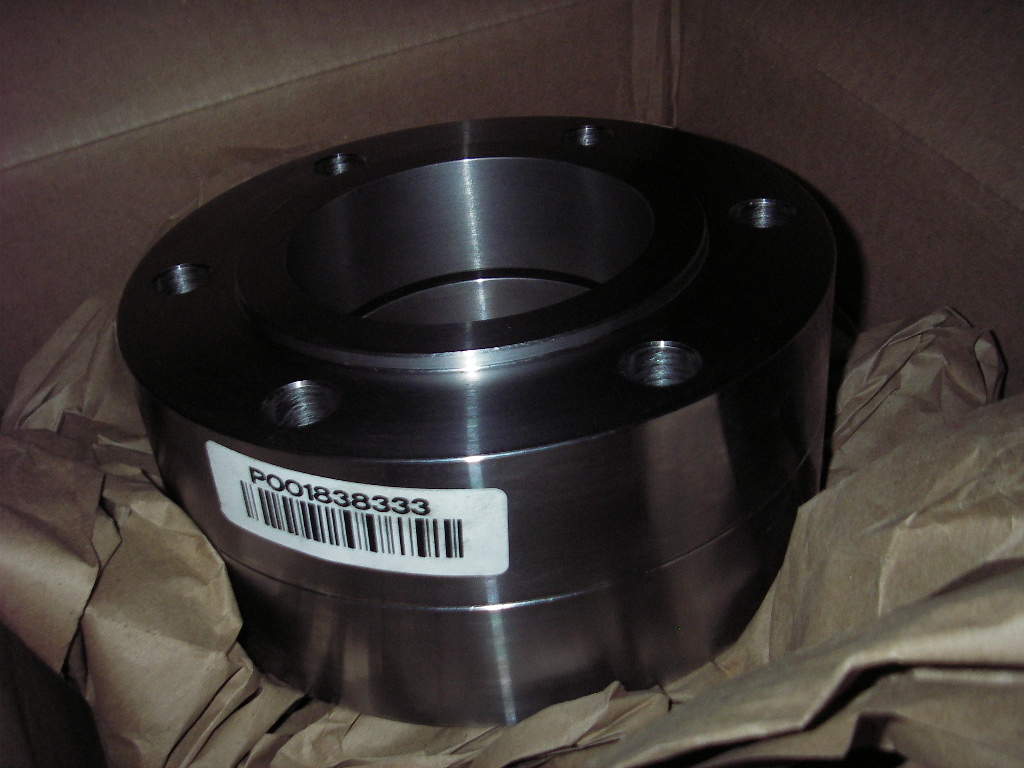

I thought I would be getting spacers with 12 holes on the bolt circle.
6 to bolt the spacer to the hub, and 6 more to bolt the wheel to the spacer.
Also, no extra length bolts were included but that's fixable.

The original bolts are marked '7' Does anyone know if that's a bolt grade mark?

Since 2 bolt positions are studs I guess I can pull this off but it won't be as easy as if they had 12 holes.

Can anyone give me an idea as to how heavy the wheels are going to be and how difficult they are to muscle around? They are not loaded.

Thanks guys




Jchonline

Well-known member
Lifetime Member

Equipment
Kubota L6060, KX040-4, M7060, RTV X1100C, M62 (sold)
Oct 28, 2018
1,182
443
83
Red Feather Lakes, CO
I thought I would be getting spacers with 12 holes on the bolt circle.
6 to bolt the spacer to the hub, and 6 more to bolt the wheel to the spacer.
Also, no extra length bolts were included but that's fixable.

The original bolts are marked '7' Does anyone know if that's a bolt grade mark?

Since 2 bolt positions are studs I guess I can pull this off but it won't be as easy as if they had 12 holes.

Can anyone give me an idea as to how heavy the wheels are going to be and how difficult they are to muscle around? They are not loaded.

Thanks guys

View attachment 71368

View attachment 71369
Unloaded wheels arent bad. Keep machine on level ground when removing and replacing. dont let the tires fall over...If they stay upright they are easy to move/roll around.


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
I thought I would be getting spacers with 12 holes on the bolt circle.
6 to bolt the spacer to the hub, and 6 more to bolt the wheel to the spacer.
Also, no extra length bolts were included but that's fixable.

The original bolts are marked '7' Does anyone know if that's a bolt grade mark?

Since 2 bolt positions are studs I guess I can pull this off but it won't be as easy as if they had 12 holes.

Can anyone give me an idea as to how heavy the wheels are going to be and how difficult they are to muscle around? They are not loaded.

Thanks guys

View attachment 71368

View attachment 71369
You went steel? I am waffling. How long to get them?

Dan


Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada
Thanks Jc. I will keep them upright.

I had no choice, this is all they had available.
Took 10 days to get them.

IMHO, steel is the right thing to do. There is no advantage to Aluminum that I can think of.

  • Like
Reactions: 1 user

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
4,174
1,761
113
North of Pittsburgh PA
Thanks Jc. I will keep them upright.

I had no choice, this is all they had available.
Took 10 days to get them.

IMHO, steel is the right thing to do. There is no advantage to Aluminum that I can think of.
Who did you buy them from?

Seems like proper bolts and studs should have been included. BUT if a reasonably priced source, maybe that is expected not to be part of the deal.

  • Like
Reactions: 1 user

TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
Thanks Jc. I will keep them upright.

I had no choice, this is all they had available.
Took 10 days to get them.

IMHO, steel is the right thing to do. There is no advantage to Aluminum that I can think of.
I did not look closely at the pics the first time. How do you propose to mount the spacers and wheels?

Dan


Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada
Who did you buy them from?

Seems like proper bolts and studs should have been included. BUT if a reasonably priced source, maybe that is expected not to be part of the deal.
$CAD389 for the pair.
Seem to be Kubota parts.
From the dealer.


Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada
I did not look closely at the pics the first time. How do you propose to mount the spacers and wheels?

Dan
I'm thinking the 2 studs will keep the spacer on Ok while I get the wheel back into docking position. If it won't stay I can wrap tape on the studs and maybe grease the mounting surface to keep it stuck to the hub. If those ideas don't work I will be counting on the mother of invention.
I'll have the other 3 wheels chocked and parking brake set hard.
Once it's bolted together I think it will be better than a 12 bolt set up.

  • Like
Reactions: 1 user

TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
I'm thinking the 2 studs will keep the spacer on Ok while I get the wheel back into docking position. If it won't stay I can wrap tape on the studs and maybe grease the mounting surface to keep it stuck to the hub. If those ideas don't work I will be counting on the mother of invention.
I'll have the other 3 wheels chocked and parking brake set hard.
Once it's bolted together I think it will be better than a 12 bolt set up.
I am not following any of that. All I see is 6 tapped holes presumably meant for the bolts that hold the wheel to the adapter. What attaches the adapter to the hub?

Dan


kreuss

New member

Equipment
B26 - loader, backhoe, box blade, pallet forks
Mar 22, 2021
12
13
3
Lothian, MD
I just added spacers to my machine a few weeks ago. Mine were Bro-Tech which have the 12 holes you were expecting. 6 through holes to attach spacer to the axel then 6 tapped holes to attach the wheel to the spacer. I think this setup is easier to install but has a drawback when checking lug nut torque. With the 12 holes you need to remove the wheel to check the torque on the inner nuts. Most probably do like I did and tighten the inners nuts up real good and maybe check them once. The 6 holes with longer studs allow you to check the torque any time without removing the wheel. I'm not saying one way is better than the other, but that's the tradeoff as I see it.

Here's a youtube of someone installing kubota spacers:


Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada
The holes in the spacers are not tapped.

For one side:
I need to replace the 2 studs in the tractor hub with longer ones.
Also need 4 longer bolts to go through the wheel, through the spacer, into the tractor hub.

The 12 bolt setup is easier because you can bolt the spacer to the tractor hub, then bolt the wheel to the spacer.

The 6 bolt setup requires that you get the spacer on the hub and the wheel on the spacer before you can tighten anything and keep it all lined up.


kreuss

New member

Equipment
B26 - loader, backhoe, box blade, pallet forks
Mar 22, 2021
12
13
3
Lothian, MD
The holes in the spacers are not tapped.

For one side:
I need to replace the 2 studs in the tractor hub with longer ones.
Also need 4 longer bolts to go through the wheel, through the spacer, into the tractor hub.

The 12 bolt setup is easier because you can bolt the spacer to the tractor hub, then bolt the wheel to the spacer.

The 6 bolt setup requires that you get the spacer on the hub and the wheel on the spacer before you can tighten anything and keep it all lined up.
I believe you are supposed to replace all the studs first. You tighten all of them down to the axle flange, then slide on the spacer, then the attach the wheel.


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
The holes in the spacers are not tapped.

For one side:
I need to replace the 2 studs in the tractor hub with longer ones.
Also need 4 longer bolts to go through the wheel, through the spacer, into the tractor hub.

The 12 bolt setup is easier because you can bolt the spacer to the tractor hub, then bolt the wheel to the spacer.

The 6 bolt setup requires that you get the spacer on the hub and the wheel on the spacer before you can tighten anything and keep it all lined up.

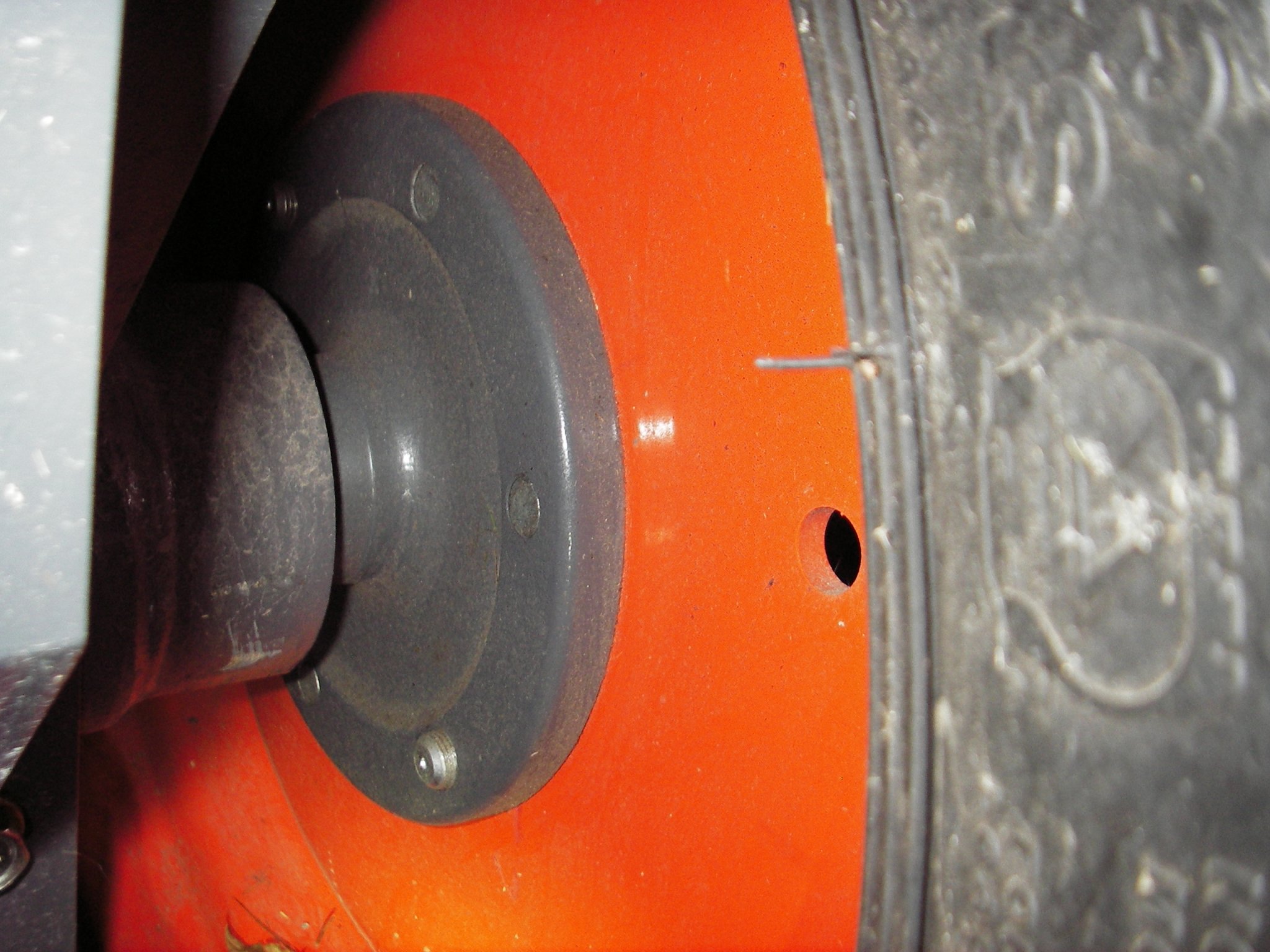

OK - that makes sense. I should have looked at the picture on a big screen rather than my phone. I like this setup much better than the BORA 12 bolt design. Also a lot easier to make. Do you have a part number for those longer studs? I am tempted to order some bar and make my own.

Dan


DustyRusty

Well-known member

Equipment
BX23S
Nov 8, 2015
2,693
1,750
113
North East
I installed spacers on my BX22 and I purchased longer Grade 8 bolts and threaded them into the hub from the rear. I also used a mild Locktite and torqued them into the hub as I went from hole to hole. Back when the BX22 was built, there were no guide studs to get the wheels on, and even though they were a lot smaller than your tractor, they were loaded and presented a challenge. I got the bolts from McMaster Carr, because I don't trust the quality of what is sold locally. I also got the wheel stud nuts from them and when I installed the nuts, they were all torqued. I went with aluminum spacers, and everything worked out well. Your tractor might not have the same type of bolt studs as I used, and that might present a problem procuring wheel nuts. You might have to buy them from your local dealer if they are anything other than a normal car size.


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
I installed spacers on my BX22 and I purchased longer Grade 8 bolts and threaded them into the hub from the rear. I also used a mild Locktite and torqued them into the hub as I went from hole to hole. Back when the BX22 was built, there were no guide studs to get the wheels on, and even though they were a lot smaller than your tractor, they were loaded and presented a challenge. I got the bolts from McMaster Carr, because I don't trust the quality of what is sold locally. I also got the wheel stud nuts from them and when I installed the nuts, they were all torqued. I went with aluminum spacers, and everything worked out well. Your tractor might not have the same type of bolt studs as I used, and that might present a problem procuring wheel nuts. You might have to buy them from your local dealer if they are anything other than a normal car size.
The thread in the L01 rear hubs is M16-1.5 and wheel hardware is class 8.8.

Dan


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
The holes in the spacers are not tapped.

For one side:
I need to replace the 2 studs in the tractor hub with longer ones.
Also need 4 longer bolts to go through the wheel, through the spacer, into the tractor hub.

The 12 bolt setup is easier because you can bolt the spacer to the tractor hub, then bolt the wheel to the spacer.

The 6 bolt setup requires that you get the spacer on the hub and the wheel on the spacer before you can tighten anything and keep it all lined up.
I am seriously thinking about making a pair of spacers for my L3901. I have a discount code for the material that's good through midnight tomorrow and I would like to get it ordered. If you don't mind could you measure the OD of the spacers you bought? Looks like this is going to be right between 8" and 8.5". I would rather not spend the extra money for the larger bar if I don;'t have too. Either way not nearly as expensive as BORA and I can have a set made and ready to mount in about a week.

Dan


Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada
The thread in the L01 rear hubs is M16-1.5 and wheel hardware is class 8.8.

Dan
Confirm my bolts are M16 x 1.5 but are not marked 8.8 which I believe is equivalent to grade 5.
I have never seen a bolt marked like this one. I'm not a master mechanic but I've worked on loads of cars and motorcycles, plus a few tractors.



Pawnee

Active member

Equipment
L2501
Jul 1, 2021
207
179
43
Ontario Canada
I am seriously thinking about making a pair of spacers for my L3901. I have a discount code for the material that's good through midnight tomorrow and I would like to get it ordered. If you don't mind could you measure the OD of the spacers you bought? Looks like this is going to be right between 8" and 8.5". I would rather not spend the extra money for the larger bar if I don;'t have too. Either way not nearly as expensive as BORA and I can have a set made and ready to mount in about a week.

Dan
Wow, you must have some serious machine tools! That is a big chunk of steel.
I will measure anything you like but to begin:
OD is 205mm. I measured 8.072", I don't have a metric caliper that long.


bird dogger

Well-known member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
1,341
1,052
113
North Dakota
I am seriously thinking about making a pair of spacers for my L3901. I have a discount code for the material that's good through midnight tomorrow and I would like to get it ordered. If you don't mind could you measure the OD of the spacers you bought? Looks like this is going to be right between 8" and 8.5". I would rather not spend the extra money for the larger bar if I don;'t have too. Either way not nearly as expensive as BORA and I can have a set made and ready to mount in about a week.

Dan
If you're considering making a set of spacers, take a look at what I did. More time than money into makeing them and they work just fine. Post #8 has the pics here
David


TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
3,265
1,540
113
Myersville, MD
windyridgefarm.us
The holes in the spacers are not tapped.

For one side:
I need to replace the 2 studs in the tractor hub with longer ones.
Also need 4 longer bolts to go through the wheel, through the spacer, into the tractor hub.

The 12 bolt setup is easier because you can bolt the spacer to the tractor hub, then bolt the wheel to the spacer.

The 6 bolt setup requires that you get the spacer on the hub and the wheel on the spacer before you can tighten anything and keep it all lined up.
I am seriously thinking about making a pair of spacers for my L3901. I have a discount code good through tomorrow for the material so I would like to get If you don't mind could you measure the OD of the spacers you bought? Looks like this is going to be just over 8" which means *.5" bar and drives the price up noticeably. Still not nearly as expensive as BORA and I can have a set made and on the tractor in about a week. I can get two 2.5 x 8" slabs for $192 delivered. BORA spacers are double that.

Dan
