Farmall H restoration

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

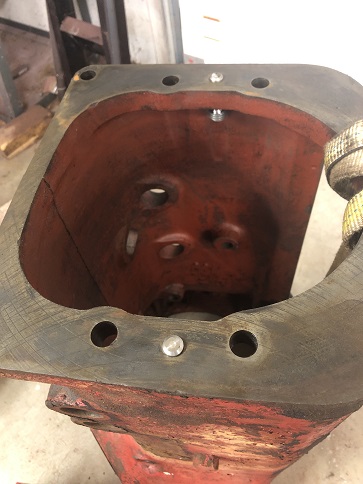

Going back together. I made up some replica removable dowel pins for the clutch housing. In theory, you put a nut on the threads and they will back out of the blind holes. That is if they don't rotate. This will be the next guys' problem. Anyway, installed them and then attached the clutch housing without drama.



  • Like
Reactions: 2 users

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
8,987
4,893
113
Chenango County, NY
@Yooper - like all your endeavors, so looking forward to the rest of this project…..👍

Last edited:
  • Like
Reactions: 1 user

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

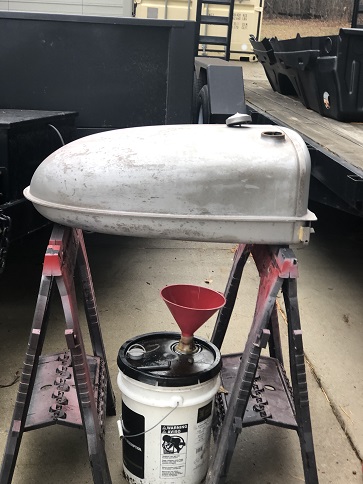

This is a sure sign of aging! A few short years ago I would have crawled underneath to blast this for paint. The thought of doing that so disgusted me I took the time to do this. I am happy!


  • Like
Reactions: 4 users

Ktrim

Well-known member

Equipment
B2400, lA352 loader,3pth quick hitch/z122r zero turn/restored 52 farmall super a
Dec 23, 2020
414
320
63
Nazareth Pa
Getting old is a bitch. It does have one advantage though. When the wife says "why did you need to buy another toy" you can say " 1st off the term is tool and it helps with what I can't physically do any more"

  • Like
Reactions: 2 users

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin
Well, I wanted to get the paint on the tractor before cottonwood season but it came early this year and stayed well beyond its welcome. So I basically left it alone waiting for the right conditions to paint and clear coat it outside. Friday I applied the color and today was the clear coat. Came out well! After it hardens up properly I will get the engine married up to the torque tube. Stay tuned!


  • Like
Reactions: 8 users

Tughill Tom

Well-known member

Equipment
B3200
Dec 23, 2013
1,205
1,303
113
Turin, NY
Well, I wanted to get the paint on the tractor before cottonwood season but it came early this year and stayed well beyond its welcome. So I basically left it alone waiting for the right conditions to paint and clear coat it outside. Friday I applied the color and today was the clear coat. Came out well! After it hardens up properly I will get the engine married up to the torque tube. Stay tuned!

View attachment 136502
Looks great, Nice work(y)

  • Like
Reactions: 2 users

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

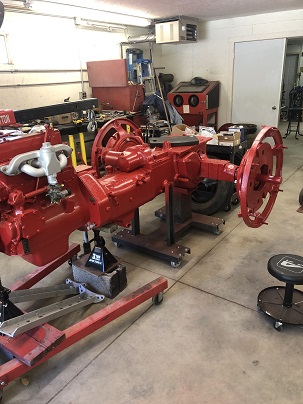

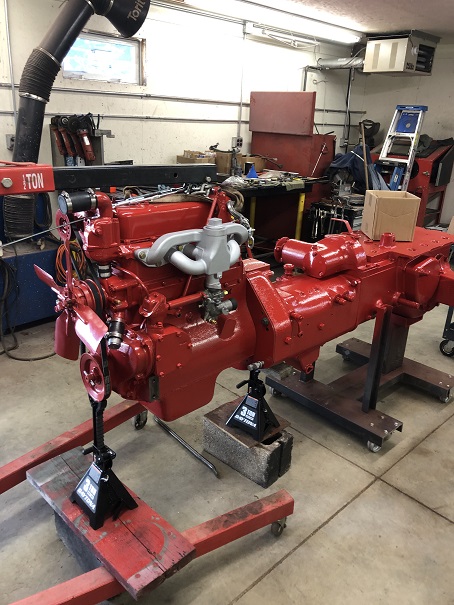

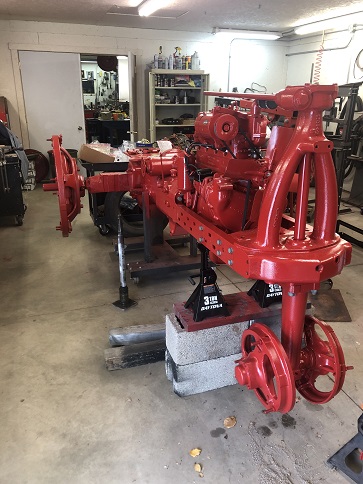

Got the engine married up to the torque tube with no drama. My clutch alignment tool worked with flying colors. My next goal is to make it a 'roller' so I started sand blasting the front bolster and after a bit the executive decision was made to farm out the blasting. I just don't have the compressor to handle all the parts and face it, life is short! Stay tuned


  • Like
Reactions: 6 users

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin
I've been dreading painting the rear wheels and weights because they are awkward and heavy. A few short decades ago it would have been no problem laying these out flat and flipping them over by brute force. But that was then and this is now. So I came up with this setup and with the aid of the L3901 with the fork attachment I mounted the wheels and weights so I could spray them with the hardest part being the kneeling down to get the underneath. I can feel the kneeling days are coming to an end in the future but for now, mission accomplished!



  • Like
Reactions: 8 users

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

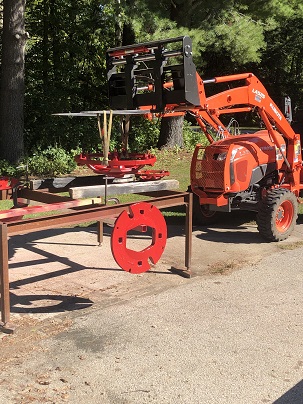

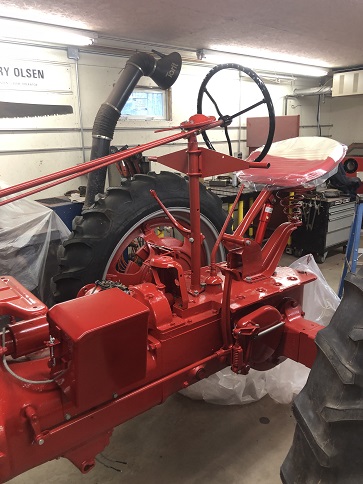

Using a tractor to assemble a tractor. In keeping with the theme of not doing heavy lifting by hand, I used the forks on my L3901 to set up the wheels and add the weights before installing them on the axles.



  • Like
Reactions: 2 users

ctfjr

Well-known member
Lifetime Member

Equipment
L3800HST
Dec 7, 2009
1,857
2,227
113
central ct
I really wish I lived closer. I would have loved to photoshoot this project as you went along.

Giving hope to all us old farts!

  • Like
Reactions: 1 user

BAP

Well-known member
Lifetime Member

Equipment
2012 Kubota 2920, 60MMM, FEL, BH65 48" Bush Hog, 60"Backblade, B2782B Snowblower
Dec 31, 2012
2,694
801
113
New Hampshire
Looking great 👍. Wished mine looked that good. My 1947 Farmall H is still wearing it’s original Work Clothes and is getting tired mechanically.

  • Like
Reactions: 1 user

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

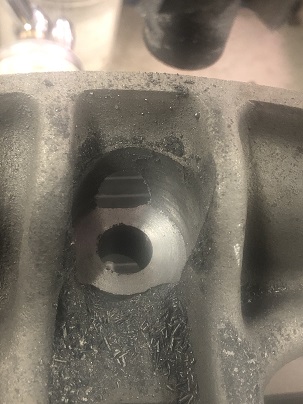

Working on the front bolster. This is the front of the tractor and it supports the front wheels and the steering gear. There is wear on the top bore below where the hardened gear for the worm drive steering system lives. Probably no big deal but I wanted to challenge myself to see if I could true this up somehow. I came up with a setup using the top surface where the cover plate attaches.

Did a bit of measuring and it appeared that I could do this on my milling machine. Dug out a plate that I used for facing odd parts on the big lathe and clamped this to the table. I swung the head of the machine over and positioned it so I could both make the fixture and face the bore with my boring head with auto feed.



  • Like
Reactions: 1 users

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

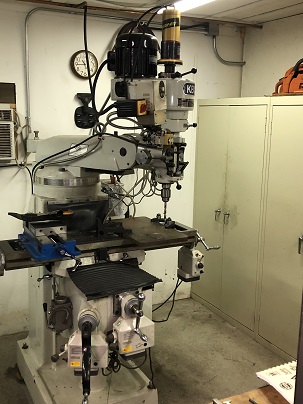

Here is what my setup looks like on the mill. I started by drilling a center hole for the 4" hole saw. Next I marked the plate and then drilled two holes that will allow the shavings from the hole saw to clear out because this plate is 1" thick. I then drilled the holes to match the bolt circle on the top of the bolster and then mounted it to the mill.



  • Like
Reactions: 1 users

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin

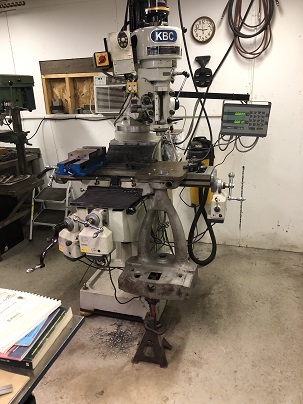

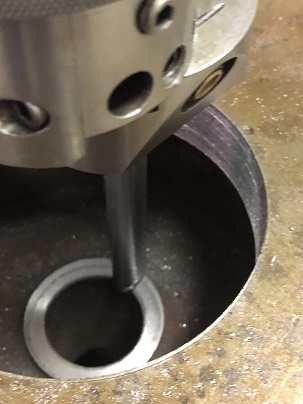

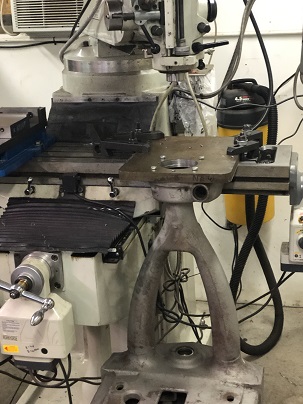

Here is the setup ready to machine. Put a jack stand underneath to support it so it would take some stress off the table. Chucked up my boring head and made several light passes to clean up the face. Happy with the results!



  • Like
Reactions: 2 users

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,462
2,469
113
Peoria, AZ
Nice work Bob!

I love non-standard setups!

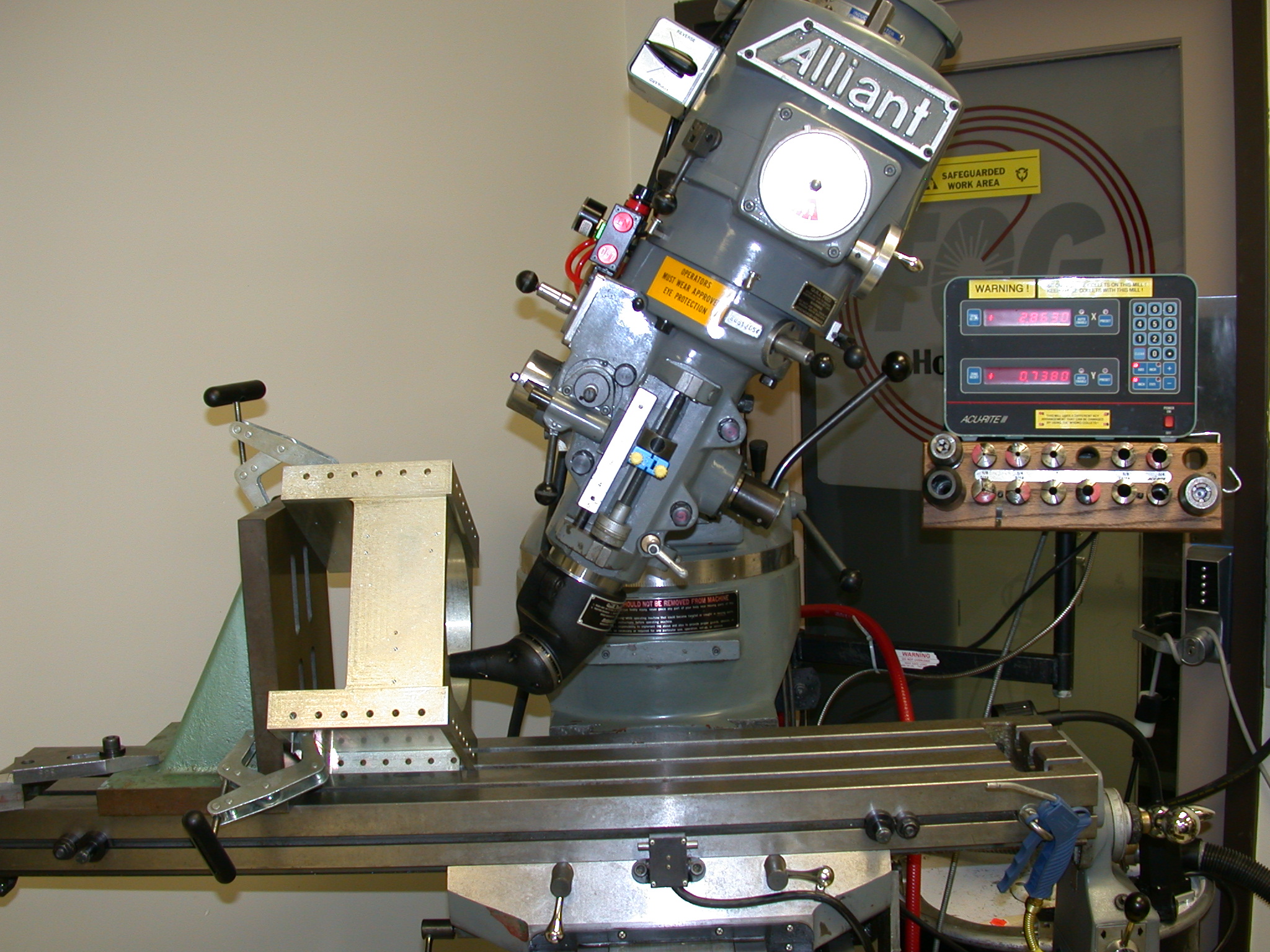

rtangsetup1.JPG rtangsetup2.JPG rtangsetup3.JPG

  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,462
2,469
113
Peoria, AZ

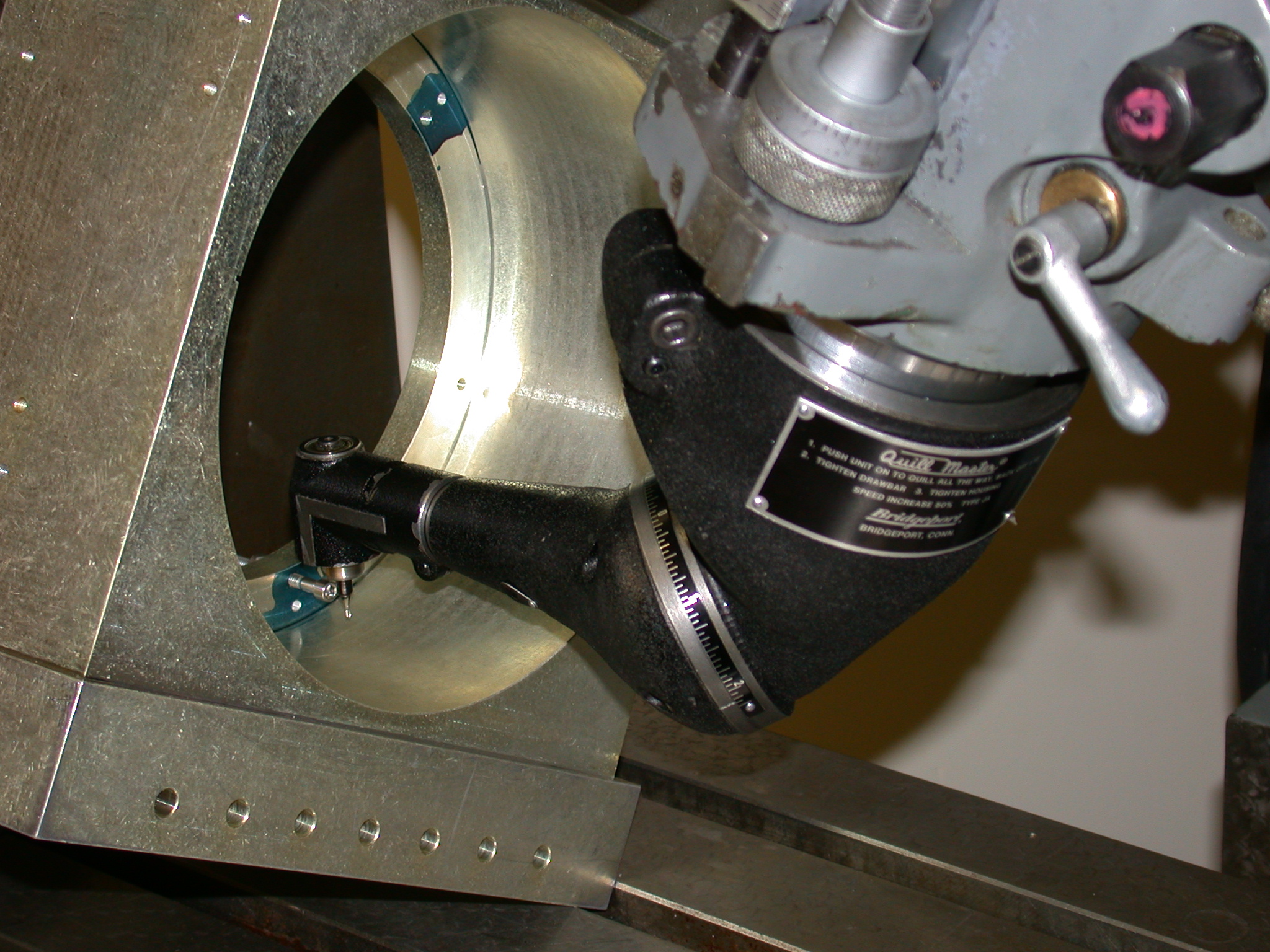

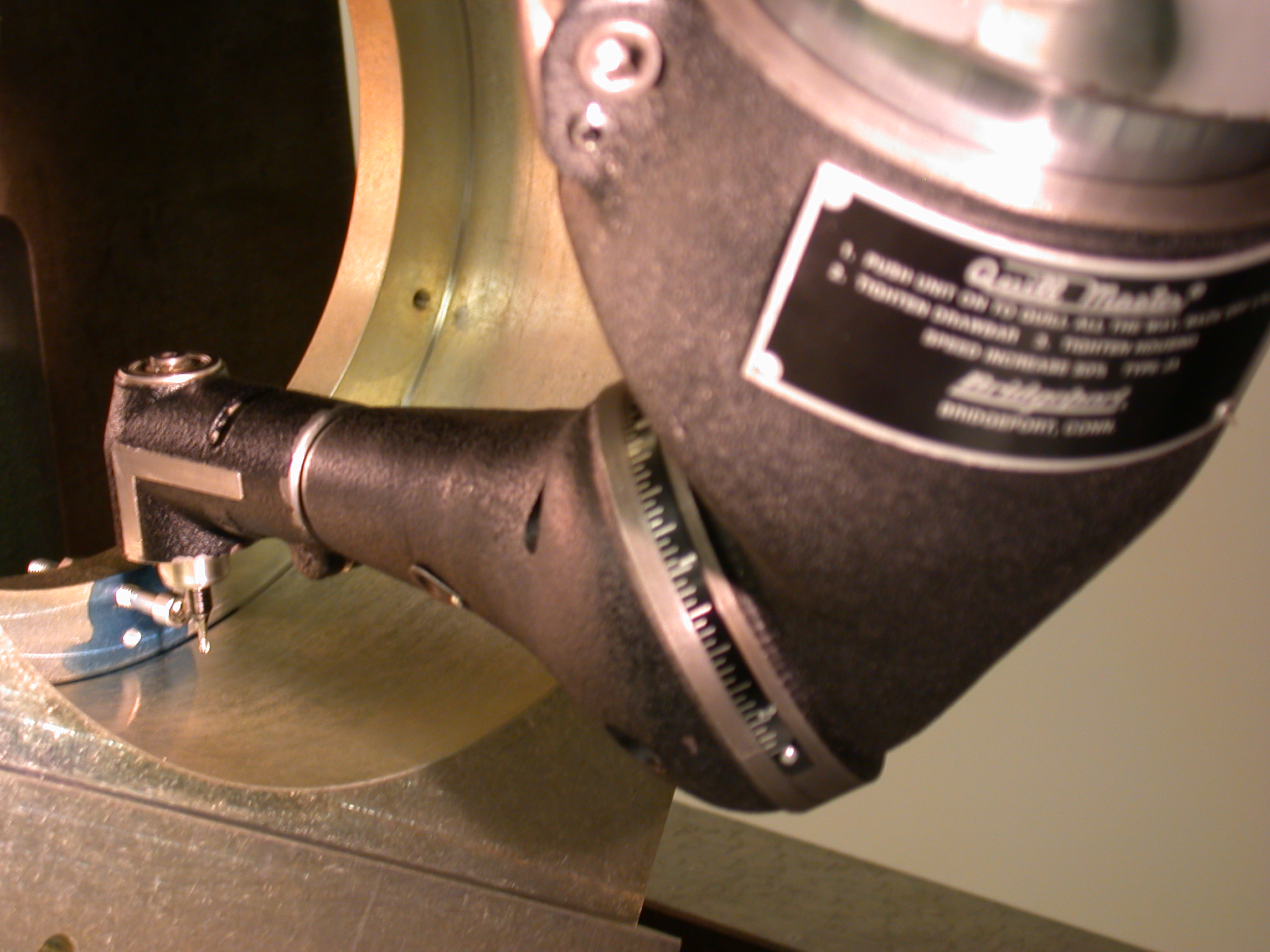

Bridgeport Quill Master! I’m green with envy!🤢
I wish! That pic was from my shop at work.
Note high $$ quillmaster, much nicer and newer mill, .0001 DRO, alodyned part, near cleanroom conditions, static sensitive warning sign, and FOG poster on unused door.
Item being machined is part of a fixture to mount a gyro on an ultra precision rate table inside a temperature controlled chamber.

Last edited:

Yooper

Well-known member
Lifetime Member

Equipment
3901 LA525
May 31, 2015
1,517
518
113
NE Wisconsin
This is the way the back side of the front wheel should look where the bolt goes through.

But this is how the other two look.


I decided to counterbore both holes on the mill and then I will make a bushing that will lightly press fit into the bore so the bolt pressure displacement is spread out.


As you can see there was a little breakout through the wheel but it will not be an issue. The stress is really carried through the side 'gussets'. That's it for this week and I'll post the final repair later next week.

  • Like
