Electrical - Wiring Diagrams

[fastbob]

"Diagrams may vary depending on the Exact model, serial number, region and options equipped"

Hopefully those looking for an electrical-wiring diagrams for a given tractor can find them here.

Those that are willing to share, please make the POST TITLE that starts with the tractor specific name:

The reason for the specific post title - IF a person wants a diagram on B7100's - then hopefully this will be included in the search.

I.E.

B7100 Newer version (B5100,B6100)

And then clearest picture possible

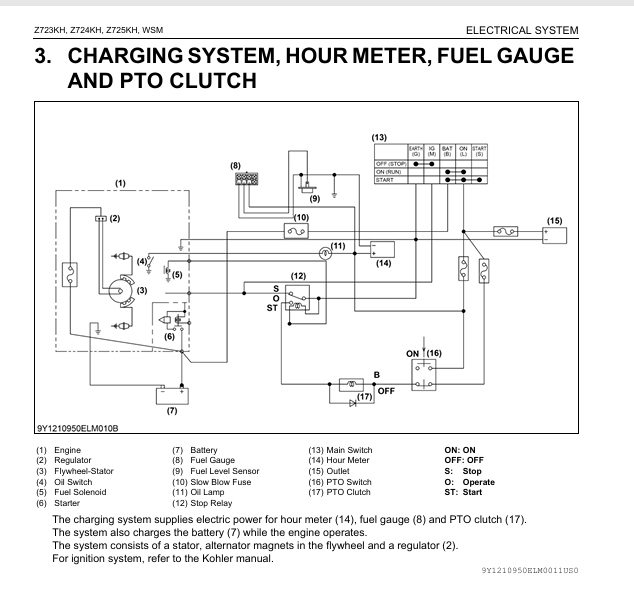

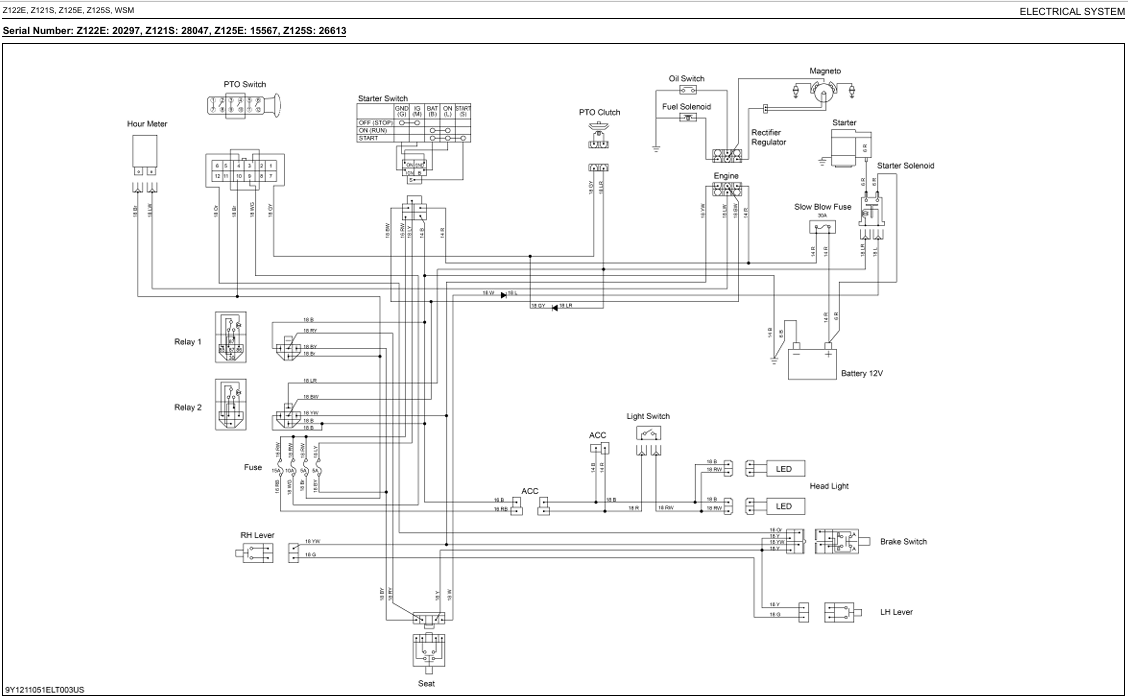

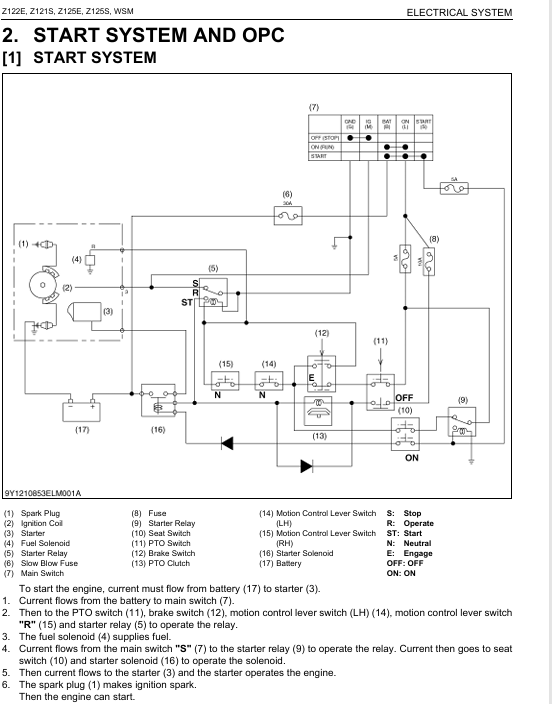

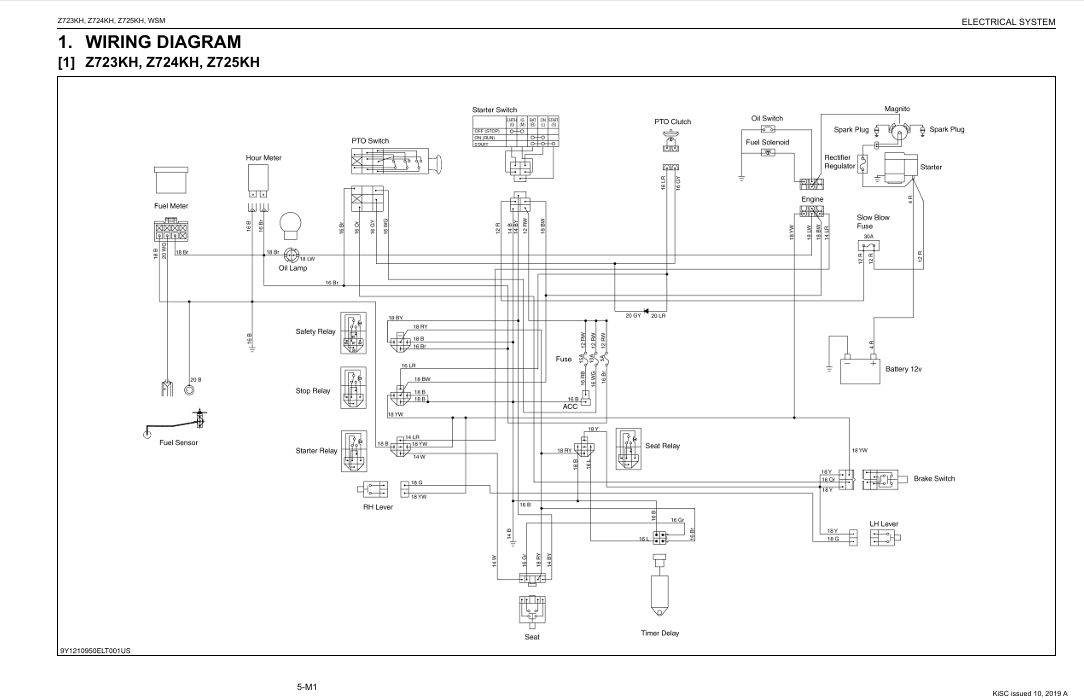

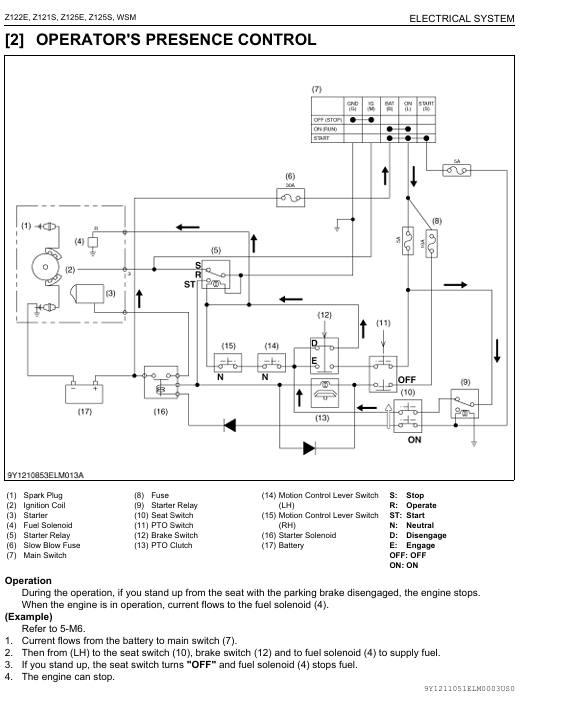

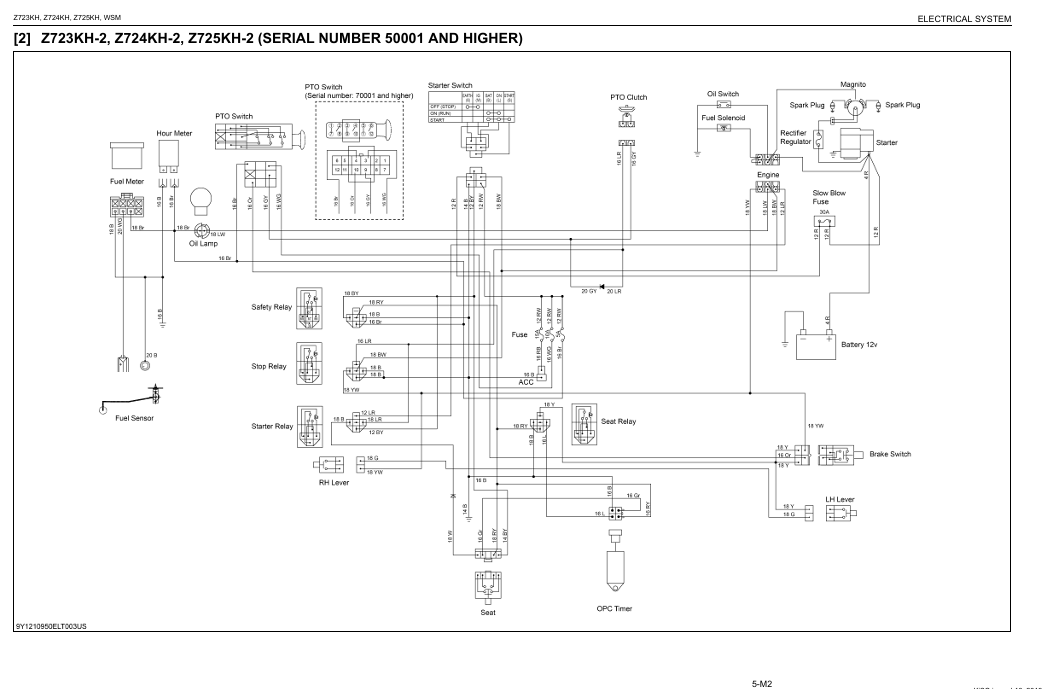

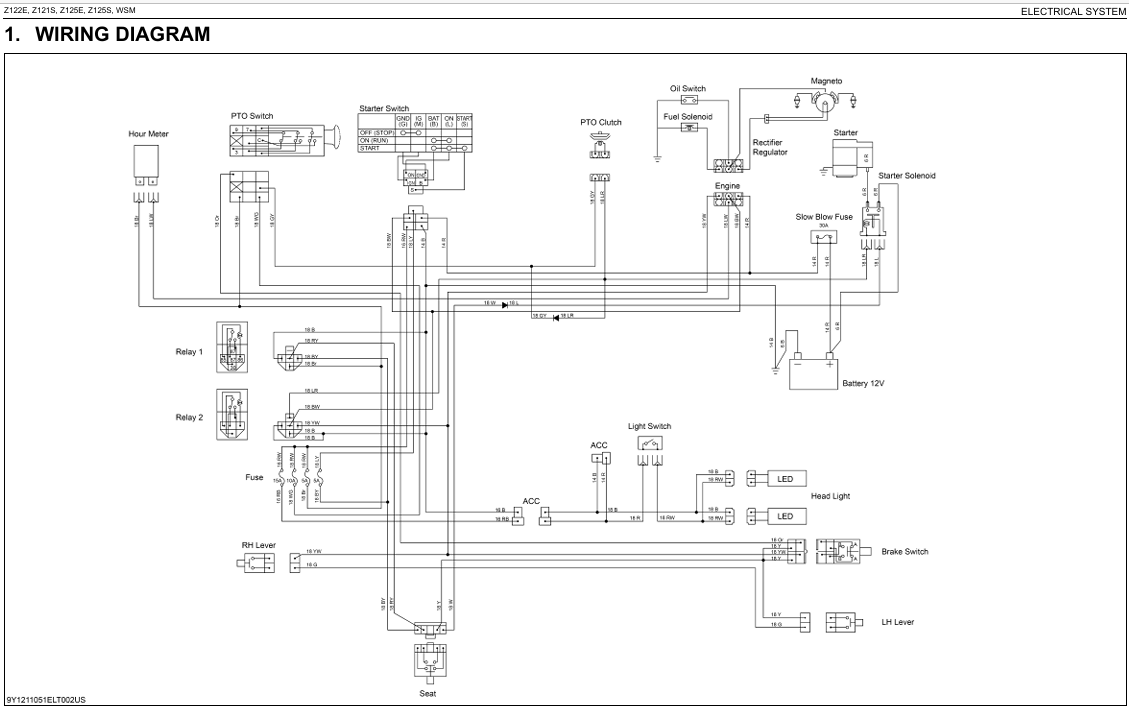

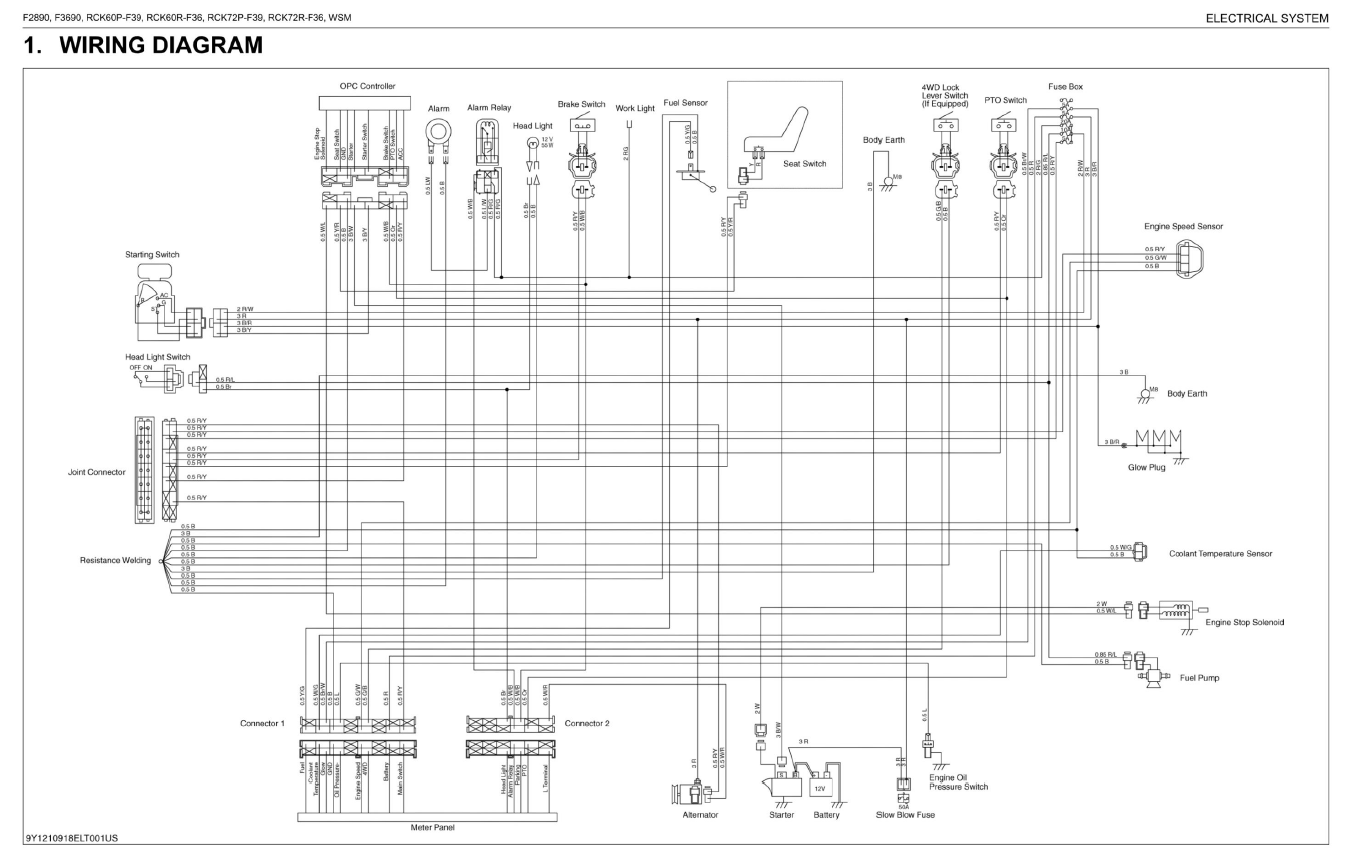

View attachment 112086

I own a L4600HST ROPS and have since it was new. Today it decides not to start. No clicks no nothing. Battery is good and terminals are spotless. Fuses are all good too. If someone has an electrical wiring diagram, I would greatly appreciate a copy. Thanks
