Dipper snapped
- Thread starter selftot
- Start date
I'm not an engineer, nor do I have any experience with repairs like that. I do recall discussions on how the shape of reinforcing plates can affect the strength / longevity of the repair. Hopefully someone who understands such things will drop by. BFreaky built his own backhoe and discussed some theory on that over on TBN.
dirtydeed
Well-known member
Lifetime Member
Equipment
B2650 BH77, U27-4R2, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder

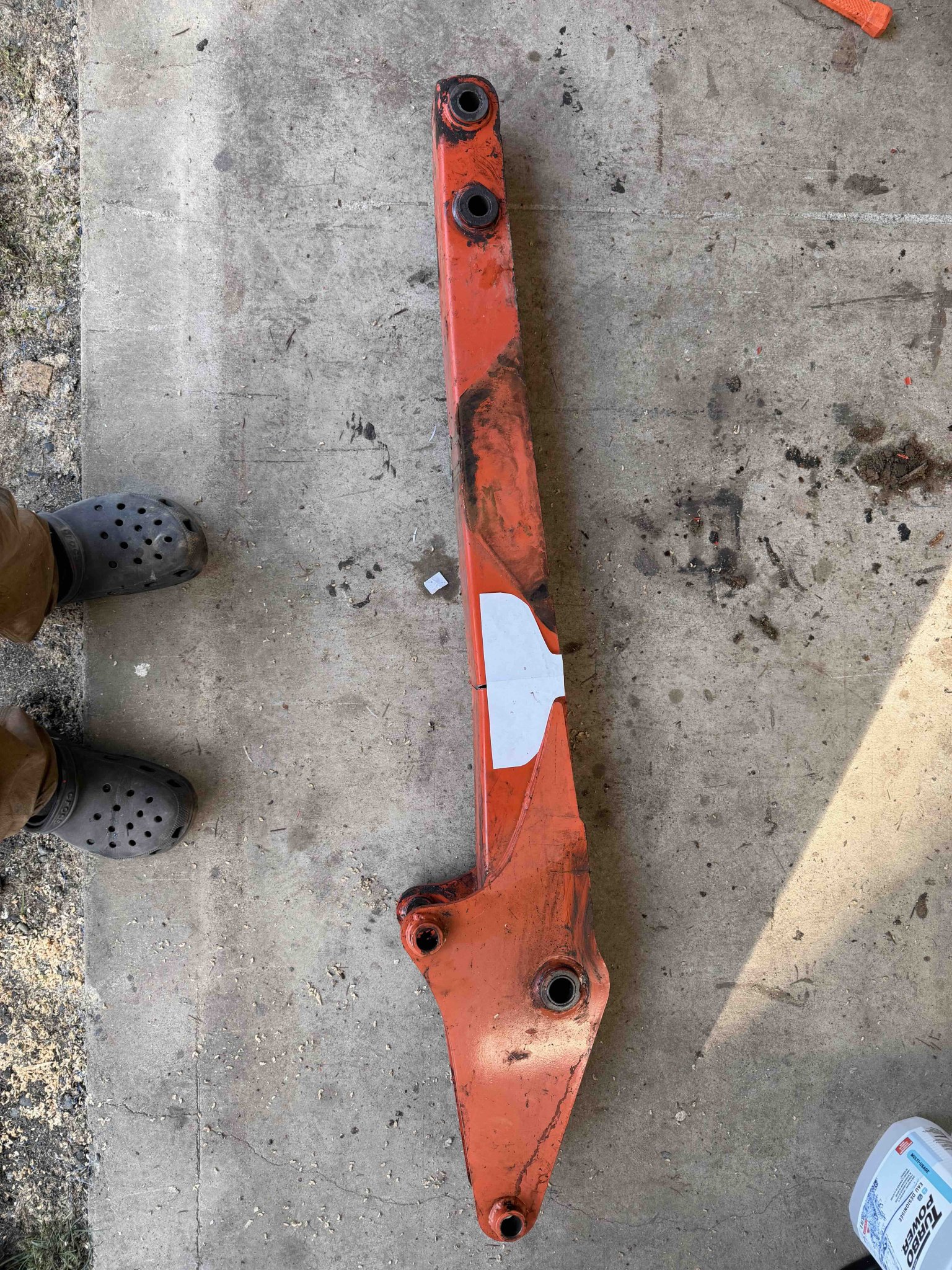

I'm an amateur but this is what i came up with. Probably overkill and wrong shape. And wrong location. lol.
Would appreciate any feedback.
Would appreciate any feedback.
I am guilt of that - especially in earlier years.
When it happened, i was grabbing a rock when the tooth slipped - pulling the bucket away from the side where it failed.
CAD to the rescue!! Cardboard Aided Design.
Your repair would almost certainly improve the strength of the part but there are lots of ways to complete this repair.I worked as a welder for years and have numerous certifications including 5G pipe and repaired hundreds of Cascade forklift parts when I lived in Oregon so I know more than a little about welding repairs. Access to a plasma table and press brake would make this repair easy for sure. Home repairs are often more limited, but plating each side and even a puddle weld on either side of the failure (via holes in plate) would help.
Personally, I'd do some weld prep, get the part back in alignment, weld it up, plate it on at least both sides and possibly a third side, paint it and never worry about it again. Your template is perhaps a little more elaborate than I'd make but it's still a good concept.
This would be my suggestion. The strain is mainly on the right hand side when digging, hence the original reinforcement. People with finite element software can propably calculate a better shape.
And of course v-groove and weld before attaching the plates, as suggested earlier.

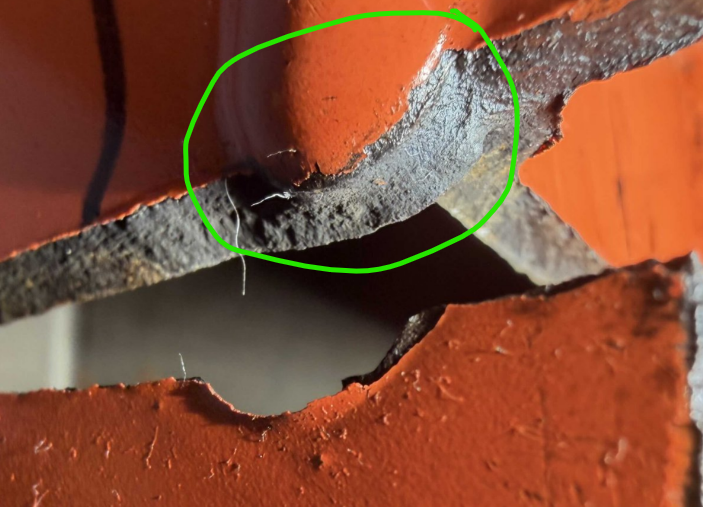

As Stated that has been broken for quite some time and should have been noticed. That would have made the repair much easier.
I would probably just cut whatever is holding the stick in one piece and put backer plates behind the cracks and vee the broken areas back to clean metal. Weld where the cracks are to make the stick whole. Reinforce the side with a pattern similar to what @Hugo Habicht drew and you can probably put a plate to and bottom as well.
Never weld perpendicular to the length of the stick. This is a sure way to crack the stick again. Always weld on a diagonal either the entre way as drawn or using a pint or fish mouth pattern on the reinforcement. You do o not have to weld fully around the end of the plates. You can terminate the weld before the end of the plate. If you do weld to the end of the plate, extend the weld past it and join the 2 weld. I would then grin the end of the puddle flush with the base metal.
Make sure you have enough welder to do the job.
I would probably just cut whatever is holding the stick in one piece and put backer plates behind the cracks and vee the broken areas back to clean metal. Weld where the cracks are to make the stick whole. Reinforce the side with a pattern similar to what @Hugo Habicht drew and you can probably put a plate to and bottom as well.
Never weld perpendicular to the length of the stick. This is a sure way to crack the stick again. Always weld on a diagonal either the entre way as drawn or using a pint or fish mouth pattern on the reinforcement. You do o not have to weld fully around the end of the plates. You can terminate the weld before the end of the plate. If you do weld to the end of the plate, extend the weld past it and join the 2 weld. I would then grin the end of the puddle flush with the base metal.
Make sure you have enough welder to do the job.
