B7100 Hydraulic block diverter (70060-00360 or 70070-00385)

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,583
831
113
Muskoka, Ont.
These are obsolete and no longer available. I have recently been contacted by a member asking if I will make him one of these after reading how I made mine. I know this comes up from time to time and would like to gauge the interest others might have -- if I`m going to set up to make a couple, I may as well make a few more.

Here are some photos of what I made in the past. I made the two shown out of steel, as that is what I had on hand, but I`m thinking aluminium would function just as well, be resistant to corrosion and cheaper to ship. I`m not sure of pricing yet -- I know metal pricing has shot up over the last year -- but would estimate it to be in the $30 to $50 range. Plus shipping.

Stock cover:


Inside of stock cover:


Inside (left) and outside (right) of diverter cover (note there is a third tapped outlet provided on the bottom face, all outlets tapped 3/ 8" NPT. Plug the unneded outlet or add a pressure gauge):


Hydraulic schematics from B7100 manual:

Last edited:
  • Like
Reactions: 2 users

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,583
831
113
Muskoka, Ont.
Just to clarify: that is Canadian $ pricing. Probably in the $20 to $40 range for our US friends. But then, shipping across the border will cost more.


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,286
4,853
113
Sandpoint, ID
Just to clarify: that is Canadian $ pricing. Probably in the $20 to $40 range for our US friends. But then, shipping across the border will cost more.
Excellent!

  • Like
Reactions: 1 user

North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,286
4,853
113
Sandpoint, ID
I thought it was reasonable, considering the price was around $120 to $130 US before they went extinct.
Both the Price and that fact you can make them and offer them for sale is excellent!

  • Like
Reactions: 3 users

Russell King

Well-known member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
4,603
975
113
Austin, Texas
Do you know if this is the same part used on L185 or did Kubota charge the design for different models. I want one to be able to add a rear hydraulic top link.

I guess I can dig around on parts lists or my manuals and see if they are same if no one knows off hand


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,286
4,853
113
Sandpoint, ID
Do you know if this is the same part used on L185 or did Kubota charge the design for different models. I want one to be able to add a rear hydraulic top link.

I guess I can dig around on parts lists or my manuals and see if they are same if no one knows off hand
Sadly no it's not the same block, there were quite a few different block designs.

  • Like
Reactions: 1 user

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,583
831
113
Muskoka, Ont.
Do you know if this is the same part used on L185 or did Kubota charge the design for different models. I want one to be able to add a rear hydraulic top link.
Does it look like the pictures above, or more like this one: https://www.ebay.com/itm/203139939584 ?

I believe it came with the B1630 loader. I suspect this means it fits models that would be listed as appropriate for the B1630 loader. Among my list of suspects would be the B6100, B7200 and B5200 -- but I can neither confirm nor deny that by personal experience.


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
6,668
3,214
113
Myersville, MD
windyridgefarm.us
Does it look like the pictures above, or more like this one: https://www.ebay.com/itm/203139939584 ?

I believe it came with the B1630 loader. I suspect this means it fits models that would be listed as appropriate for the B1630 loader. Among my list of suspects would be the B6100, B7200 and B5200 -- but I can neither confirm nor deny that by personal experience.
According to KPAD the loader option was L1730 and the diverter block is a similar design to the one used on the B7100 but mounted on the lift cover. If so just need dimensions. Messicks lists it at $300 if still available.

Dan

Last edited:

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,583
831
113
Muskoka, Ont.
According to KPAD the loader option was L1730 and the diverter block is a similar design to the one used on the B7100 but mounted on the lift cover. If so just need dimensions. Messicks lists it at $300 if still available.
Looking at the Kubota Canada Parts Finder website, it looks like the L185 didn't come with any sort of hydraulic block in the line -- but there is a very similar cover under the left side of the tractor seat.
The L1730 loader seems to have come with it's own hydraulic pump and reservoir, powered from the front of the crankshaft. I found an L1731 that seems to use a very similar block cover, located under the left side of the tractor seat, but I'm not sure what model tractor it fits. (see part number 3530036720 on this diagram: https://www.messicks.com/ku/85207?sectionId=218166&diagramId=349466 . With the right dimensions, I'm pretty certain one could be made for a lot less than $400!!!)

The dimensions of the blocks I made for the B7100 came direct from the FSM. Perhaps the L185 manual has a similar diagram? Otherwise, you would have to measure the cover on your tractor. Overall LxHxW and bolt centre dimensions required, similar to the extract shown above.

Edit: Oh, and the passage dimensions. They are probably kind of important too. Probably have to remove the blank cover temporarily to get those though.

Last edited:

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,583
831
113
Muskoka, Ont.
I looked up that part number (35300-36720) . Looks like it fits the L185DT, L185F, L235, L245DT, L245F, L275, L285P, L295DT, L295F, L305DT, L305F, L345, L345DT, L355SS

One site lists it as still available -- for "only" $287.62!!! Ouch.


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
6,668
3,214
113
Myersville, MD
windyridgefarm.us
Looking at the Kubota Canada Parts Finder website, it looks like the L185 didn't come with any sort of hydraulic block in the line -- but there is a very similar cover under the left side of the tractor seat.
The L1730 loader seems to have come with it's own hydraulic pump and reservoir, powered from the front of the crankshaft. I found an L1731 that seems to use a very similar block cover, located under the left side of the tractor seat, but I'm not sure what model tractor it fits. (see part number 3530036720 on this diagram: https://www.messicks.com/ku/85207?sectionId=218166&diagramId=349466 . With the right dimensions, I'm pretty certain one could be made for a lot less than $400!!!)

The dimensions of the blocks I made for the B7100 came direct from the FSM. Perhaps the L185 manual has a similar diagram? Otherwise, you would have to measure the cover on your tractor. Overall LxHxW and bolt centre dimensions required, similar to the extract shown above.

Edit: Oh, and the passage dimensions. They are probably kind of important too. Probably have to remove the blank cover temporarily to get those though.
According to the docs I was reading the auxiliary pump on the L1730 was an option and it could also be used with the tractor hydraulics. Here is the tractor takeoff from KPAD. The diverter block (key number 10) replaces the top cover (35300-36720) on the pressure relief valve assembly - same arrangement used on many current models. Current part number for that block is 70050-00279 @ $310. Kinda pricey for a $10 chunk of aluminum.

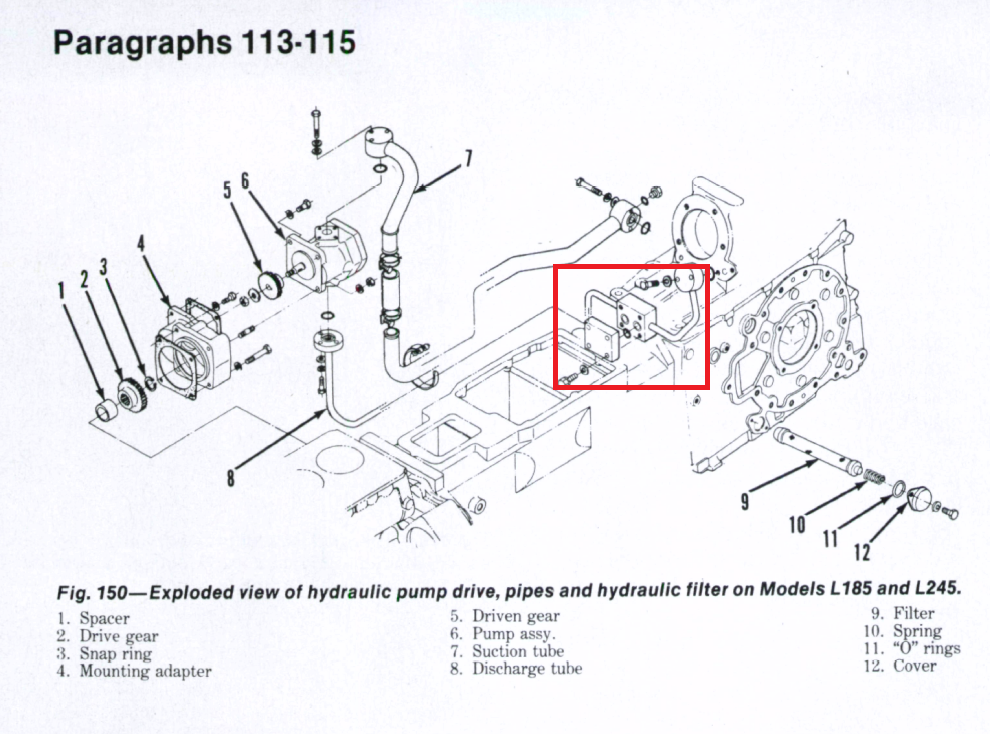

The L185 workshop manual also shows another block in the pressure delivery pipe in the location I have marked in red. I can't find that in any other parts diagram.

I was wondering where you got the dimensions for the B7100 block. I have reverse engineered a number of those sorts of things and getting the dimensions right can be a bit of an exercise. If I had the top cover off the pressure relief it should not be too difficult - the dimensions can be taken right off the part using the DRO on aa mill. The bolt holes are obvious hard positions - the o-rings usually leave a stain on the plate thats good enough to locate the ports. When I was reverse engineering the remote valve adapter on my L3901 that cover was so new and fresh I had to use Prussian blue on the o-rings to get a good trace.


Last edited:

007kubotaguy

Active member
Lifetime Member

Equipment
B7100DT L245DT JD 2355
Dec 23, 2012
546
150
43
Herald Calif.
The block is the same for the old B series and L series. The early L series had the block in the pressure line and later it was moved to the left side under the seat .


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
6,668
3,214
113
Myersville, MD
windyridgefarm.us
The block is the same for the old B series and L series. The early L series had the block in the pressure line and later it was moved to the left side under the seat .
Are you saying the B7100 block will also fit the top of the L185 pressure relief assembly?

Dan


torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,583
831
113
Muskoka, Ont.
Thanks - thats good to know.

Dan
I would confirm that with actual measurements. They have different part numbers. Doesn't mean it won't fit, of course. I note that the first diagram you posted (and the one I viewed on the Kubota Canada site) show the outlets both on the same long side. The 70060-00360 version has one outlet on each end, and the superceding part (70070-00385) has both outlets on the face of the cover. But all 3 are drawn with similar proportions. The 70070-00385 may be a touch thinner which makes sense -- the passages are straight through so it doesn`t have to accomodate the internal 90° bend.

The one shown in your second drawing, from the workshop manual, appears to have different proportions. Less rectangular than the other.

As for the loader number, I suspect that the only significant difference between the L1730 and the L1731 is the choice between independent hydraulics and tapping into the tractor hydraulics. It sounds like something Kubota might do, anyway.


007kubotaguy

Active member
Lifetime Member

Equipment
B7100DT L245DT JD 2355
Dec 23, 2012
546
150
43
Herald Calif.
Torch is correct. Over the years many versions of this block. The port's out the sides the top O ring boss threads versus pipe thread. But the bolt pattern has stayed consistent.


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,286
4,853
113
Sandpoint, ID
Thanks 007kubotaguy!
Without a L185 or any that used the 4 bolt block I really wasn't sure if the bolt pattern was the same or not.
I will note that my L3450 has another style of block in the rear, just in front of the three point cylinder and also the block on the right side in front of the clutch housing.
