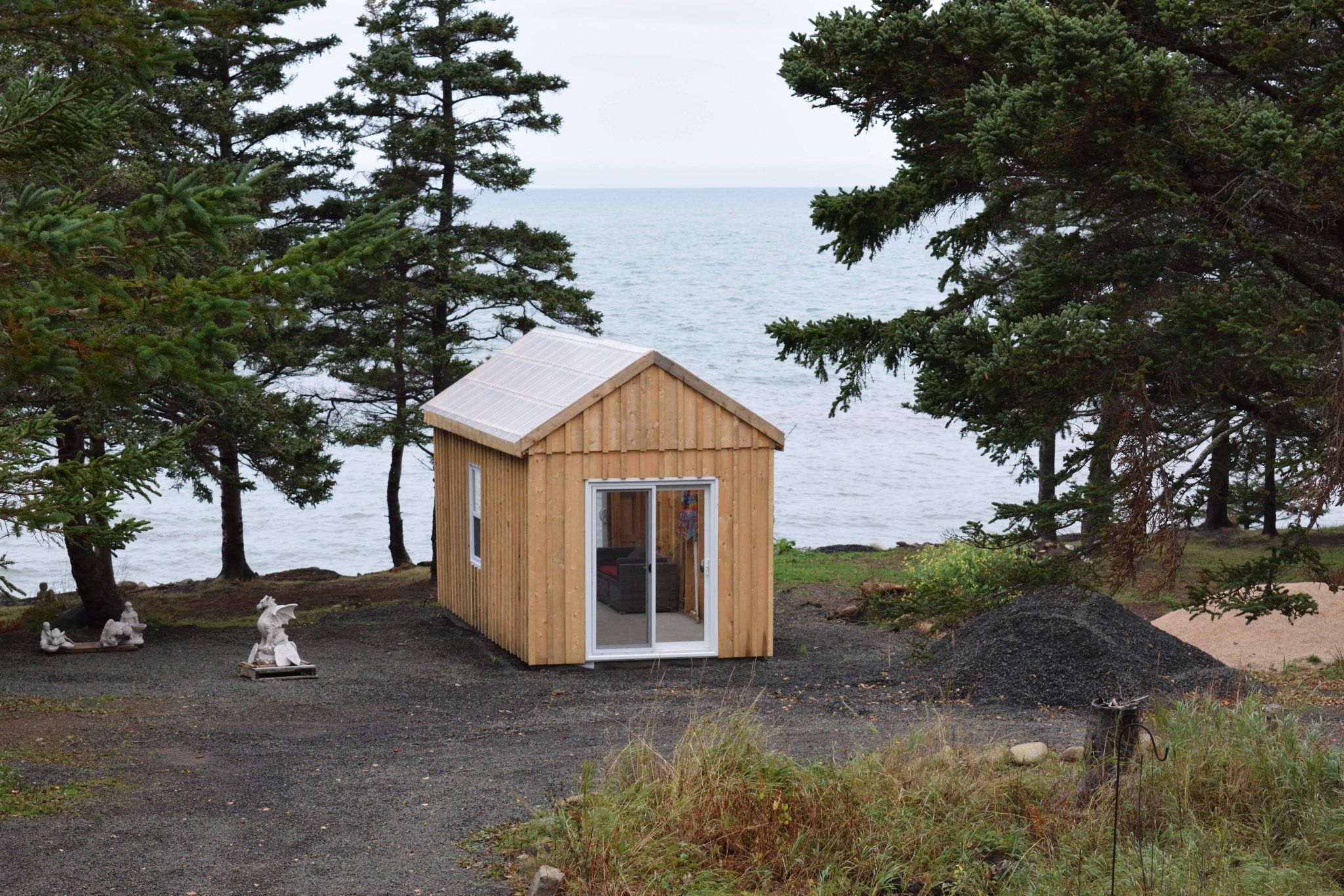

FWIW: I built a garage this summer and ordered trusses. They were factory made and approved by an engineer. I'm in a region where we get lots of snow.

They are 30' long with a 6/12 pitch. All built with simple 2x4s. I have 1 truss every 24".
I actually had to build and extra one myself since my design changed and I made the garage 2' wider. Like @Old_Paint said, I used little pieces of plywood instead of the metal things on every joints. The metal ones are expensive.

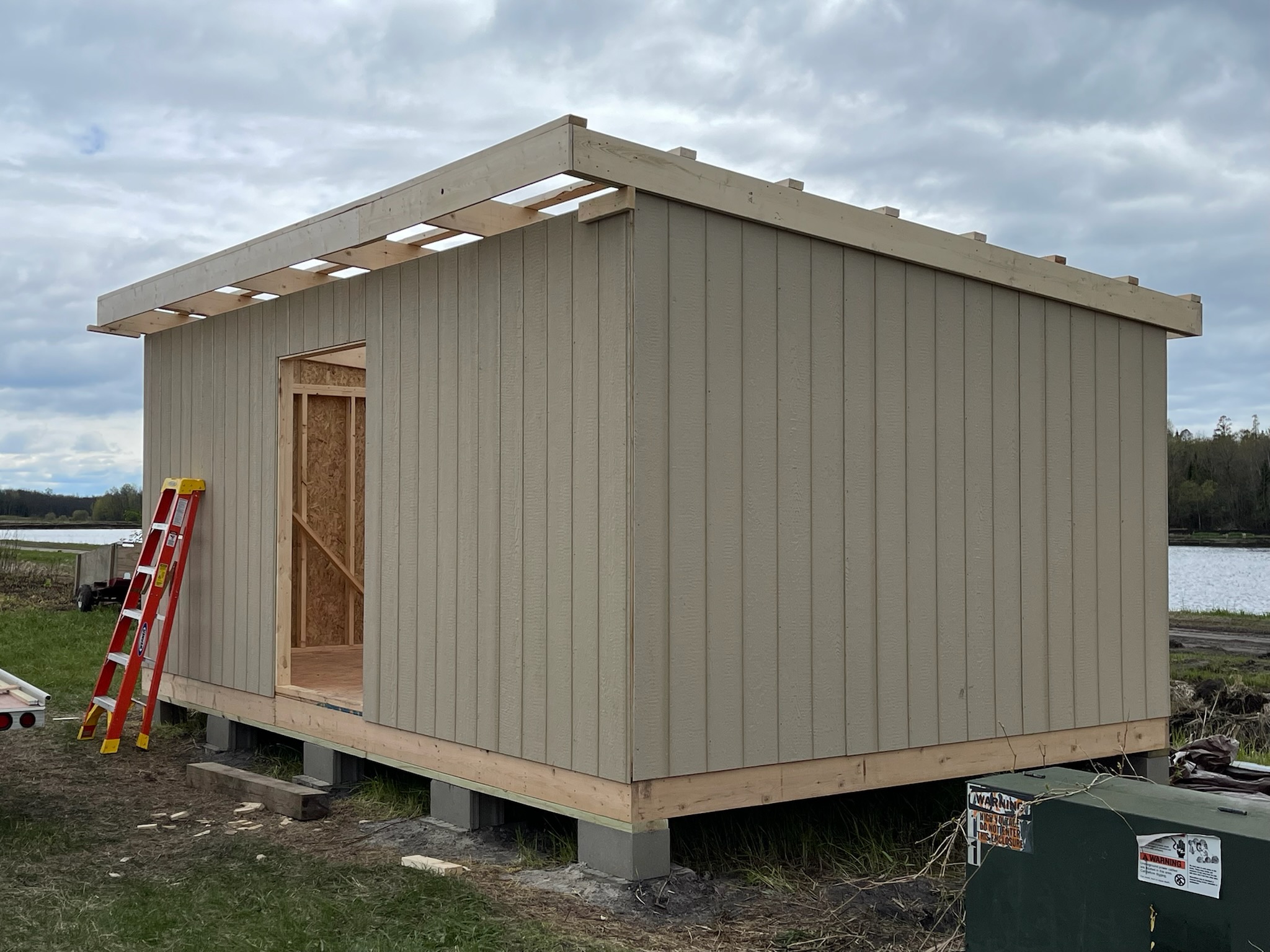

Hi I have two builds going this small shed and a 20x24 tractor shed that I am woefully behind on. I did purchase the trusses for the tractor shed in June but will not get them until October. I tried to order the trusses for the small building but the delivery date was end of december. that is why I built these.


awesome

Active member

Equipment
B2601, BH70, K54-22-06B
Sep 16, 2018
152
108
43
ottawa
Hi I have two builds going this small shed and a 20x24 tractor shed that I am woefully behind on. I did purchase the trusses for the tractor shed in June but will not get them until October. I tried to order the trusses for the small building but the delivery date was end of december. that is why I built these.
Yeah, it's a good thing to build them yourself. You'll save a lot. But it requires more patience.


MapleLeafFarmer

Active member

Equipment
Lots incl. B and L kubotas
Dec 2, 2019
198
117
43
E.
a word of warning..... if you live where I think you live given you live in an area that gets upwards of 8' of snow a winter (8 feet!) i don't think I would take a lot of advice given in this thread.

If I am wrong on your location then shame on me.

be careful, better safe than sorry


Old_Paint

Well-known member
Lifetime Member

Equipment
LX2610SU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
1,147
814
113
AL
FWIW: I built a garage this summer and ordered trusses. They were factory made and approved by an engineer. I'm in a region where we get lots of snow.

They are 30' long with a 6/12 pitch. All built with simple 2x4s. I have 1 truss every 24".
I actually had to build and extra one myself since my design changed and I made the garage 2' wider. Like @Old_Paint said, I used little pieces of plywood instead of the metal things on every joints. The metal ones are expensive.
Not only are they expensive, unless you have a press to install them, you’re no better off than toe nailing. Even if they’re properly pressed, they still require nails or screws to make sure they don’t peel and loosen the joints.

Glue on plywood gussets serves the same purpose as the barbs on the metal joint plates, and does need a press. That plus 3 screws in every timber at every joint, I don’t think mine are gonna come apart.


OrangeKrush

Well-known member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
1,032
488
83
Indy
i don't think I would take a lot of advice given in this thread.

If I am wrong on your location then shame on me.

be careful, better safe than sorry
He came here seeking advice and was given good advice in my opinion. If he ops to use it great if not that's up to him. It sounds like he's doing most of what needs done.. adding the gussets is of major importance.. both sides would be best! If it were me I would put an extra 2x4 angle from bottom center upright to top cord at a 45* as I showed in earlier post.

Add a stringer nailed on edge (upright) against the center uprights at bottom, end to end of building. This will tie the center of walls and gables together and help strengthen up the bottom cord. Lastly run a diagonal from that center point of gable out to your side walls on top of your bottom cords.. 45* work great! This will stabilize your end walls.

The only thing I'm not sure about is the plastic on the roof. If it's going to be on the whole roof I would run purlins flat and less than 24" on center.


Steamer Pete

New member

Equipment
LX2610
Mar 29, 2021
25
15
3
Holland, MI
Made some for my sheds in the past. Couple things: 1) Lay out the pattern on your driveway with chalk lines and build to those. 2) Mark the same end while laying on the driveway, and assemble on the building with all the same ends on one side. Flipping occasional rafters can amplify any variation once the decking starts to go on. 3) 1/2" plywood plates and lots of nails or screws, and glue, at all the joints, both sides.


awesome

Active member

Equipment
B2601, BH70, K54-22-06B
Sep 16, 2018
152
108
43
ottawa
Made some for my sheds in the past. Couple things: 1) Lay out the pattern on your driveway with chalk lines and build to those. 2) Mark the same end while laying on the driveway, and assemble on the building with all the same ends on one side. Flipping occasional rafters can amplify any variation once the decking starts to go on. 3) 1/2" plywood plates and lots of nails or screws, and glue, at all the joints, both sides.
Actually, instead of chalking it on driveway: build one as best you can. Then use it as a template. Nail each new 2x4 over the template and then make sure it aligns perfectly before putting toe nails. This way you'll have identical trusses.
It doesnt really mattrr if your truss is ugly, what matters is that they're all equally ugly. They need to be identical.

  • Like
Reactions: 1 user

GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
5,249
1,812
113
Greensville,Ontario,Canada
9' trusses can be built on a 4by8 worktable... I did 36 of them years ago..all the same as the first,so either they're all right or all wrong....... since sheds are still standing I'll go with 'right';)
