LA302 Front End Loader... breakdown,cleanup,repair + reassemble (PIC'S)

BobbyK

Member

Equipment
1995 B2400
May 20, 2018
98
39
18
Petrolia, Ontario
After a week of on and off activity, I have the reinforcement plates welded in place and painted.

This is after the welds were dressed. I sand blasted the side frames again getting them ready for primer.








I used an automotive 2K Urethane primer.
I also tried the Harbor Freight paint system.
It's a ripoff of the 3M PPS system.






As you use the paint, the inner liner collapses. This allows you to paint at any angle, even upside down.




I had mixed the primer and it was in the gun already when the sky's opened up.
I had to spray in my garage.
The box with the filter on it (in the back ground) has a fan in it. It does a pretty good job with the over-spray.







Then the next day a little orange color.





Still waiting on parts.
Hopefully by next weekend I can move on to making the mainframe.






.

Last edited:
  • Like
Reactions: 3 users

BobbyK

Member

Equipment
1995 B2400
May 20, 2018
98
39
18
Petrolia, Ontario
Parts arrived!
Got things reassembled...for the most part.

Started with the new decals.





Then I started on cleaning up the hard lines.
Two of the 4 hard lines were too bent up, so I replaced them. But the other two lines were only rusted in a few spots and the bends weren't so bad that they couldn't be straightened.

I sanded the rusted lines with 120gt sandpaper and finished them off with the wire wheel




This is what the rusted lines looked like.
The 1st 2 lines from the right are new, the 3rd line has been sanded, wire wheeled and clear coated.




I painted the old lines with an automotive clear-coat. Just trying to protect them against corrosion.
Used my small Harbor Freight gun again (I think it's a 1mm tip).








Once the clear-coat dried, I installed all the hard + soft lines.
Also started to reassemble the rams.





I got my parts from Messicks.
These are the hoses they sent.





The line's are 1/4" but the fittings are 3/8" JIC






I wanted to protect the soft lines from abrasion and UV exposure so I picked this Hyd. line covering up from Princess Auto.
Cut the covering to length plus about and inch and secured the covering with zip ties.
I haven't a clue what those numbers mean.







When you cut this stuff, the ends fray.

I used a torch to melt the ends but when you do that the covering shrinks on itself.
I used an appropriate sized socket and inserted it into the covering 1st, then melted the ends with the torch. This method left a nice finished end and it slipped over the hose + fitting with no problems.














to be continued.

Last edited:
  • Like
Reactions: 1 user

BobbyK

Member

Equipment
1995 B2400
May 20, 2018
98
39
18
Petrolia, Ontario
Installed new pins.








Cleaned this hose protective sleeve with soap and water using a tire brush. go rid of all that moss pretty easily.











I still need to clean up + paint the bucket.



.

  • Like
Reactions: 1 users

Chanceywd

Active member
Lifetime Member

Equipment
Kubota L2501DT BH77 VIRNIG URG60-CT
Mar 26, 2021
302
159
43
central ny
Installed new pins.








Cleaned this hose protective sleeve with soap and water using a tire brush. go rid of all that moss pretty easily.











I still need to clean up + paint the bucket.



.
Looking good so far!
Bill

  • Like
Reactions: 1 user

Dieseldonato

Well-known member

Equipment
B7510 hydro, yanmar ym146, cub cadet 1450, 582,782
Mar 15, 2022
708
407
63
Pa
Liking what your doing. Keep up the good work. I'm hoping I can get back to my kubota Monday and Tuesday. I'll try my best to remember to get picks of the under carrage for you.


Dieseldonato

Well-known member

Equipment
B7510 hydro, yanmar ym146, cub cadet 1450, 582,782
Mar 15, 2022
708
407
63
Pa

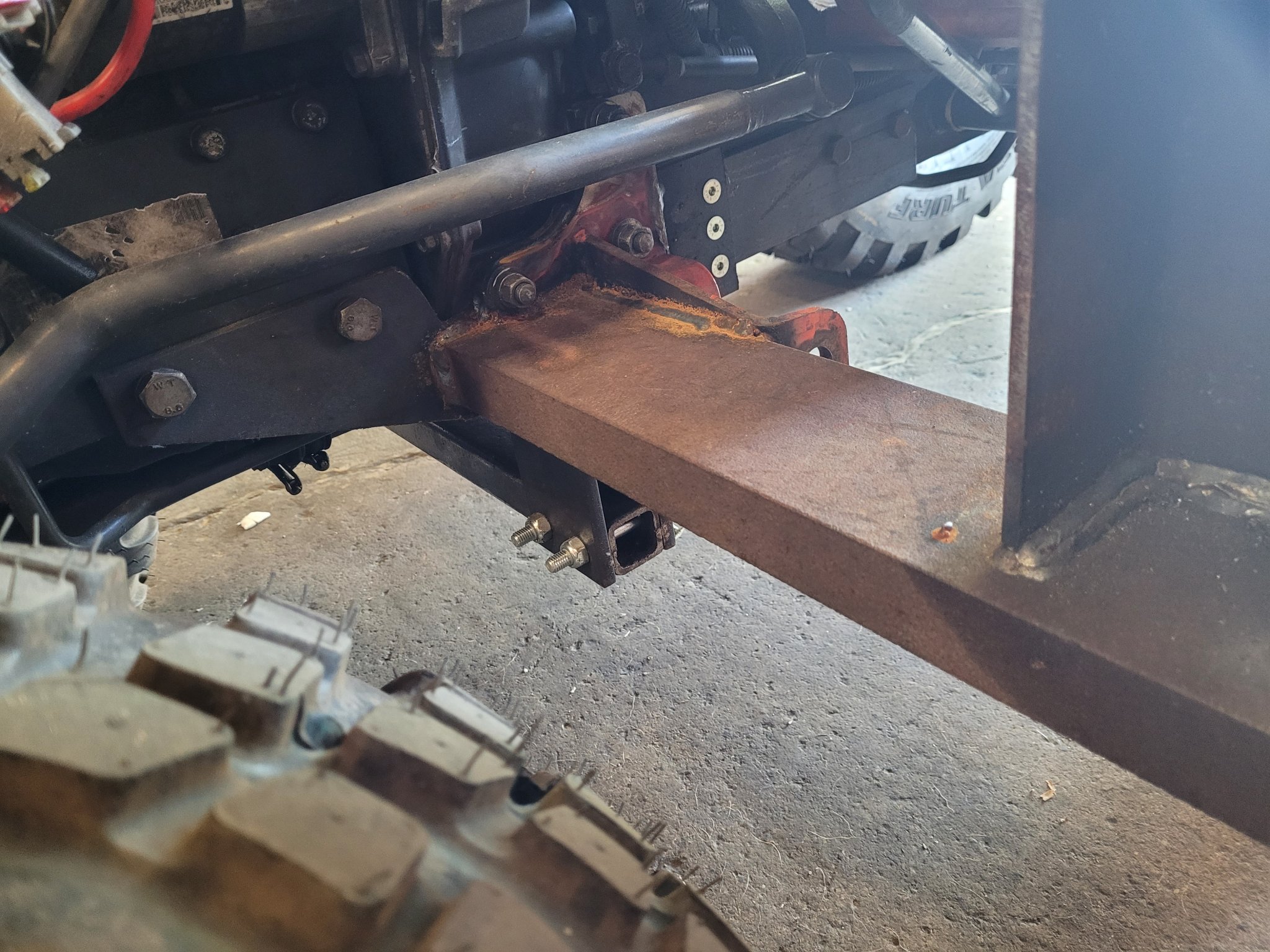

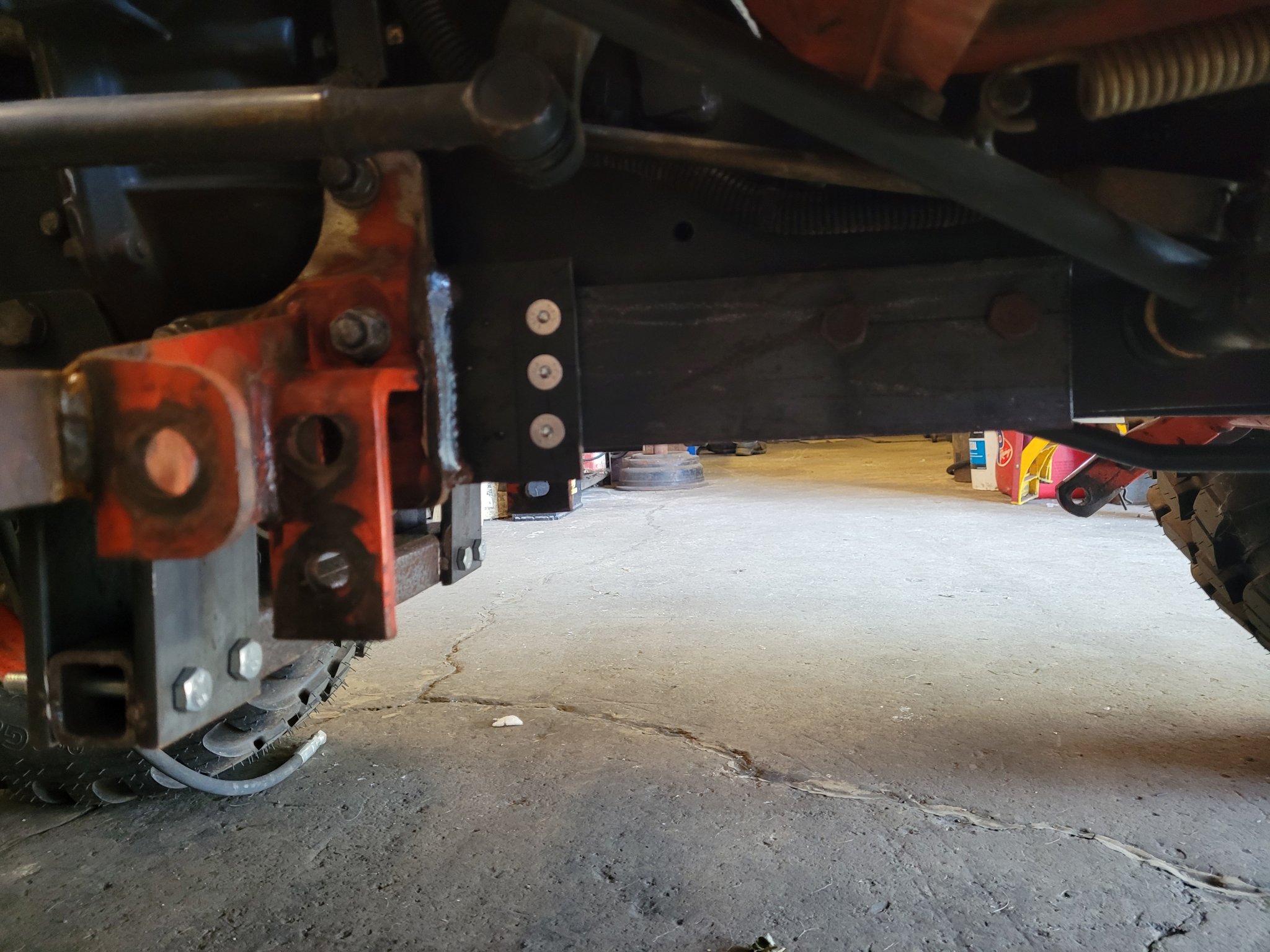

Finally got back to my tractor to grab a few pics, I'll have the loader off it here soon, I'll get you some better pictures when the sub frame is off and cleaned up.
