Kubota L3202-10534

TimB

New member
Dec 30, 2016
5
0
0
Killen AL
ok I done a search on my L3202 Sunshine tractor on the right side behind the injector pump I foundstamped in block 1487 and stamped on the front corner of head left side is V1502 I'm assuming this is Eng Size and then on the Right Side of Transmission it has L3202-10534 is this the serial number any help would be greatly appreciated oh I sent Vic a message he done a fuel video on You Tube and the tractor he done it on as far as Gear shifter=brakes-kill rod and dash and hood it looks identical to mine not sure what Model he was working on


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,560
5,027
113
Sandpoint, ID
What do you want to know?
You haven't asked any question. :confused:


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,560
5,027
113
Sandpoint, ID
The only stamped number that will be any good will be stamped on the deck of the block right front next to the injection pump, (letter####-######)

The other number that will work is cast in the side of the block, behind the injection pump and behind and above the hydraulic pump, that will be the CC #.

Now for a US equivalent, there really won't be.
You might get lucky enough to find a manual that will cover the motor portion but everything else on back is Unique to the 02 series of tractor.
The drive and transmission was not used in any other Kubota model as they were not Kubota made.

Have a read here for a better explanation to what happened:
http://www.orangetractortalks.com/2008/09/the-other-orange-tractor-kioti/


TimB

New member
Dec 30, 2016
5
0
0
Killen AL
L3202-10534 is this the serial number if so what does it mean as far as year model

Last edited:

kayaken

New member

Equipment
L3202 DT John Deere 420 l185dt
Feb 23, 2018
4
0
1
Veneta, or.
ok I done a search on my L3202 Sunshine tractor on the right side behind the injector pump I foundstamped in block 1487 and stamped on the front corner of head left side is V1502 I'm assuming this is Eng Size and then on the Right Side of Transmission it has L3202-10534 is this the serial number any help would be greatly appreciated oh I sent Vic a message he done a fuel video on You Tube and the tractor he done it on as far as Gear shifter=brakes-kill rod and dash and hood it looks identical to mine not sure what Model he was working on
Hi Tim, I also have an L3202 sunshine and looking for parts needing a transmission would be interested in talking tractor with you I live in Oregon Phone # is (mod edit: send him a PM with a Phone number)

Last edited by a moderator:

kayaken

New member

Equipment
L3202 DT John Deere 420 l185dt
Feb 23, 2018
4
0
1
Veneta, or.
ok I done a search on my L3202 Sunshine tractor on the right side behind the injector pump I foundstamped in block 1487 and stamped on the front corner of head left side is V1502 I'm assuming this is Eng Size and then on the Right Side of Transmission it has L3202-10534 is this the serial number any help would be greatly appreciated oh I sent Vic a message he done a fuel video on You Tube and the tractor he done it on as far as Gear shifter=brakes-kill rod and dash and hood it looks identical to mine not sure what Model he was working on


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,560
5,027
113
Sandpoint, ID
kayaken,
The last time Tim was on was Jan 3, 2017
So your likely hood of getting a reply back is little to none.
Send him a PM, and maybe you'll get lucky and he enabled updates to his email.

Last edited:

pigdoc

Active member

Equipment
G1800S L2500
Aug 19, 2022
275
204
43
SE Pennsylvania
Hi kayaken,

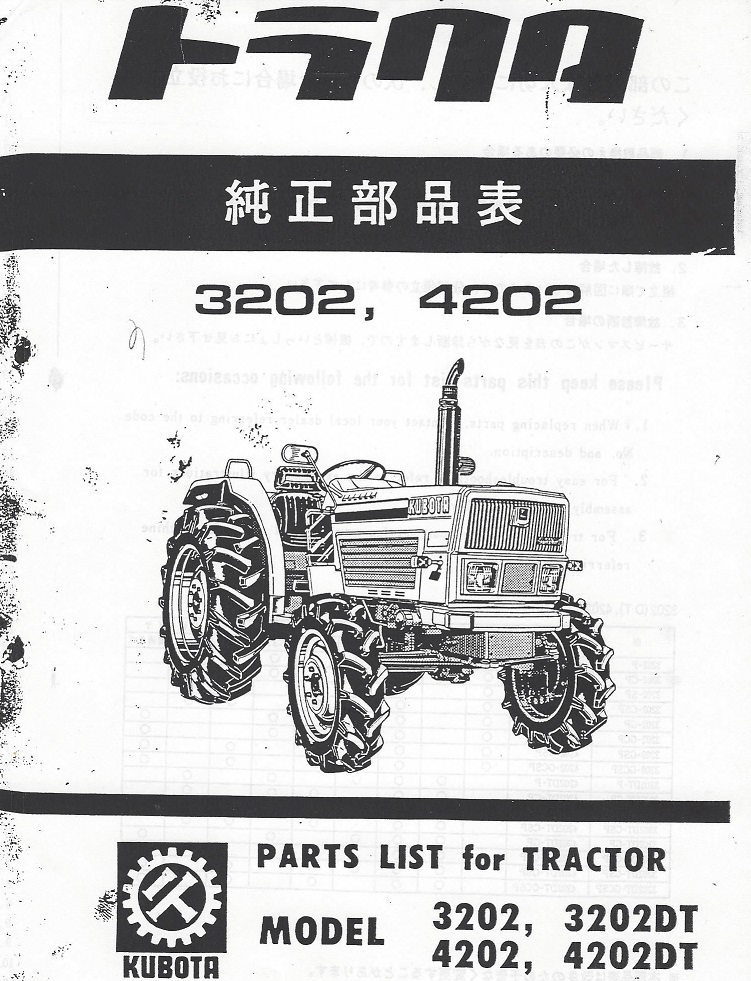

I just received a Parts List for L3202 and L4202:

How can I help?

When I opened it up, the first thing I looked at in this list was the part number for the cylinder head assembly. There are two shown, one for the V1502 (15461-03042) and one for the VT1502 (15471-03042).

The VT is the turbocharged motor.

The next thing I did was search this part number. Yup, it looks like I can buy an assembly, for $983.
I'm VERY tempted to do so!

More in upcoming posts.
-Paul
