Dipstick for hydraulic fluid on mx5200 hst

[243ackley]

I am helping a friend do the 50 hour maintenance on his new mx5200 hst and I can’t find the dipstick got the hydraulic fluid to save my life.

It is a rops tractor. Any help would be appreciated



[eserv]

I am helping a friend do the 50 hour maintenance on his new mx5200 hst and I can’t find the dipstick got the hydraulic fluid to save my life.

It is a rops tractor. Any help would be appreciated

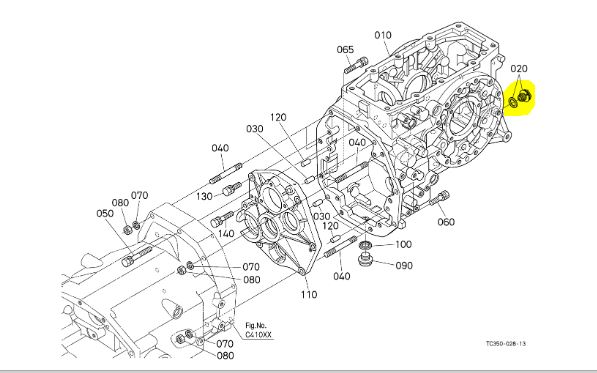

The MX5200 uses a sight glass, it is on the rear of the tractor just left of the PTO shaft.



[North Idaho Wolfman]

Like eserv said left rear.
