Differential lock pedal

Smokeydog

New member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
21
23
3
knoxville, Tennessee
The locking pedal is a simple round bar. Adequate till your shoes get muddy.
Used short pieces of rectangle tubing and double split shaft collars to improve the pedal.

For the M59. 1.5”x3” tubing and 9/16” shaft collar.


B26 used 2”x3” tubing and two 5/8” double split shaft collars.

The shaft collars are only a couple of $$ (Amazon or eBay) and steel tubing were saw drops. Now easier to fully engage.

  • Like
Reactions: 8 users

dirtydeed

Well-known member
Lifetime Member

Equipment
B2650 BH77, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder
Dec 8, 2017
1,500
342
83
Wind Gap, PA
Great solution. I wish someone would make them available for purchase at a reasonable price.


Crash277

Active member

Equipment
BX23S
Jan 17, 2021
342
195
43
Canada
thats a great idea!! if I have my work boots tied up, I cant bend my ankle enough to easily use the diff lock on my 23s . They should have made the bar about 1" longer. Works great in running shoes but I rarely wear them.


Smokeydog

New member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
21
23
3
knoxville, Tennessee

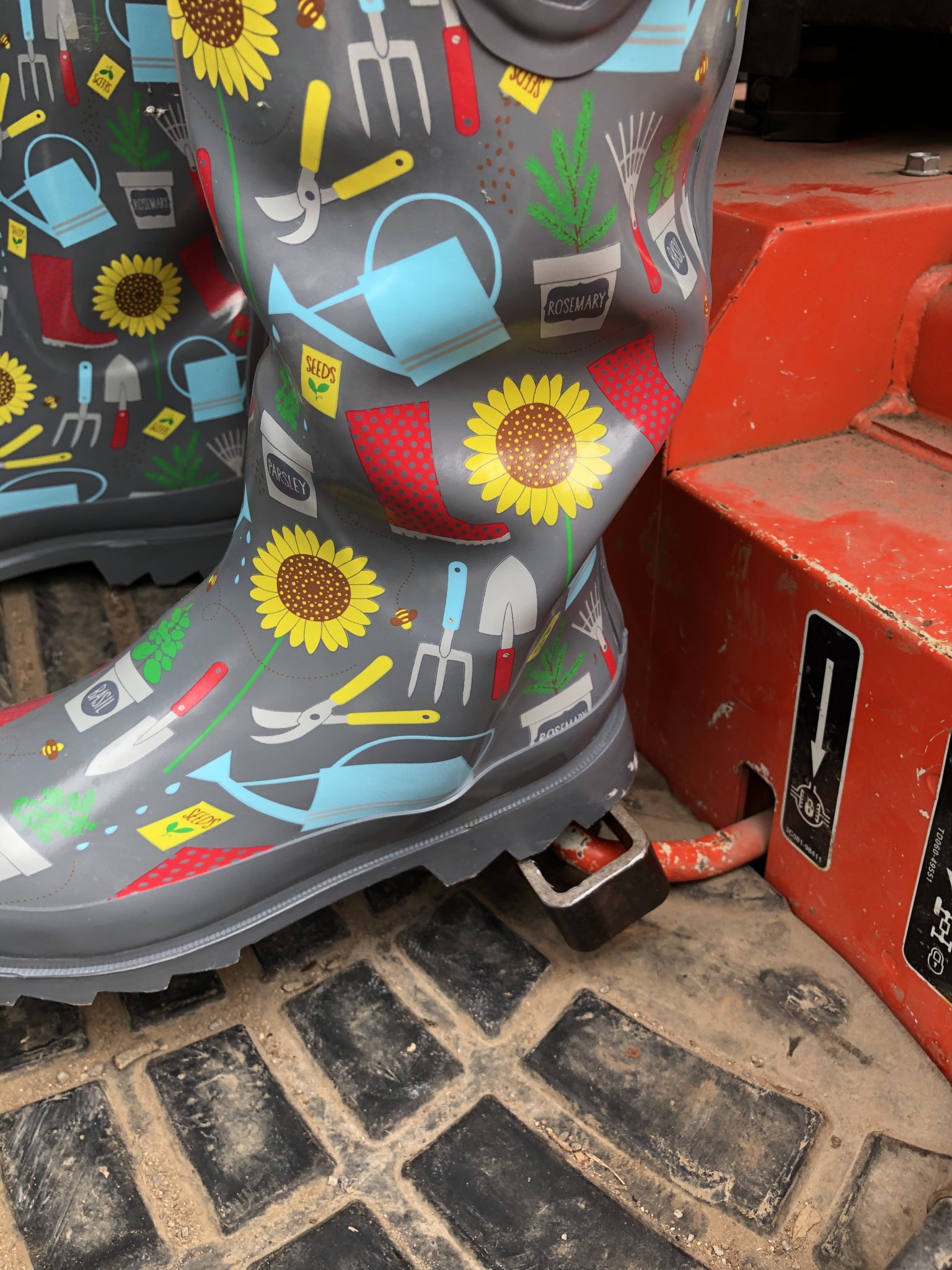

Multiple tractors and multiple users. Important to fully engage when needed. Often dealing with other operations when needing to engage. Few spots when mowing it’s needed and helps my wife (boots) to engage properly. Spring return is plenty strong to support the added weight.

Paul Short makes pedals for some models for purchase. Always quality accessories.

I like the lower profile and mud grip grate of my prototypes.


NCL4701

Active member

Equipment
L4701, WC68 chipper, grapple, BB1572 box scrape, Howes 500 rotary cutter, etc.
Apr 27, 2020
315
206
43
Central Piedmont, NC
You could probably make some decent side money selling them. That stubby little round bar is really easy to slip off of while doing a bunch of other stuff and the tractor often being at some weird angle. Only thing about mine I’d consider a poor design.


Brazos

Member

Equipment
L2501DT
Jul 12, 2016
103
0
16
Texas
I would buy one for my 2501. Anytime I need to lock in the differential I am in a hairy situation and it’s barely usable because it slips out from under the heel of my boot.


Smokeydog

New member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
21
23
3
knoxville, Tennessee
Hope this inspires some fabricators and DIYers to improve the design. I learned some from the first attempt to the second prototype.
I do like the double shaft collars. They grip the shaft pedal shaft without a setscrew that can loosen. Also easy to weld.
How much would you pay for one to fit your tractor?


Crash277

Active member

Equipment
BX23S
Jan 17, 2021
342
195
43
Canada
Hope this inspires some fabricators and DIYers to improve the design. I learned some from the first attempt to the second prototype.
I do like the double shaft collars. They grip the shaft pedal shaft without a setscrew that can loosen. Also easy to weld.
How much would you pay for one to fit your tractor?
not sure what I would pay, but shipping it to us in the North would be the killer.


DustyRusty

Active member

Equipment
BX23S w/ Cab
Nov 8, 2015
568
110
43
North East CT
Assuming that the orange one was the first prototype, and the gray one was the finished design, I do prefer the gray unit. The only change that I would make is to have the set screws accessible from the front, instead of the rear.
Could you please post some dimensions of the pieces that you used to make this? thanks Dust


OrangeKrush

Active member

Equipment
BX2680 with LA344 loader, Landpride pallet forks and rear 60” blade
Nov 15, 2020
282
111
43
Indy
I would buy one for my bx2680, the one Paul has looks nice but for the BX seems large. I like your simpler design and the grates for traction built in. If you get more hits on making them and decide to.. let me know.


Smokeydog

New member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
21
23
3
knoxville, Tennessee
Assuming that the orange one was the first prototype, and the gray one was the finished design, I do prefer the gray unit. The only change that I would make is to have the set screws accessible from the front, instead of the rear.
Could you please post some dimensions of the pieces that you used to make this? thanks Dust
~1.5” length of 2x3” tubing. Those are not set screws both clamping screws for the two collar half’s. My bigger tractor has a smaller pedal lever and required a smaller shaft collar. The shaft collars make an easy bolt on/off. Welding on even easier.


NCL4701

Active member

Equipment
L4701, WC68 chipper, grapple, BB1572 box scrape, Howes 500 rotary cutter, etc.
Apr 27, 2020
315
206
43
Central Piedmont, NC
Hope this inspires some fabricators and DIYers to improve the design. I learned some from the first attempt to the second prototype.
I do like the double shaft collars. They grip the shaft pedal shaft without a setscrew that can loosen. Also easy to weld.
How much would you pay for one to fit your tractor?
What would, in reality, cause me to actually order one? Not considering your side of it (time, materials, etc.) because, in reality, I usually don’t much consider that on small purchases; it’s just a cost/benefit for me.

For the gray one (color not important, just identifying style) I’d pay $20 + reasonable shipping. $25 + shipping; depends on when I last had a real problem with it and how rich/poor I’m feeling. Past that, I’d more likely fab something even if it doesn’t look as good as yours, which it probably wouldn’t.

Not saying you wouldn’t have sales at a higher price point. I’m aware I can be pretty cheap at times, but didn’t see anyone answering that question directly, so there’s a brutally honest answer from one admitted cheapskate.


dirtydeed

Well-known member
Lifetime Member

Equipment
B2650 BH77, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder
Dec 8, 2017
1,500
342
83
Wind Gap, PA
$40 plus shipping. Sign me up.

  • Like
Reactions: 1 user

Jmsossi

Member

Equipment
Bx1880 bx2830 rck54-23
Oct 8, 2013
24
26
13
Calumet, mi
What would, in reality, cause me to actually order one? Not considering your side of it (time, materials, etc.) because, in reality, I usually don’t much consider that on small purchases; it’s just a cost/benefit for me.

For the gray one (color not important, just identifying style) I’d pay $20 + reasonable shipping. $25 + shipping; depends on when I last had a real problem with it and how rich/poor I’m feeling. Past that, I’d more likely fab something even if it doesn’t look as good as yours, which it probably wouldn’t.

Not saying you wouldn’t have sales at a higher price point. I’m aware I can be pretty cheap at times, but didn’t see anyone answering that question directly, so there’s a brutally honest answer from one admitted cheapskate.
Thought I would make a comment as a home shop guy that likes to design and build things. It always amazes me how people who do not make things think your time is not worth any thing. You are saying that for $20 he is supposed to design and build package and ship for $20 ? How much is your time worth? Not to mention the cost to build , equip and maintain a shop.

  • Like
Reactions: 1 user

Old_Paint

Active member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
563
244
43
AL
I see some denial on the boots. If I had boots like that, I'd ROCK 'em and be proud. That would make me fit right in with the latest culture. Go ahead, hold your breath for that to happen. I haven't been "en vogue" since I was a kid. Most, not my choice, but some was, and all of it always caused strife for others, not me. My wife calls me the hockey stick. Ain't that what's used for stirring up the defecation?
