Custom rear forks for the BX 3 point hitch using a Titan receiver

Baymee

Member

Equipment
Kubota 1870 Wheelhorse 312A John Deere 316 John Deere LT155
Aug 23, 2021
52
18
8
Lehigh Vally, PA
I wanted to buy rear mounted forks to move things around the property on a pallet. My first need was to move a refrigerator to the rear of the house into the basement. I searched the net and couldn’t find any. Surely Titan made them, but no.

I already had a Titan 2” Receiver Hitch mounted to my Quick Attach, so I started from there to make my own. My first idea of the prototype was to keep the ball hitch installed and insert the forklift tongue through the ball hitch, so the first attempt used a 1.5 x 1.5 square tube through the ball hitch, but it placed the weight of the heavy old refrigerator a little too far back, making the front end of the tractor a little light. I was able to move the refrigerator around to the back of the house, but I knew a redesign was needed to get the forks about 7” closer to the tractor.



I removed the trailer hitch ball and found a piece of 2 x 2 square tube that fit over the original 1.5 x 1.5 tube and this fit nicely into the Titan receiver. I drilled a small hole in the rear of the tongue to insert a bolt. The refined assembly looked like this.



I needed to change the angle of the tongue so that when fully down, the forks would be level with the ground and when fully up, the angle wouldn’t be too harsh. The first tongue was at a 90 degree angle with the frame, but this resulted in the forks being sloped down when lowered. An 8 degree angle did the trick.



This is the final finished product after a few alterations and will fit perfectly into the Titan hitch.



Here is some more detail for anybody who would like to build one of these. By the way, I stood on the very end of the forks and jumped up and down and they proved to be very strong. There was no bending of the steel and the rear tires moved up and down accordingly.

The square tube is not thin wall; I would guess it’s about 14 gauge.

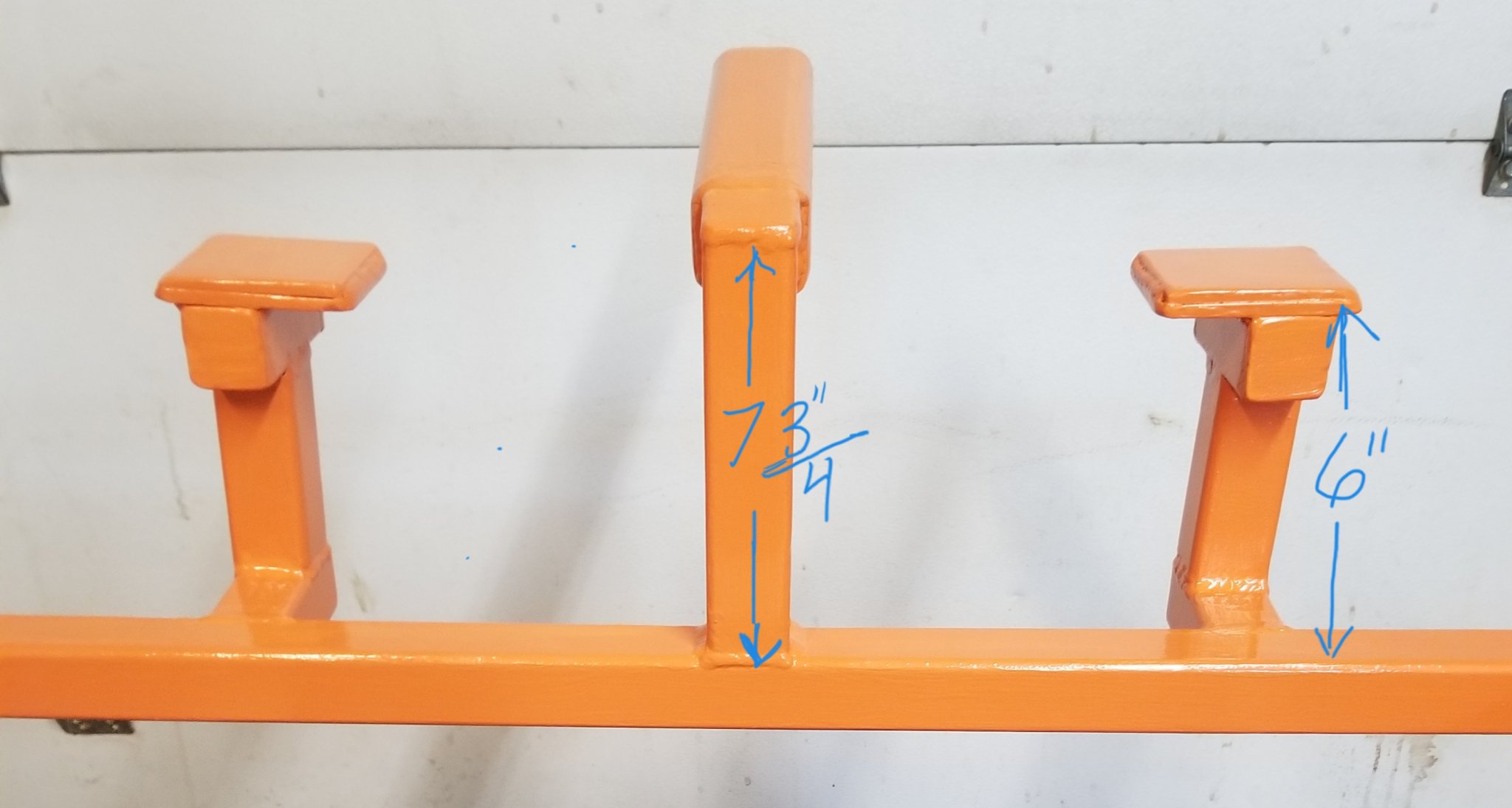

The measurements shown allow the forks to fit near the outside edges of a standard 40 x 48 pallet. The risers on the left and right fit nicely under the Titan receiver so that the pallet doesn’t doesn’t sway and adds some support so that the tongue isn’t bearing all the weight. The pads above the risers spread the weight, but I had to add them when I changed the angle of the tongue to take up the space created by the design change. As long as the total height is correct, the risers can be made any way you like.



Note how the forks attach to the frame. One surface of the square tube overlaps the frame on the top and one on the bottom. This adds strength rather than having a butt joint on all four sides of the tube. The total fork length from the weld is 47.5”


  • Like
Reactions: 3 users

PaulR

Active member

Equipment
BX 23S -- 63.7 hours seat time so far
Aug 3, 2020
378
246
43
Hadley, MA
:love: :cool:
Critics might say not an ideal use of box steel, but hey, better than I could do, and if it works, more power to ya!
Building it was probably half the fun.


Matt Ellerbee

Well-known member
Lifetime Member

Equipment
MX6000
Jun 27, 2019
704
566
93
Canton, Georgia
I think its pretty freaking awesome. Good job.

Better be sure the QH is latched. Seems like a lot of up stress on those latches now.


85Hokie

Well-known member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90-'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
8,548
761
113
Bedford - VA
Looks great and I am not picking at all ...... do you think some tubular gussets would help with those stress points?


  • Like
Reactions: 1 user

Baymee

Member

Equipment
Kubota 1870 Wheelhorse 312A John Deere 316 John Deere LT155
Aug 23, 2021
52
18
8
Lehigh Vally, PA
The picture above is the original design. Those extensions are much shorter now and really only prevent rocking.

As far as the latch and gussets, of course, any bracing is good, but the weight on the pallet is probably limited to 400 pounds max.


Baymee

Member

Equipment
Kubota 1870 Wheelhorse 312A John Deere 316 John Deere LT155
Aug 23, 2021
52
18
8
Lehigh Vally, PA
:love: :cool:
Critics might say not an ideal use of box steel, but hey, better than I could do, and if it works, more power to ya!
Building it was probably half the fun.
You are correct about the fun of building it! I fabbed uncountable prototypes during the last 50 years in industry. I learned and continue to learn from mistakes and criticisms, but eventually the project evolves towards a good end. All prototypes begin in the mind and don't come with plans drawn, 😉

I am curious about the box steel, square tubing comment. Tubing is used extensively in industry. I've never seen it fail unless a forklift drives into it. Even the 4 sided butt welds are amazingly strong. But if I try to lift my van to change a tire, i might be pushing it. 😇


ve9aa

Active member

Equipment
tg1860, bx2380
Apr 11, 2021
177
68
28
NB, Canada
Looks incredible. I should have such skills.
Well done and thanks for sharing !
-Mike
