B8200 Directional Valve Function

NATE.AUCELLA

New member

Equipment
1989 Kubota B8200 Manual
Nov 17, 2024
6
3
3
New England
Can anyone tell me how this valve is supposed to work? Photo attached.
I can only seem to use one implement at a time, either the 3ph or the loader. So I've been using it in the middle so both work, but they work slow.

Thanks in advance,
Nathan


Russell King

Well-known member
Lifetime Member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
5,374
1,418
113
Austin, Texas
No pictures were attached but put it one way or the other depending on having the back hoe on or off.


Russell King

Well-known member
Lifetime Member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
5,374
1,418
113
Austin, Texas
Oh, weird, here it is.
Okay (you generally have to have 5 posts before you can post a picture) I see the picture now.

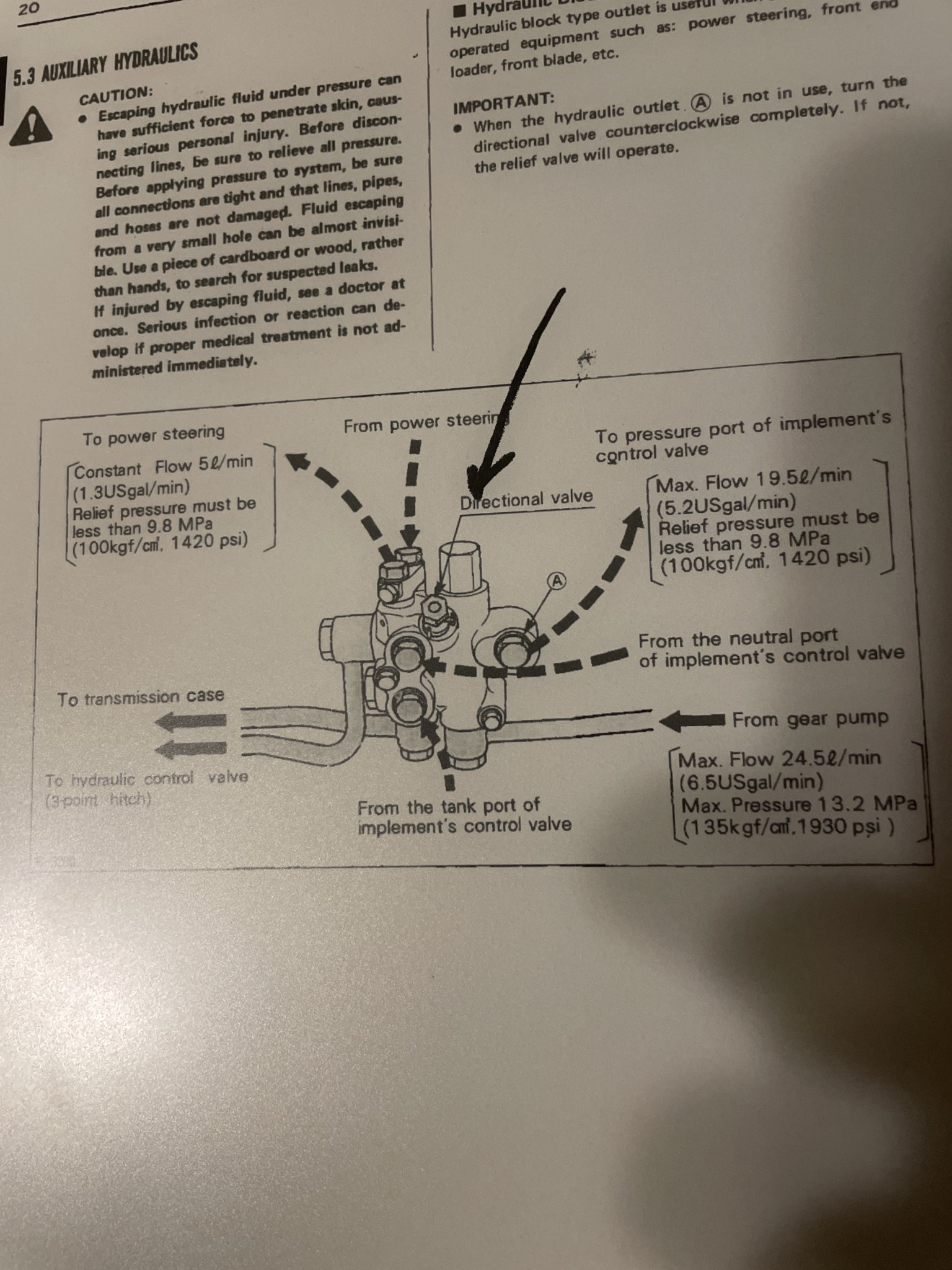

Read in the upper RH part of the picture and it says how to turn the valve. If the FEL has a hose from the port A to a power in port (P) on the FEL valve then I would assume you need it turned all the way to clockwise. Then full flow will go to the FEL valve. From there full flow should go onto the next valve which could be the 3 Point Hitch.

If you are still having problems then you need to trace out the hoses to make sure where they go. You might label them with the same nomenclature as the picture to be clear. Take some pictures of the valves on the tractor with labels if you can.

How many hoses are connected to the FEL valve (excluding the ones going to the cylinders)?


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
30,289
6,447
113
Sandpoint, ID
Sounds like the FEL hoses are not hooked up properly.


NATE.AUCELLA

New member

Equipment
1989 Kubota B8200 Manual
Nov 17, 2024
6
3
3
New England
3 hoses to the FEL

When I got it the FEL valve was in a cooler, so that is likely. The loader works, so the A port is going to the right place, but the other two may be switched.

I'll try switching the two, if that doesn't work I'll label them and snap a shot.

Thanks


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,810
4,552
113
Myersville, MD
windyridgefarm.us
3 hoses to the FEL

When I got it the FEL valve was in a cooler, so that is likely. The loader works, so the A port is going to the right place, but the other two may be switched.

I'll try switching the two, if that doesn't work I'll label them and snap a shot.

Thanks
Posr a picture and get some help before you damage something by blindly moving hoses.

Dan


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,810
4,552
113
Myersville, MD
windyridgefarm.us

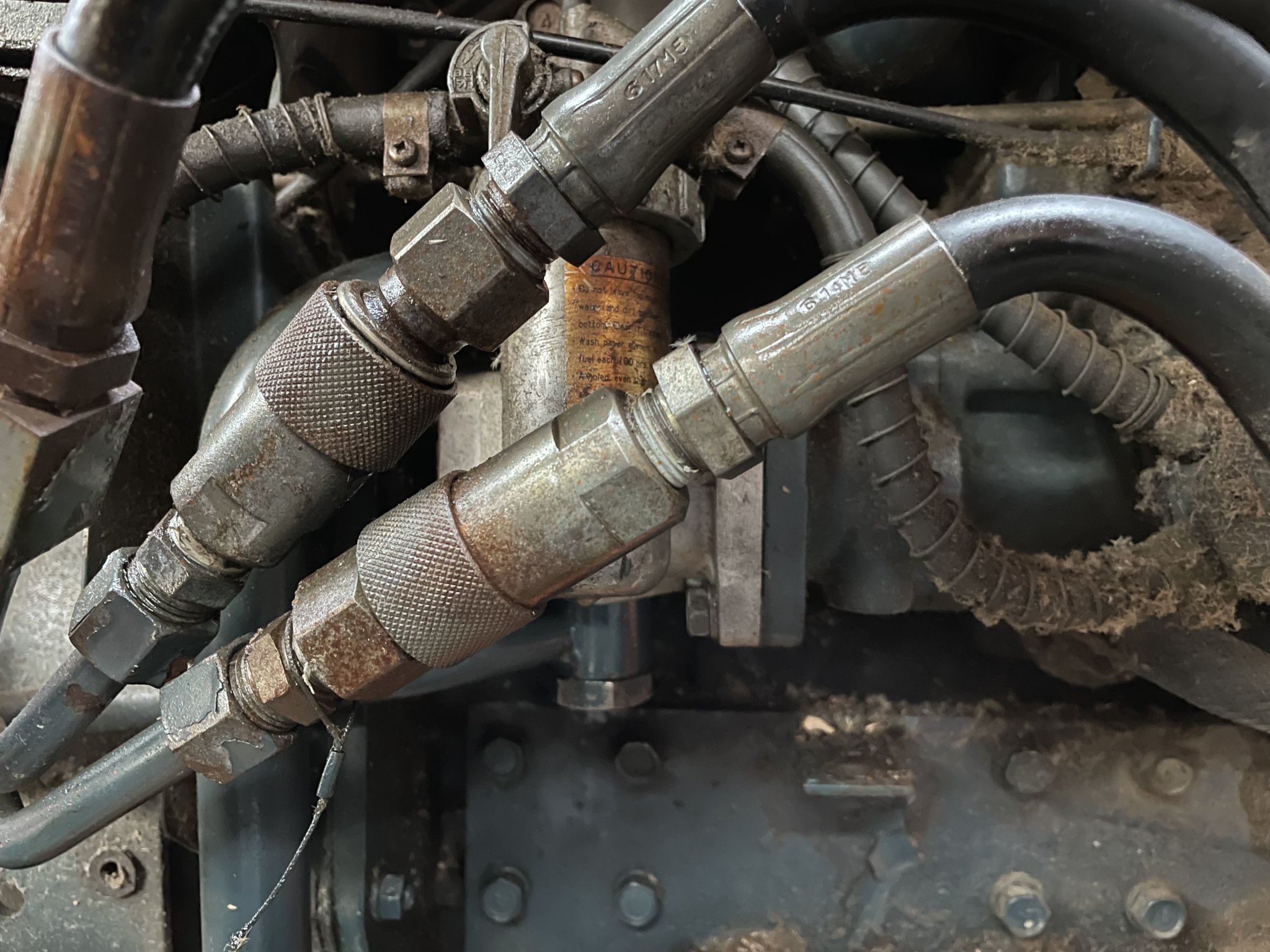

I had thought better of it too. Pic attached. I know how the valve itself works and where the intended stop points are, the roll pins are just snapped.
Based on your labels thats correct but thats not much to go on without seeing whats on the other end I have no idea what KYB signifies but I am assuming its shorthand of some dort for power beyond.

So does everything work as it should?

Dan


NATE.AUCELLA

New member

Equipment
1989 Kubota B8200 Manual
Nov 17, 2024
6
3
3
New England
Based on your labels thats correct but thats not much to go on without seeing whats on the other end I have no idea what KYB signifies but I am assuming its shorthand of some dort for power beyond.

So does everything work as it should?

Dan
I don't know, that is my question. I don't think so.
With the directional valve (DV) fully clockwise the loader works and the 3 point hitch (3ph) does not, and it bogs the engine and sounds like the pressure relief valve is relieving.
With the DV fully counterclockwise, the 3ph works and the loader doesn't (this I believe is correct).

this just started after I replaced my hydraulic pump.. not sure how that could have done any of this, unless it dislodged some crud and is blocking the return from the FEL.

side note, why do you refer to is as a FEL?

Greatly appreciate this back and forth


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,810
4,552
113
Myersville, MD
windyridgefarm.us
I don't know, that is my question. I don't think so.
With the directional valve (DV) fully clockwise the loader works and the 3 point hitch (3ph) does not, and it bogs the engine and sounds like the pressure relief valve is relieving.
With the DV fully counterclockwise, the 3ph works and the loader doesn't (this I believe is correct).

this just started after I replaced my hydraulic pump.. not sure how that could have done any of this, unless it dislodged some crud and is blocking the return from the FEL.

side note, why do you refer to is as a FEL?

Greatly appreciate this back and forth
Thats definitly not right. Most likely something on the valve end of those lines is improperly connected. Pictures of the loader valve and those connections.

Dan

Last edited:

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,810
4,552
113
Myersville, MD
windyridgefarm.us
I had thought better of it too. Pic attached. I know how the valve itself works and where the intended stop points are, the roll pins are just snapped.
If the power beyond return line (labeled KBY in your picture) is blocked you will get the exact symptoms and behavior you describe. Do those pipes have quick connects on them?

Dan

Last edited:

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,810
4,552
113
Myersville, MD
windyridgefarm.us
I don't know, that is my question. I don't think so.
With the directional valve (DV) fully clockwise the loader works and the 3 point hitch (3ph) does not, and it bogs the engine and sounds like the pressure relief valve is relieving.
With the DV fully counterclockwise, the 3ph works and the loader doesn't (this I believe is correct).

this just started after I replaced my hydraulic pump.. not sure how that could have done any of this, unless it dislodged some crud and is blocking the return from the FEL.

side note, why do you refer to is as a FEL?

Greatly appreciate this back and forth
After looking at some parts diagrams I am guessing thats a BF300A loader. Dollars to donuts the quick coupler on the KYB pipe is not fully connected and/or its defective and not flowing oil.

Dan


NATE.AUCELLA

New member

Equipment
1989 Kubota B8200 Manual
Nov 17, 2024
6
3
3
New England
I was coming back here thinking I'm so smart and proud of myself.. then this! Damn Dan, you get the dollars and the donuts! That is what it was, the quick coupler.

couldn't of found it without your guidance, thanks again.
