Articulated rear loader

[Treckerzeug]

Hi,

i've a tight space for corenring with loads of cut logs, so a front end loader is not very practible.
Solution therefore:
A rear loader which pivotes at around 1,3 m from the ground with the fork very close to the rear wheels.
This type of laoders has been developped in South tyrolia, if you want to see one factory made check under

http://www.ilmer.it/de/maschinen/hecklader/produkt-informationen.html

Mine has been made using an old fixed type "STIER" rear loader, a complete kit of FEL mounting parts of a "BAAS" loader and some hydraulic cylinders.

5 days of cuting, welding and mainly head scratching to get cinematics for the tipping without parallelogramme more or less functionable.

Regards

Robert



[skeets]

Interesting build !!



[D2Cat]

Treckerzeug, if you got that done in 5 days you did good!! Like you said the "head scratching" would take more time then the actual cutting and welding. Nice work.

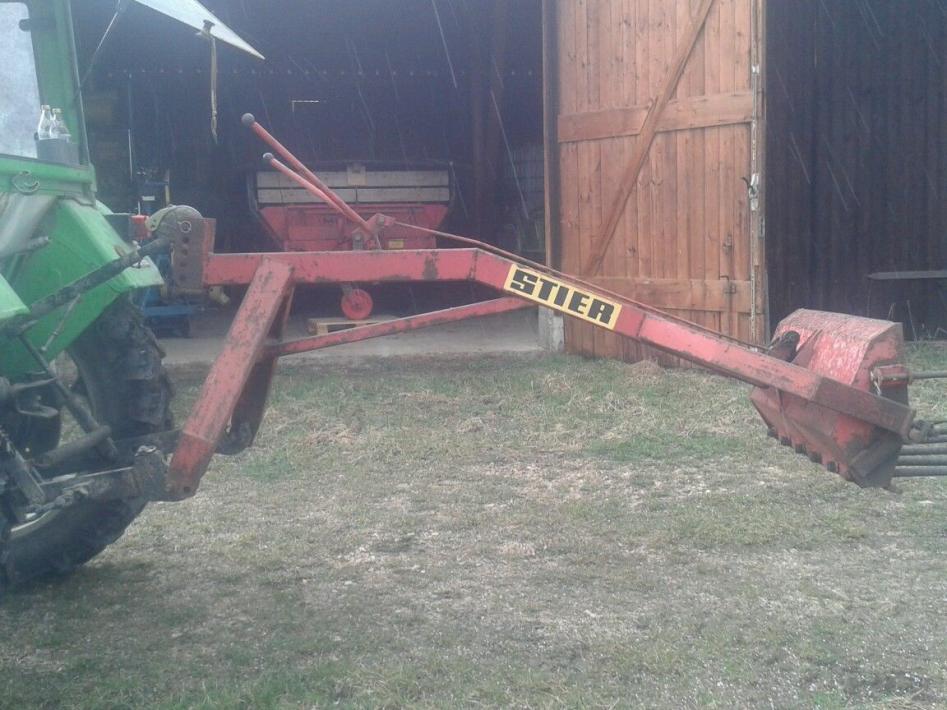

The first picture of the rear loader, it that attached to a Deutz? What model?



[Treckerzeug]

Treckerzeug, if you got that done in 5 days you did good!! Like you said the "head scratching" would take more time then the actual cutting and welding. Nice work.

The first picture of the rear loader, it that attached to a Deutz? What model?

Hi,

Should've been a D6206,
It is the sellers tractor,
I got the loader via e bay for 190€
At 80 km distance

Regards
