Adding Quick couplers for FEL attachments.

joea

Member

Equipment
B21 TLB
Aug 2, 2020
82
6
8
Marbletown NY
Getting ready to convert pin on FEL 4n1 bucket (Wr Long on B21), which has "hard wired" lines from the solenoid valve to the 4n1 jaw cylinders to SSQA.

Obviously, the thing to do is add QC couplers, And replace the well abused original hoses. I bought it that way, in case you wonder. I see the WR long kits come with QC couplers, but maybe they did not "back then".

Looking for examples of how others have mounted the QC couplers so I can have lots of options to befuddle my aging brain. Further.

Just want to try and avoid excessive down time and scrounging up of parts, etc.


Bugzilla46310

Active member

Equipment
2022 BX2680 198? AC 916H
May 22, 2022
138
142
43
Demotte, IN
Not sure if this is what you are looking for as I used the existing quick coupler on my BX when I added a JD 4 way blade I had to the tractor. Works flawlessly. Bought the top part of the quick coupler. Kind of costly but happy with the result. Had the hoses made at a local shop.

Last edited:

joea

Member

Equipment
B21 TLB
Aug 2, 2020
82
6
8
Marbletown NY
Not sure if this is what you are looking for as I used the existing quick coupler on my BX when I added a JD 4 way blade I had to the tractor. Works flawlessly. Bought the top part of the quick coupler. Kind of costly but happily with the result. Had the hoses made at a local shop.
Kind of. Where the QC's mount to the adapter. "Bulkhead" sort of thing.


Downeaster

Active member

Equipment
Kubota BX1880, loader, mower deck, and ballast
Oct 18, 2022
151
69
28
Waterford, Maine
Kind of. Where the QC's mount to the adapter. "Bulkhead" sort of thing.
Now, I like that idea on the hoses, and the QC, as I have that for my snowblower. Nice if I could use the QC for some other implement. The best thing is it frees up two hyd lines for other functions.


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
Kind of. Where the QC's mount to the adapter. "Bulkhead" sort of thing.

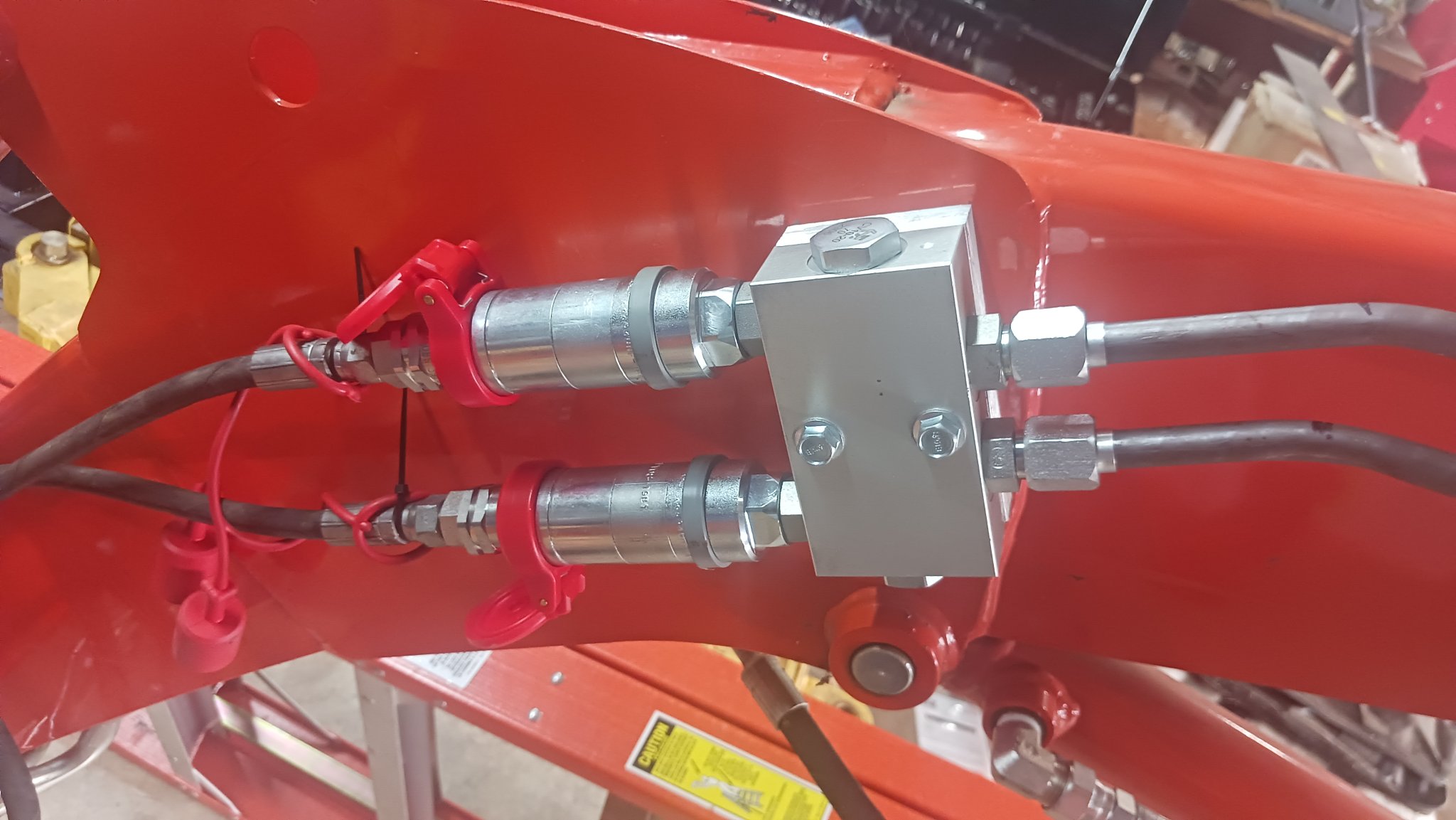

Here is how I plumbed my third function outlets. The high end 1/2" couplers are overkill but they work extremely well and IMO are worth the added cost.

Dan


  • Like
Reactions: 2 users

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
Did you buy this setup, or did you piece it together? I'm looking for the same for my Bx23s and the dealer is going to install the third function kit before I take delivery.
Pieced together.

  1. The couplers are Faster 4SRHF
  2. The mountimg block is a DPOCV lock valve from Summit
  3. The aluminum spacer is just bar stock that I drilled
  4. I formed and flared the hardlines.
Dan

  • Like
Reactions: 1 user

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
What steel did you use for the hard lines? What flaring tool (37 degree?)
The lines are ordinary 1/2" x .049 wall steel hydraulic tube purchased at the local hydraulic supply. The ends are 37* JIC flares with tube nuts and sleeves.

Dan

  • Like
Reactions: 1 user

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
What tool did you use for flares> The Ridgid and some others claim up to 0.035 tubing.
Ridgid 377 - easily handles 1/2" x .049 wall carbon steel tube. Never tried but I would expect it to work on .065. Stainless may be a bit more problematic both flaring and bending.

Dan

  • Like
Reactions: 1 user

joea

Member

Equipment
B21 TLB
Aug 2, 2020
82
6
8
Marbletown NY
Ridgid 377 - easily handles 1/2" x .049 wall carbon steel tube. Never tried but I would expect it to work on .065. Stainless may be a bit more problematic both flaring and bending.

Dan
From what I read, .049 is good for 1900 psi, which is marginal for the B21 which can be just under 2100. I guess that is close enough though?

But I wonder about "carbon steel" vs stainless. Are the factory lines stainless or plain? Never seem to corrode, so figured they must be stainless, but never really looked into it.

Is corrosion a concern with the steel you used?\

  • Like
Reactions: 1 user

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
From what I read, .049 is good for 1900 psi, which is marginal for the B21 which can be just under 2100. I guess that is close enough though?

But I wonder about "carbon steel" vs stainless. Are the factory lines stainless or plain? Never seem to corrode, so figured they must be stainless, but never really looked into it.

Is corrosion a concern with the steel you used?\
Pressure rating is dependent on tube diameter and wall thickness. 1/2" x .049 C1010 seamless carbon steel (SAE J524) hydraulic tubing is rated at 2700 PSI working pressure with a 4:1 safety factor. More than adequate on your tractor. .065 wall would be rated at 3650 PSI and massive overkill.

I dont thinK OEM tubing is stainless but it may well be anodized. Quite sure the 40 year old tubing on my B7200 is just plain steel and its still solid as a rock after years of sitting outside. Paint is also cheap and easy to apply.

Dan

Last edited:
  • Like
Reactions: 1 user

DustyRusty

Well-known member

Equipment
2020 BX23S, BX2822 Snowblower, Curtis Deluxe Cab,
Nov 8, 2015
5,738
4,329
113
North East CT
Did you buy this setup, or did you piece it together? I'm looking for the same for my Bx23s and the dealer is going to install the third function kit before I take delivery.
Have your dealer install the LandPride 3rd function valve instead of the Kubota valve that isn't a true 3rd function valve, but a diverter valve. In my opinion the LandPride unit is a much cleaner installation, and it works better than the Kubota on the BX23S.

  • Like
Reactions: 1 user

Russell King

Well-known member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
4,936
1,136
113
Austin, Texas
The lines are ordinary 1/2" x .049 wall steel hydraulic tube purchased at the local hydraulic supply. The ends are 37* JIC flares with tube nuts and sleeves.

Dan
Just curious on how you do the tubing layout work.

do you bend wire (armature wire?) into the approximate shape and then form the tubing? Or do you go directly to tube bending (eyeballing the fit)?

  • Like
Reactions: 1 user

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
Pressure rating is dependent on tube diameter and wall thickness. 1/2" x .049 C1010 seamless carbon steel (SAE J524) hydraulic tubing is rated at 2700 PSI working pressure with a 4:1 safety factor. More than adequate on your tractor. .065 wall would be rated at 3650 PSI and massive overkill.

I dont thinK OEM tubing is stainless but it may well be anodized. Quite sure the 30 year old tubing on my B7200 is just plain steel and its still solid as a rock after years of sitting outside. Paint is also cheap and easy to apply.

Dan
Just curious on how you do the tubing layout work.

do you bend wire (armature wire?) into the approximate shape and then form the tubing? Or do you go directly to tube bending (eyeballing the fit)?
The lines in that picture were simple anf bent in stages eye ballimg the angles as I worked front to back. I botched (over bent) the first one and used it as a reference for the next two.

Dan

  • Like
Reactions: 1 user

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
7,627
3,799
113
Myersville, MD
windyridgefarm.us
Have your dealer install the LandPride 3rd function valve instead of the Kubota valve that isn't a true 3rd function valve, but a diverter valve. In my opinion the LandPride unit is a much cleaner installation, and it works better than the Kubota on the BX23S.
The Kubota third function is a diverter rather than a directionsl valve? Whats the number for the Kubota 3rd function?

Dan
