Added Tie Down Points

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear
May 19, 2011
5,414
374
83
Peoria, AZ

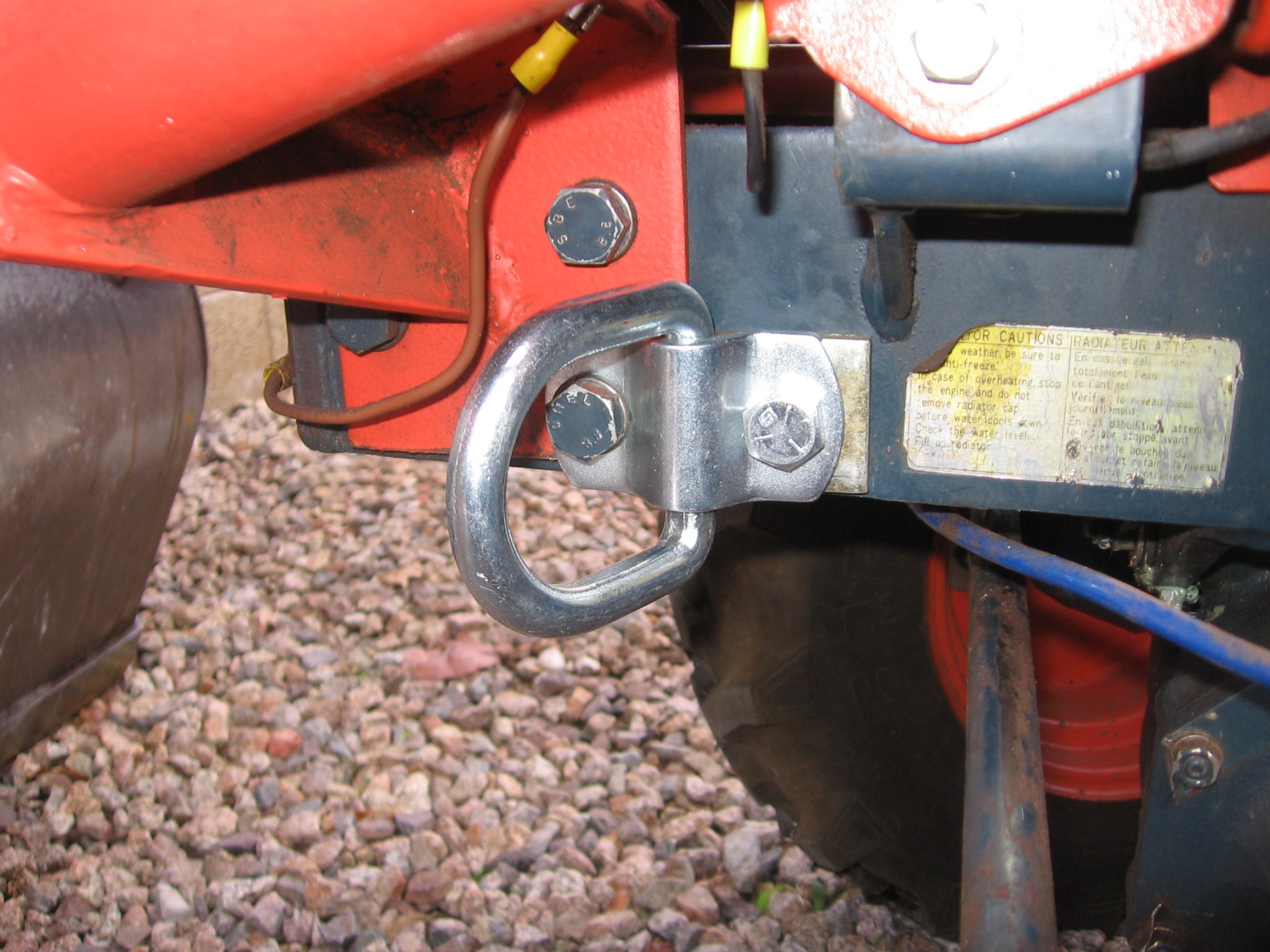

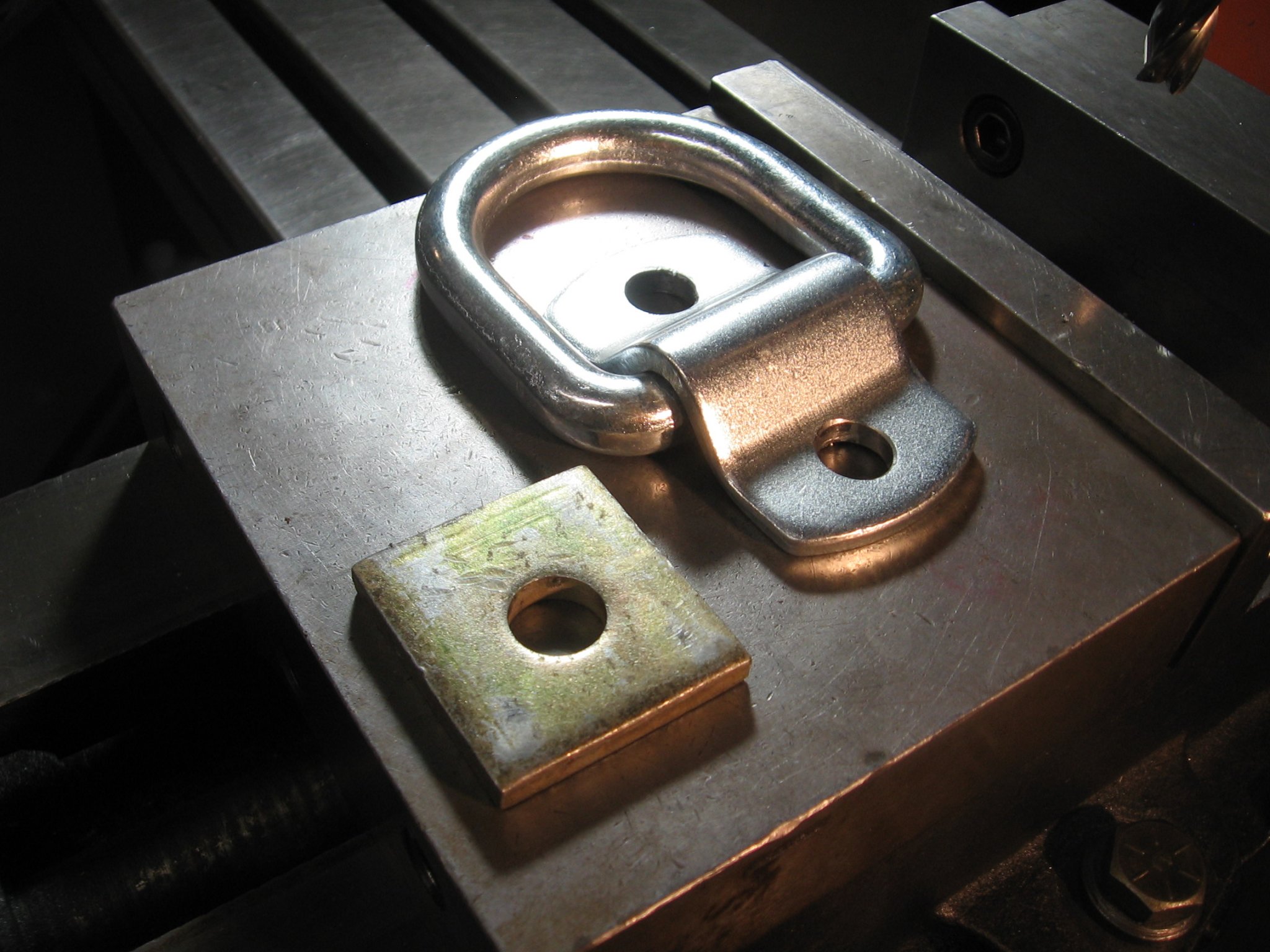

Copied an idea I saw on the forum earlier and added some tie down points to the front of the tractor.

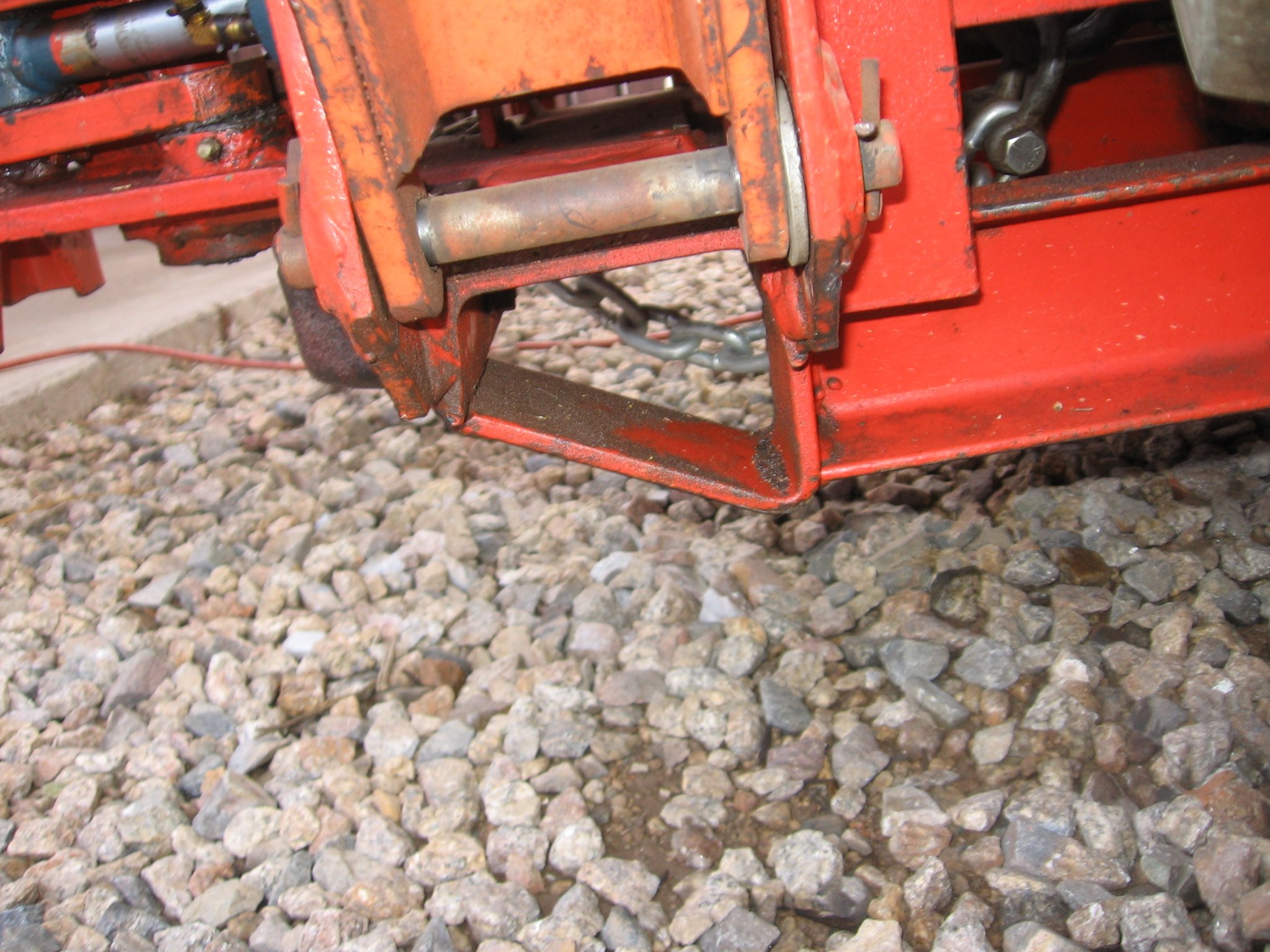

The rear (with the backhoe mounted) already has a couple decent tie down points.
IMG_0017.JPG IMG_0018.JPG IMG_0001.JPG

  • Like
Reactions: 3 users

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
1,272
289
83
North of Pittsburgh PA
Copied an idea I saw on the forum earlier and added some tie down points to the front of the tractor.
The rear (with the backhoe mounted) already has a couple decent tie down points.
View attachment 56288 View attachment 56289 View attachment 56290
looks good!

Only thing I could think to add is if it were me I would make sure I used highest grade bolts, just to maximize strength. Might not be required in this application though...grade 8? Forget the normal high grade at the moment...


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear
May 19, 2011
5,414
374
83
Peoria, AZ
looks good!

Only thing I could think to add is if it were me I would make sure I used highest grade bolts, just to maximize strength. Might not be required in this application though...grade 8? Forget the normal high grade at the moment...
The front bolts are hardened metric fine thread, the rear ones are just standard grade 2 1/2-13s that I had on hand.
I probably should change them out, but I don't think the tractor weighs much over 2500lbs, so it's probably a moot point.
I'm trying to find out the weight of the FEL & ROPs for just that calculation, I have everything else.
The clamp strength for a grade 2 1/2-13 is 5850 lbft, proof load is 7800 lbft


Old_Paint

Active member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
563
244
43
AL

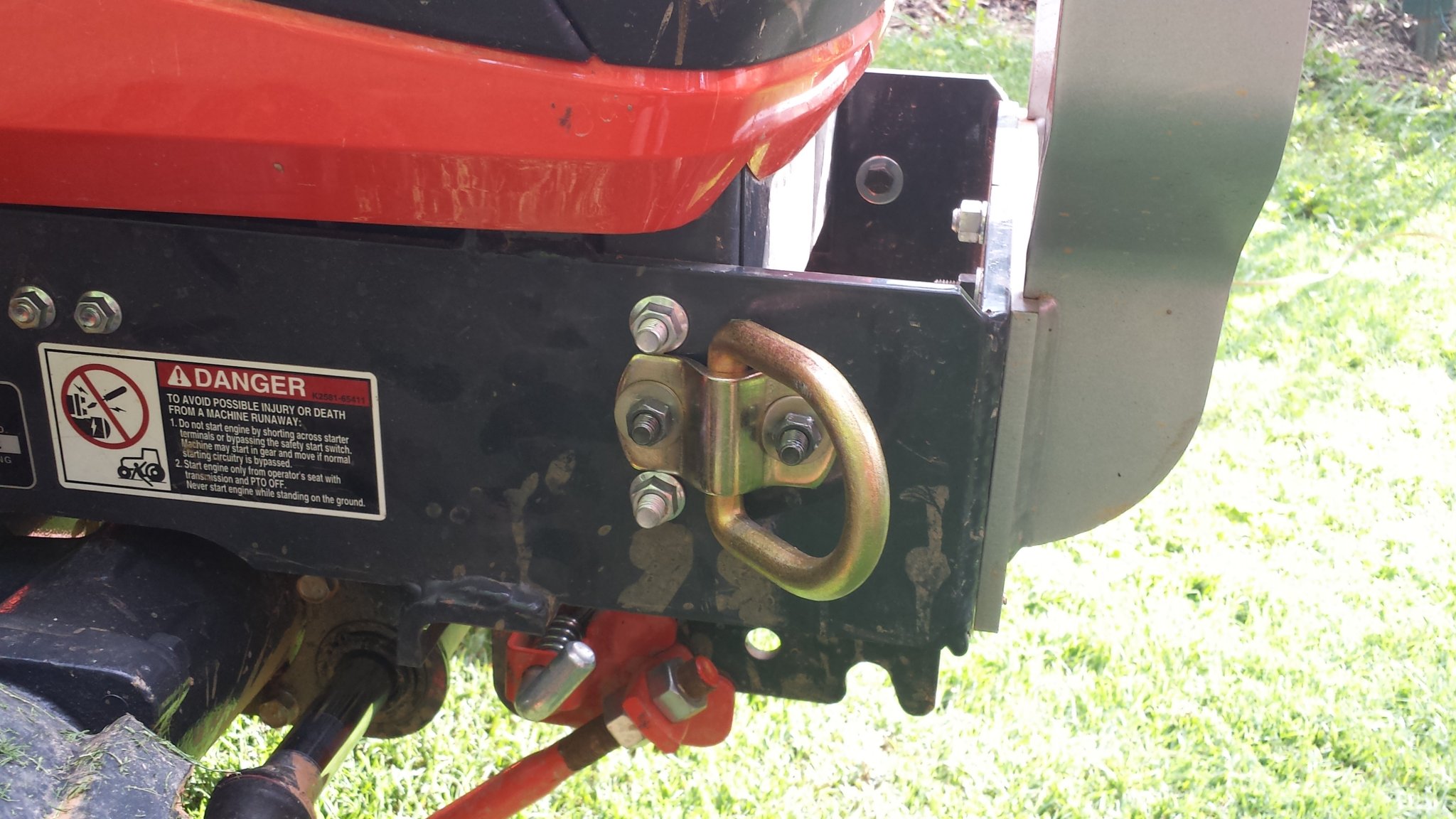

Nicely done. I did it tow hook style. No rattling or rusting. Used the part number from Harbor Freight someone gave me in here. Love the safety springs, too.

  • Like
Reactions: 1 user

RBA50

Member

Equipment
B2320, LA304 loader (B1658 QA), B2789 snowblower, RCK54-29B MMM, HF quick hitch
Apr 29, 2013
109
9
18
Goldendale, WA
Lil Foot, The bolts in your picture are grade 5. Should be plenty strong for your use.


swpflipper

Member

Equipment
MX5400 HST, LA1065 FEL, HR2572 box blade - S30 flip Screen
Nov 3, 2020
96
50
18
Arizona
Having those up front make it so nice to tie down.
For those who don't have a backhoe, what are you using for the rear?


dirtydeed

Well-known member
Lifetime Member

Equipment
B2650 BH77, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder
Dec 8, 2017
1,500
342
83
Wind Gap, PA
Having those up front make it so nice to tie down.
For those who don't have a backhoe, what are you using for the rear?

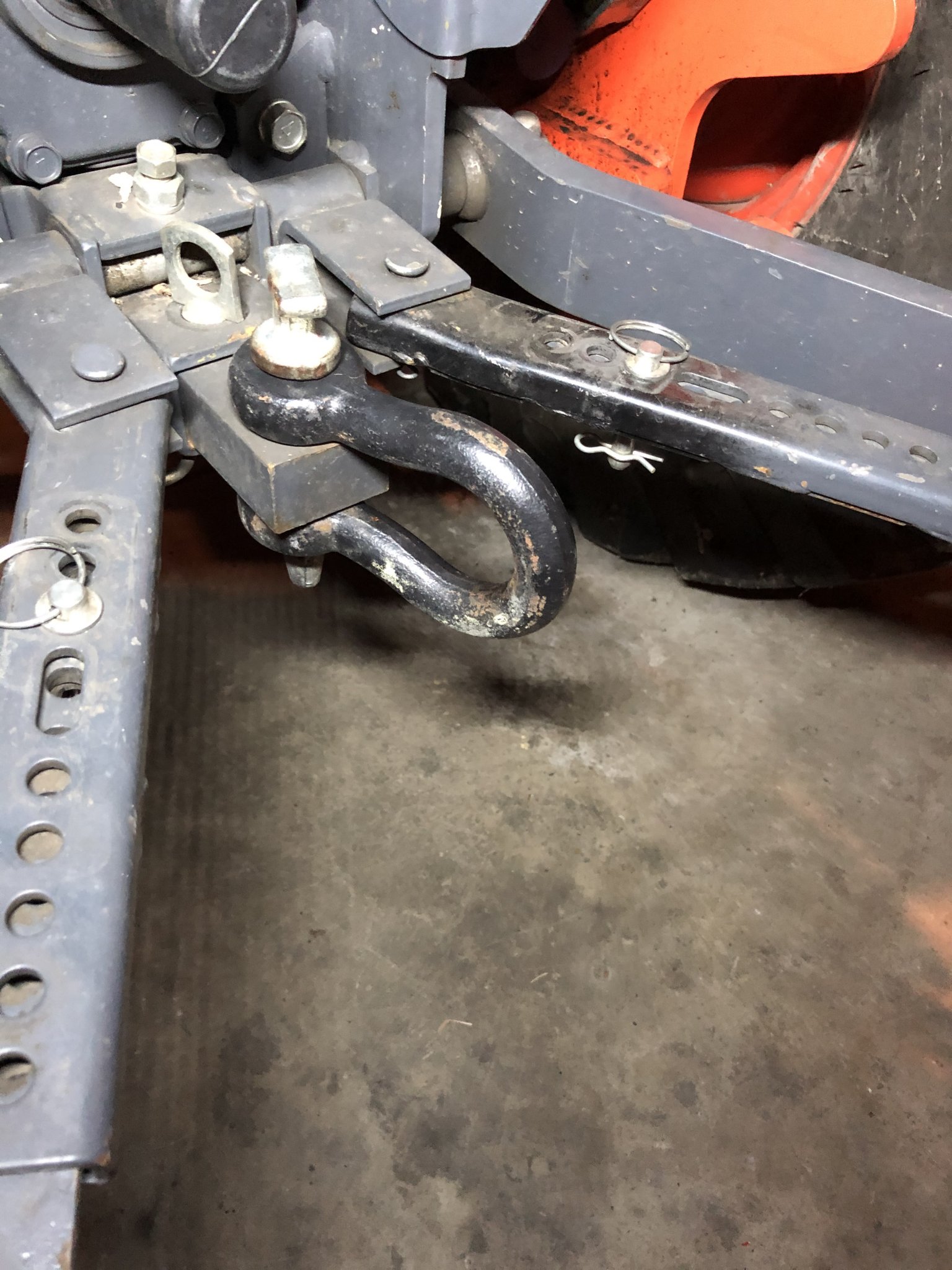

I put a clevis on the drawbar and just run the chain through that. With or without backhoe. large enough to get the job done but still fit in the tractor toolbox. I believe it's 7/8" pin.

One caution....remove it and store in your tractor toolbox when you have a 3ph attachment on. I had left it on one time while flail mowing. Somehow, it turned to the sideways and got caught under the lower 3ph stabilizer. It bent the stabilizer when I lowered the mower down.


Last edited:
  • Like
Reactions: 1 users

kubotafreak

Active member

Equipment
GRAND l6060, L3560, B6100, gr2100, tg 1860, g1800, g1900, g2160
Sep 20, 2018
187
30
28
Arkansas, US
Is everyone drilling the holes in the tractor frame to match the D ring plates? I was trying to find plates with the correct hole spacing to match existing frame holes, and having no luck.


dirtydeed

Well-known member
Lifetime Member

Equipment
B2650 BH77, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder
Dec 8, 2017
1,500
342
83
Wind Gap, PA
Is everyone drilling the holes in the tractor frame to match the D ring plates? I was trying to find plates with the correct hole spacing to match existing frame holes, and having no luck.
That's why I went with HF hooks as in post #5 above. No drilling necessary (for our B2650/LX2610 models).

  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear
May 19, 2011
5,414
374
83
Peoria, AZ

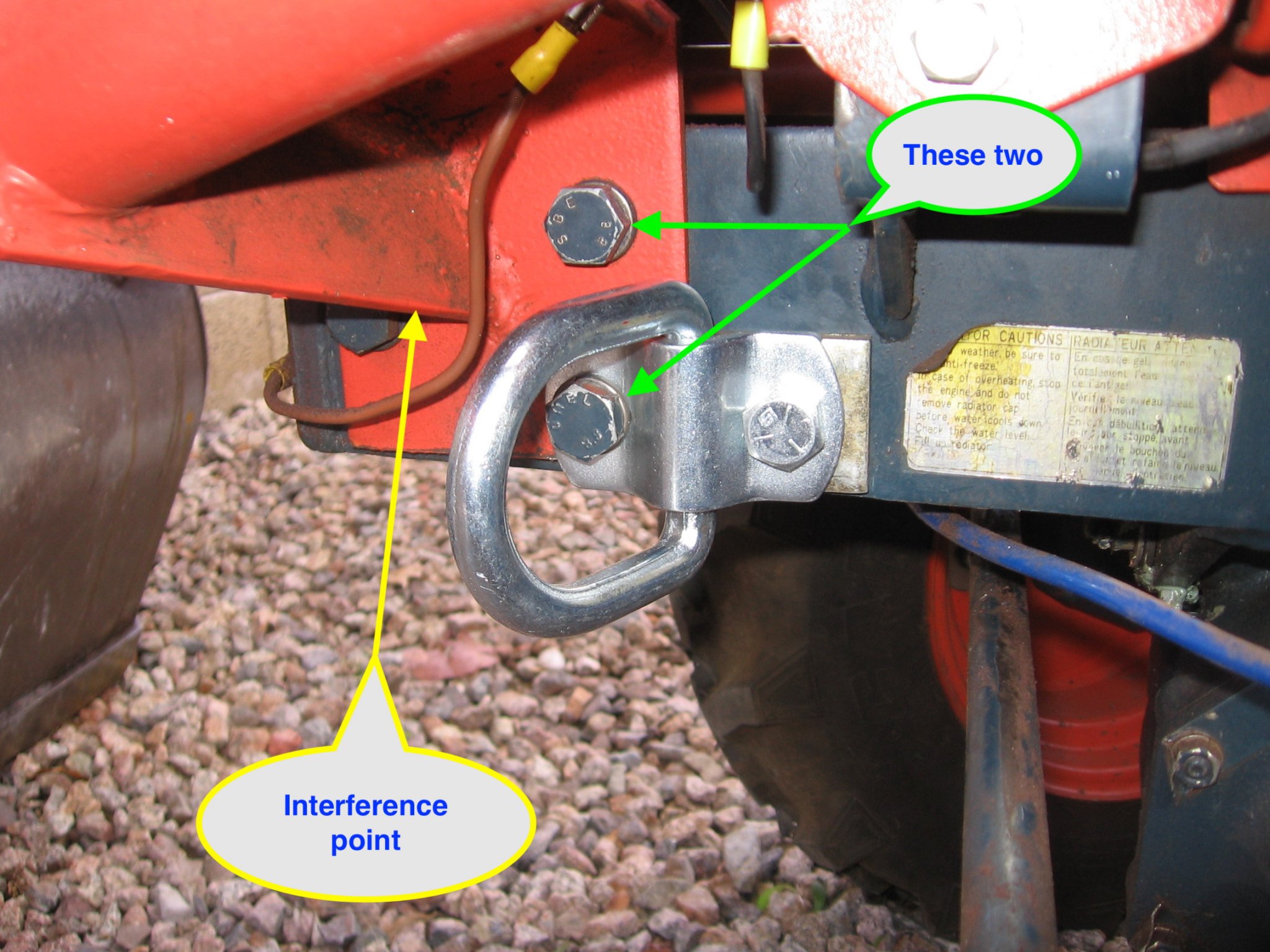

I used one existing bolt & drilled one hole. The tractor actually had two existing holes with the correct spacing, but the "D" ring interfered with a gusset/brace on the FEL frame.


  • Like
Reactions: 1 user

procraftmike

Member

Equipment
1977 B7100DT w/B219 FEL
Jan 27, 2016
269
1
18
Neenah, WI
Nice job! I need to bring my tractor back to the house this spring for my ROPS light install. Maybe I should add these tie downs right away as well. Seems like a pretty easy install.


Old_Paint

Active member
Lifetime Member

Equipment
LX2610HSDSU, LA535 FEL w/54" bucket, LandPride BB1248, Woodland Mills WC-68
Dec 5, 2020
563
244
43
AL
I used one existing bolt & drilled one hole. The tractor actually had two existing holes with the correct spacing, but the "D" ring interfered with a gusset/brace on the FEL frame.

View attachment 56381
I think those are the same D-Rings I put on the four corners of my trailer. No seam, no weld, just forged steel. Doesn't do much good to put tie-down points on the tractor if they don't exist on the trailer you intend to tie it to.


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear
May 19, 2011
5,414
374
83
Peoria, AZ
The utility trailer i used to haul the tractor on had tie points at the front, but none at the rear. I added some u-bolts back there.
The LoadTrail dump trailer I use now has large welded in tie downs in all 4 corners.


Crash277

Active member

Equipment
BX23S
Jan 17, 2021
342
195
43
Canada

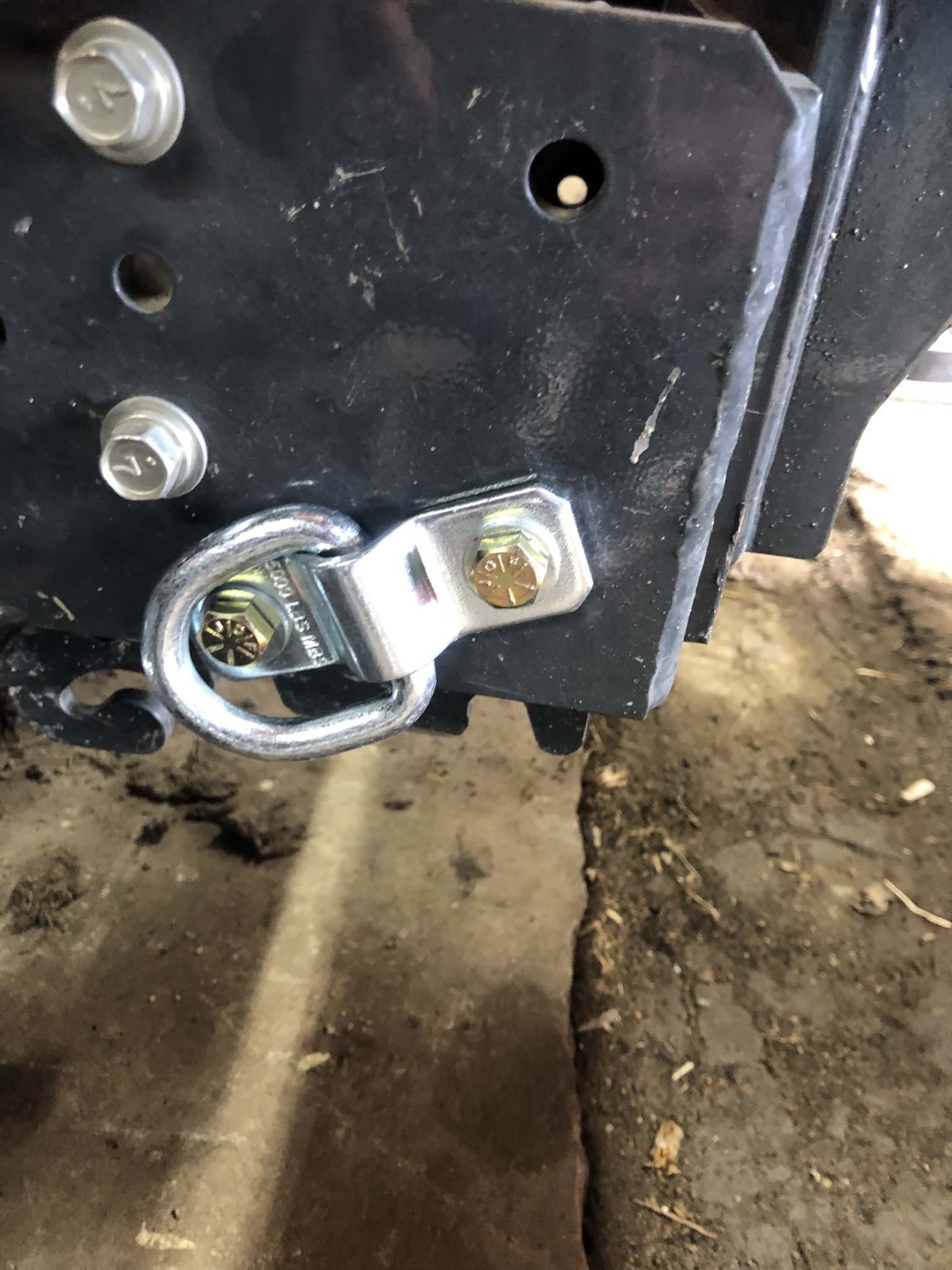

Existing holes on the 23s, with grade 8 bolts. These are some popular tie downs!! 5000lb capacity


  • Like
Reactions: 1 user

Toyman

Member

Equipment
B7100HST, 1630 Loader, Countyline Tiller, Befco 4' Rotary Mower; M4050, plow
Apr 15, 2019
67
5
8
Pittsburgh

PaulR

Active member

Equipment
BX 23S -- 40.5 hours seat time so far
Aug 3, 2020
187
109
43
Hadley, MA
I may do this at some point.
For the time being I've just done the front strap over the frame between the grill and the guard, and the rear threaded through the draw bar. Just two straps, I'm a rebel I guess.
