So, there I am working on my daughters Jeep the other day as it needed rear wheel bearings.

Obviously I have to take off the rear wheels and while I was putting them back on, it hits me.

Now is the perfect time to make some "Wheel Keepers".

BTW, a big 🖕to the person at Diamler/Chrysler/Fiat/Stellantis/ (whomever owns them this week) that is responsible for going to the "European/(German?)" style "Lug Nuts"...

Anywho, I have some spare "lug nuts" because I replaced them when the chrome caps started to swell up, making it difficult/impossible to find the correct size socket to use.

[ For those unfamiler with the "EU/German style" way of attaching wheels, they don't have studs. It's a flat face rotor and the "lug nuts" are actually "bolts"......So there is nothing to hang the wheel on while you grab the other "bolts". So it's a Cluster&*(^k trying to get the wheel on.]

Heres a pic of my "donor lug"




Well I tried to just wrap some tape around the threads and chuck it up in the lathe, but it was not very "centered" and kept spinning, so I decide to try and grab the "head" of it and drill a hole so I can use my "Live Center" when I make the cuts.



Next up, I moved the "head" of the bolt so that I am gripping just enough of the end of it and use the Live Center to support it.

I was concerned that if I did not use the Live Center, I would have pushed the bolt out of place when cutting it.

Last edited:
  • Haha
Reactions: 1 user

lynnmor

Well-known member

Equipment
B2601-1
May 3, 2021
1,381
1,086
113
Red Lion
Why would you use a center drill as large as the bolt?

I guess that you are going to turn the head down to the diameter of the threads?


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
Had trouble uploading pic, but here it is.



After a few passes, the "chrome cap" pops free and the whole thing gets a little "kadi-whompus".




So I have to 're-chuck it up".



Then I go up and measure one of the wheel holes, and continue "trimming' it down.




Now for my "nemesis" .........Parting it Off!!!!!


Well that turns into a "Sh!t Show" right quick; and because it's so close to hitting the chuck, I decide to find another way.





Hmmmmm.....now how the hell am I going to hold this without screwing up the threads.....

Eureka!!!!!!

If I clamp a similar diameter pipe into the band saw, all I have to do is hold it from spinning.....

ATTENTION: All OSHA personnel and "Safety Nazi's", please skip the next 3 pics altogether.











  • Like
Reactions: 1 user

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
I was going to just cut a "Slit" in the end so I can "un-screw" it when I need to; But where is the fun in that?

I decide to 'face it off' and weld a nut to it, using my new "welding positioner"...hahahahahah







Damn I love this little "positioner".

Ironically, I have to put the "chuck" back on after having gone through so much effort to remove it...... :p





Not some of my "Proudest Welds', but "good-nuf" for this project.









I decided to make 3, but after using them, 1 is plenty.




And here they are. (actually here it is, in action.)






LOOK MA,...NO HANDS!!!!!!!!!! 😂 😂 😂






The End!

Last edited:
  • Wow
  • Haha
Reactions: 1 users

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
Why would you use a center drill as large as the bolt?

I guess that you are going to turn the head down to the diameter of the threads?
Since I have 5 or 6 chucks, and I see no real advantage to swapping it out for a smaller center drill, I just keep that one chucked up at all times in that chuck. Makes for quick tool changes.

and Yep, I turned it down to "about" the OD thread size. I didn't actually take the time to measure it, I just "eyeballed" it. (y)


GeoHorn

Well-known member
Lifetime Member

Equipment
M4700DT, LA1002FEL, Ferguson5-8B Compactor-Roller, 10KDumpTrailer, RTV-X900
May 18, 2018
6,003
3,263
113
Texas
You might consider installing studs into the wheels permanently….and using regular lugnuts.

  • Like
Reactions: 1 users

GreensvilleJay

Well-known member

Equipment
BX23-S,57 A-C D-14,58 A-C D-14, 57 A-C D-14,tiller,cults,Millcreek 25G spreader,
Apr 2, 2019
10,558
4,434
113
Greensville,Ontario,Canada
I'd have slid 2 lengths of 3/8" bar into 2 'holes', rotate hub so one hole at 6 o'clock, slide tire/rim on, zap lower 3 studs, remove the bars, zap top 2 studs....
..but then, they'd be ZERO lathe time.....

then again, last JEEPS (well all actually ) that I owned and maintained were Made in USA.


Shadetree605

Active member

Equipment
kubota b2100
May 1, 2022
212
100
43
north little rock, ar
You might consider installing studs into the wheels permanently….and using regular lugnuts.
i was thinking the very same thing, why not just install permanent studs ?. hard to tell from the back side of the hub if there is enough clearance to install the studs from the back side ?, but it sure would have saved a lot of time. by installing permanent studs, he could have just converted them all to standard size with the correct lug nuts. oh well..i guess he likes his lathe.

  • Like
  • Haha
Reactions: 1 users

GeoHorn

Well-known member
Lifetime Member

Equipment
M4700DT, LA1002FEL, Ferguson5-8B Compactor-Roller, 10KDumpTrailer, RTV-X900
May 18, 2018
6,003
3,263
113
Texas
An almost equally and curiously frustrating situation is my ‘14 Kubota RTV-X900…. it has Two Studs…and Two Bolts for each wheel. Why they did the Mix…??

  • Like
Reactions: 1 users

lynnmor

Well-known member

Equipment
B2601-1
May 3, 2021
1,381
1,086
113
Red Lion
Since I have 5 or 6 chucks, and I see no real advantage to swapping it out for a smaller center drill, I just keep that one chucked up at all times in that chuck. Makes for quick tool changes.

and Yep, I turned it down to "about" the OD thread size. I didn't actually take the time to measure it, I just "eyeballed" it. (y)
The reason that I brought it up is that you don't have a good grip on the bolt AND the 60 degree taper on the center drill is the locating surface for your 60 degree live center.

  • Like
Reactions: 1 user

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
The reason that I brought it up is that you don't have a good grip on the bolt AND the 60 degree taper on the center drill is the locating surface for your 60 degree live center.
Really?

So the "fat part" of the centering drill is 60 degrees, and so is my Live Center?

If thats true, then you're saying that I should be using a smaller centering drill and drilling deep enough for the "fat part" to make that 60 degree chamfer to properly accept the live center?


ken erickson

Well-known member

Equipment
B7100 hst, 2650 front mount snowblower, L2501 hst qa loader
Nov 21, 2010
1,050
1,673
113
Waupaca Wisconsin
So the "fat part" of the centering drill is 60 degrees, and so is my Live Center?

If thats true, then you're saying that I should be using a smaller centering drill and drilling deep enough for the "fat part" to make that 60 degree chamfer to properly accept the live center?
This is my understanding of the proper use of centering drills when using a dead or live center also.


Don't misunderstand me, I always enjoy your projects and willingness to share the good , bad and ugly, but.............

From your pictures of the hub and the wheel on the hub , does the wheel center not fit the "collar" very closely to enable the "European/(German?)" style "Lug Nuts"... to be aligned and get started?


  • Like
Reactions: 1 user

ken erickson

Well-known member

Equipment
B7100 hst, 2650 front mount snowblower, L2501 hst qa loader
Nov 21, 2010
1,050
1,673
113
Waupaca Wisconsin
Sometimes it is true that a picture is worth a thousand words! :)

Having the 60 degree taper in your work is especially important when using a dead center versus a live center, but still important either way.

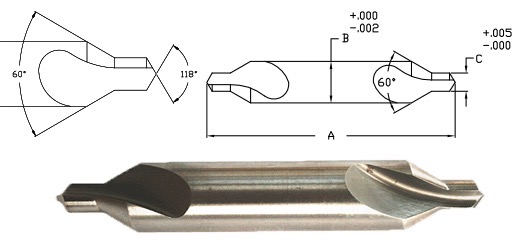

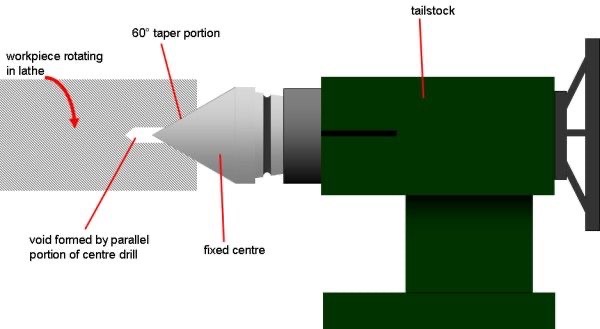

Image 1.jpg

Image 2.jpg


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
The reason that I brought it up is that you don't have a good grip on the bolt AND the 60 degree taper on the center drill is the locating surface for your 60 degree live center.
Thank you sir, for pointing that out. (y)

I had no idea, but it makes sense now that you point it out.


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
Sometimes it is true that a picture is worth a thousand words! :)

Having the 60 degree taper in your work is especially important when using a dead center versus a live center, but still important either way.

View attachment 131221
View attachment 131222
Thanks for confirming what @lynnmor pointed out.

The pictures are awesome and definitely help.

I am officially one step closer to being smart!!!!(y)(y):D


Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,045
2,184
113
Michigan
This is my understanding of the proper use of centering drills when using a dead or live center also.


Don't misunderstand me, I always enjoy your projects and willingness to share the good , bad and ugly, but.............

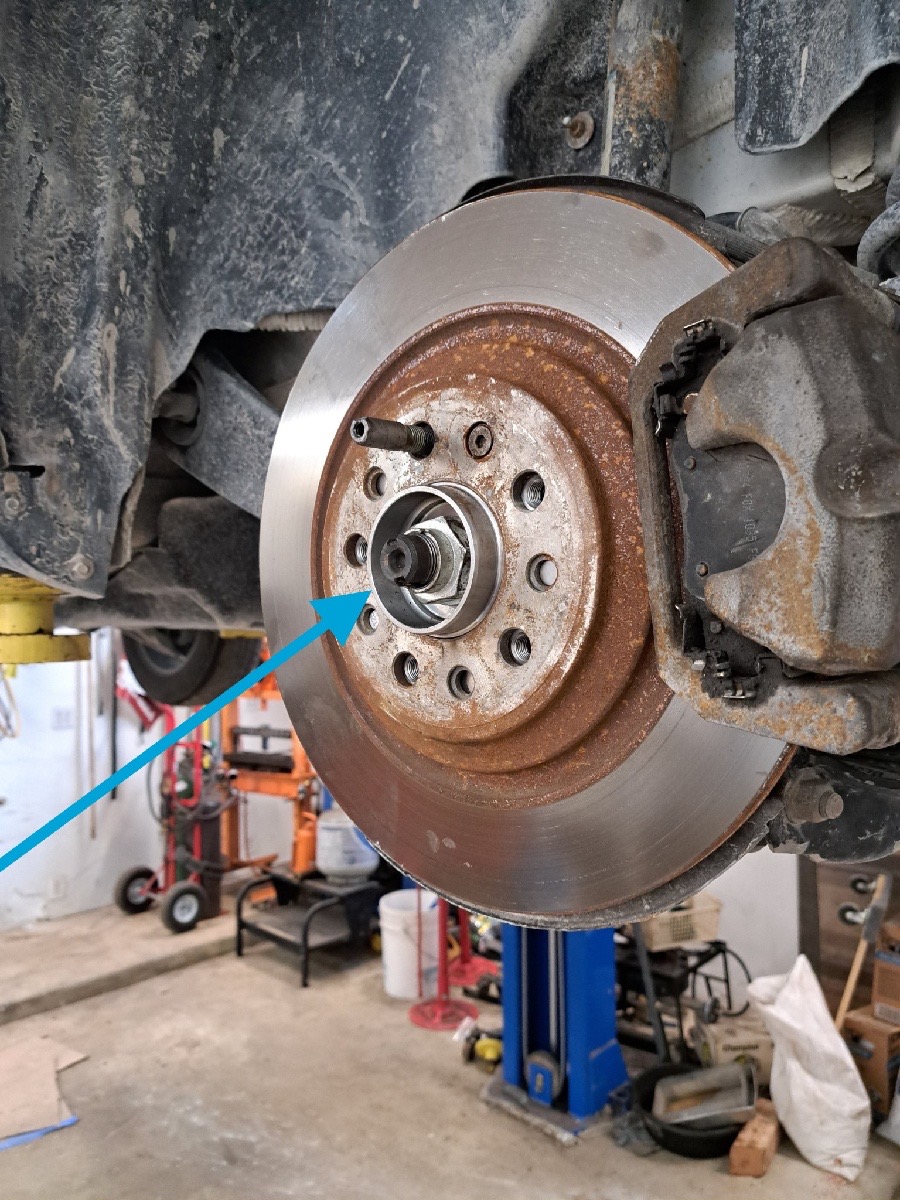

From your pictures of the hub and the wheel on the hub , does the wheel center not fit the "collar" very closely to enable the "European/(German?)" style "Lug Nuts"... to be aligned and get started?

View attachment 131220
Correct.

That little lip you point to is useless.

Every time I take both hands off the wheel, it falls off, and you have to "jockey" the wheel around trying to fine the hole.

Big PITA.


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,357
2,328
113
Peoria, AZ
I prefer properly sized collets, but the threaded split bushing works well also.

  • Like
Reactions: 2 users

GreensvilleJay

Well-known member

Equipment
BX23-S,57 A-C D-14,58 A-C D-14, 57 A-C D-14,tiller,cults,Millcreek 25G spreader,
Apr 2, 2019
10,558
4,434
113
Greensville,Ontario,Canada
re: mix of studs and bolts
Probably the main reason .....It's FASTER on the assembly line....

  • Like
Reactions: 1 user

lynnmor

Well-known member

Equipment
B2601-1
May 3, 2021
1,381
1,086
113
Red Lion
Really?

So the "fat part" of the centering drill is 60 degrees, and so is my Live Center?

If thats true, then you're saying that I should be using a smaller centering drill and drilling deep enough for the "fat part" to make that 60 degree chamfer to properly accept the live center?
Yep, now you got it. I can still remember that drawing on the high school shop wall showing the proper use of a center drill. Just so you know, I have been doing machining for the past 62 years and have owned and operated my tool & die shop for the past 39 years. When you need a hand, please reach out, I always liked to help anyone that actually wants to learn.
