Starter solenoid on B6100 - how to disassemble?

ShaunBlake

New member
Lifetime Member

Equipment
B6100D; B219; Piranha bar; Hodge stabilizers; Filled Ag rears; R322T w/48" deck
Dec 21, 2014
902
0
0
77
Sugar Hill -- next door to Buford, GA

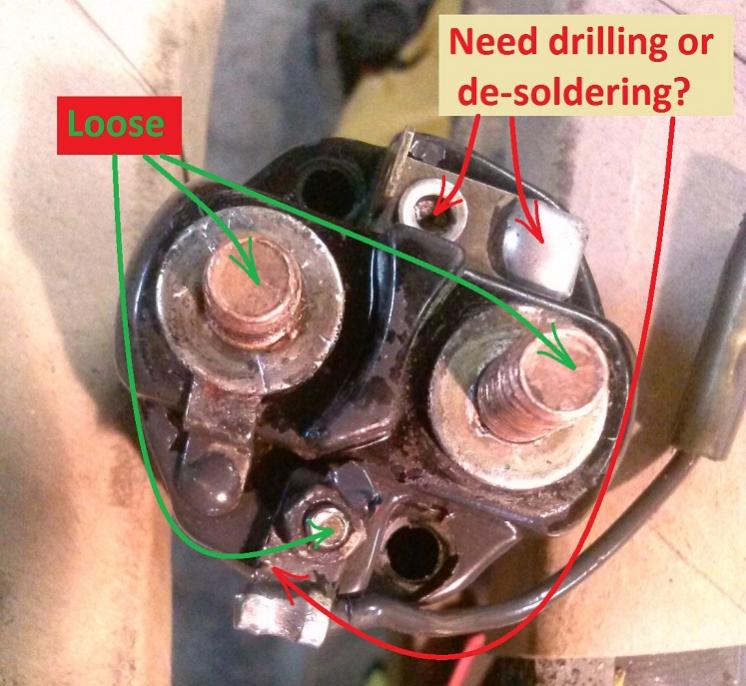

I'm trying to check the contacts in the solenoid of my B6100 while I have the starter on the bench. I've taken the screws off the cap and pried it off the body to the point that it's no longer "glued on" (you know how they get welded by corrosion and paint). I can pull it away from the body about 1/32" but something inside is resisting -- feels like a wire or connector is fastened to the inside of the cap. I loosened the posts and the energizer wire as well. What am I missing? (skeets, don't just tell me I'm missing the Jameson, email or FAX me a shot!)

Thanks!
