Retired my 5 gallon fuel cans

i7win7

Well-known member

Equipment
BX2370, B2650 grapple, tree puller, trailer mover, 3 point hoist, mower, tiller
Feb 21, 2020
775
349
63
Central, IL
Finally decided to retire my 5 gallon fuel cans. Pricing 50 and 100 gallon tanks, 100 gal. only $50 more but would require a small single axle trailer. Renewed plates on my other trailers and Illinois raised trailer plates by $100. Too frugal to pay over $100 every year for a fuel run.

Farm & Fleet had the 50gal tank and 12v pump on sale, devine intervention?

So the specs of the LA535 are:
Lift to full height (at 500mm): 769 lbs

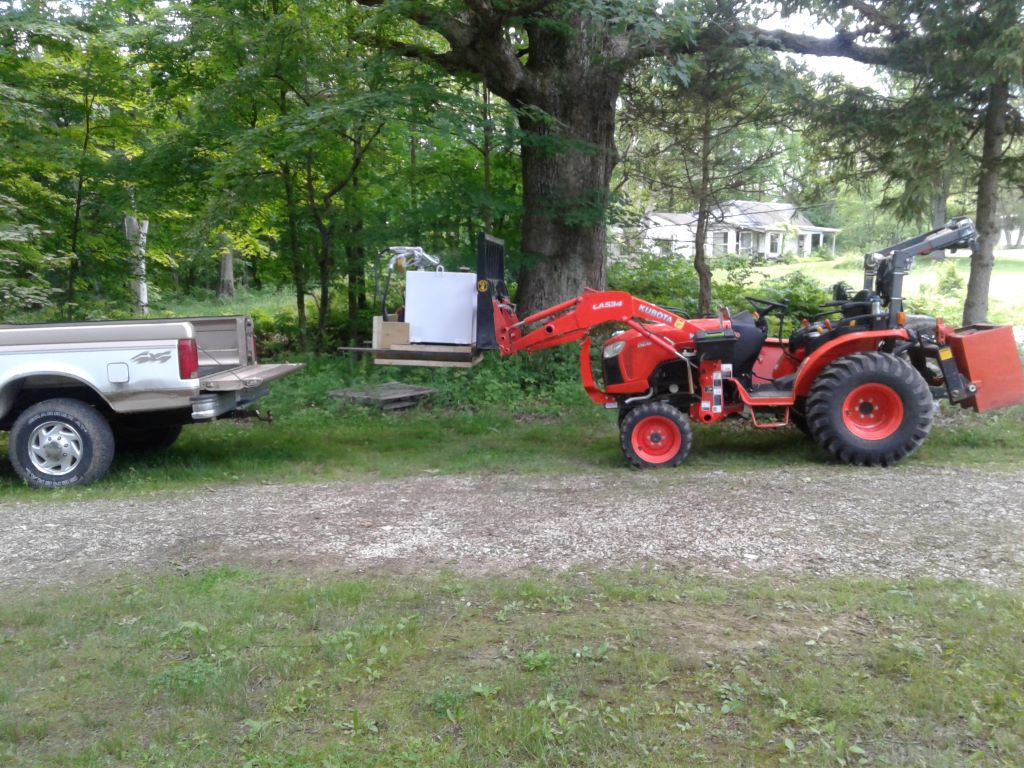

Water is approx 8#/gal. Estimated 50gal = 400#, extra 100# for tank & pump, extra 200# for lumber. 700# total, My B2650 should be able to lift it (fingers crossed). Drug up all of my extra P.T. lumber and started to build.

The tank is 24x24x24 inches, adjusted forks so tank would sit inside. Seemed wider pallet would be better.
Cut 2 - 4x4's at 33 1/4". Clamped 4x4's to forks using shims for some gap. Set spacing on adjustable square for next step.




Cut 3 - 2x10's at 37", cut 6 - 2x6's at 37". Started with bottom, used square to center 2x10 on 4x4 rails. I used 1/4" x 4" SPAX power lag bolts to attach the bottom boards. Since this is the bottom, I used a fostner bit to countersink the bolt heads. You don't have to pre-drill holes for these screws but, old school me did.



Positioned 1 - 2x6 and 2 more 2x10's, marked center lines



Drilled counter sinks, holes and installed lag bolts.



Flipped unit over and attached 5 - 2x6 boards for top side. I used 1/4 x 5" SPAX screws on the top. These screws do not need to be counter sunk. NOTE: leave gaps where the tank mounting tabs will be located.



Set tank on "pallet" and drilled 1/4" holes in mounting tabs.



Installed rubber tank mounts. Cut 2 - 2x4's at14 1/2" and 2 - 2x6s at 28". Sized some scrap pieces to fabricate a hose box to keep hose off the ground.
