Mid mount blade for BX 23

davcog

New member

Equipment
BX 23, Woods tiller, MMM
Mar 27, 2014
7
0
0
West Gardiner, Maine
I'm new to OTT and have looked around some but haven't found any posting of a mid mount grader blade build. I do a lot of work on our 1/2 mi long dirt road and want something better than the 4ft DR grader. Anyone willing to share build specs or pictures if they exist?


skeets

Well-known member

Equipment
BX 2360 /B2601
Oct 2, 2009
14,859
3,848
113
SW Pa
You might want to take a look at a box blade its amazing how much and what you can do with a 48 inch box


davcog

New member

Equipment
BX 23, Woods tiller, MMM
Mar 27, 2014
7
0
0
West Gardiner, Maine
Thanks skeets. Tried box blade results were only fair. Have seen videos of tractors smaller than BX 23 with mid mount blades seem to have good results.


gpreuss

New member
Lifetime Member

Equipment
L3200DT w/FEL, K650 Backhoe, 5' Rotary, 40" Howard Rotavator, 6' Rhino blade
Oct 9, 2011
1,166
6
0
Spokane, WA
I'd hate to be going back and forth between the MMM and a mid mount blade, after about the 4th changeover I'd be looking for something else. I use a heavy duty rear blade that has a gauge wheel well behind it, that works like a grader. It does a marvelous job!
Servis (Rhino) and Woods both sell them, and a few of us have made them. They work well, and are easy to change out!


ipz2222

Active member

Equipment
L235, bx2670
May 30, 2009
1,927
33
38
chickamauga ga usa
davcog,, I did build one for my bx. Very happy with it, although it will not dig up hard dirt, it is excellent for keeping the road smooth. It tilts left and right so I can move the gravel back into the ruts or with the tips on the blade, I can move gravel from one place to another. It uses the same hardware that raises and lowers the mmm. It's been on my list of things to do for a year, take pictures and post. I'm retired but I still work 14 hours a day.


davcog

New member

Equipment
BX 23, Woods tiller, MMM
Mar 27, 2014
7
0
0
West Gardiner, Maine
davcog,, I did build one for my bx. Very happy with it, although it will not dig up hard dirt, it is excellent for keeping the road smooth. It tilts left and right so I can move the gravel back into the ruts or with the tips on the blade, I can move gravel from one place to another. It uses the same hardware that raises and lowers the mmm. It's been on my list of things to do for a year, take pictures and post. I'm retired but I still work 14 hours a day.
" I still work 14 hours a day." That would explain the 3:28 am post. Looking forward to the pictures.:)


ipz2222

Active member

Equipment
L235, bx2670
May 30, 2009
1,927
33
38
chickamauga ga usa

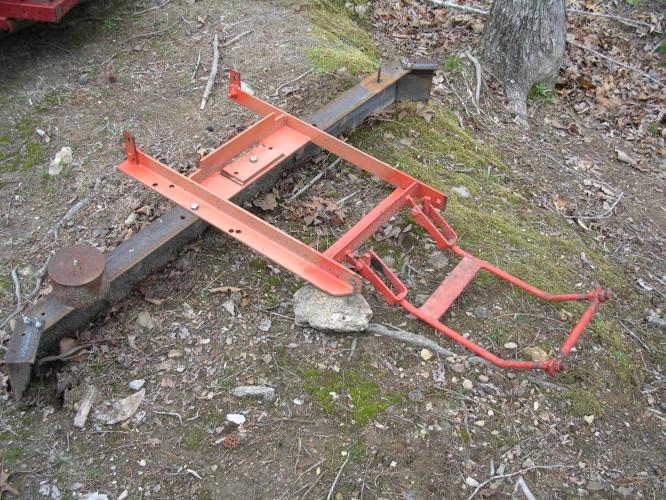

Ok, I got the pictures, now see if I can load them. All this is hanging from the mmm lift assy. The front hooks up just like the mmm. The back of the grader frame hooks up to the lift arms where the mmm goes. The blade is raised and lowered by the 3ph, just like the mmm. The one problem with this is, the blade can't be tilted. Notice on both ends , there is a long bolt and a large round weight with a hole in it. This slides over the bolt and adds weight to the blade. If I want one side to go deeper, I put both weights on the same side. The blade can be angled to either side or set 90 degrees to the front. The tips (wings) can be easily removed.


Attachments

Kubota_Man

Member

Equipment
BX24, Rear blade, Front blade, Snowblower, 54" MMM, Box scraper, Landscape rake
Dec 25, 2010
953
2
16
Kellogg, Idaho
Ok, I got the pictures, now see if I can load them. All this is hanging from the mmm lift assy. The front hooks up just like the mmm. The back of the grader frame hooks up to the lift arms where the mmm goes. The blade is raised and lowered by the 3ph, just like the mmm. The one problem with this is, the blade can't be tilted. Notice on both ends , there is a long bolt and a large round weight with a hole in it. This slides over the bolt and adds weight to the blade. If I want one side to go deeper, I put both weights on the same side. The blade can be angled to either side or set 90 degrees to the front. The tips (wings) can be easily removed.
Very cool idea. Have you noticed any fatigue on the MMM arms?


ipz2222

Active member

Equipment
L235, bx2670
May 30, 2009
1,927
33
38
chickamauga ga usa
No fatigue on the hookups. Since there is not much weight to hold the blade down, there is not a tremendous amount of force put on the front arms. They are 1/2 inch thick anyway. I have plans to make the blade electric up and down with force. By force, I mean being able to push down on the blade to make it dig into dirt or gravel. I mainly use it to keep the gravel smooth, it does a good job.


thirdroc17

Active member
Dec 25, 2013
185
35
28
Michigan
After having one on my older garden tractor for years, it's proven nothing beats the mid-mount grader blade for driveway maintenance. 40 years ago, when tractors where made to be universally useful, they came with many more attachment options than they do today, true grader blades among them.

That said, the one "downfall" of the old tractor's grader blade was it's lack of down force, usually overcome by simply standing on the blade. I've been working on a mid-mount grade blade for my BX for a year now, but it's severe lack of capabilities, clearances and universal mountings is making the job difficult. Standing on the blade simply isn't the easy option of years gone by.

Almost makes me think I could whip up something like you have to use until the powered blade is complete.
