M5140HD Box Blade size?

[ss844]

Hi all, I am looking to purchase a box blade for my M5140(52HP) and would like some advise on sizing. Ideally, what size box blade should I be looking to purchase? I believe I need a minimum of 6ft to cover my tracks. I have seen several nice 8ft blades on craigslist and a few 6ft light duty blades.

I will mainly be using the blade to build and maintain gravel drives throughout my property.

Is 8ft too much for my tractor?

Any advice or experience would be greatly appreciated!!



[TripleR]

I really like our Land Pride HR3584, I use it on my 5740 and 8540, your M5140 should have no problem, but an HRL35 which is 78" instead of 84" with a low back.

You might also look at a good roll over box scraper as they don't need the hydraulics and are pretty heavy.



[MtnViewRanch]

To start with, if you actually want the box blade to work in pretty much any condition, don't even consider anything less than 1000lbs plus or minus a few lbs. A good width for your tractor would be something in the 78"-84" range.

Anything that fits in this description is going to cost some $$$$, not in the $1000-$1500 range.

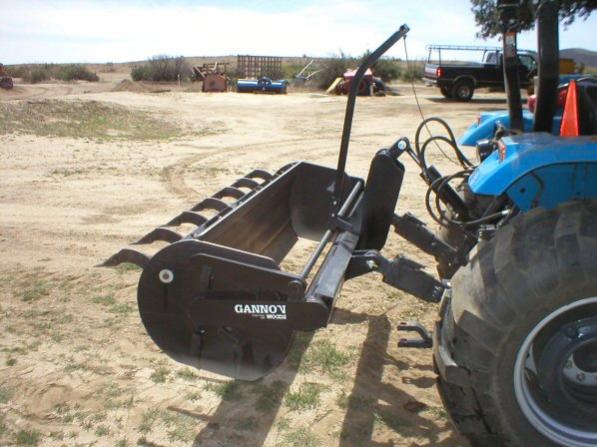

The ideal unit would be a Gannon similar to this.

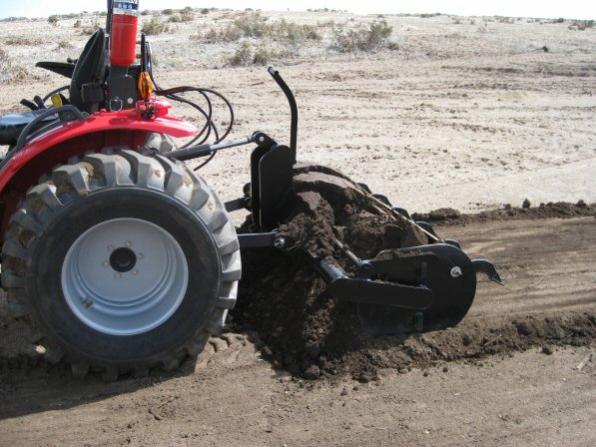

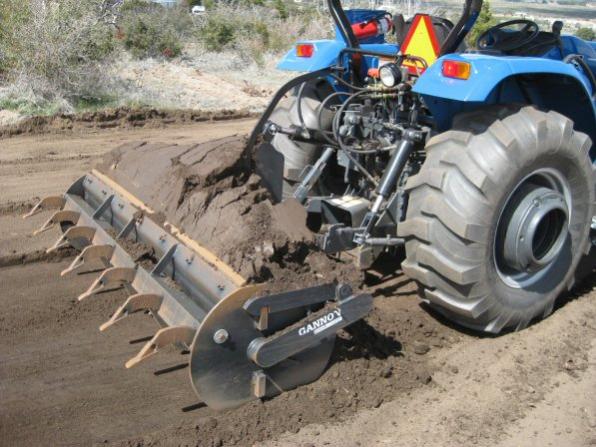

TripleR mentioned a roll over box blade or (ROBB). These are also a very good alternative. I happen to use a 65" & 81" Gannon ROBBs with my tractors. Unfortunately Gannon discontinued their ROBBs a few years ago.

Something else to consider is a top & tilt set for your tractor. This is a HUGE help in getting the most out of your grading implements.



[TripleR]

I'm in complete agreement with MtnViewRanch, I put a TnT on my last tractor and while I used OEM, I've bough cylinders from him and his are every bit as good if not better than OEM.



[Tallahassee Kubota Man]

I've got an M5140 as well. I've run a 6' box blade that doesn't quite cover my tracks. Would be interested in what you get and how well it does on your tractor.



[ss844]

Thanks for the info and advice. I am going to go look at a couple today and will let you know how it works out after I give it a run.
