Looks like kubota just released a new wholegoods item. (L6850 $93) Interested if anyone has purchased yet. Should fix the issues for those trying to use smaller batwings with the 50-60hp l60.


SDT

Well-known member

Equipment
multiple and various
Apr 15, 2018
1,760
163
63
SE, IN
Looks like kubota just released a new wholegoods item. (L6850 $93) Interested if anyone has purchased yet. Should fix the issues for those trying to use smaller batwings with the 50-60hp l60.
Hitch is going to be close to the ground.

SDT


kubotafreak

Active member

Equipment
GRAND l6060, L3560, B6100, gr2100, tg 1860, g1800, g1900, g2160
Sep 20, 2018
187
30
28
Arkansas, US
Hitch is going to be close to the ground.

SDT
No doubt there.. It is definitely an after thought fix for the issue of the drawbar to pto spacing being too small. I have not seen one in person, but I cant imagine it being much more than 1.5-2" drop. Hopefully it will also correct the issue with drawbar length as well on the l6060 for the 14".


kubotafreak

Active member

Equipment
GRAND l6060, L3560, B6100, gr2100, tg 1860, g1800, g1900, g2160
Sep 20, 2018
187
30
28
Arkansas, US

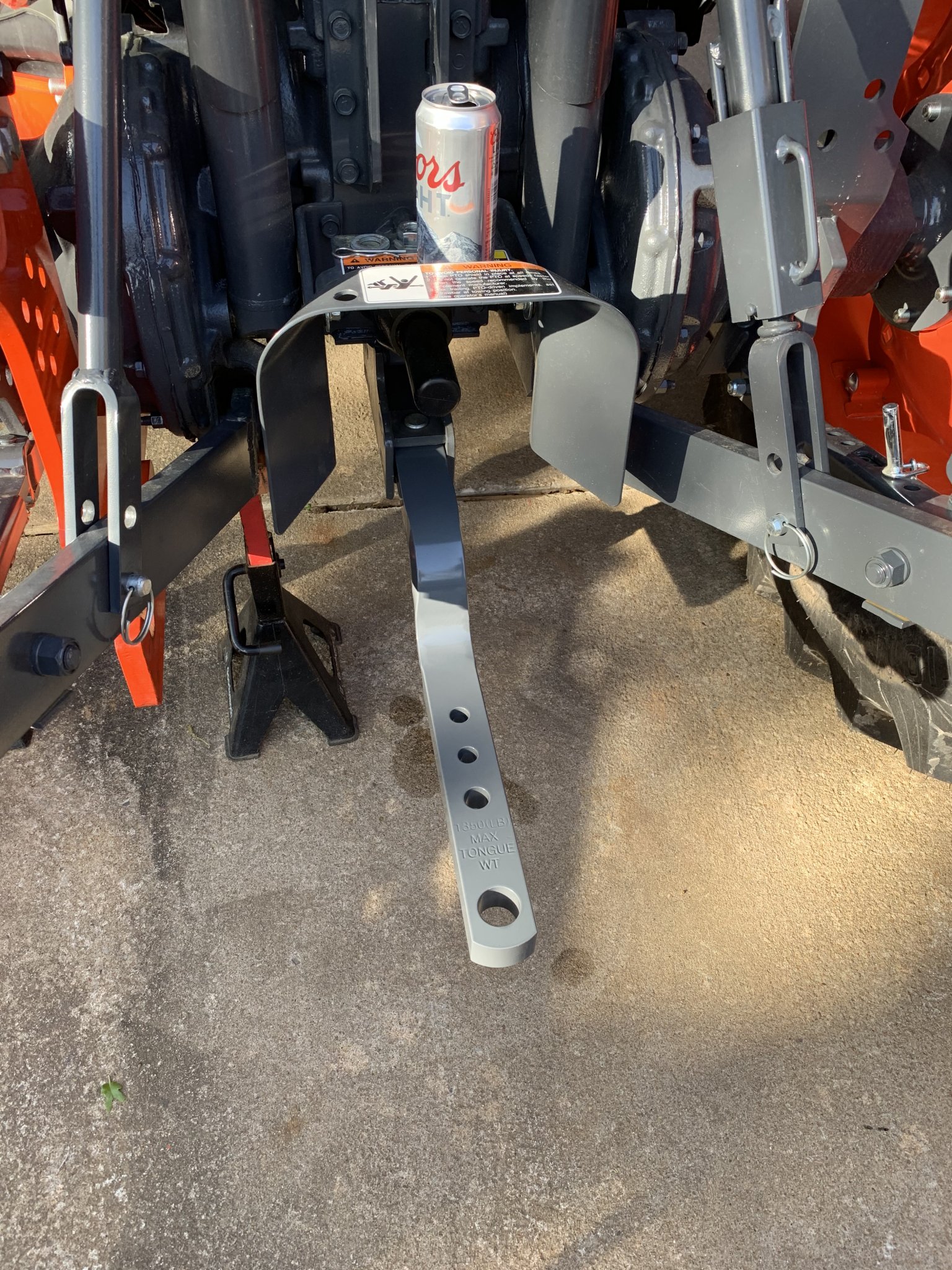

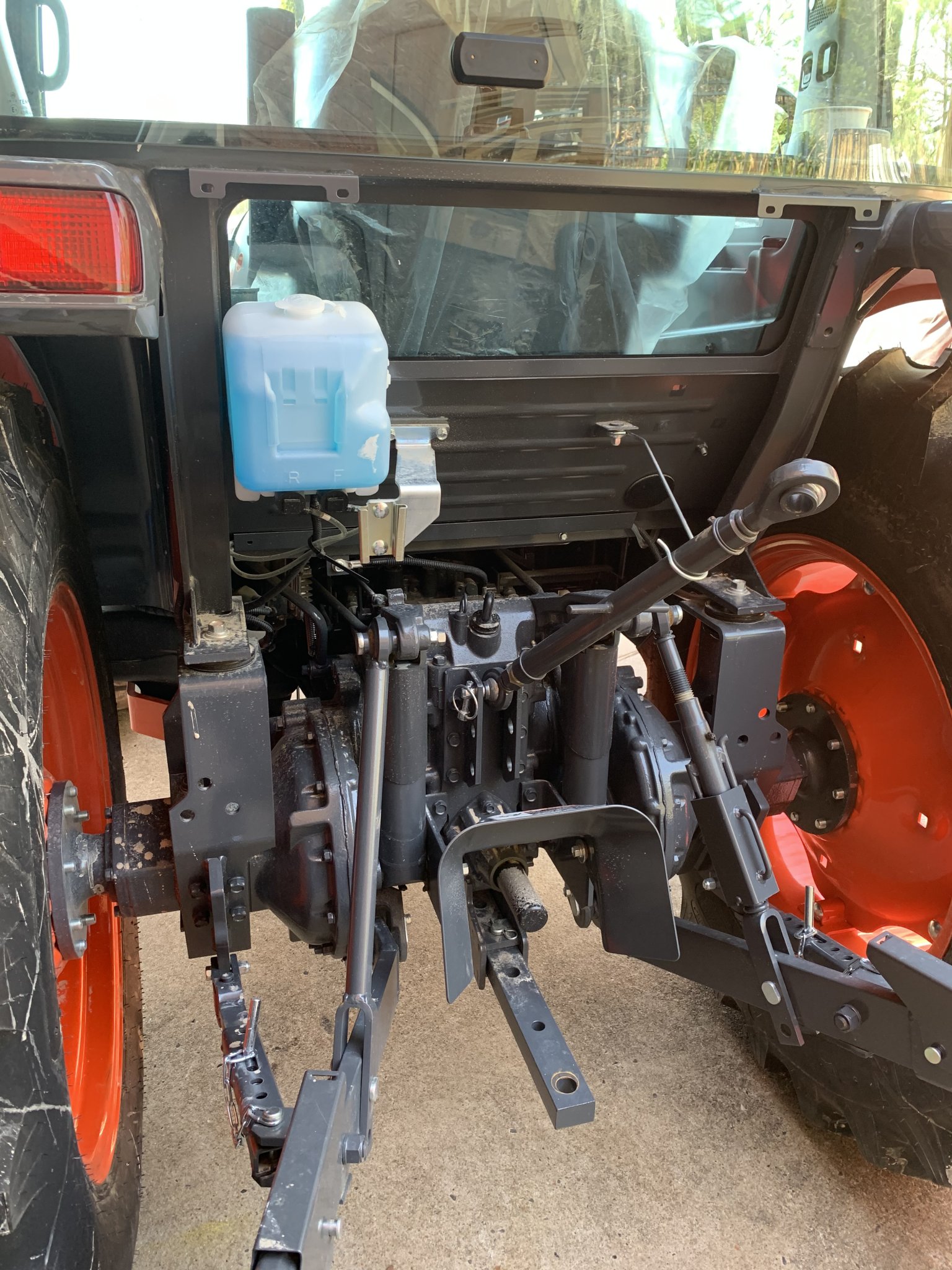

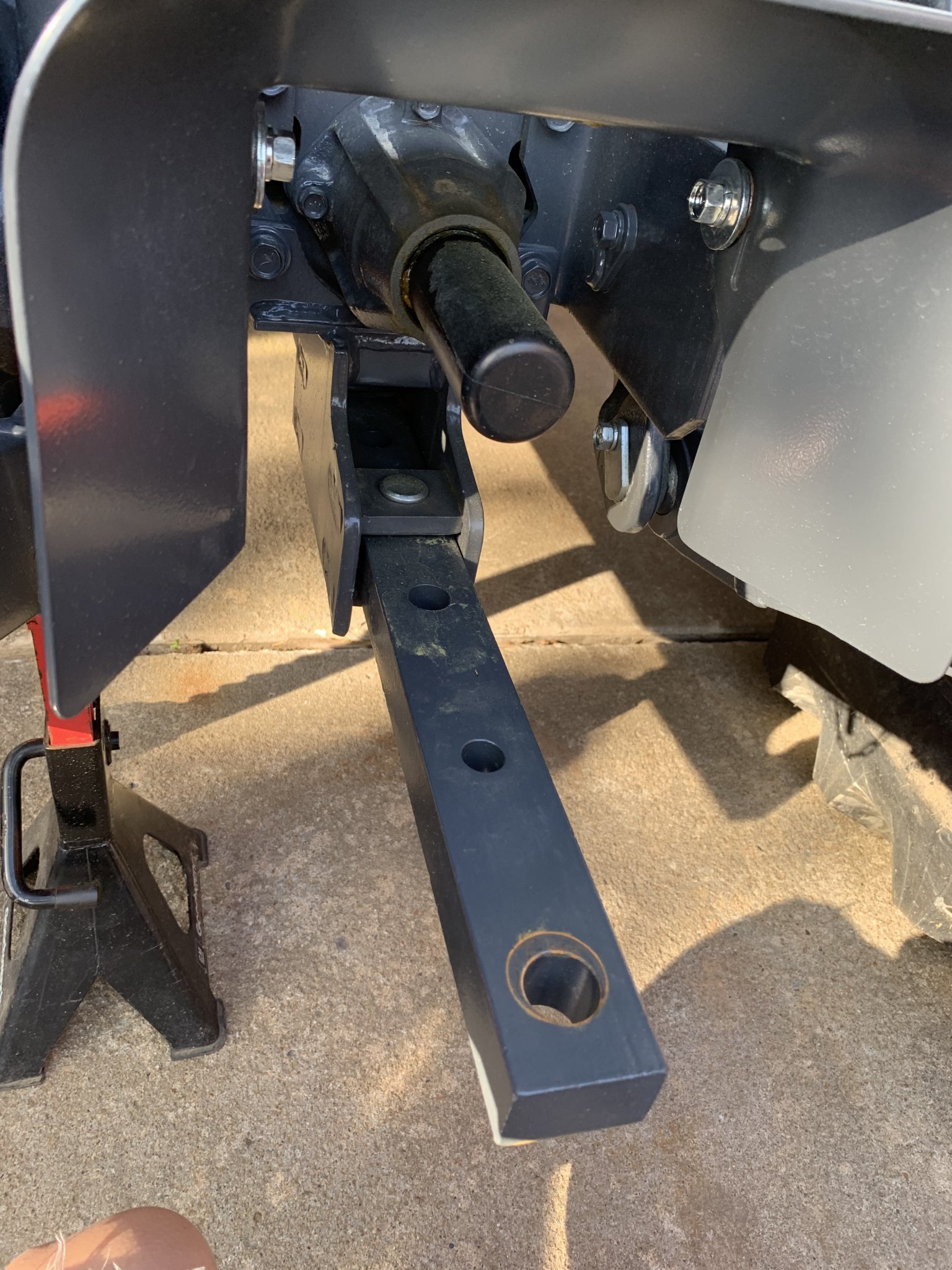

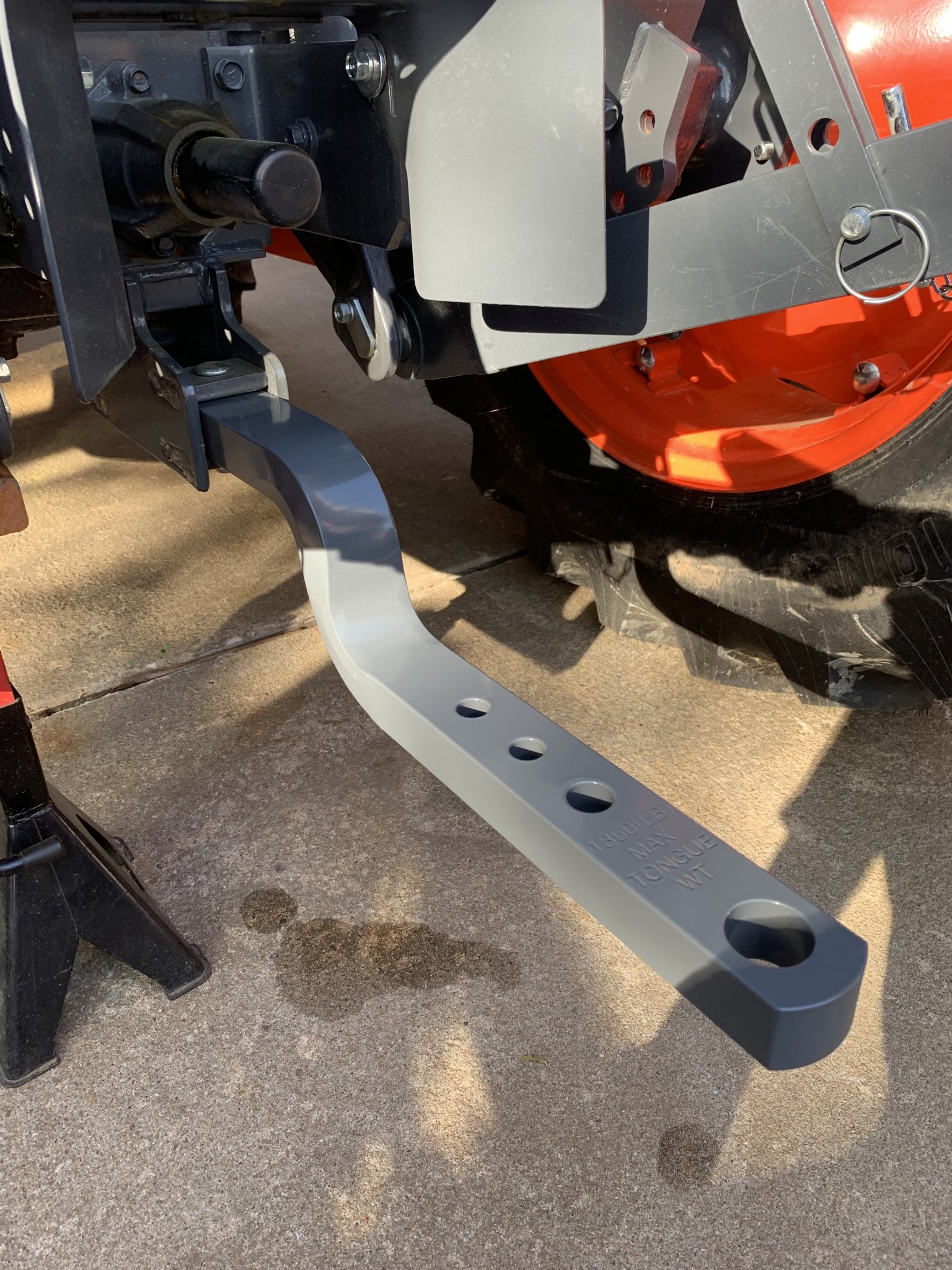

I took receipt of my new l6060 cab. I can confirm the drop drawbar gives you a 14" pto tip to pin hole spacing and is a 4" drop so should have plenty of vertical clearance. With the factory 28" ag tires I have 16" ground to bottom of drop drawbar. This drawbar will fix the issue with kubota gl60 tractors and the pto spacing. The l6060 has the least pto to pin length, if you have one of the lower hp models(l47,40,35) your pto to pin spacing will be larger.


Attachments
