L4630 - PTO interlock prevents tractor from starting even with PTO disengaged

Llaves

New member

Equipment
L4630-GST-C with LA853
Jan 17, 2016
21
2
3
Llaves, New Mexico, USA
Went to start the tractor yesterday and the PTO indicator light was on. This was strange as there is nothing mounted to the PTO and I have used the tractor many times since the last implement was taken off. I did the usual jiggling of the lever, also fully engaging and disengaging the lever. No effect. I suspect a mouse/wiring issue. Where is the sensor/switch located? Where does the wiring run?


whitetiger

Well-known member

Equipment
Kubota tech..BX2370, RCK60, B7100HST, RTV900 w plow, Ford 1100 FWA
Nov 20, 2011
1,956
586
113
Kansas City, KS
Went to start the tractor yesterday and the PTO indicator light was on. This was strange as there is nothing mounted to the PTO and I have used the tractor many times since the last implement was taken off. I did the usual jiggling of the lever, also fully engaging and disengaging the lever. No effect. I suspect a mouse/wiring issue. Where is the sensor/switch located? Where does the wiring run?
The switches are mounted right under the bracket for the PTO lever.


whitetiger

Well-known member

Equipment
Kubota tech..BX2370, RCK60, B7100HST, RTV900 w plow, Ford 1100 FWA
Nov 20, 2011
1,956
586
113
Kansas City, KS
Is there any way to override the interlock so that I can get it on a trailer to haul to the shop?
Is it not cranking or is it cranking and not starting?
If it is not cranking, you can unplug the small exciter wire from the starter solenoid and jump from the battery cable post to the exciter wire tab. Make sure the transmission is in neutral and preferably have someone setting in the seat depressing the clutch pedal.

If it cranks but will not start, remove the shutoff solenoid from the injection pump and stick a rag into the hole. To shut off the engine, you can use the shutoff lever on the injection pump, it's mounted right next to the throttle arm.


Llaves

New member

Equipment
L4630-GST-C with LA853
Jan 17, 2016
21
2
3
Llaves, New Mexico, USA
It's the not-cranking case. The PTO idiot light is on and nothing happens. I'll try as you suggest. That will at least let me get it on the trailer and to the shop where it will be easier to work on.

Thx.

  • Like
Reactions: 1 user

Russell King

Well-known member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
3,208
424
83
Austin, Texas
Is it not cranking or is it cranking and not starting?
If it is not cranking, you can unplug the small exciter wire from the starter solenoid and jump from the battery cable post to the exciter wire tab. Make sure the transmission is in neutral and preferably have someone setting in the seat depressing the clutch pedal.

If it cranks but will not start, remove the shutoff solenoid from the injection pump and stick a rag into the hole. To shut off the engine, you can use the shutoff lever on the injection pump, it's mounted right next to the throttle arm.
To run the key may have to be in the run position but I don’t know for sure


Llaves

New member

Equipment
L4630-GST-C with LA853
Jan 17, 2016
21
2
3
Llaves, New Mexico, USA
is this lead what you are referring to as the exciter? Presumably one lead is ground, the other is shorted to the battery to start the tractor.


Russell King

Well-known member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
3,208
424
83
Austin, Texas
is this lead what you are referring to as the exciter? Presumably one lead is ground, the other is shorted to the battery to start the tractor.

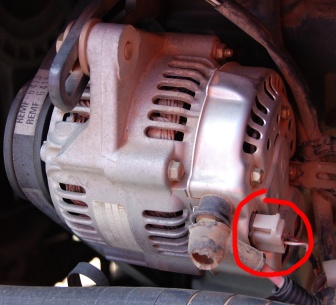

View attachment 60997
