BX23 Electrical Schematics – Engine Crank/Start and Engine Stop Systems

[FattyArbuckle]

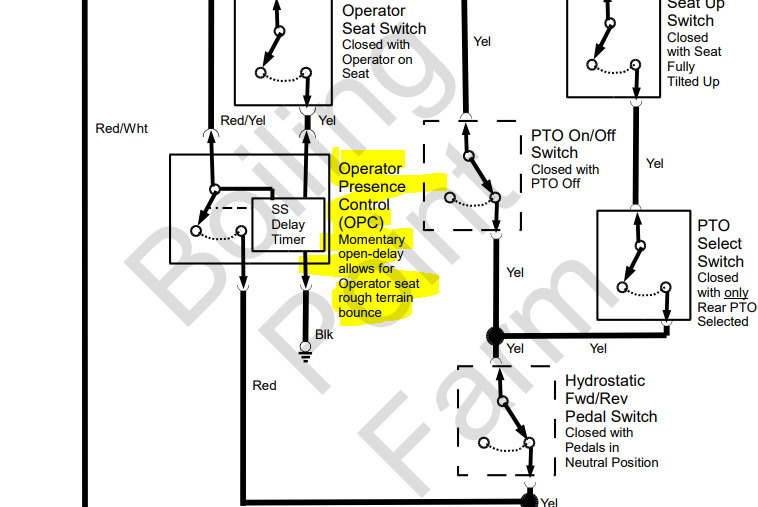

Attached two PDF documents are my functional system electrical schematics for my '08 BX23. These schematics use standard automotive technician nomenclature, not a wire maze, and only a basic understanding of electrical systems is needed to use.

I put these together so that I could understand operation, including for my intent to put an Estop switch on a rear implement, and hopefully it will help others.

NOTE: As I cannot possibly address every person's skill level, you are ultimately responsible for how you use these schematics with regard to your and your equipment's safety. I believe these schematics to be correct but cannot be responsible for any errors, model variations, etc. Also, these schematics are intended for personal use and may NOT be used or used as the basis for a published (paper, electronic, etc.) document without my written permission.



[North Idaho Wolfman]

What you state is not really the purpose, the purpose is to allow time for the seat to be flipped up to BH position or Operator off machine position.

And send me something in a PM proving you did indeed make these prints or I will have to take them down for copyright infringement.



[FattyArbuckle]

Hi Wolfman,
Not sure how to send you a PM tell me how to do that and I will.
Yes, I created these schematics and used to do it for a living and, in fact, was in the company that created the concept of only showing a functional system. What kind of proof do you want me to send?
With regard to the delay timer on the seat it is a fast time on my tractor and sometimes if I bounce too much it will activate the pump- stop relay so I'm not sure that it's really intended to allow you to get off the seat and flip it up if that's what you mean.
Thanks



[FattyArbuckle]

And BTW I don't object to your wanting to verify that I'm the creator. I went a little crazy with a watermark and copywrite notice as I've had work stolen before.
Thanks.
