B5100, B6100 Factory Front End Loader

[dynamichandyman]

FS: B5100, B6100 Factory Front End Loader

Just joined the forum and wanted to post here before going to Ebay on these items.

I have for sale a factory Kubota loader that came off a B5100 tractor. I believe it will fit on a B6100 and B7100, no model listed on the loader. Do your own research. As you all know these are very hard to find on their own. Loader is missing the bucket. The spools on the valve move but don't know if the valve leaks. This loader was on a parts tractor that I purchased which I am also selling so I don't know condition of cylinders. The subframe came off a B6000 tractor and will have to be modified to fit other tractors.

Asking $2000 obo for the loader. If I am off my rocker with my price please make me an offer I cant refuse!! I know aftermarket loaders can be close to 3k.

If you want clearer pictures send me your email address and and will send them your way.



[Lil Foot]

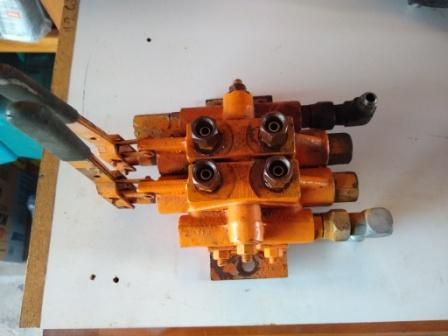

That appears to be a B219 FEL, although the spool valve is different from others I have seen. Also appears to have been repaired/modified in the middle of the arms. Location of the nomenclature plate/sticker should be inside of the left upright near the bottom. Mine was heavily painted over.



[dynamichandyman]

That appears to be a B219 FEL, although the spool valve is different from others I have seen. Also appears to have been repaired/modified in the middle of the arms. Location of the nomenclature plate/sticker should be inside of the left upright near the bottom. Mine was heavily painted over.

I just went and took a look at it, nothing there. There is no plate/sticker on the loader. It does seem to have been modified at one point. I purchased it with a parts tractor so i have not messed with it myself. Thanks for the info!



[L275]

Does anyone know if this loader will work on an L275?

I've been told that the hydraulic system is not available for the L275 although I believe the Kubota L275 (1981 - 1985 L Series) may have been manufactured during or nearly the same years as the B5100 (1978 - 1984).



[dynamichandyman]

Tractors are gone and need this one out of the yard as well. Asking $2000 OBO!



[North Idaho Wolfman]

Does anyone know if this loader will work on an L275?

I've been told that the hydraulic system is not available for the L275 although I believe the Kubota L275 (1981 - 1985 L Series) may have been manufactured during or nearly the same years as the B5100 (1978 - 1984).

No it won't fit, it's way too small.



[B6000ME]

This is a B211 loader. Lots of missing parts. You will need a hydraulic pump which fits in the bracket that is shown or you will need to have a port in the hydraulic system. This loader will fit a 6000, and 5100, 6100 and 7100 with modifications. the main difference between a 211 and a 219 is the lack of a hydraulic Reservoir in the right-hand Tower. Good luck with your sale.



[Lil Foot]

the main difference between a 211 and a 219 is the lack of a hydraulic Reservoir in the right-hand Tower.

Learned something new today- thanks!



[dynamichandyman]

Learned something new today- thanks!

I learned something as well! I have been wondering what the difference is between the two. I guess the one I put on my B5100 is a 219 since it has the reservoir on the right side. I turned the left side into a reservoir as well.


Check out the tractor I am about finished up with.,



[Lil Foot]

I turned the left side into a reservoir as well.

Added a fill port and a crossover pipe/hose I assume?

Tractor looks good, but a little naked without the ROPs.



[dynamichandyman]

Added a fill port and a crossover pipe/hose I assume?

Tractor looks good, but a little naked without the ROPs.

I used the new reservoir as the return reservoir. I added a return filter to the system since it did not have one. Hose runs from the left side to the right side.

I never plan on adding a seat belt to this tractor so I will not be adding ROPS.



[L275]

No it won't fit, it's way too small.

Thanks, I appreciate the input on this.



[DOTMANS-54]

I used the new reservoir as the return reservoir. I added a return filter to the system since it did not have one. Hose runs from the left side to the right side.

I never plan on adding a seat belt to this tractor so I will not be adding ROPS.

Hello. I know this is an old post, but are you still selling the loader attachment?
Thanks
