B2601 loader cylinder denting frame

Hodag Kubota

New member
Sep 15, 2020
12
1
3

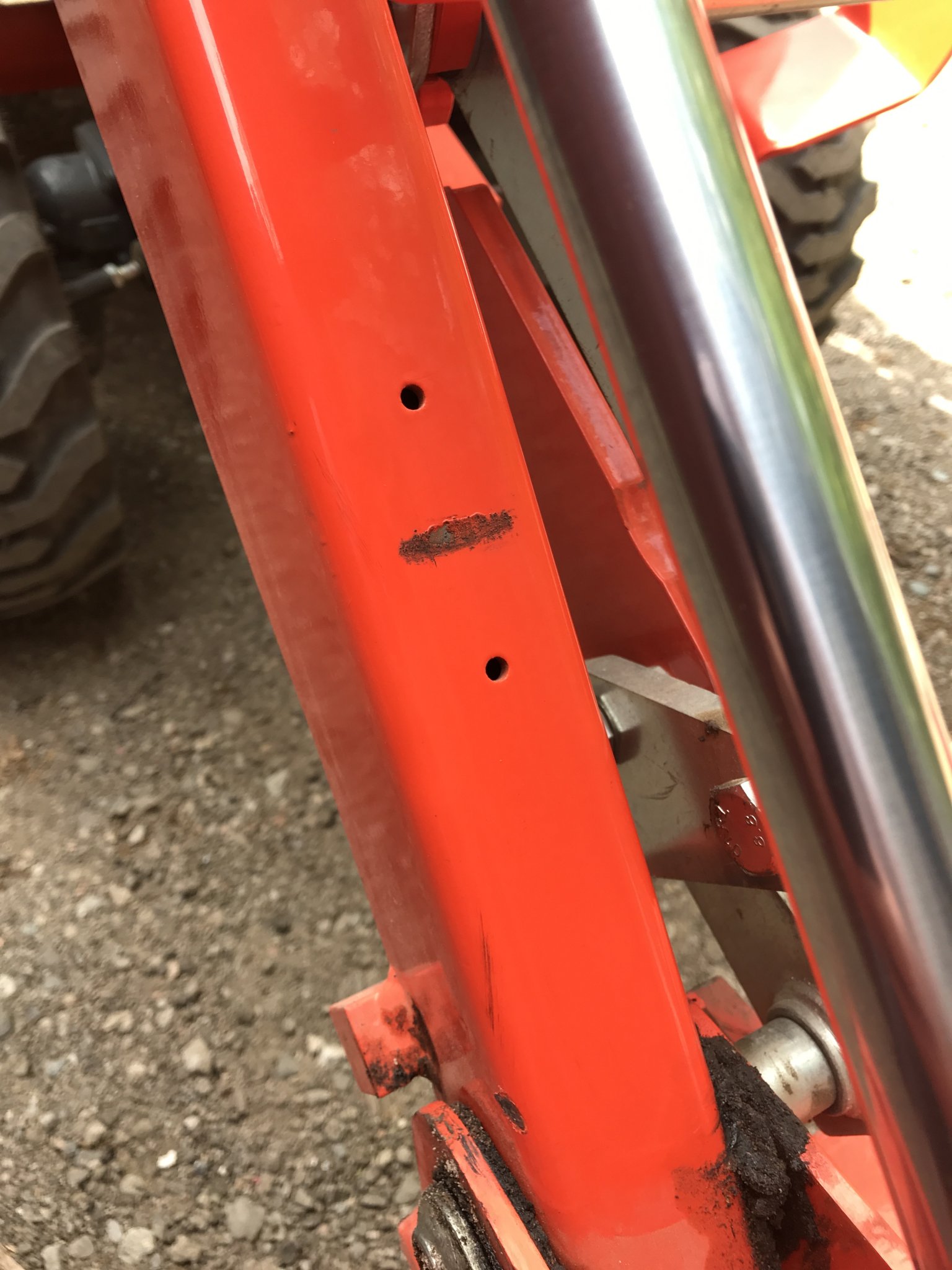

Every time I curl the bucket in, the cylinders hit the loader frame. On the frame there are 2 holes, one above and one below the spot where it hits. Is there some kind of bumper or plastic stop that would mount there? My dealers says no. ?


B737

Well-known member
Lifetime Member

Equipment
LX3310
Jun 9, 2019
2,024
2,194
113
New Jersey
something doesnt look right here.... need more pictures for your loader




  • Like
Reactions: 1 user

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
8,282
3,865
113
Chenango County, NY
B737 - or anyone else with a B2601 - curl your bucket all the way back. Seems that shouldn’t be making contact…. Thinking there’s a stop not right.

Hodag - what model loader do you have on your tractor?


B737

Well-known member
Lifetime Member

Equipment
LX3310
Jun 9, 2019
2,024
2,194
113
New Jersey

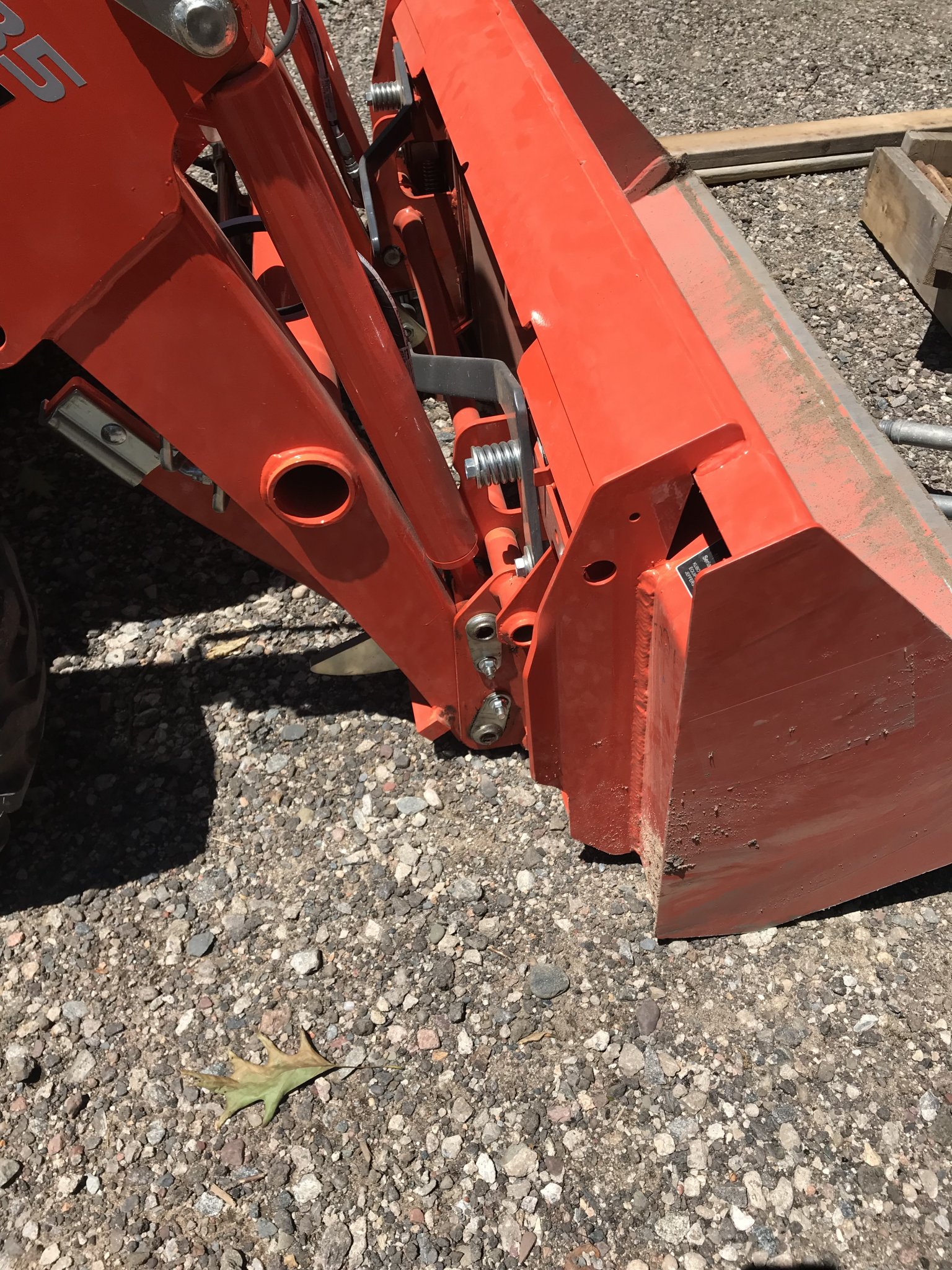

no there is plenty of clearance. Something isnt assembled right, or is bent on loader. OP
attach more pictures of loader if possible


  • Like
Reactions: 1 users

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
8,282
3,865
113
Chenango County, NY
no there is plenty of clearance. Something isnt assembled right, or is bent on loader. OP
attach more pictures of loader if possible
Yeah - - - thanks for that. Something isn't right.....

More photos would be handy from OP.

Looking at B737's photo, looks like the bottom of curl cylinder barrel is hitting.

That could also damage the seal on the cylinder, making a larger problem beyond a mark in the paint.

  • Like
Reactions: 1 users

Hodag Kubota

New member
Sep 15, 2020
12
1
3
B737 - or anyone else with a B2601 - curl your bucket all the way back. Seems that shouldn’t be making contact…. Thinking there’s a stop not right.

Hodag - what model loader do you have on your tractor?
435 swift tach


tinkerwitheverything

Active member

Equipment
bx2370-1
Jun 3, 2015
316
71
28
Manitoba
Not sure if this would be a reason but if you put pressure on the leading edge of the bucket with the bucket being all the way curled back , would it cause the cylinder to hit the frame because of that. If thats the case then the stops arent placed right keeping the bucket from flopping to far back. ?? Then again is that mark from the pin area or the cylinder itself.??


Hodag Kubota

New member
Sep 15, 2020
12
1
3

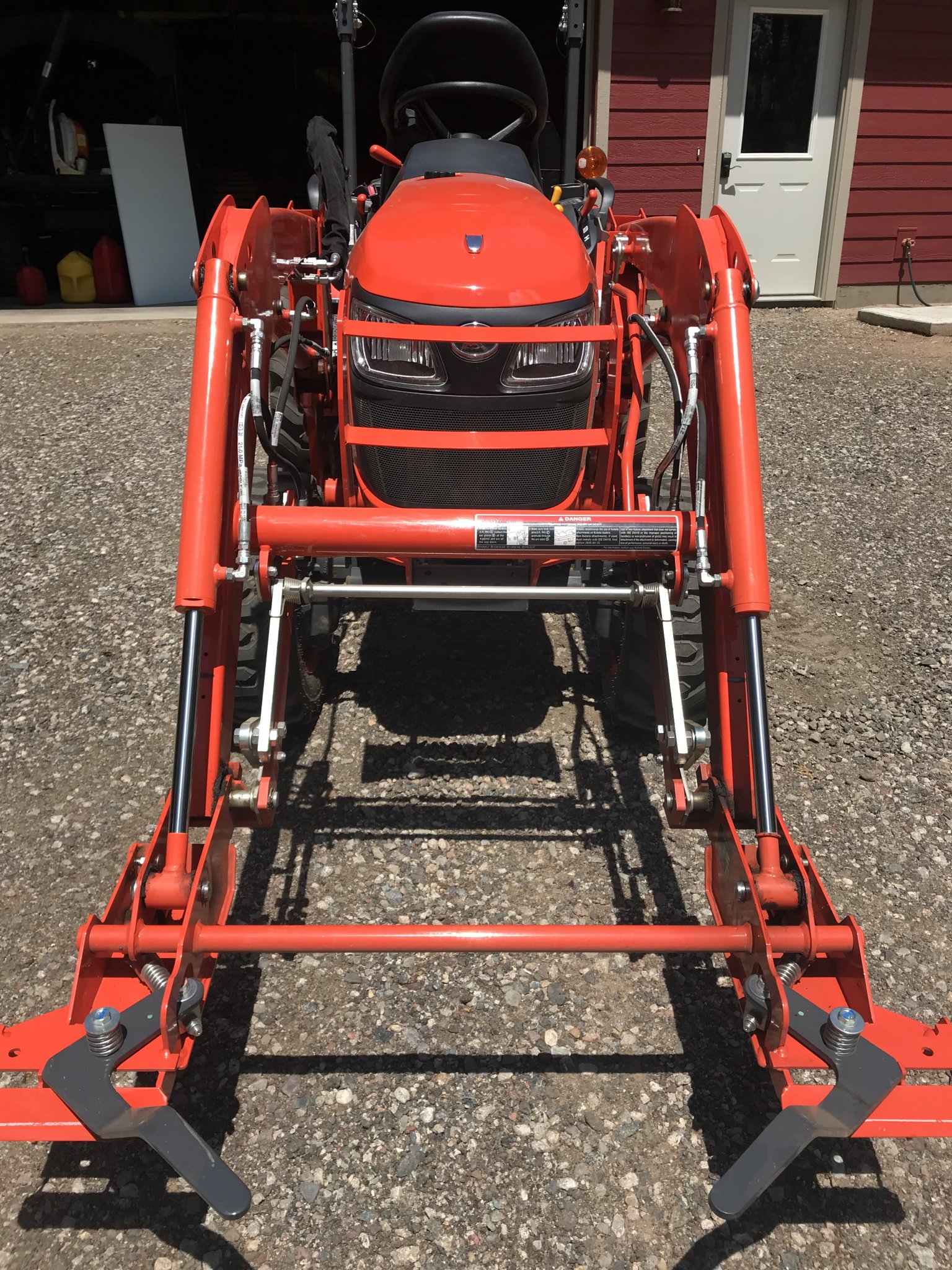

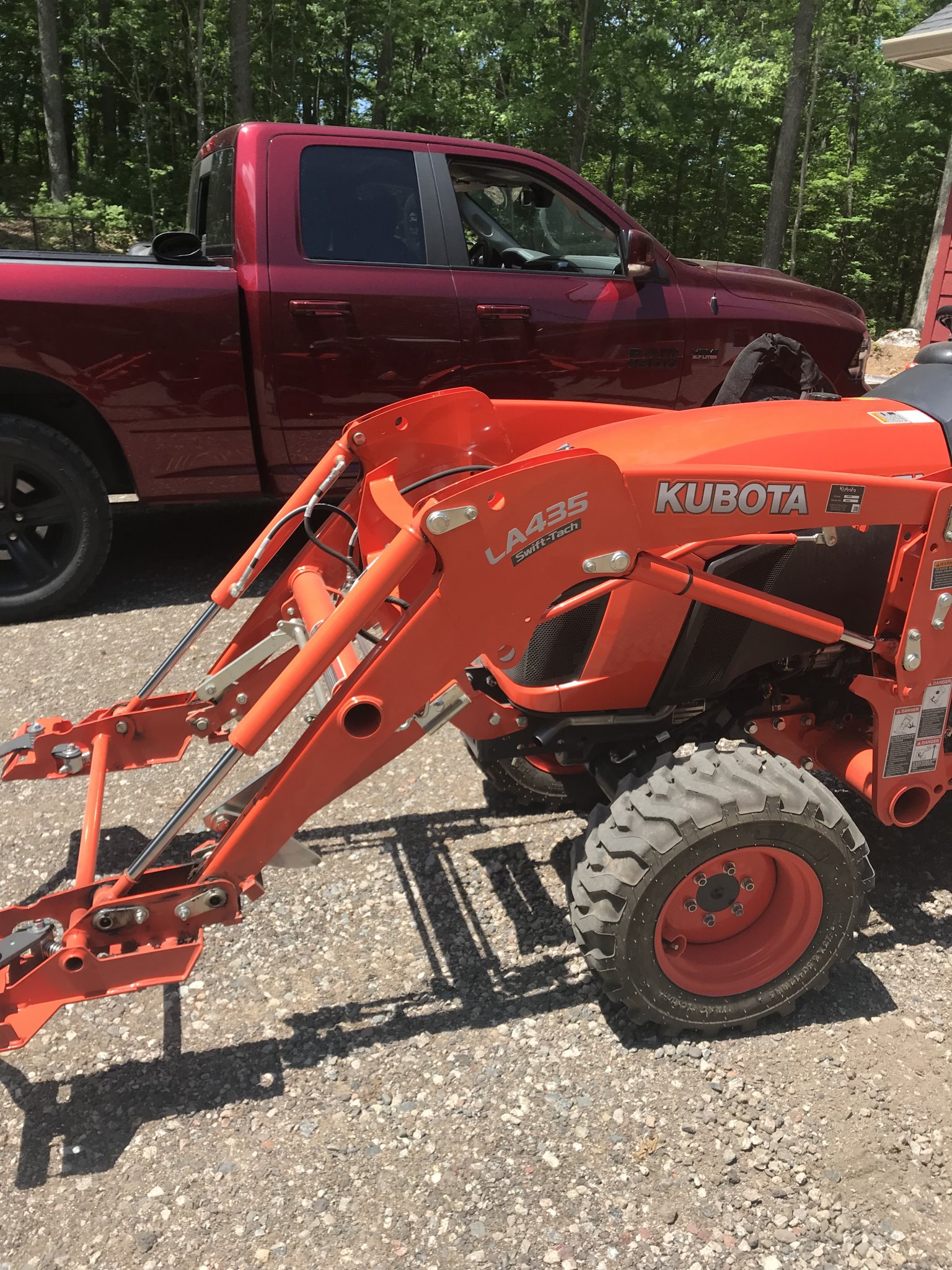

These are some pics. The part of the cylinder that hits is the pin end. Sorry. I should have specified


Attachments

tinkerwitheverything

Active member

Equipment
bx2370-1
Jun 3, 2015
316
71
28
Manitoba
How about pics with it curled back. This way we can see if the bucket linkage/ frame is making contact with the stops on the loader frame. If the stops aren't doing what there meant to do then I can see were the pin area of the cylinder is acting as the curl back stop. Hopefully that makes sense.


Hodag Kubota

New member
Sep 15, 2020
12
1
3
How about pics with it curled back. This way we can see if the bucket linkage/ frame is making contact with the stops on the loader frame. If the stops aren't doing what there meant to do then I can see were the pin area of the cylinder is acting as the curl back stop. Hopefully that makes sense.


wgator

Active member

Equipment
L4701HST, FEL and other stuff.
Jul 28, 2018
482
147
43
NC
Look at the part number on the left side tag of your quick attach. Kubota wholegoods says it should be B2366, when I blow up your pic of it, it doesn't look like B2366. Yours also looks different than B737's picture of his.


tinkerwitheverything

Active member

Equipment
bx2370-1
Jun 3, 2015
316
71
28
Manitoba
well you can deffinatly see that your quick attach frame does not make contact with the curl back stop. Not sure if it's the wrong quick attach frame or what. Of course a piece of metal could be welded on either the frame or the stop if your inclinded to do that.


B737

Well-known member
Lifetime Member

Equipment
LX3310
Jun 9, 2019
2,024
2,194
113
New Jersey
Look at the part number on the left side tag of your quick attach. Kubota wholegoods says it should be B2366, when I blow up your pic of it, it doesn't look like B2366. Yours also looks different than B737's picture of his.
wow you have a good eye for detail, I didnt notice that until I took another look. you can see how his SSQA adapter is straight where the other one is curved.


wgator

Active member

Equipment
L4701HST, FEL and other stuff.
Jul 28, 2018
482
147
43
NC
well you can deffinatly see that your quick attach frame does not make contact with the curl back stop. Not sure if it's the wrong quick attach frame or what. Of course a piece of metal could be welded on either the frame or the stop if your inclinded to do that.

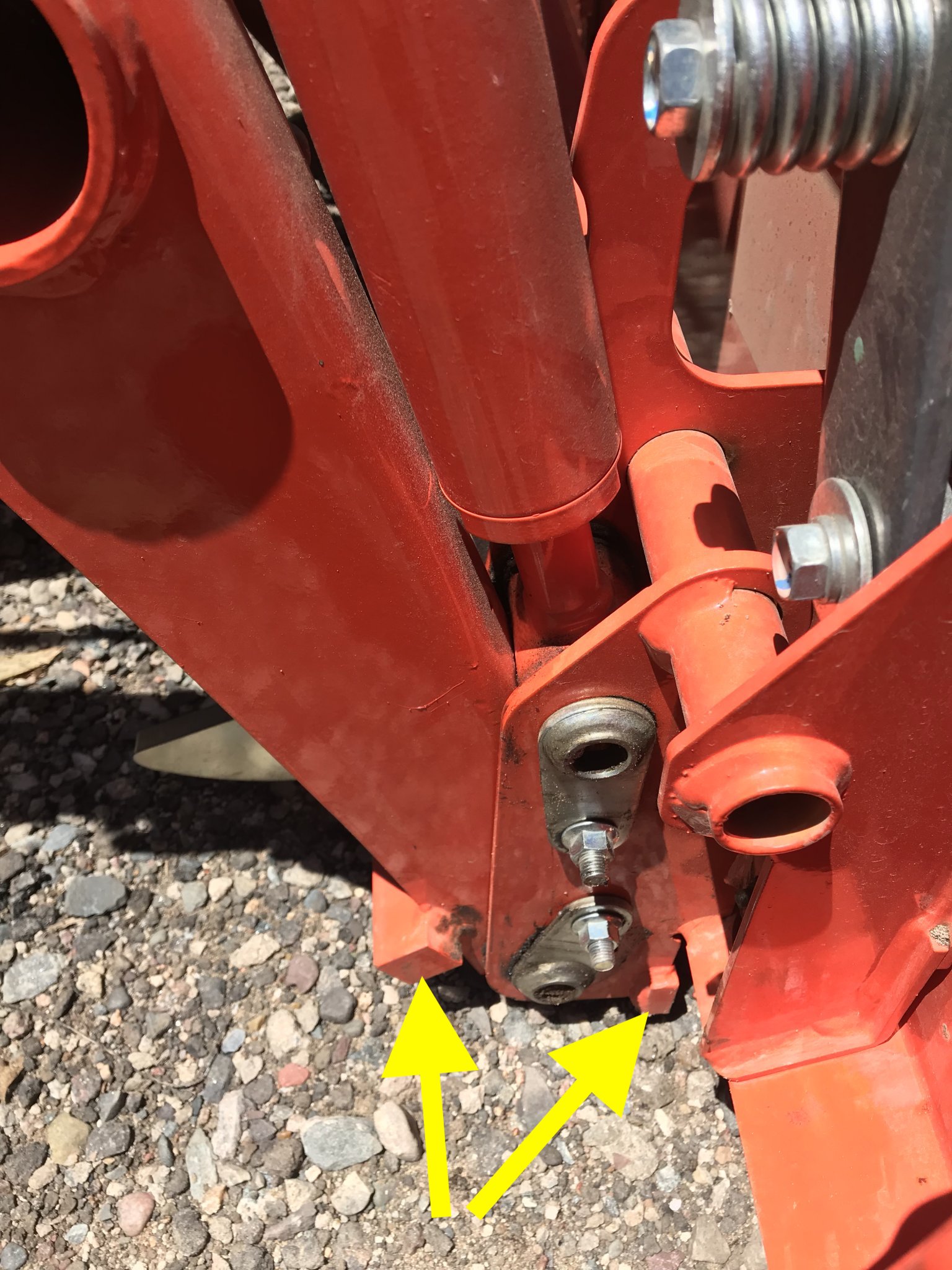

Isn't that the dump stop to keep from pulling the rods out of the cylinder?


dump stop.jpg


Hodag Kubota

New member
Sep 15, 2020
12
1
3
Look at the part number on the left side tag of your quick attach. Kubota wholegoods says it should be B2366, when I blow up your pic of it, it doesn't look like B2366. Yours also looks different than B737's picture of his.


wgator

Active member

Equipment
L4701HST, FEL and other stuff.
Jul 28, 2018
482
147
43
NC

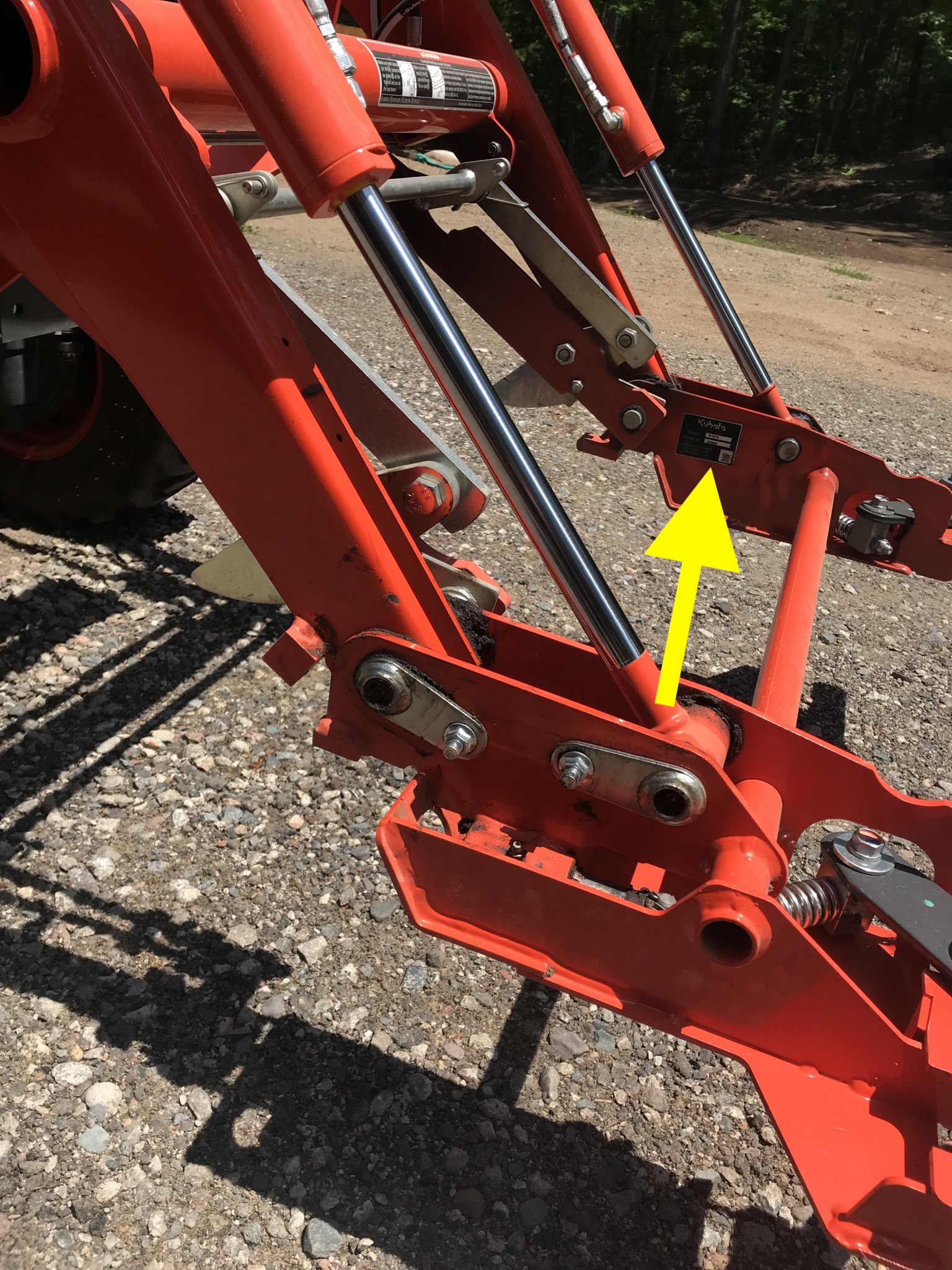

I meant the one on your SSQA shown below:
SSQA tag.jpeg


wgator

Active member

Equipment
L4701HST, FEL and other stuff.
Jul 28, 2018
482
147
43
NC
Sorry. I don’t know all these abbreviations
From what I find on line, the B1673 Skid Steer Quick Attach (SSQA) is for a LA1055 loader, not yours. I would ask B737 if he would be so kind as to check his SSQA model number (he has same tractor and loader as you) to verify it is a B2366. If his is you may have found your reason for hitting the arms.


B737

Well-known member
Lifetime Member

Equipment
LX3310
Jun 9, 2019
2,024
2,194
113
New Jersey
I would ask B737 if he would be so kind as to check his SSQA model number (he has same tractor and loader as you) to verify it is a B2366. If his is you may have found your reason for hitting the arms.

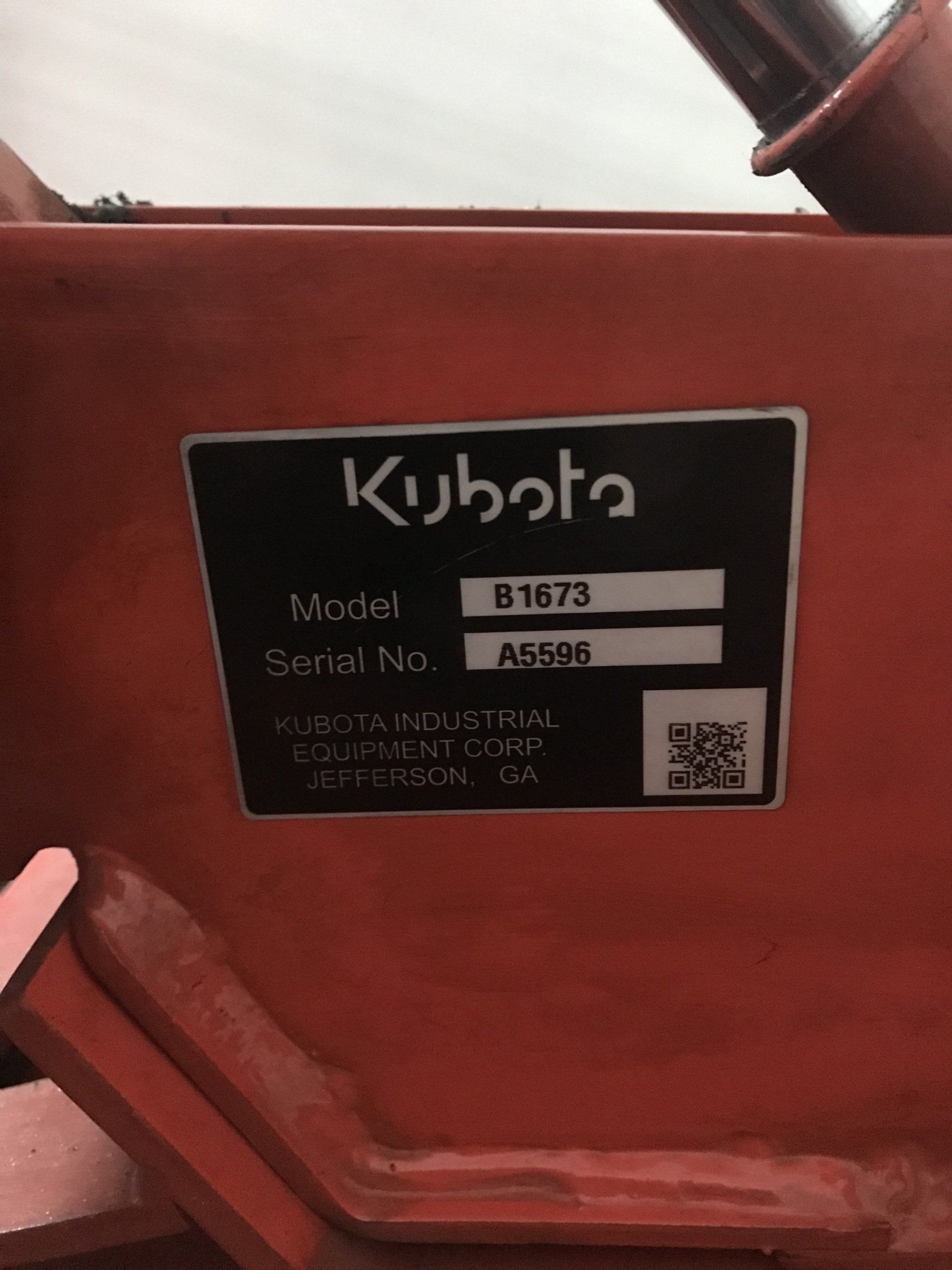

I just checked. It is indeed at B1673, why the heck does his B1673 look different than mine? he lacks the curve. Even the orientation of the fasteners look different too.
