1850 mower deck spindle

Fitter30

New member

Equipment
Bx1850
Nov 4, 2018
6
0
1
Peace Valley
RCK5423BX sn14668 deck. Shaft on spindle is not like the parts list k5371-34552 looks close but their is no bushing over the top bearing, their is a fixed washer ( lack of a better description) same size of the bearings inner race. Do not see how to remove shaft. Bearings are bad. No snap rings, tried to unscrew the upper to lower shaft I'm at a loss.


wgator

Active member

Equipment
L4701HST, FEL and other stuff.
Jul 28, 2018
482
147
43
NC
Try this link to the online WSM pages for the disassembly procedures, it may help you. Note: you can forward and back through the manual and there are different figures, one for the RCK54-23BX as there is also different figures for a RCK54P-23BX shown also.


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
33,040
8,473
113
Sandpoint, ID

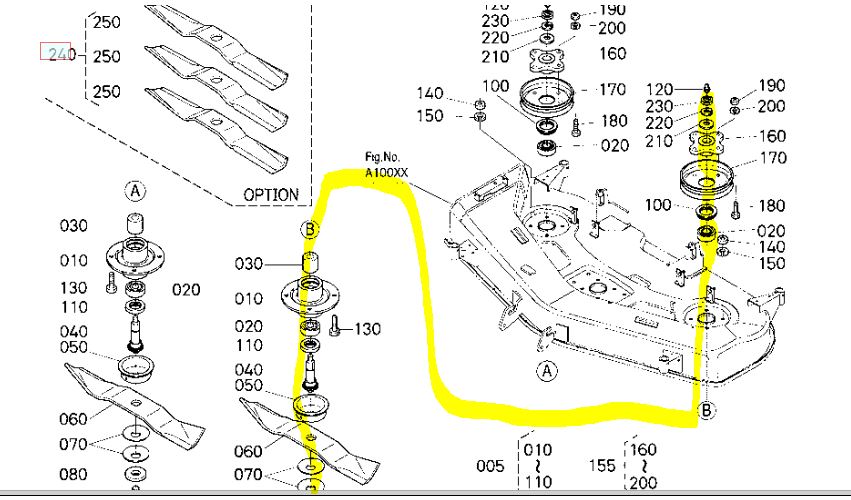

There is no bushing over the top bearing, it's between the 2 bearings.
If this does not look like yours then post a picture of what you have. ;)



Attachments
