Hi all,
I had a leaking steering controller on my BX1800, so I pulled it and sent it off for a rebuild. But I failed to note which line went where. The service manual is only somewhat helpful. Does anybody know off the top of their head or able to look at their own tractor?
There is lines for input and return. One has an elbow connector, the other doesn't

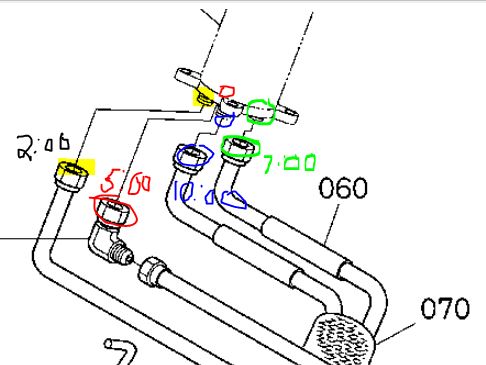

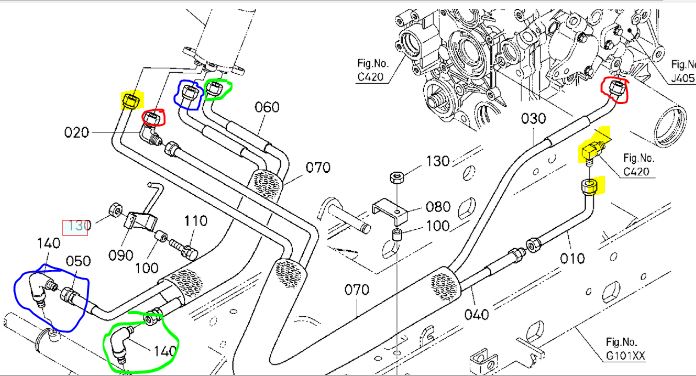

Then there are lines for each side of the steering cylinder at the front wheels. Looking at the service manual and parts diagram, it seems to suggest the "right (R)" line goes to the left side as viewed from the drivers seat, and vice versa, which seems strange so I want to verify.
Any help appreciated. Thanks!
