Hi John,
I think I have attached a few pictures of the loader to this message. The subframe has two components; two heavy steal rails that run from the engine block back to the rear case which support the loader posts. Then there is a another piece mounted to the front bumper. Tubular support rods connect the top of the posts to the bumper. There is also a small tube and flange which supports the hydraulic pump. This is aligned so that the pump pulley lines up with the fan pulley on the engine.
Hope this helps
Todd
View attachment 258

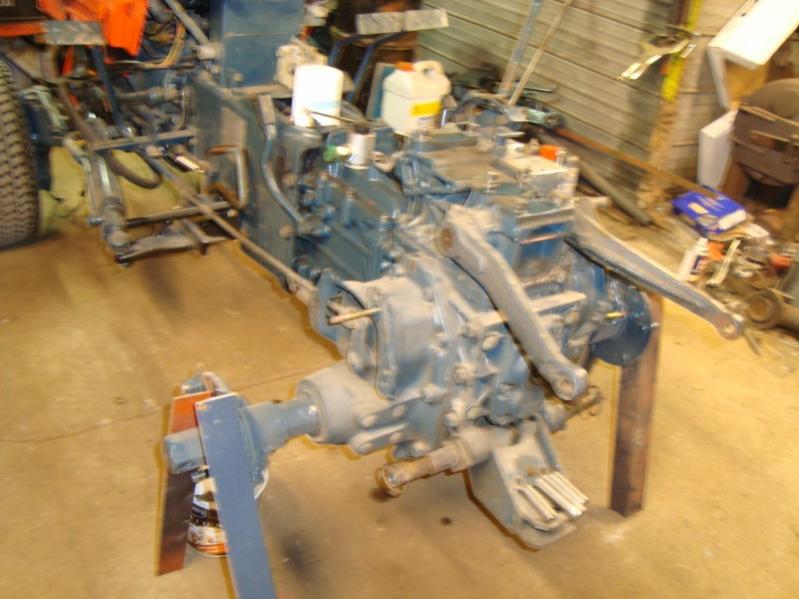

View attachment 261
View attachment 259

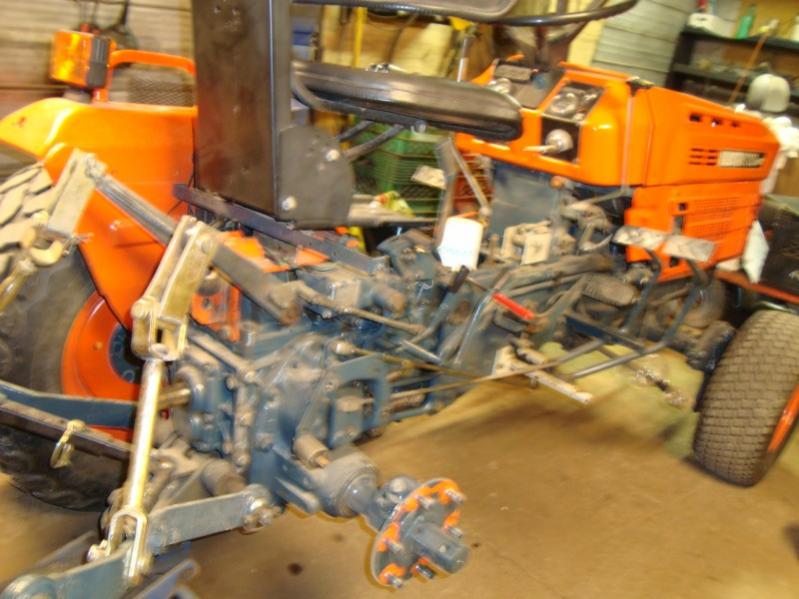

View attachment 260
Hello, sorry for the ancient thread bump but I was trying to identify the loader on my B6000 and this one looks a lot like mine with the curved back to the bucket, valve stack and mounting location, and the tubular frame supports
The pump and pump bracket look identical as well
I was hoping to find what model number this attachment is so I can download the owners manual, parts manual, and service manual if one exists
Thanks in advance!
John
