Ripper Cultivator Build

[meili416]

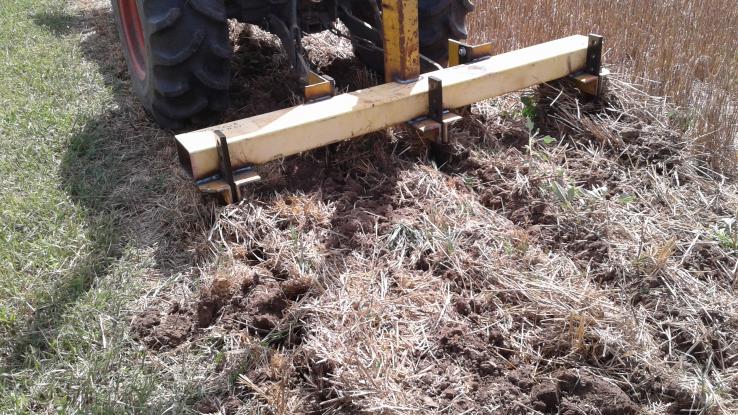

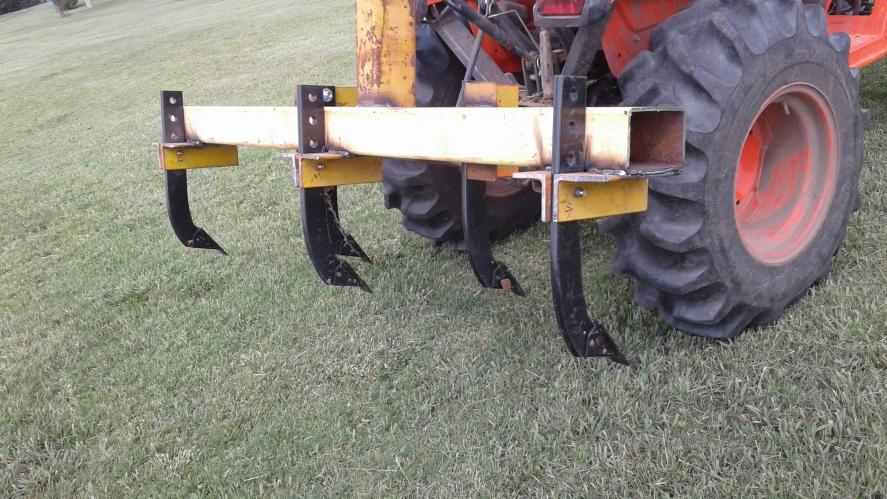

I just finished having a 5 foot riper/cultivator built for my B2920. I used salvaged steel and new box blade rippers. It does the job, even in hard packed clay. Now to get it sandblasted and painted orange.



[kbrothers]

Looks like it should get er done Nice job



[Lencho]

Very nice! How deep are the rippers going?



[meili416]

They are working 6 to 12" deep, depending on the type of soil.



[skeets]

Im betting as heavy as that looks to be build it could bring your little beast to a halt if you hit some hard stuff,, Nice job



[meili416]

I hooked and pulled up a 300 lb rock with no damage. The main beam is 4" x 6" x 1/4" tube. The 3 rear shanks have 3/8" shear bolts. I might drop back to 5/16" bolts. Roots at what will stop it quickly.



[Creature Meadow]

Looks nice, should work great for loosing up the soil.

Where do you plan to use it at, garden, pasture?



[hank2000]

Would an L3000F pull something like that. It being a two wheel drive and all that. But it is gear driven


Sent from my iPhone using Tapatalk
