LX2610 Instrument Panel Parts

[je1279]

Does anyone know where I can find schematics and part numbers for instrument panel components for a LX2610HSD?



[whitetiger]

Here are the only parts you can get.
https://kpad.kubota.com/books/26320/figs/2243145



[Russell King]

Go through this site and you can find the information, you have to agree to some terms at the bottom of one screen

Kubota Tractor Corporation - Illustrated Parts List

- K-PAD - Parts Lists - Illustrated Parts Lists - diagrams

apps.kubotausa.com



[je1279]

Thanks all. I mistakenly thought that the knock out panels for auxiliary switches were glued on. I grabbed a screwdriver to pop one off and ended up taking a chunk out of the panel surround in the process. Now, I just need to figure out the difference between part numbers 6C410-53522 and 6C410-53523.



[Russell King]

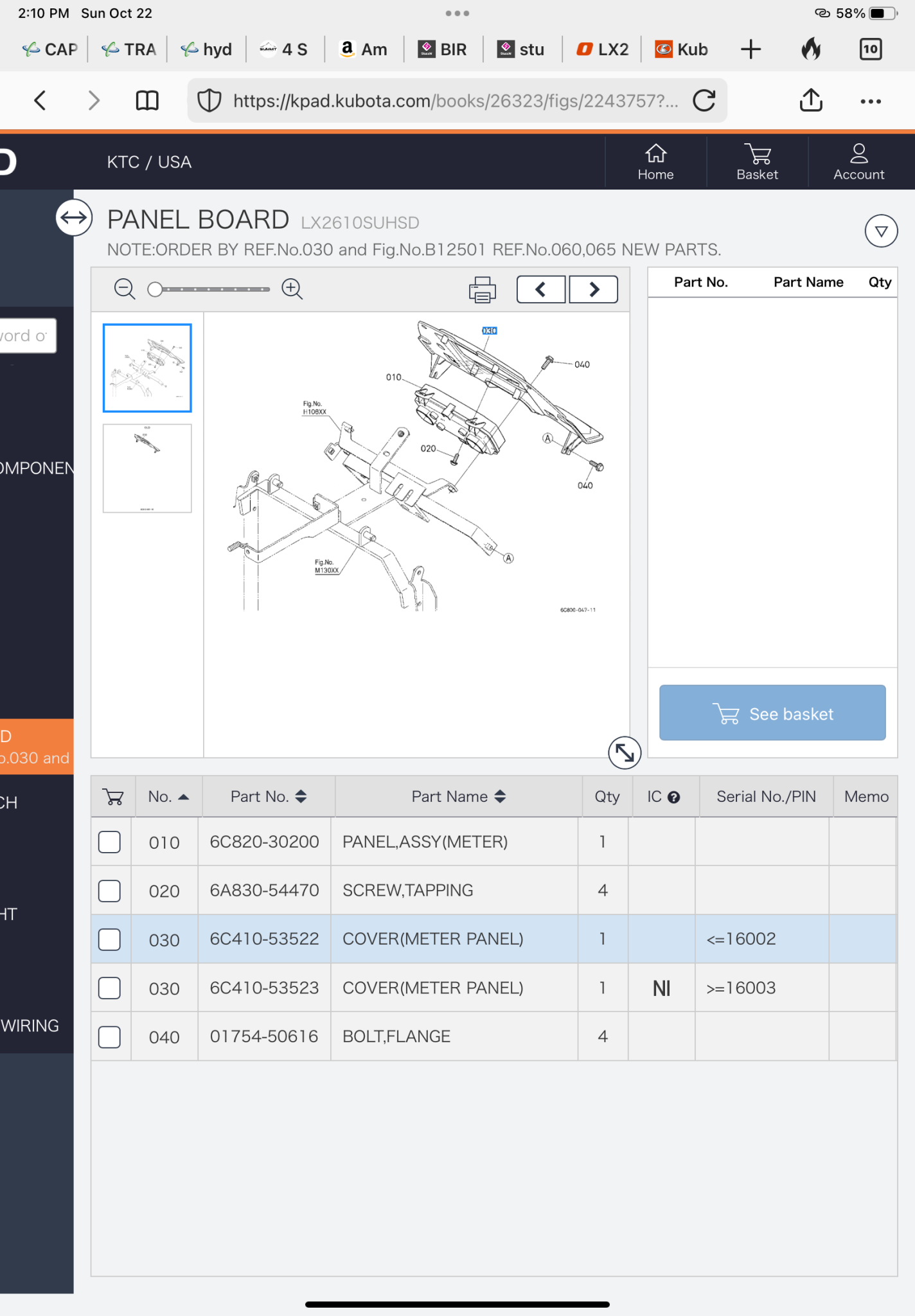

The difference is in the serial number of your tractor:
6C410-53522 is for serial numbers equal to or less than 16002
6C410-53523 is for serial numbers equal to or greater than 16003
(see the column on the right side below)



[je1279]

Much appreciated, sir. Unfortunately, wasn't able to find information on that site for a LX2610HSD, but the LX2610SUHSD information gave me what I needed.



[Russell King]

I’m confused by the Kubota website now…
I searched for your model number and found it.
There is a statement on one page that shows the same part numbers as above. That page has a note saying to see a second page. There is a second page with similar information and uses the exact same part numbers.

There is also a note that the two parts are non-interchangeable so I would talk to the dealer or call Messicks with your serial number and model number in hand just to be sure what to order.



[je1279]

Messick's got back to me this morning and confirmed that 6C410-53522 is the correct part for my unit based on its serial number. After shipping, it was a $75 stupidity tax for not removing the dash as I should have.
