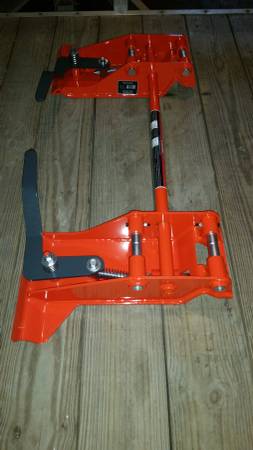

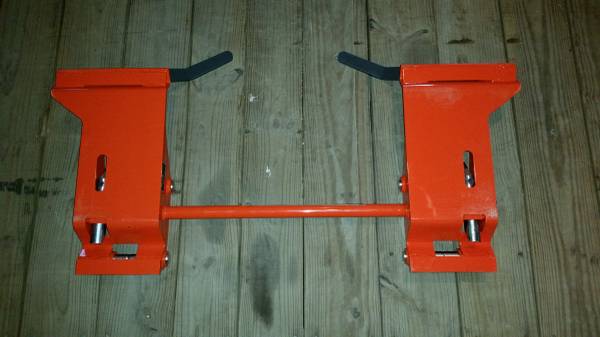

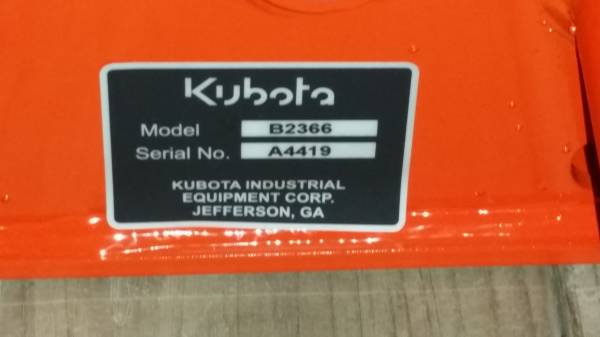

I have a new Kubota B2366 loader adapter to replace a pin-on bucket with a skid steer quick attach setup. I used a similar piece on my B2910 with LA402 loader to convert so that I could quickly change implements (bucket to skid steer forks mostly for me). Also called a quick hitch.
The B2366 is factory option for the LA534 loader, used on the B2650/B3350. It might be able to be used for others, Kubota would likely not approve but here are the dimensions you need to make your own decision:

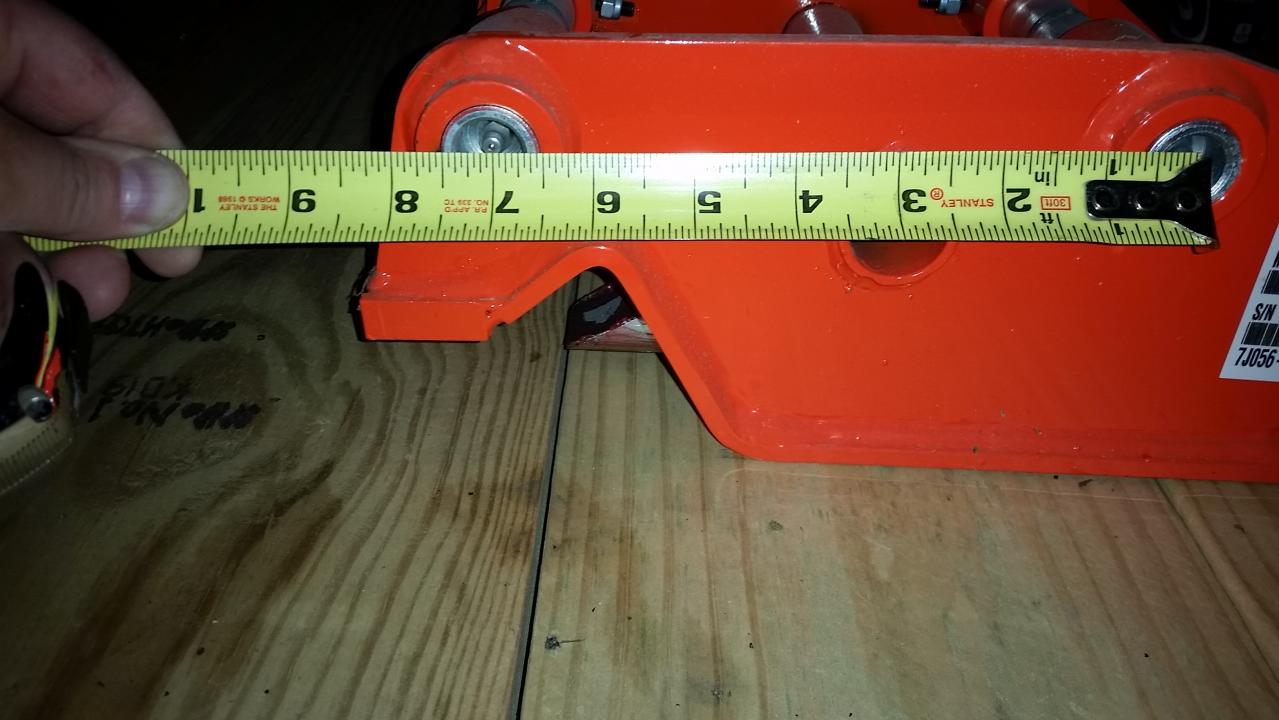

Pin spacing is 7"
Pin diameter is 1"

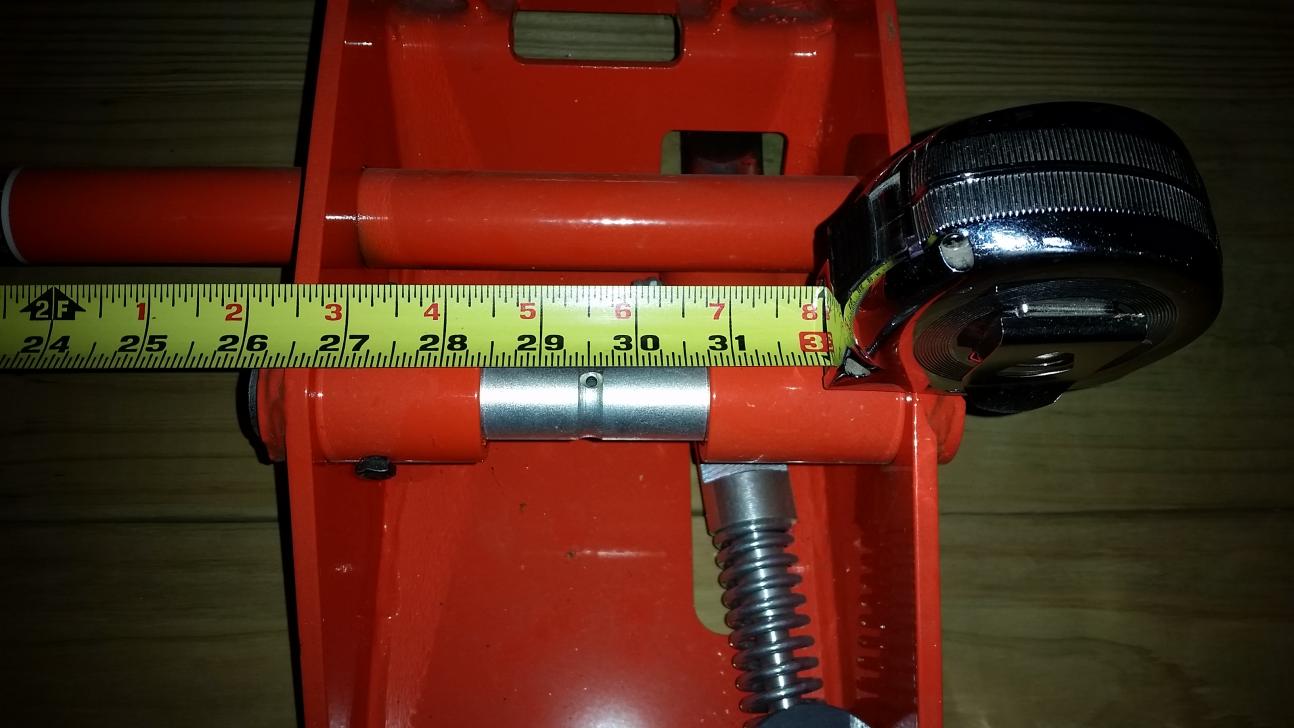

Center of loader cylinders is 29.5"

This unit is brand new. $450 includes shipping to you in the US48.

Feel free to contact me by PM, ask for phone# if you would like to talk.


Attachments

Last edited:

rtgt

New member

Equipment
B3200
Jul 30, 2015
96
0
0
Kentucky

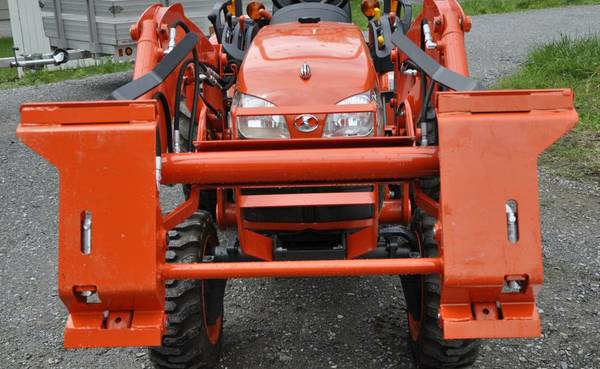

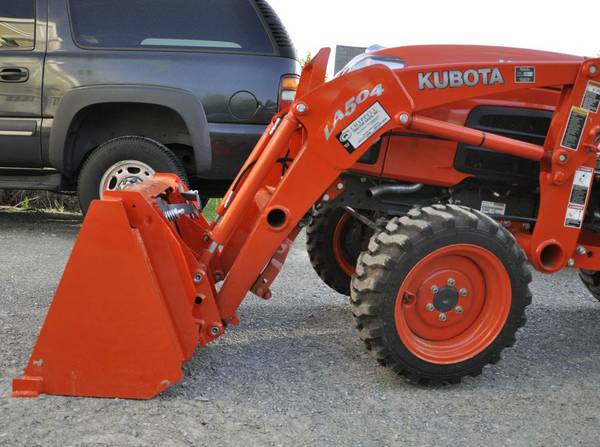

It will also fit on the B3200/LA504 loader.

I just put one on mine a little while ago.


Chris H.

New member

Equipment
B2910/LA402, ZD326, F3060, F3680
Apr 26, 2016
10
0
1
SE MN USA
It will also fit on the B3200/LA504 loader.
I just put one on mine a little while ago.
Thanks RTGT, this will fit a lot of different models.
I used an L2230A adapter on my B2910/LA402 with the wider framed loader.


MattN03

Active member

Equipment
2011 B3200, LA504 FEL w/B2366 SSQA conversion, BH76 BH, EA Wicked 55
Sep 5, 2016
217
37
28
KY
Did it fit right up or did you have to shim the pins with washers on the LA504 Loader?
I've done this conversion to my LA504 loader too. It's a direct bolt on/swap. No shims or modifications need to be done to the loader.

  • Like
Reactions: 1 user

JIMMI

New member

Equipment
B3200, LA504 loader
Jun 4, 2022
2
0
1
Lewiston
I've done this conversion to my LA504 loader too. It's a direct bolt on/swap. No shims or modifications need to be done to the loader.
Perfect - Thank You
What did you do for the bucket? Did you weld a plate onto your existing bucket or did you buy another SSQA bucket? Also any issues with clearance after installing the loader adapter to the LA504 when moving the bucket itself. I had read there were some clearance issues on some model loaders after installation. Just got B3200 my tractor last week and the first thing I am doing is converting my pin on bucket to SSQA. Thanks in advance for all of your comments/help with this conversion


MattN03

Active member

Equipment
2011 B3200, LA504 FEL w/B2366 SSQA conversion, BH76 BH, EA Wicked 55
Sep 5, 2016
217
37
28
KY
Perfect - Thank You
What did you do for the bucket? Did you weld a plate onto your existing bucket or did you buy another SSQA bucket? Also any issues with clearance after installing the loader adapter to the LA504 when moving the bucket itself. I had read there were some clearance issues on some model loaders after installation. Just got B3200 my tractor last week and the first thing I am doing is converting my pin on bucket to SSQA. Thanks in advance for all of your comments/help with this conversion
I bought a weld on plate from Everything Attachments for the factory bucket. I have no clearance issues with the loader adapter. It has worked well.
