2019 Kubota rtv 900x oil drain locations

[dom088]

Hello all,
I am looking to see if you can guide me to the locations of the drain locations for oil on my rtv.

I got a rock stuck between the back plate and the yellow oil filter (I believe the hydraulic filter) and it is now leaking at that filter.


Does anyone have a manual that shows the drain locations. Also when changing that filter out do I need to do anything specific to get air out of the system?

Also it looks like I must use the Kubota super udt2 oil rather than a alternative oil? What is the other oil filter behind the yellow one?

Thanks for the help!



[Bee-Positive]

Hello all,
I am looking to see if you can guide me to the locations of the drain locations for oil on my rtv.

I got a rock stuck between the back plate and the yellow oil filter (I believe the hydraulic filter) and it is now leaking at that filter.


Does anyone have a manual that shows the drain locations. Also when changing that filter out do I need to do anything specific to get air out of the system?

Also it looks like I must use the Kubota super udt2 oil rather than a alternative oil? What is the other oil filter behind the yellow one?

Thanks for the help!

The air will work itself out, fill to the marks on the dip stick. Run the engine to fill the new filter then recheck dip stick level.
Use Super UDT2
"other oil filter"??? Pictures would help.

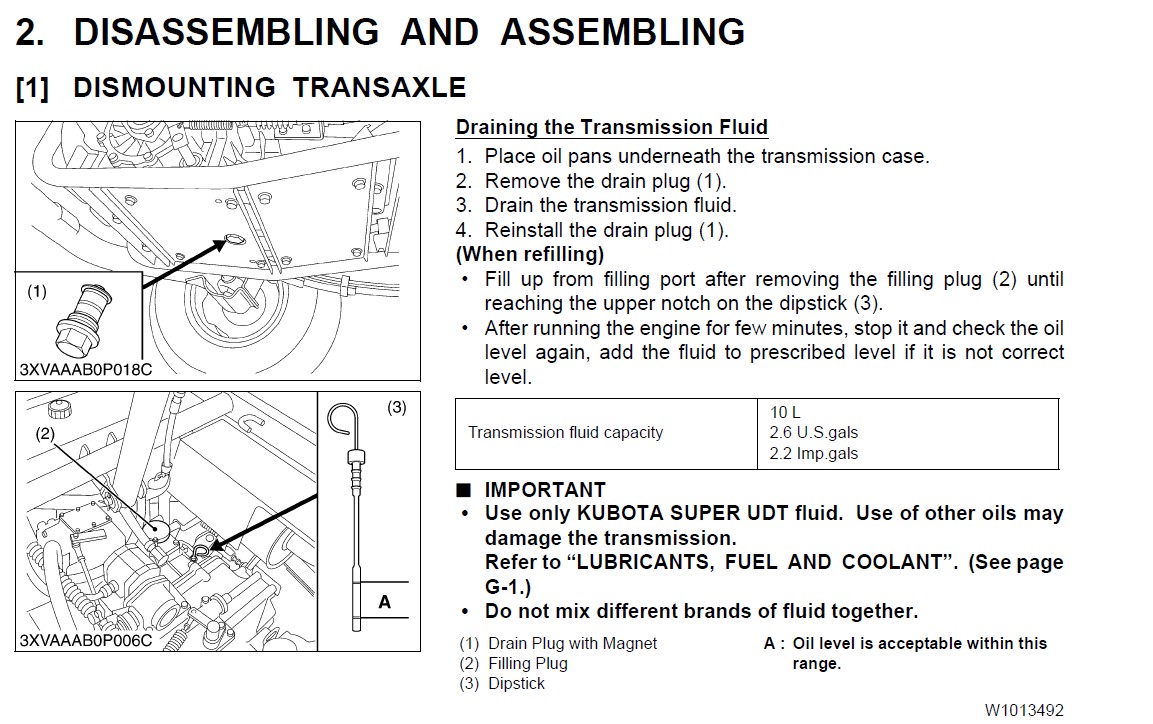

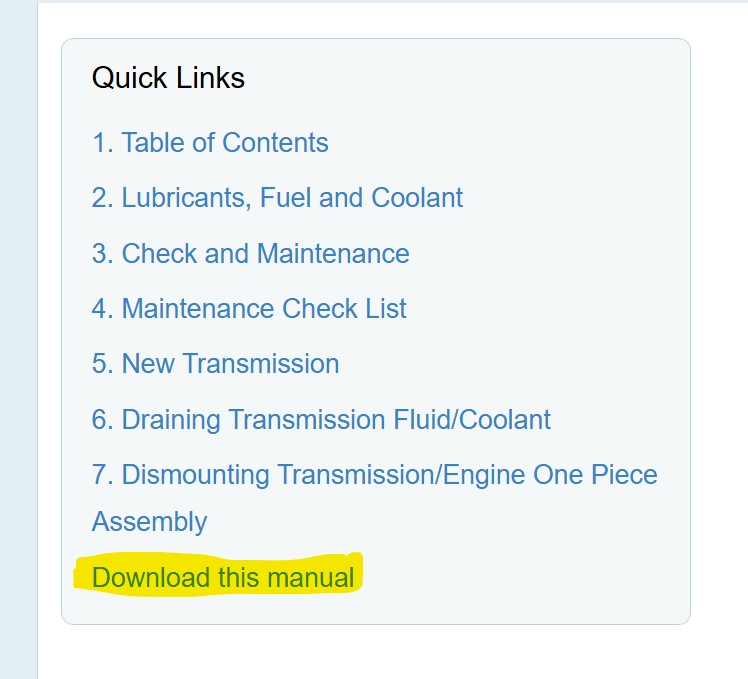

You can get the manual here:

KUBOTA RTV 900 WORKSHOP MANUAL Pdf Download

View and Download Kubota RTV 900 workshop manual online. RTV 900 utility vehicle pdf manual download.

www.manualslib.com



[dom088]

Thanks for the information.
The yellow one is for the hydraulic oil, correct?

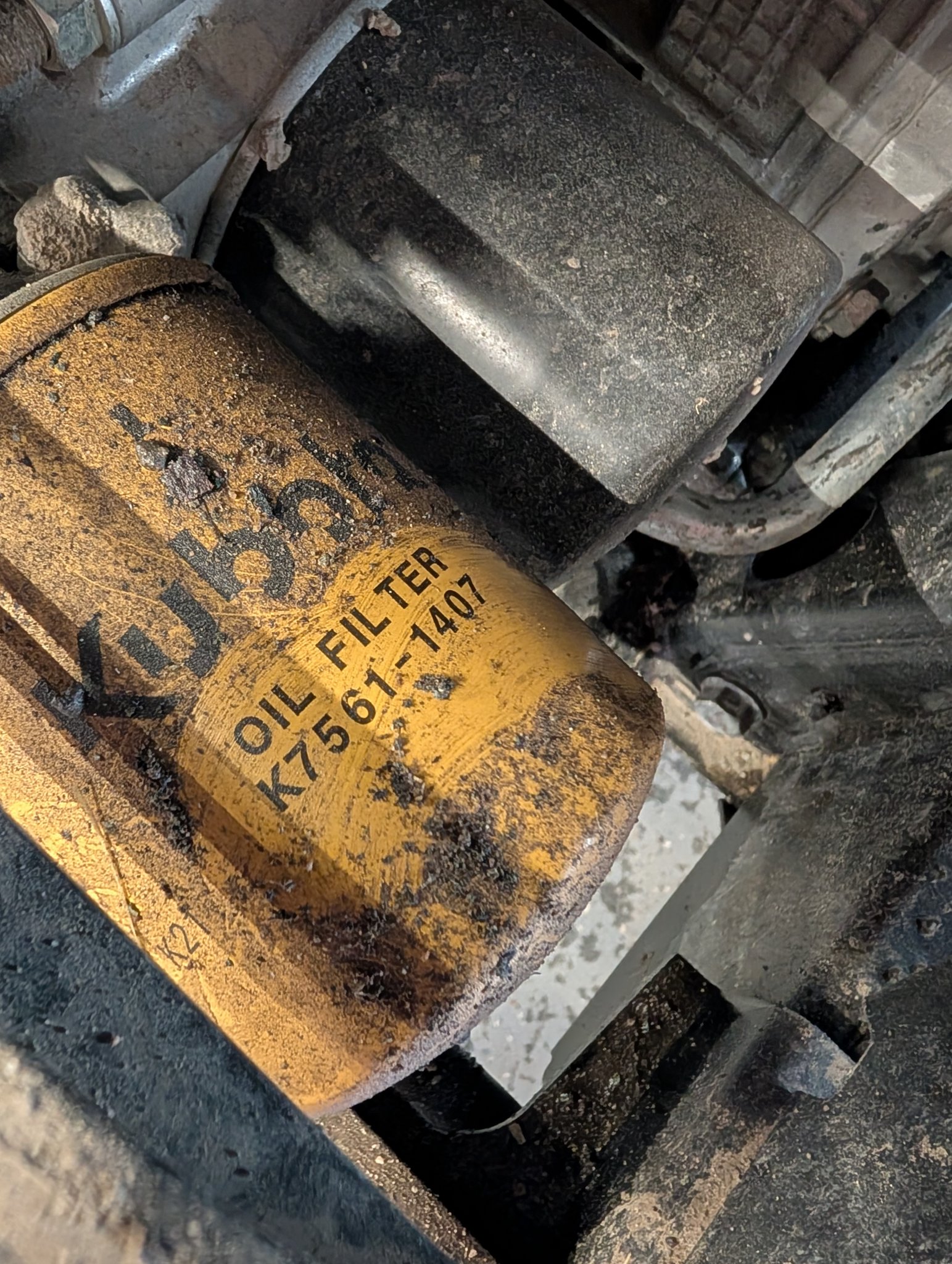

Here is a pic of both filters. Yellow and black



[Bee-Positive]

I don't own an ATV so I'm taking an uneducated guess.
The smaller black one looks like it's for the engine oil.
The bigger yellow one looks like it's for the transmission.
The WSM should guide you.



[JasonW]

Do you have the owners manual? 2nd hit on google has a free operators manual.

Yes yellow is hydraulic filter and black is engine oil filter.
