As anyone who owns one knows, the parking brake on the B7100 leaves much to be desired. It consists of a 5/16" rod that lays on the floorboard- push down the brake pedal, lift the rod, release the pedal, & the teeth at the end of the rod hold the brake pedal in the down position. Works OK, but it's hard to pick up the rod, & it's a long reach. Not readily apparent if the brake is engaged, either.

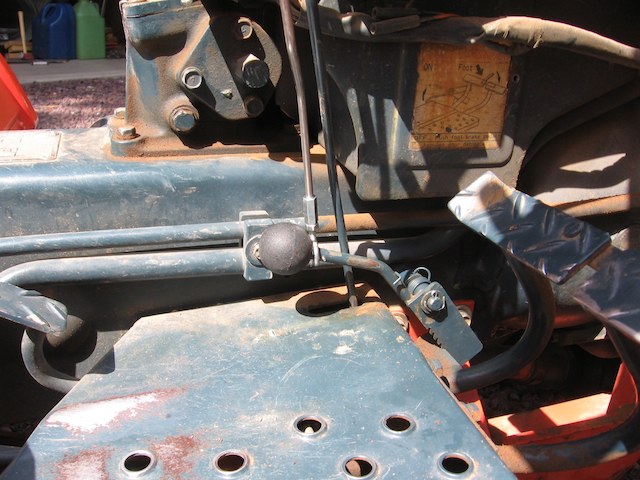

My first mod was to pull the rod off & chase a 5/16"-18 thread on the end so I could screw on a 1 1/8" ball knob. (pic #1) This was a big improvement, as it lifted the rod off the floorboard & gave you more to grab on to.

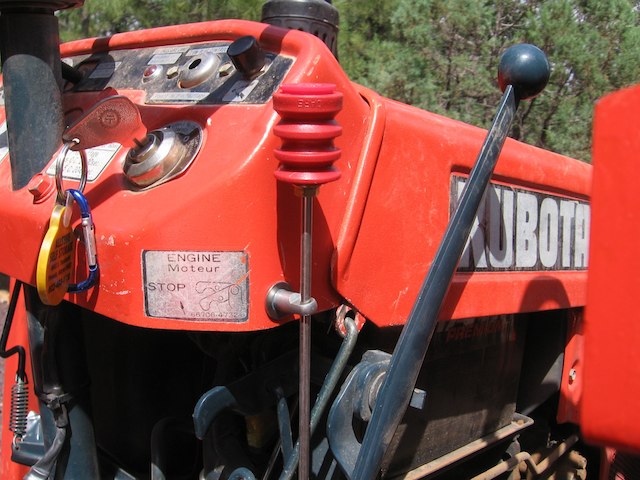

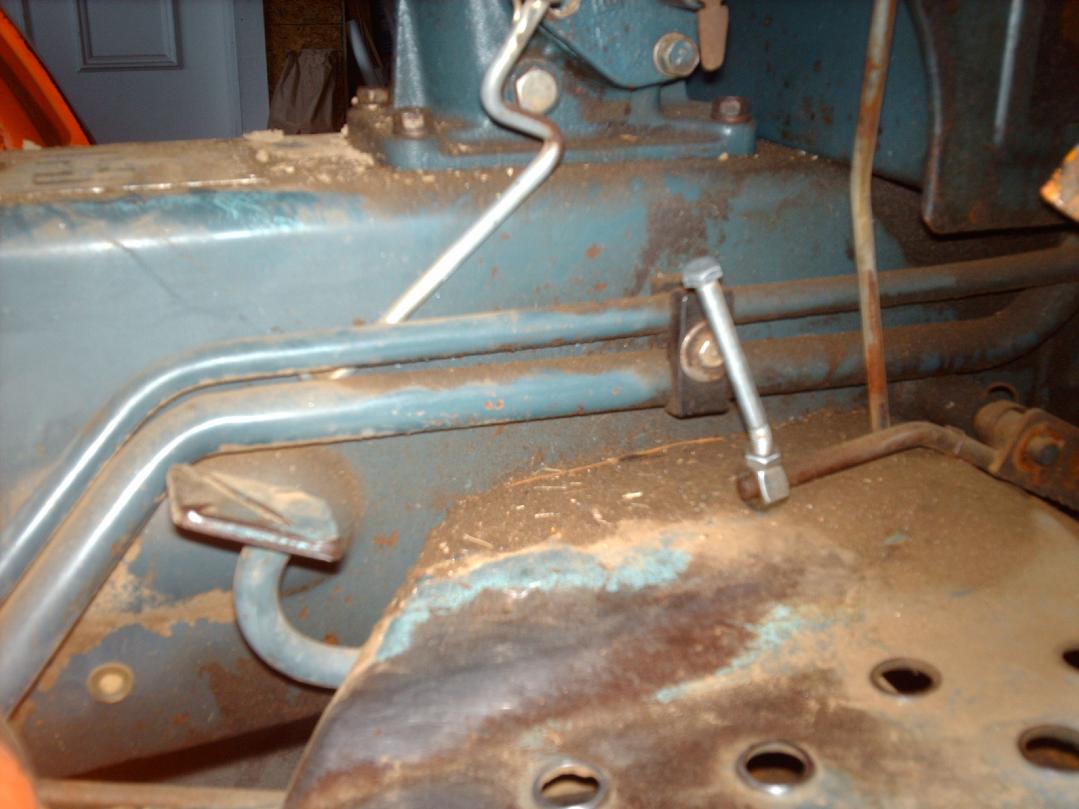

The next mod was to add a rod & knob setup at the dash level- bigger improvement. (rest of the pics) Just bent & threaded a 3/16" SS rod, attached an eyebolt at one end & a knob at the other, drilled one 1/4" hole in the dash, and assembled it.
I also drilled a 1/16" hole & pressed in a 1/16" roll pin to keep the eyebolt from walking too far forward on the rod.
Works great, much easier to use, & now it's obvious when the brake is engaged. Most importantly, the wife likes it better!
Zero cost, everything was laying around the shop.
P.S.- the rod looks close, but does not interfere with the hand throttle, hood latches, stop rod or anything else.
