Transmission lever function

Shaneb

New member

Equipment
Kubota B7100E
Jan 22, 2022
5
0
1
64671

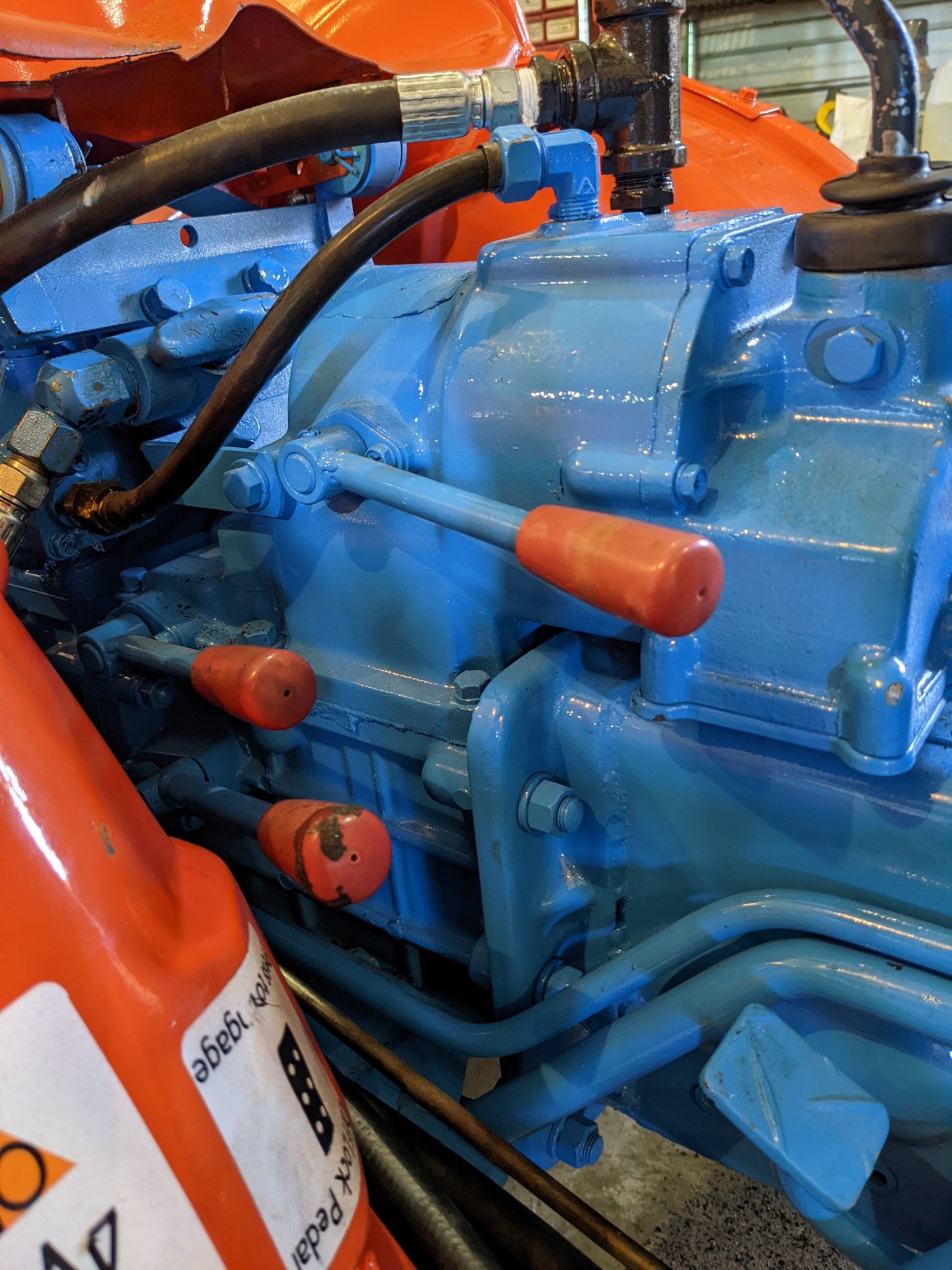

What is the function of the top orange lever in the picture. Bottom is 4x4 next up is high and low and top is?


85Hokie

Well-known member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
9,015
1,070
113
Bedford - VA
Never seen that application - but this is a SWAG - seems that you have aux hydraulics for something else you are using, that lever seems to control the flow or direction of the fluid. Are those for rear hydraulics?

Can you take a picture by pulling away a bit ? Show more of the tractor, it may help determine what specifically that does.


Shaneb

New member

Equipment
Kubota B7100E
Jan 22, 2022
5
0
1
64671
Never seen that application - but this is a SWAG - seems that you have aux hydraulics for something else you are using, that lever seems to control the flow or direction of the fluid. Are those for rear hydraulics?

Can you take a picture by pulling away a bit ? Show more of the tractor, it may help determine what specifically that does.
The hydraulic hose on top is just a return from the hydraulic valve for the dozer. It seems to have 3 positions and definitely seems to have something to do with the transmission, it feels like it's shifting something. It has no effect on any speed or direction or the rear pto. It doesn't have a front pto that I can tell.


Attachments

Shaneb

New member

Equipment
Kubota B7100E
Jan 22, 2022
5
0
1
64671
The hydraulic hose on top is just a return from the hydraulic valve for the dozer. It seems to have 3 positions and definitely seems to have something to do with the transmission, it feels like it's shifting something. It has no effect on any speed or direction or the rear pto. It doesn't have a front pto that I can tell.
I thought at first it may be a creeper gear.


85Hokie

Well-known member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
9,015
1,070
113
Bedford - VA
Digging a little deeper ............. that should have a speed control , MUCH like a creeper gear


85Hokie

Well-known member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
9,015
1,070
113
Bedford - VA

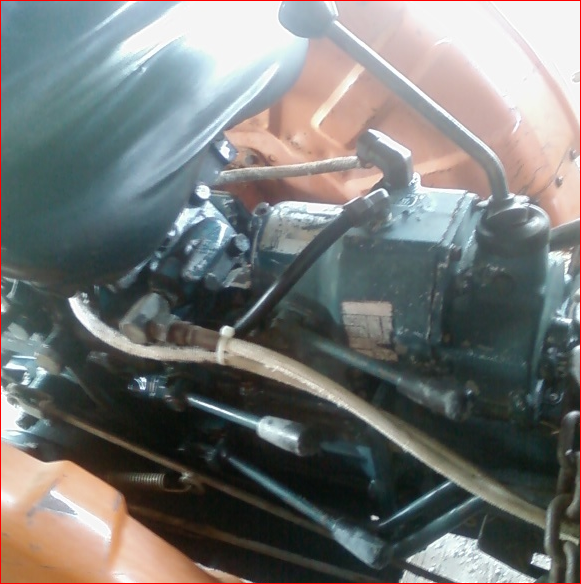

similar set up......



007kubotaguy

Active member
Lifetime Member

Equipment
B7100DT L245DT JD 2355
Dec 23, 2012
388
26
28
Herald Calif.
That is a creeper gear set up. Normally installed when using a trencher. These were installed by the dealer on the early B7100. The original transmission cover was removed and this unit was installed.


Shaneb

New member

Equipment
Kubota B7100E
Jan 22, 2022
5
0
1
64671
That is a creeper gear set up. Normally installed when using a trencher. These were installed by the dealer on the early B7100. The original transmission cover was removed and this unit was installed.

That's very interesting, it definitely seems to have NO effect on the speed, I've shifted it while moving, definitely feels like gears but no clashing. I'll mess with it some more when I get it going again. Rewiring it now. Thanks for all the replys!!!!!!


MapleLeafFarmer

Active member

Equipment
Lots incl. B and L kubotas
Dec 2, 2019
186
102
43
E.
I have a copy of the owners / users manual for this tractor but trying too attach says too big. 8mb I could send by e-mail I guess just let me know,
If I remember right the highest lever is an add-on after market on-off for hydro circuit.


Attachments

kubotafreak

Active member

Equipment
GRAND l6060, L3560, B6100, gr2100, tg 1860, g1800, g1900, g2160
Sep 20, 2018
747
222
43
Arkansas, US
My b6100 has a lever like that for 4wd engagement. Granted its in a lower spot...
