To float or not.

RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
So when I ordered up my L2501 with a TNT and box scraper I expected a Spring Center valve (L7231A) for the top link control and the Float Detent (L7232A) for the tilt. Without notice, I received the Float Detent valves for both rear remotes. Is this a problem for operating the box scraper (or anything else, for that matter) or is it a benefit?

-Randy


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
6,667
3,213
113
Myersville, MD
windyridgefarm.us
So when I ordered up my L2501 with a TNT and box scraper I expected a Spring Center valve (L7231A) for the top link control and the Float Detent (L7232A) for the tilt. Without notice, I received the Float Detent valves for both rear remotes. Is this a problem for operating the box scraper (or anything else, for that matter) or is it a benefit?

-Randy
Float is just a fourth position. You only use it if you want to. Otherwise the valve operates just like a spring center without float.

Dan


Tropical Jack

Active member

Equipment
Kubota L3301 w/ FEL & BH, tilt and trim, chipper, box blade, grading blade
I have float on both valves. I find it to be a benefit (providing that your cylinders do not have check valves), especially with my box blade and scraper blade.

Jack


Chad D.

Active member
Sep 21, 2019
233
111
43
Eugene
I’m in the opposite boat. I have a float detent on the valve for my top link, but never use it. Never, ever. I believe I may be in the minority on that , but it’s just not my cup of tea.
I’ve since added a check valve because my valve wouldn’t fully hold my cylinder in place over time. Now my float doesn’t do anything…

  • Like
Reactions: 1 user

RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
I have used the top and tilt / box blade a few times on my dirt road. One thing that I find is that the top control will only level the box blade and not angle backward just a couple inches more in order to use the back blade to drag and smooth out the dirt. Short of having a longer hydraulic arm is there some way to set this up so it can do what I want it to do? I have the telescopic stabilizers also, if that makes a difference.

-Randy


MtnViewRanch

Active member
Oct 10, 2012
714
169
43
Lakeside Ca.
I have used the top and tilt / box blade a few times on my dirt road. One thing that I find is that the top control will only level the box blade and not angle backward just a couple inches more in order to use the back blade to drag and smooth out the dirt. Short of having a longer hydraulic arm is there some way to set this up so it can do what I want it to do? I have the telescopic stabilizers also, if that makes a difference.

-Randy
Try the top pin location on the tractor if you have not already.
It seems like you need a longer top link. Do you have Pat's QH on your draft arms?
Very common to have this issue with the Pat's.

  • Like
Reactions: 1 users

RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
Try the top pin location on the tractor if you have not already.
It seems like you need a longer top link. Do you have Pat's QH on your draft arms?
Very common to have this issue with the Pat's.
The instructions state the top link should be on the bottom hole for the box grader but the top link came to me attached to the top hole. I do not have Pat's QH.

-Randy


RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
Looking like you need a different working length.
I typically provide a 20"-29" working length for the L2501 tractors.
I have not had any complaints yet.
I'll check the working length. The TNT manual states top hole of the 3PH for the link.... Tractor manual states bottom for the top link when using the box grader. Without me changing the current set-up do you think that would make any difference?

Thanks.

-Randy


MtnViewRanch

Active member
Oct 10, 2012
714
169
43
Lakeside Ca.
You will gain some length simply because the top link is at less of an angle when in the top pin location.
It works better for grading also IMO. But no it is not going to get you enough length to not get a different working length IMO.

Good luck. (y)

  • Like
Reactions: 1 user

RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
You will gain some length simply because the top link is at less of an angle when in the top pin location.
It works better for grading also IMO. But no it is not going to get you enough length to not get a different working length IMO.

Good luck. (y)
Working length of my top hydraulic link is 18" - 26". Another couple inches more would be nice but probably can't justify the $$$ for another new link. Will see after the grading season is over.

Thanks for the input.

-Randy


Tropical Jack

Active member

Equipment
Kubota L3301 w/ FEL & BH, tilt and trim, chipper, box blade, grading blade

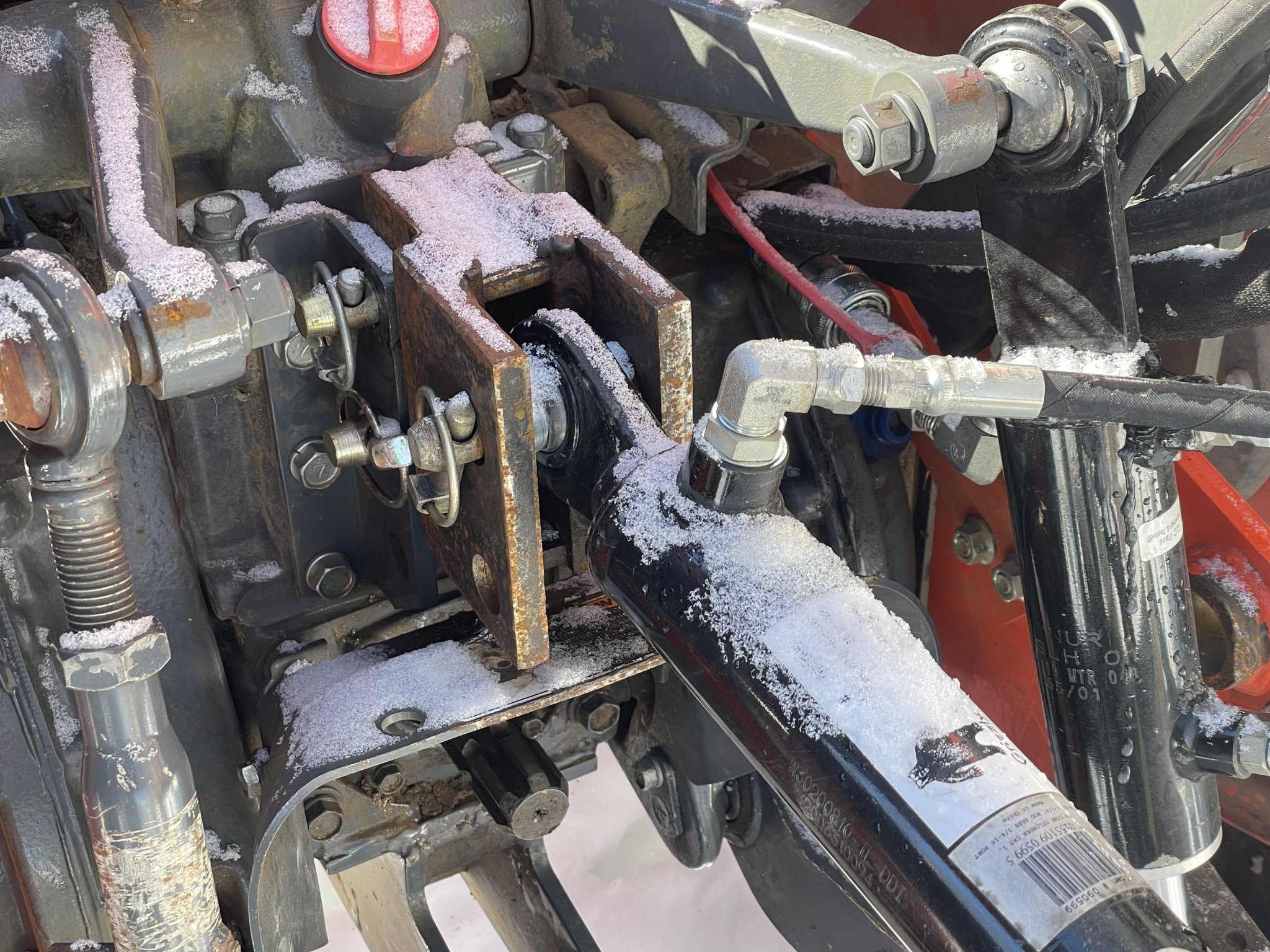

I had the right length hydraulic top link until I got a “Pat’s Quick Hitch”. Then I was about 3” short. So I made an “extender”.

Jack

  • Like
Reactions: 1 user

RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
I had the right length hydraulic top link until I got a “Pat’s Quick Hitch”. Then I was about 3” short. So I made an “extender”.

Jack View attachment 98459
I was thinking this would be the answer. But first,,,,,

What I would like to see is a picture of someone's L2501 (or similar height model) with the stock Kubota TNT kit (#L8388A) and a box blade then zero in on the blade heights when the blade is on the level ground and the top link cylinder is fully extended and also fully retracted.

So if anyone with a L2501, L8388A TNT, and box blade is reading this see the above paragraph.

Thanks!

-Randy

  • Like
Reactions: 1 user

Vigo

Well-known member

Equipment
B6100, B8200
Jan 9, 2022
595
339
63
San Antonio Texas
I'll check the working length. The TNT manual states top hole of the 3PH for the link.... Tractor manual states bottom for the top link when using the box grader.
With a regular top link that will help you empty the box because it will tilt it forward as it raises, which will 'dump' the box forward a little by raising the rear, making it easier to get the load out and also more likely to clear it without dragging the top back off the pile you just dropped.

I run my power top link in the bottom hole because i generally have more desire for forward tilt than rearward tilt. But i agree that it would suck to not be able to lean the box blade back enough to use the back blade like i wanted to for smoothing.

You can always modify the cylinder you have to make it a bit longer, or you could build a 'spacer' as shown above, or weld an extension onto the box blade itself as well. Multiple ways to deal with it that don't dictate totally replacing your cylinder. But they do all require cutting and welding.

  • Like
Reactions: 1 user

RandyBuxton

Member

Equipment
L2501 (FEL, 66" bucket, Top And Tilt, BB2560 Box Scraper)
Mar 4, 2023
14
33
13
Breen, CO
With a regular top link that will help you empty the box because it will tilt it forward as it raises, which will 'dump' the box forward a little by raising the rear, making it easier to get the load out and also more likely to clear it without dragging the top back off the pile you just dropped.

I run my power top link in the bottom hole because i generally have more desire for forward tilt than rearward tilt. But i agree that it would suck to not be able to lean the box blade back enough to use the back blade like i wanted to for smoothing.

You can always modify the cylinder you have to make it a bit longer, or you could build a 'spacer' as shown above, or weld an extension onto the box blade itself as well. Multiple ways to deal with it that don't dictate totally replacing your cylinder. But they do all require cutting and welding.
Cutting and welding I can do and most likely will. Thanks.
