Summit 3rd function on LX2610

Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
This will not be a @bird dogger write up! Just some small changes from the B50 to the LX.
I do not have a backhoe, but do have 2 rear remotes.

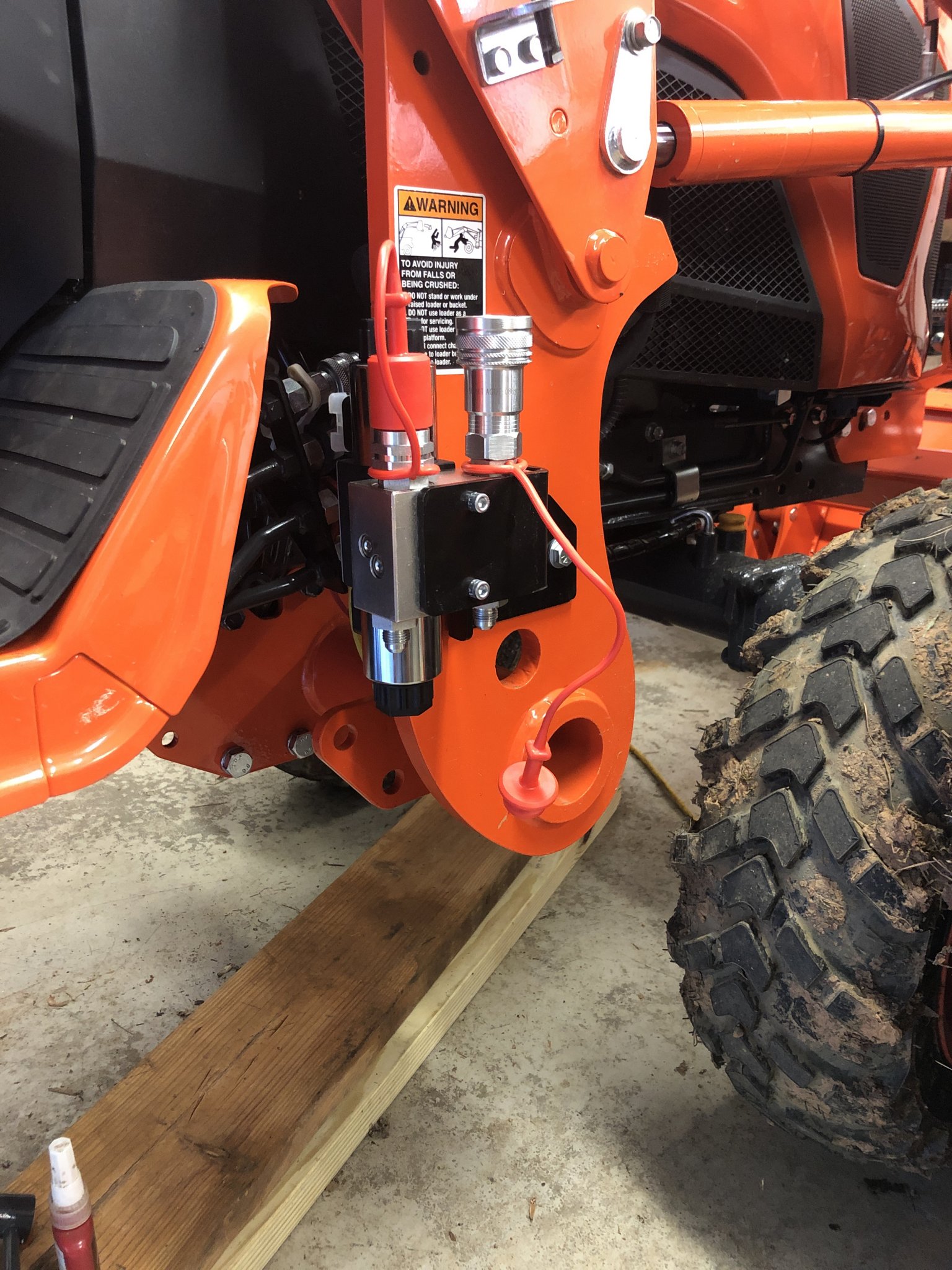

Valve mounts to loader upright and the PB line same as the B50.

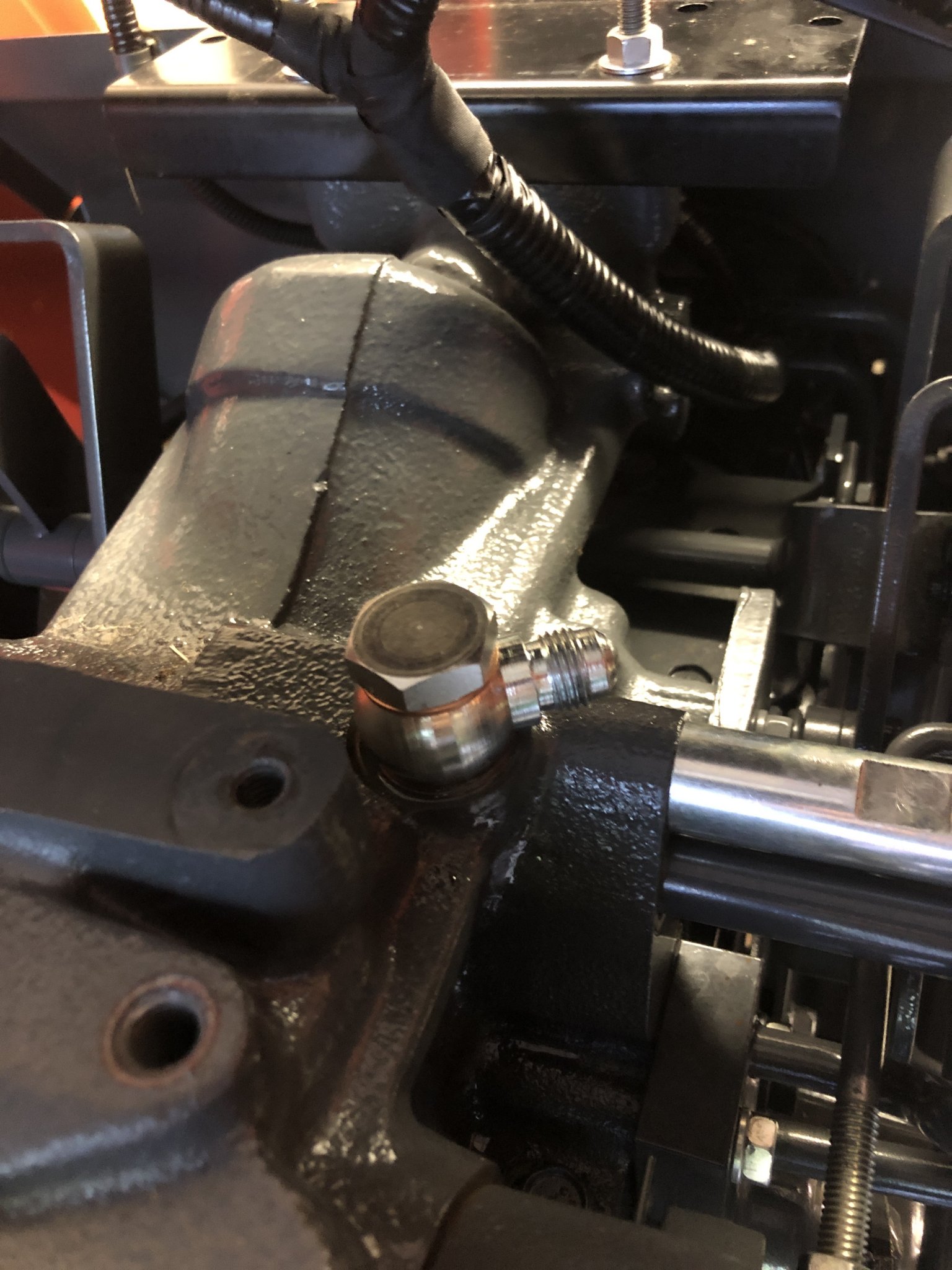

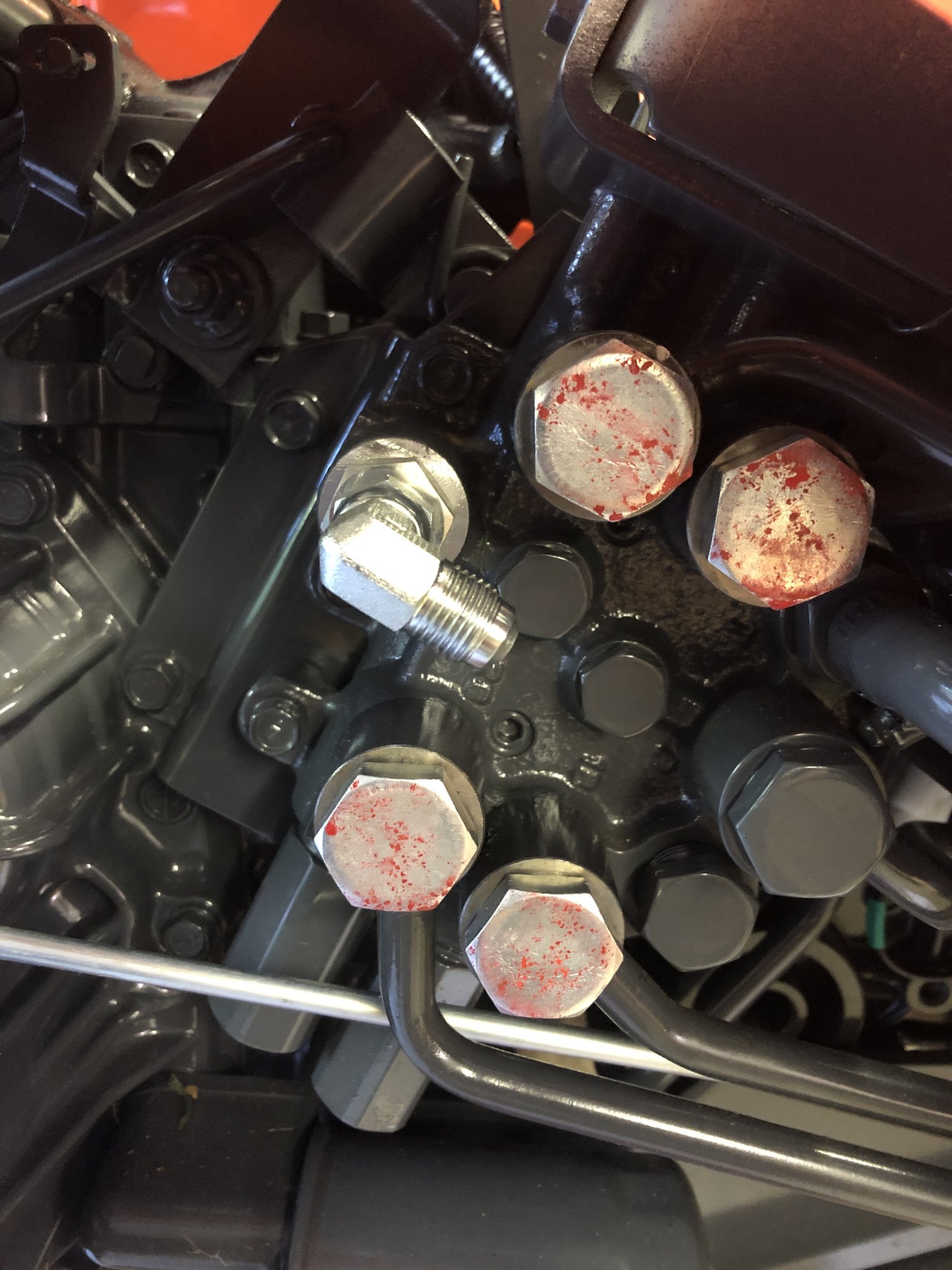

The return to tank has a banjo instead of adapter and 90. And since it is a banjo, you do not have to remove the seat tray bolt. But it does give you a bit more room. You can see the remote piping in this picture.



Last edited:

Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
I added 3 more 3/8 jic 90’s, to tuck the hoses up. Will make some type of guard for the solenoids and my double 90 fitting.

That is pretty much it. I followed @bird dogger thread and it was pretty easy, minus wrestling the loaded rear tire off!

Last edited:
  • Like
Reactions: 1 user

Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
Will hopefully get the loader hoses installed as well as my clamp, tomorrow. Pictures to follow.


Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
Got the clamp installed and hoses ran. Will order some hose cover soon.


All in all, a pretty simple install. Will zip tie as needed once I get the protective covering on all hoses.

Have to get some female wire connections to finish up the wiring. Tapped into the key power hot wire and am running to a switch on dash to energize system. May need to change that to the run side of switch, I’ll see if it has a draw or drains battery.

  • Like
Reactions: 1 user

bird dogger

Active member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
519
115
43
North Dakota
Nice job, Matt! Especially the double 90° fittings on the valve. that really gets the hoses up out of the way.
david

  • Like
Reactions: 1 user

bird dogger

Active member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
519
115
43
North Dakota
Was there any doubt? :)
Now, before you get too carried away with using the grapple, you should think about fabricating a grill guard with some expanded metal. That brush has a way of sticking through the back side of the grapple and could punch a hole in your new grill.

  • Like
Reactions: 1 users

Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
Was there any doubt? :)
Now, before you get too carried away with using the grapple, you should think about fabricating a grill guard with some expanded metal. That brush has a way of sticking through the back side of the grapple and could punch a hole in your new grill.
Sorta. Lol.

I am already thinking of a better guard. I should be ok for now, as I have a lot of larger logs to move. Trees I've dropped, burned the tops, but couldn’t(didn’t want to) move the logs by hand.

  • Like
Reactions: 1 user

Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia

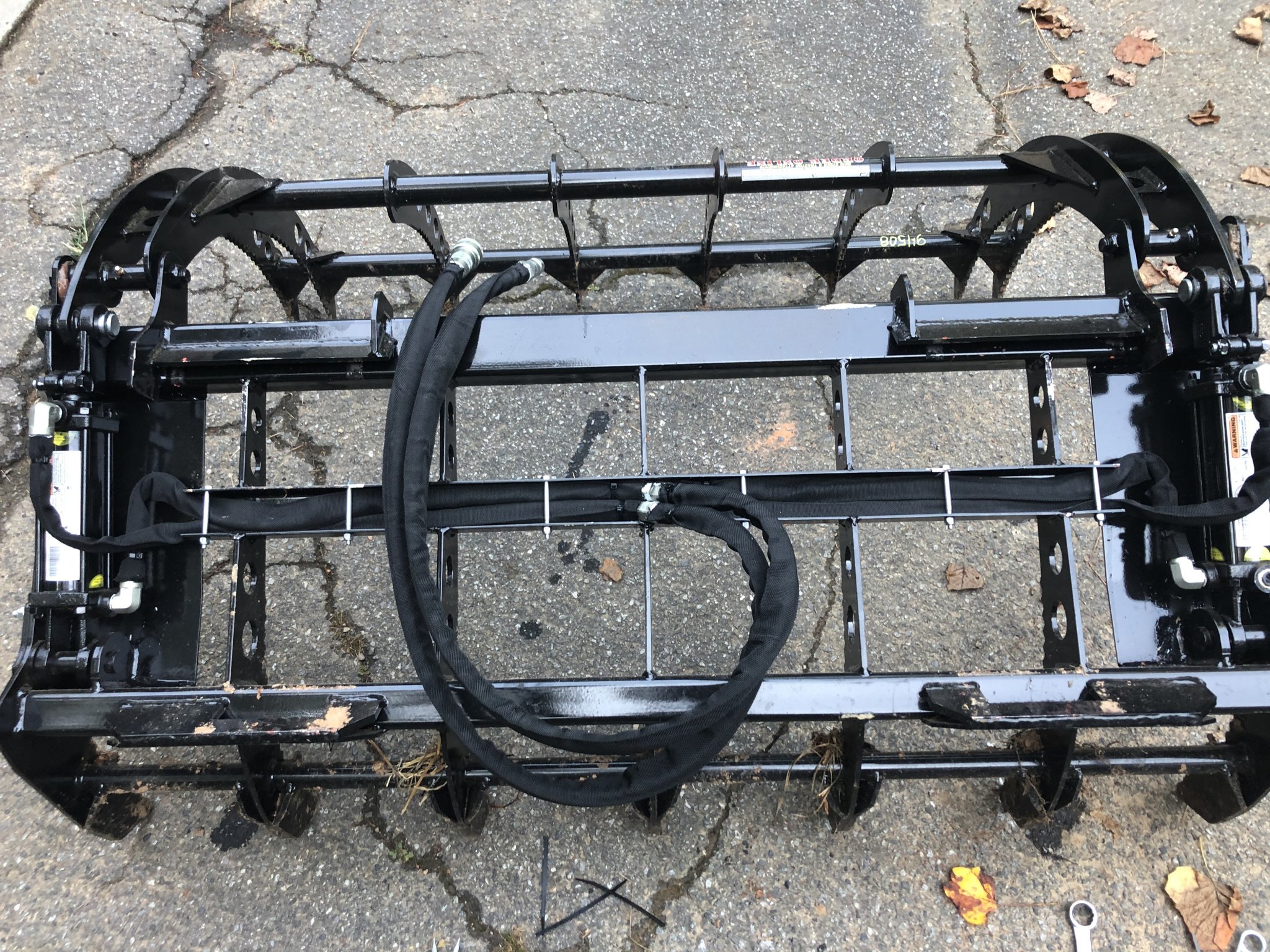

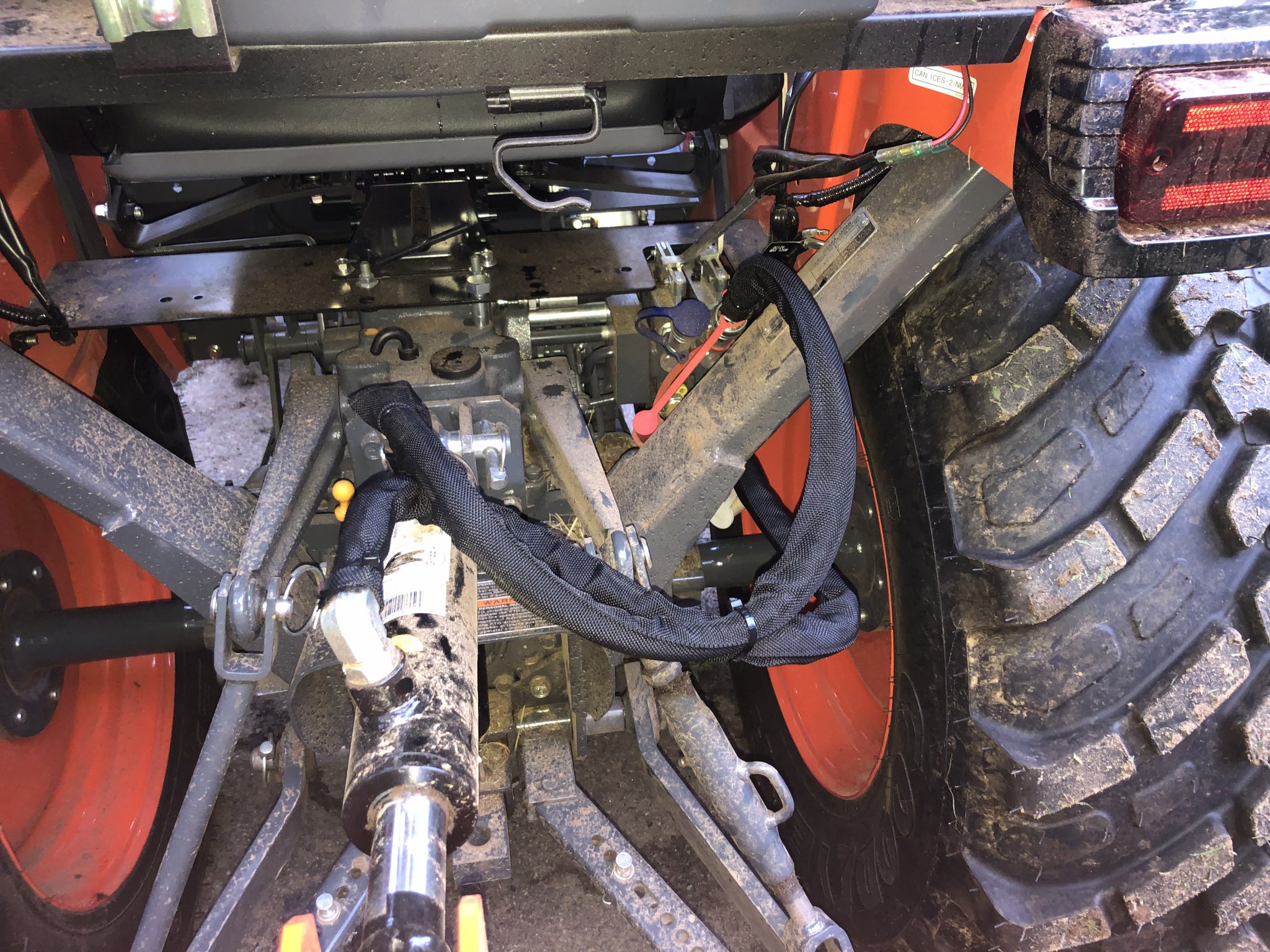

Got all of my hoses covered. Ordered 2 25’ 1’ID rolls. Have enough left over to do the tilt hoses if I decide to add that later on.

  • Like
Reactions: 1 users

bird dogger

Active member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
519
115
43
North Dakota
Very nice! Now you've made me want to go out and cover my grapple hoses right away! I was going to wait til later this fall. LOL!!
david

  • Like
Reactions: 1 user

Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
Very nice! Now you've made me want to go out and cover my grapple hoses right away! I was going to wait til later this fall. LOL!!
david
Shoulda been that way from the factory. I don’t like the very sharp bend in the lower hose either. If one pops, I will hard line into the “channel” and connect hose there.


Chad D.

Member
Sep 21, 2019
99
15
8
Eugene
Shoulda been that way from the factory. I don’t like the very sharp bend in the lower hose either. If one pops, I will hard line into the “channel” and connect hose there.
This will not be a @bird dogger write up! Just some small changes from the B50 to the LX.
I do not have a backhoe, but do have 2 rear remotes.

Valve mounts to loader upright and the PB line same as the B50.

The return to tank has a banjo instead of adapter and 90. And since it is a banjo, you do not have to remove the seat tray bolt. But it does give you a bit more room. You can see the remote piping in this picture. View attachment 46089
View attachment 46090
View attachment 46091
Would sure be sweet if there was a part number for that banjo fitting on the 3-pt inlet... others have had to modify pieces to get that fitting. Do you have anything that would help direct anyone that needs that piece?


Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
Would sure be sweet if there was a part number for that banjo fitting on the 3-pt inlet... others have had to modify pieces to get that fitting. Do you have anything that would help direct anyone that needs that piece?
Let me email summit hydraulics for the parts list. I bet it’s on there and will cross, or be the same number at hydraulichoses.com


bird dogger

Active member
Lifetime Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
519
115
43
North Dakota
Shoulda been that way from the factory. I don’t like the very sharp bend in the lower hose either. If one pops, I will hard line into the “channel” and connect hose there.
Matt, I used my grapple yesterday and only the hoses from the middle connection to the quick couplers are protected by sheaths. EA must have been running low on hose protector sheathing when they built my grapple. :oops: Otherwise, the hose routing looks identical to yours.....somewhat sharp bends and all.

Here are the updated install instructions. #6,7 and 8 are the pieces that return to tank under the seat.
I would suggest adding a few more #4 90* to the order, to tuck the hoses up better.
The updated instructions are a little better on the parts identification, at least. Still would be nice if they'd add a few more pictures along the way during the installation.

david


Matt Ellerbee

Active member

Equipment
LX2610 EA grapple, 5' LP cutter and box blade
Jun 27, 2019
160
76
28
Canton, Georgia
Matt, I used my grapple yesterday and only the hoses from the middle connection to the quick couplers are protected by sheaths. EA must have been running low on hose protector sheathing when they built my grapple. :oops: Otherwise, the hose routing looks identical to yours.....somewhat sharp bends and all.



The updated instructions are a little better on the parts identification, at least. Still would be nice if they'd add a few more pictures along the way during the installation.

david
I added all of the hose cover on mine. Atleast you got some!

I agree, that instruction sheet is by far better than what I was sent!
I sent Patrick my picture with the double 90* fittings and a suggestion to include or give the option to buy more. He said they may just start including them. Really seemed to like my setup.
